It's FPV Era Assembly - Body Kit Side Antenna GPS

Heyhoooo

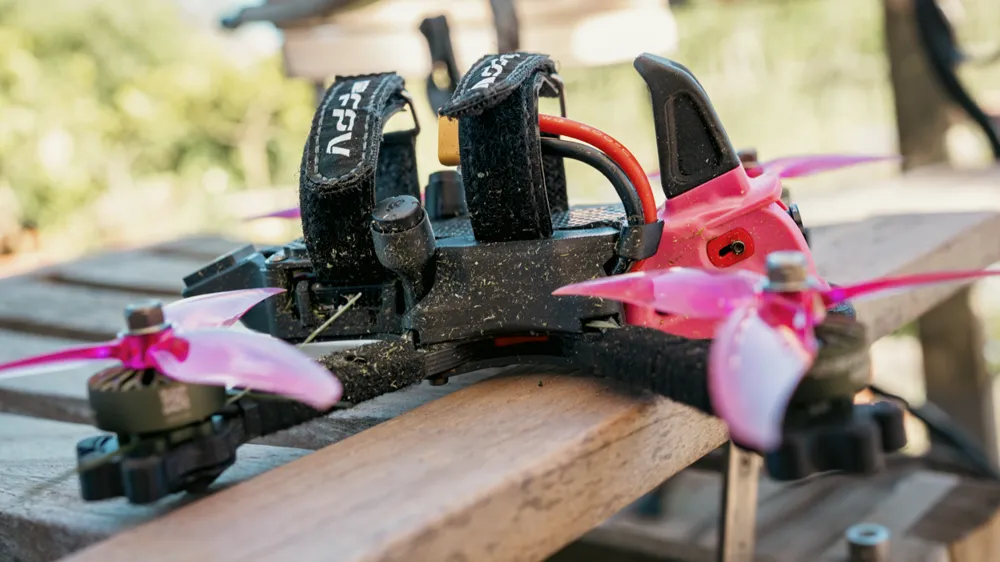

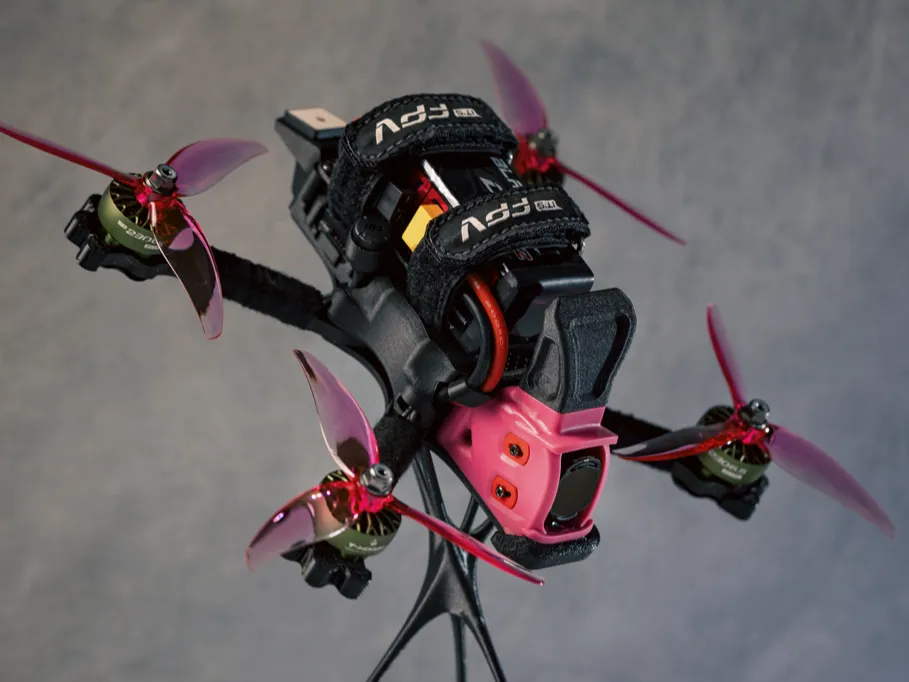

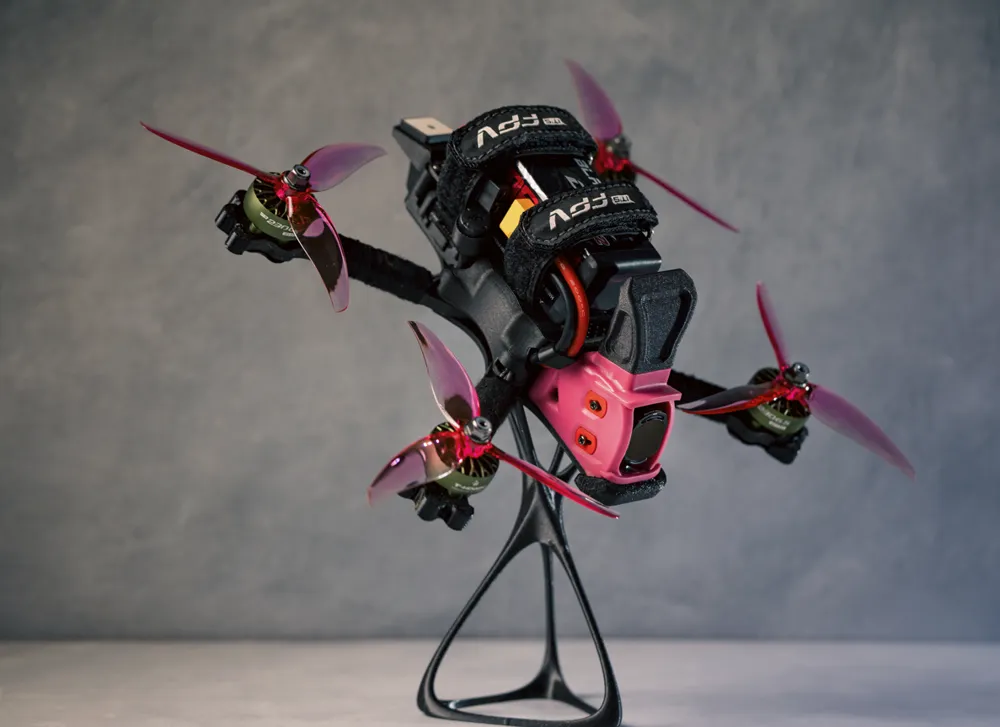

Here I have my version of the Era 5" Body kit :)

Design Ideas:

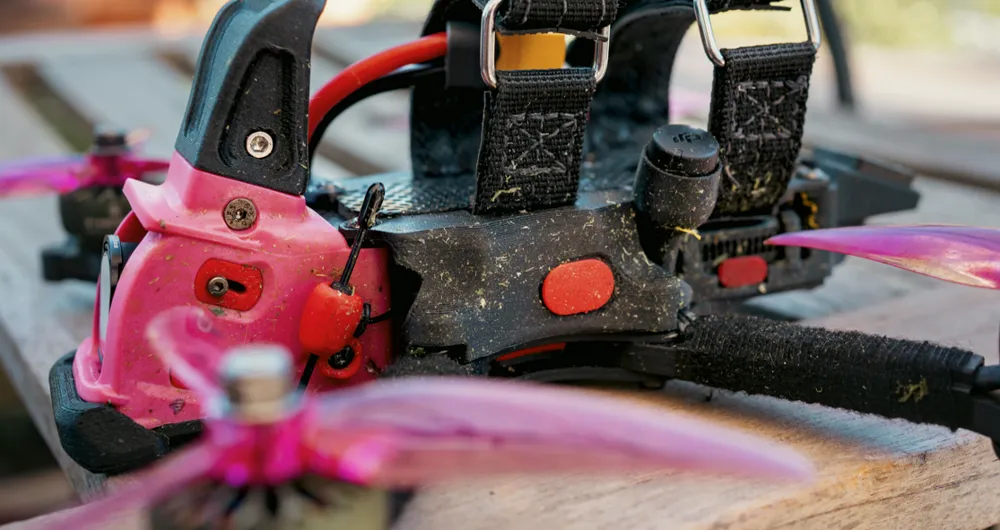

1) Side antennas to protect them better if you crash into sth.

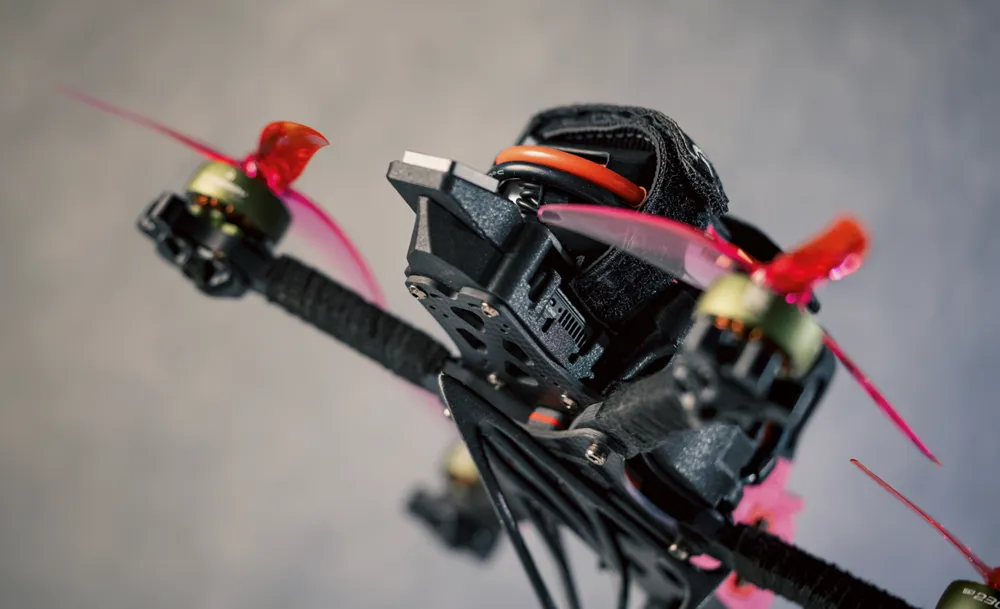

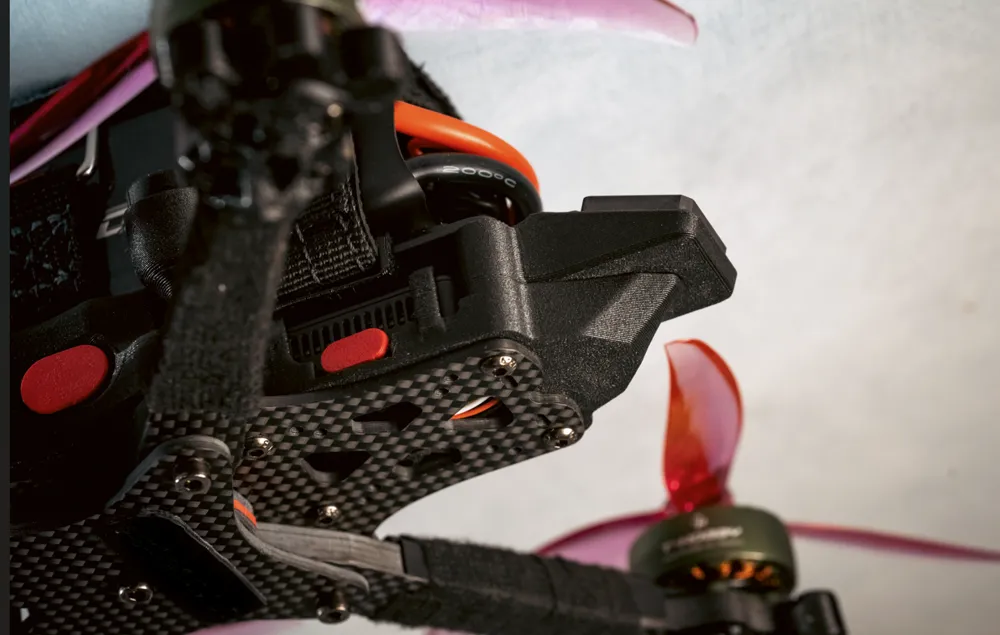

2) GPS Module/ Tail as a back protection (Modular! - You can swap them later on simply by remooving the top carbon plate)
3) Dirt protection in the electronics section. - 2 Designs with accessable USB-C Port (Hope it fits to some of your stacks!) and one with closed walls.
→ Cutouts for the O4 Antennas and Air inlets in the front to have better cooling and as a passthrough for the cables.


I really like how clean this assembly looks. Shoutout to all the designers that created the awesome parts beforehand!

Print in TPU or PA (GF)! - I used PLA supports for my Fiberlogy Mattflex TPU for a clean print.

Later I cut off the usb-c and  sd-card protection of the side antenna mount.

For the side antenna mount you will need to shorten the DJI O4 Pro antenna sleeves. Use this tool:

https://makerworld.com/de/models/2773513

Lipo Guard I used:

https://makerworld.com/de/models/2710466

Front Bumper I used:


https://www.thingiverse.com/thing:7265897

USB C Cover (cut off a little)

https://makerworld.com/de/models/432846

Have fun!



Remix basis models:

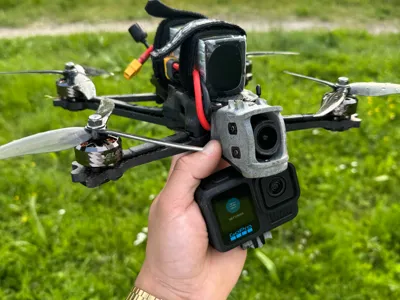

https://makerworld.com/de/models/1434345-itsfpv-era-dc-body-kit-dji-mount?from=search#profileId-1491995

I really like the design - I added openings for the side antennas, designed my own USB -C Inlet + Cover and also added Air & Cable passtroughs at the front.

https://www.thingiverse.com/thing:7334355

Nice side antenna kit! - I like the fact that it is screwless and separates the O4 module from the frame. I changed the tail so that it is modular for a GPS Mount.

https://www.thingiverse.com/thing:6983803

SImple and good GPS module holder. I remixed it so it fits to the Antenna mount.
