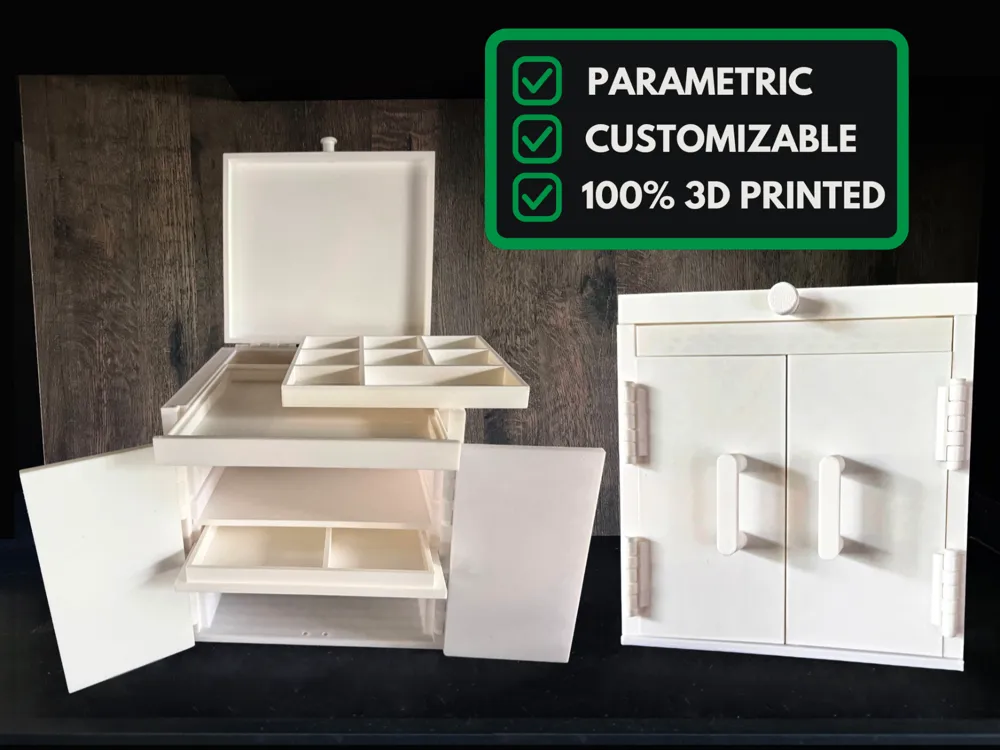

Cabinet with doors, shelves, hidden compartments

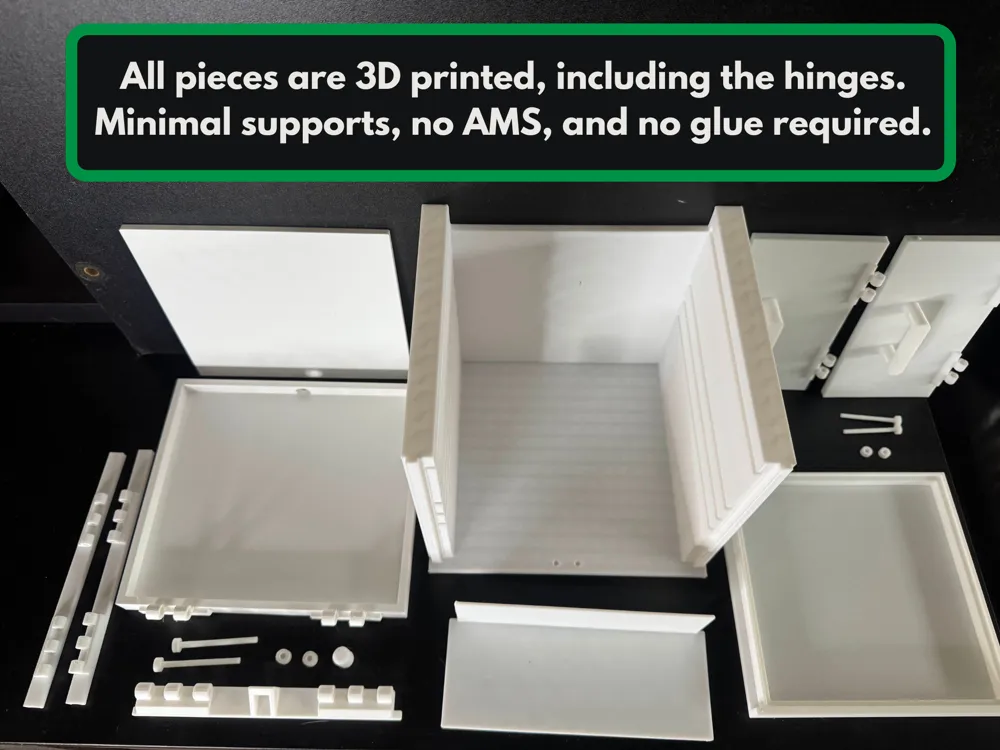

This cabinet was a long time in the making, but it's finally ready to share with the community!  This model is fully 3D printed, including the hinges and pins. Separated in slide-on and snap on pieces for easy adjustment and customization with no glue or AMS required. Want a different color? Break something? Need more/less tolerance? You only need to edit and print one part instead of the whole thing!

Includes:

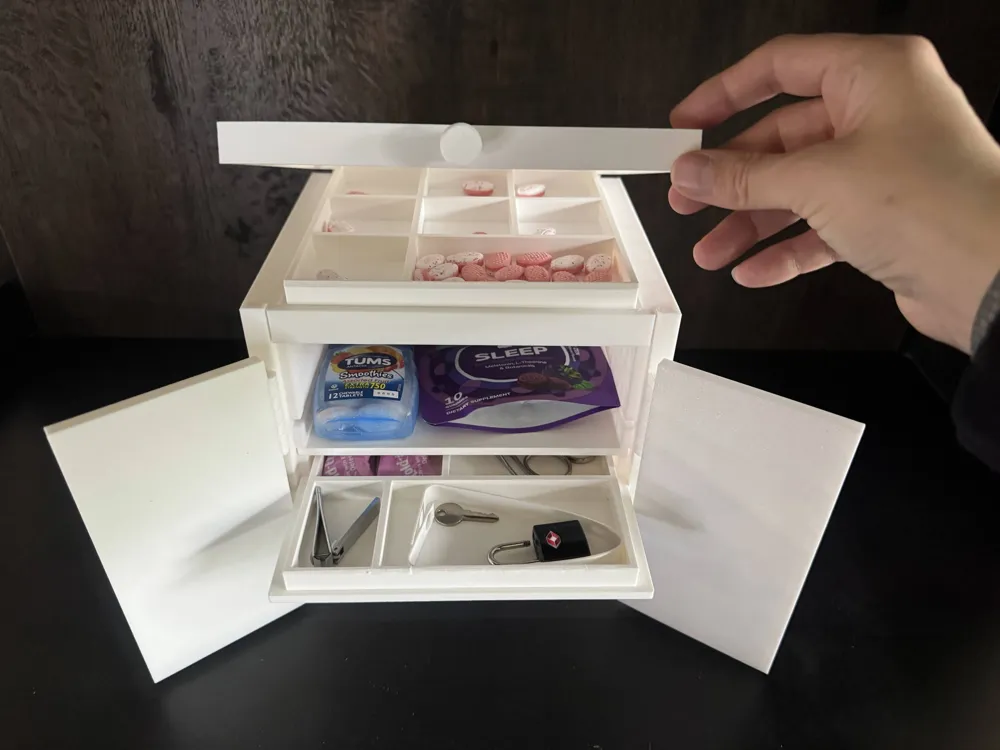

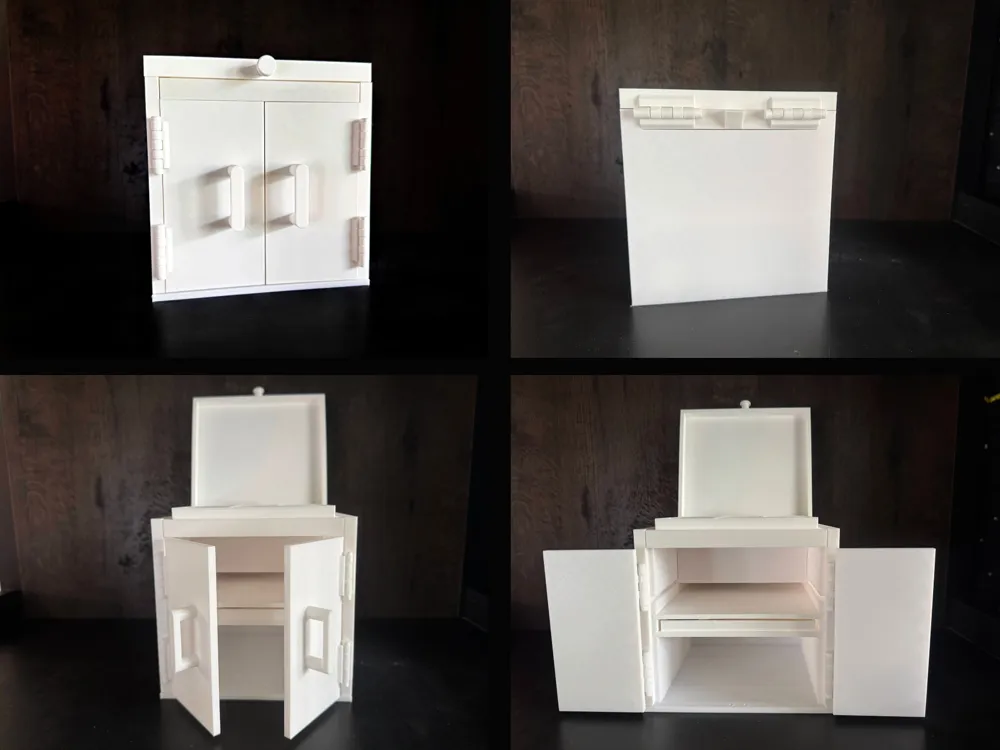

• The box  with two doors and a top that open using hinges.

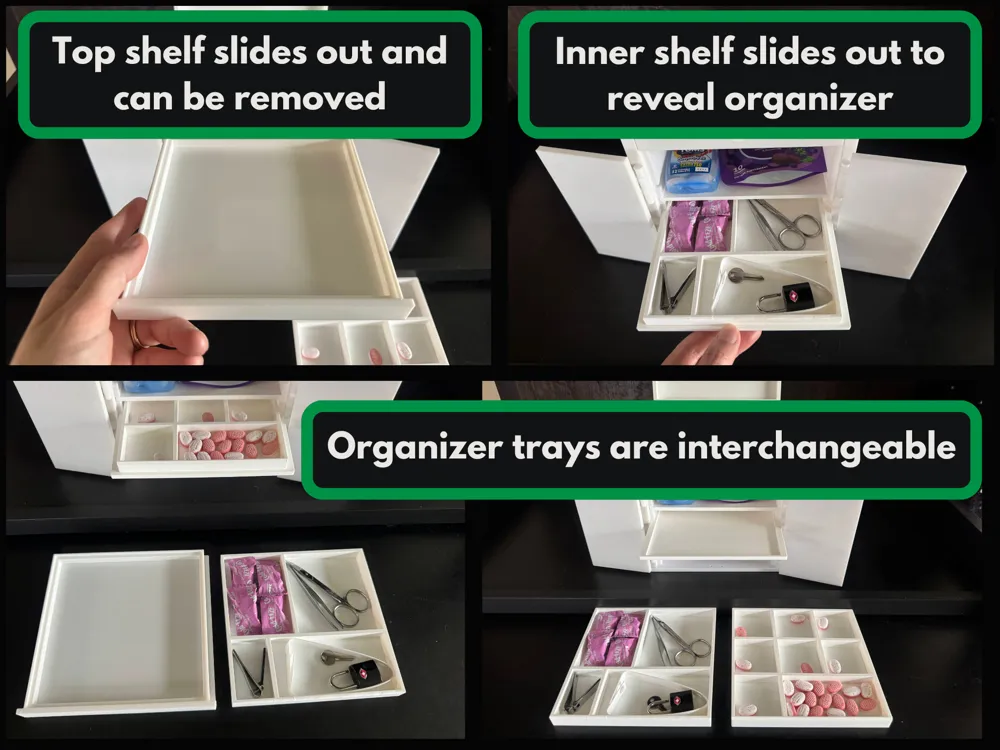

• Three shelves that you can slide out.
• Two interchangeable organizer trays.

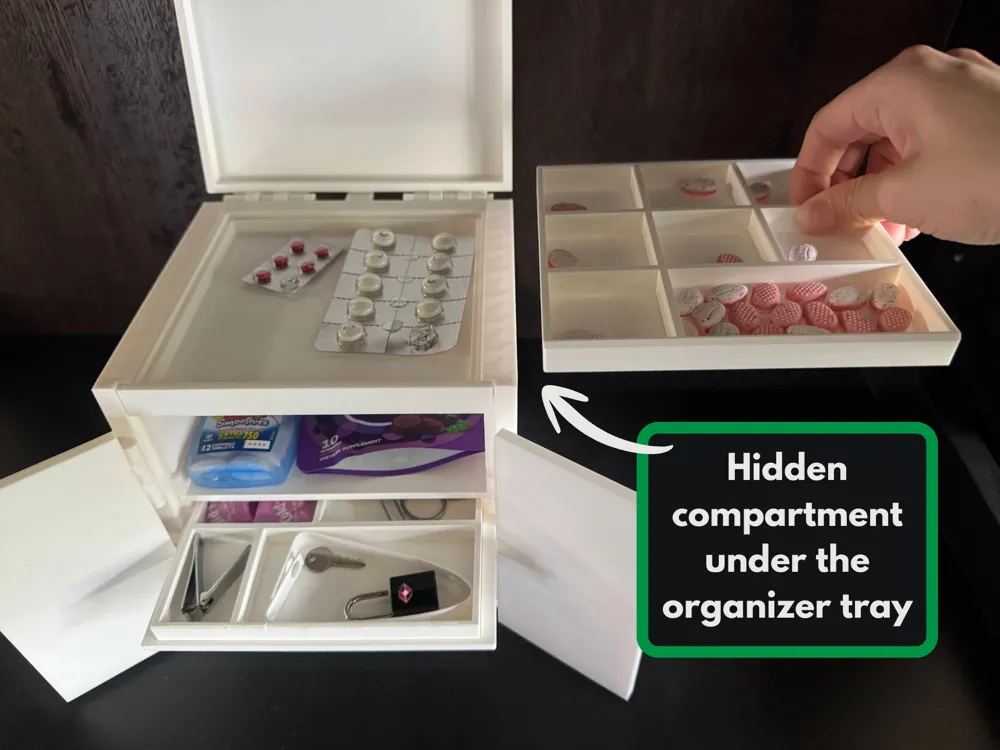

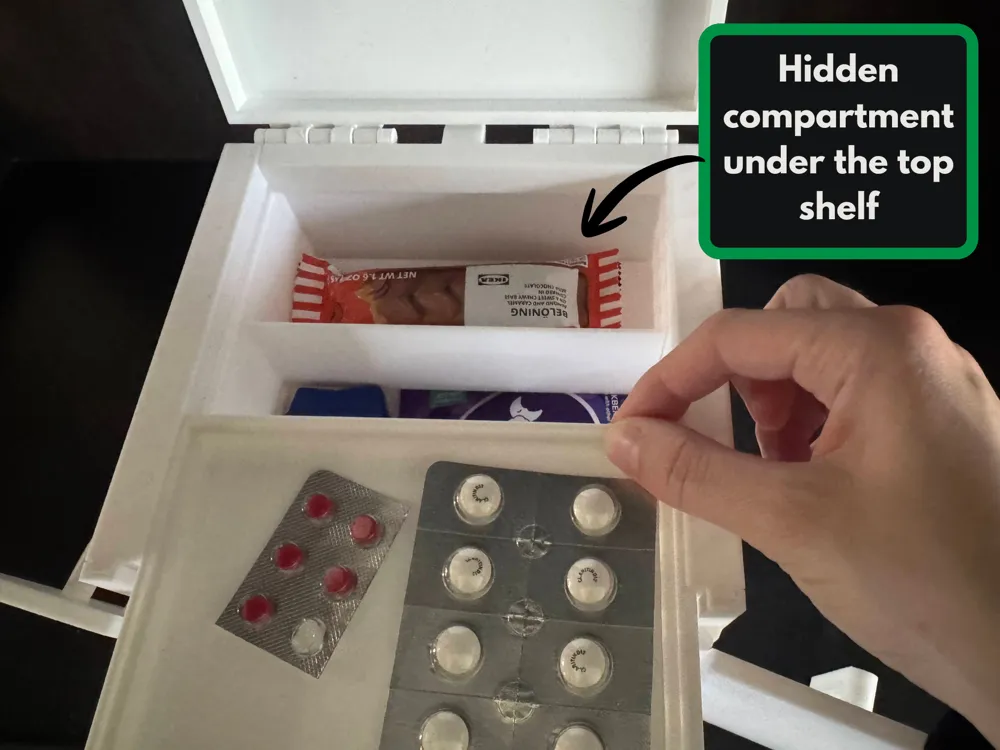

• A hidden compartment half-shelf.

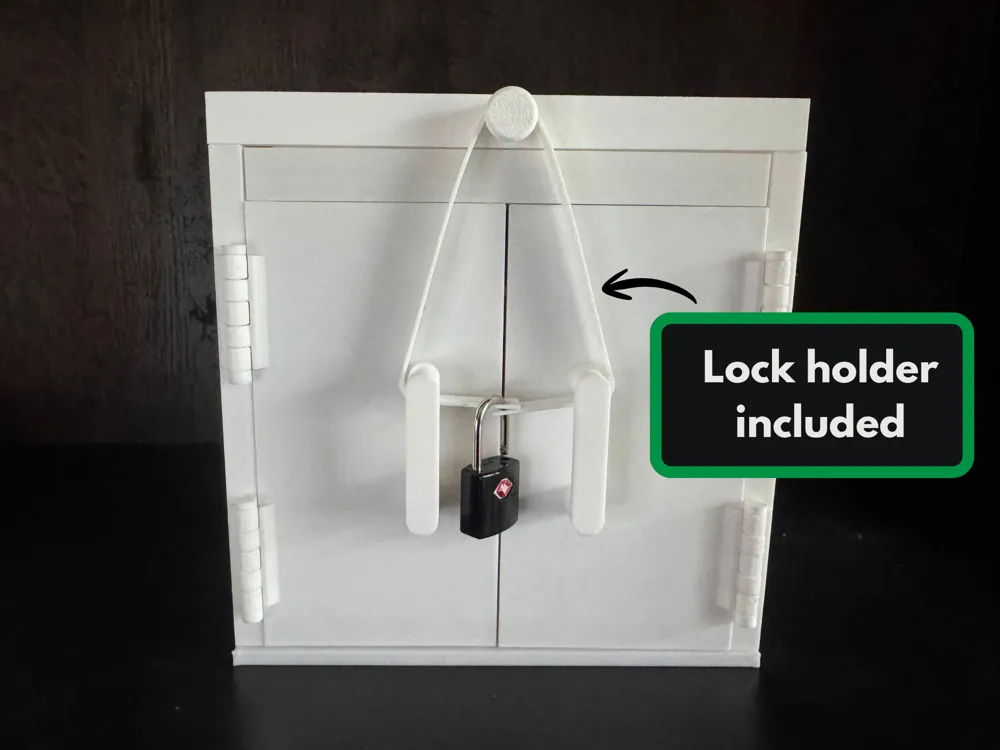

• A lock holder.

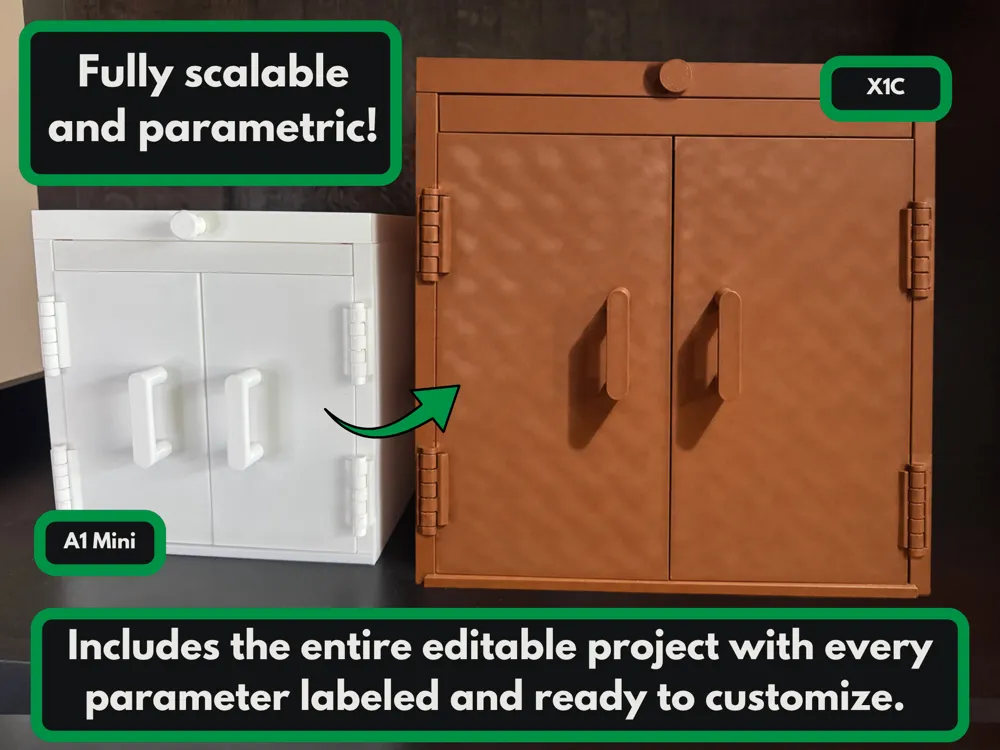

While you can scale the model up and down in the slicer, it's fully parametric and all STEP files are included. While too complicated for Openscad, you can easily adjust every parameter by making a copy of the Onshape project by using this link: https://cad.onshape.com/documents/54e2f7e75e19ba1e24b63754/w/09dc4a770565e2d568ef6131/e/c08ce551e3500e245a3f5876?renderMode=0&uiState=69fcf7e24dc7df7c13286d3c

By changing the height/width/depth of the cabinet in Onshape, everything else will adjust automatically, and while the volume of the box will go up allowing you to fit more items, the frame and hinges will stay the same size to save on filament. The organizer cubby can also be adjusted to your needs, but I recommend keeping the pill organizer the same as it's designed to be symmetrical.

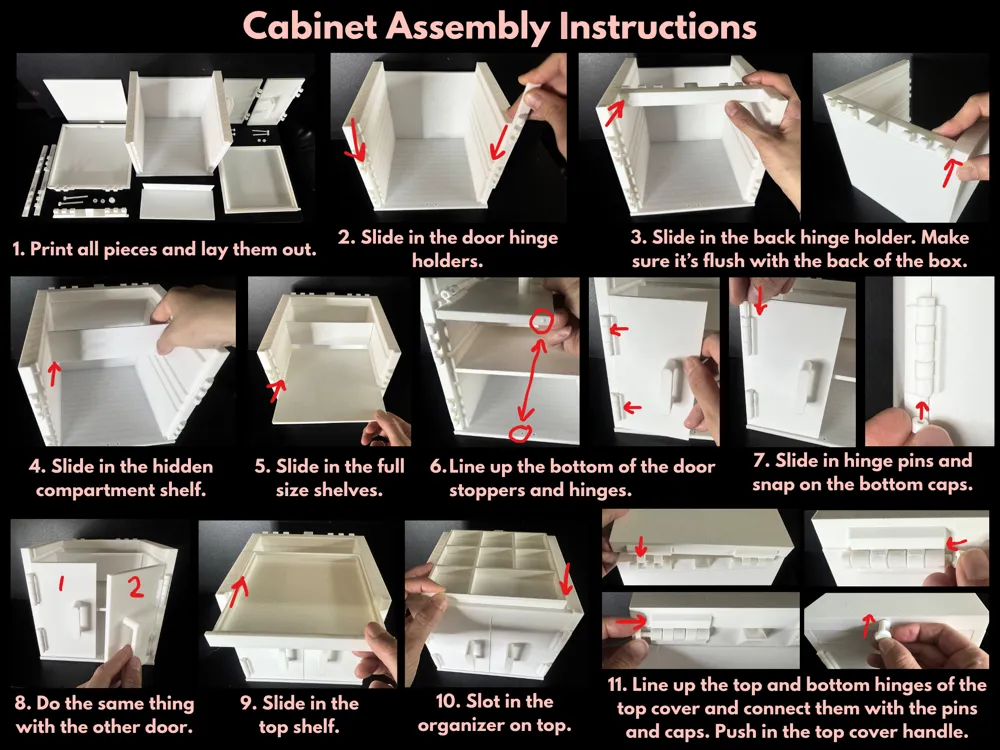

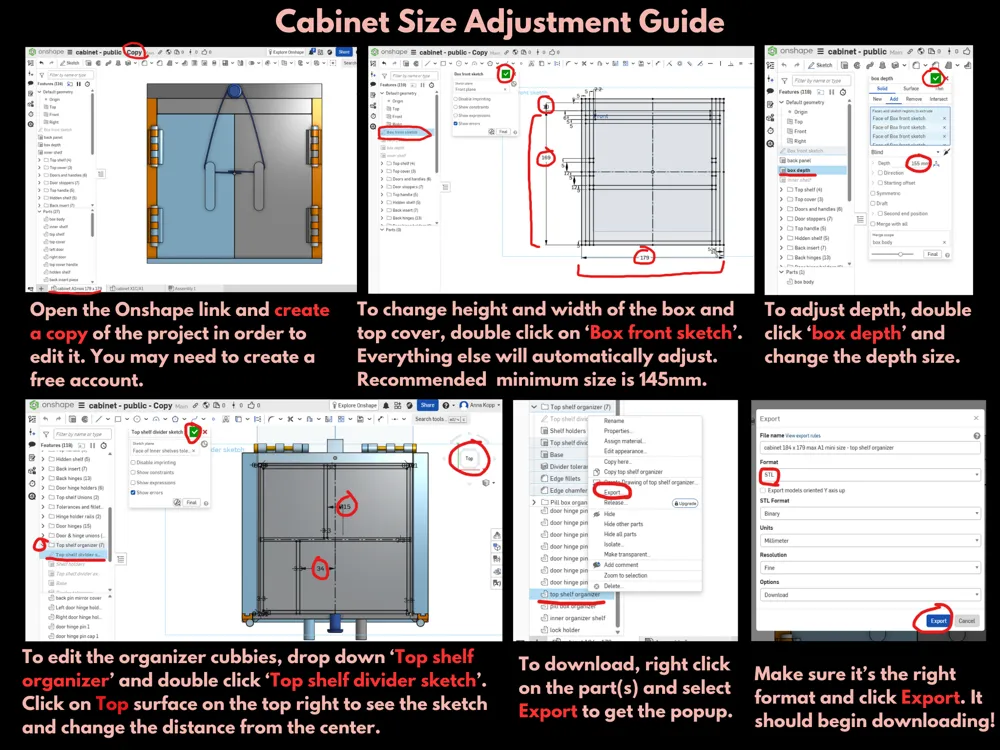

Both the assembly instructions and a size adjustment guide are included in the images and documentation sections.

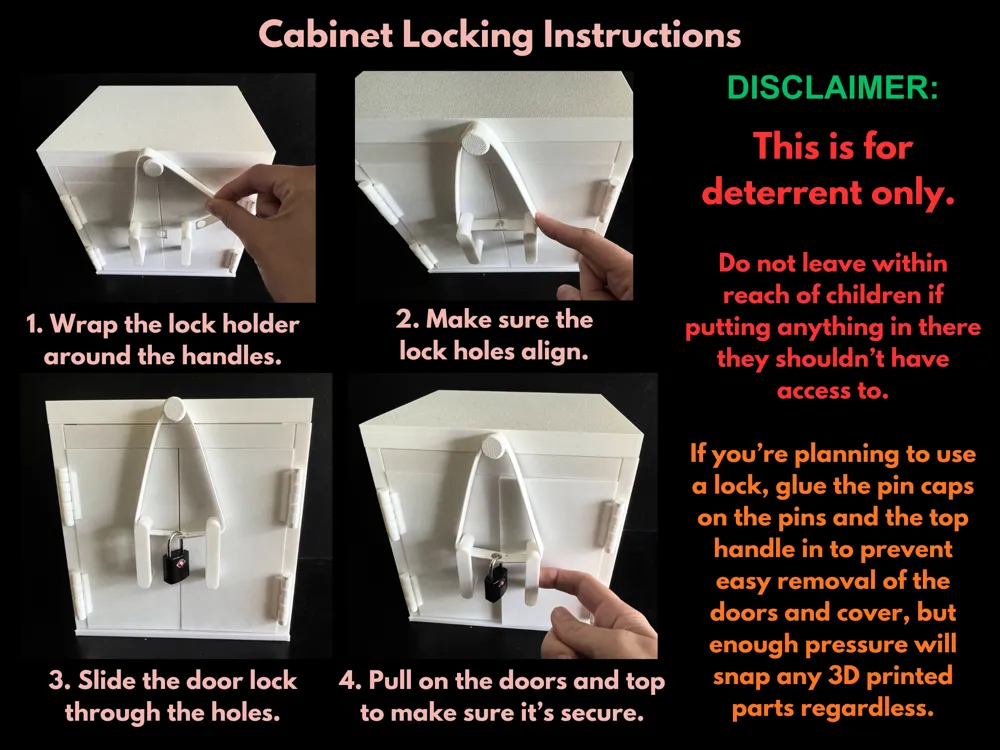

DISCLAIMER: The lock holder is for deterrent only! If you’re planning to use a lock, glue the pin caps on the pins and the top handle into the top to prevent easy removal of the doors and cover, but enough pressure will snap any 3D printed parts regardless.

NO COMMERCIAL LICENSE.

Designer: Anna
