17mm Ball Joint Mount (Male) on Ribbed Base Plate

Print Profile(1)

All
H2C
P1P
X1
X1E
X2D
X1 Carbon
H2D
P1S
A1
A1 mini
A2L
P2S
H2D Pro
H2S

0.12mm layer, 2 walls, 100% infill
0.12mm layer, 2 walls, 100% infill
Designer
1 h
1 plate

Open in Bambu Studio
Boost
14
59
0
2
74
35
Released

Description

Version 2 is here: https://makerworld.com/en/models/3019371-17mm-ball-joint-mount-on-ribbed-base-plate-v2#profileId-3392127

The old version had a hollowed-out ball, causing a weak point in the ball mount. Version 2 intends to rectify the problem.

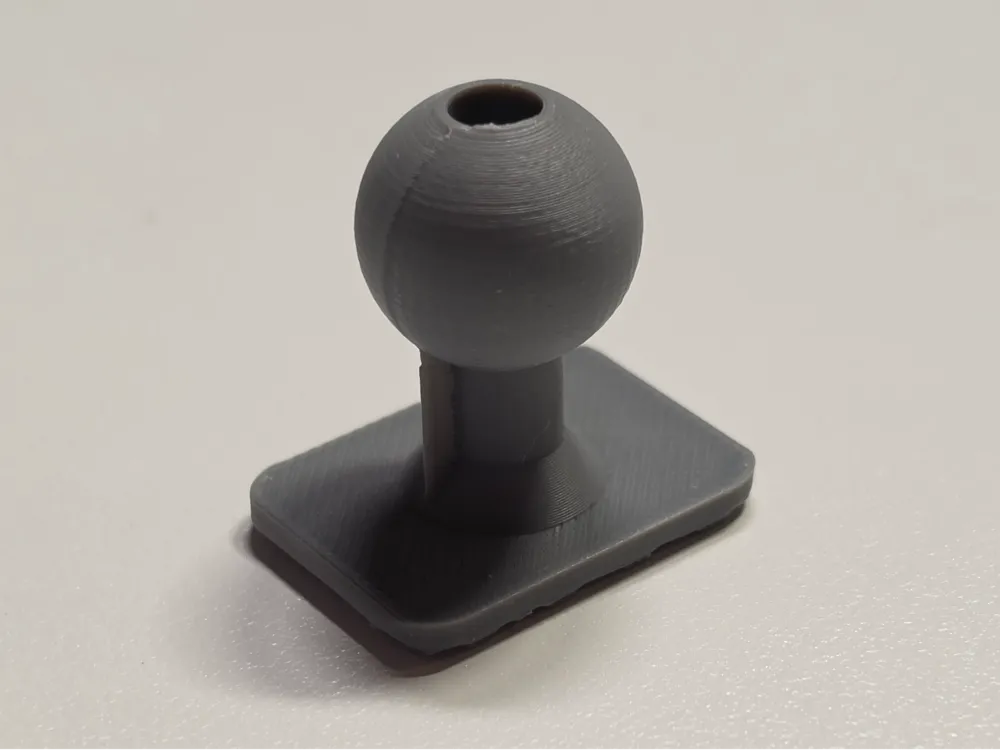

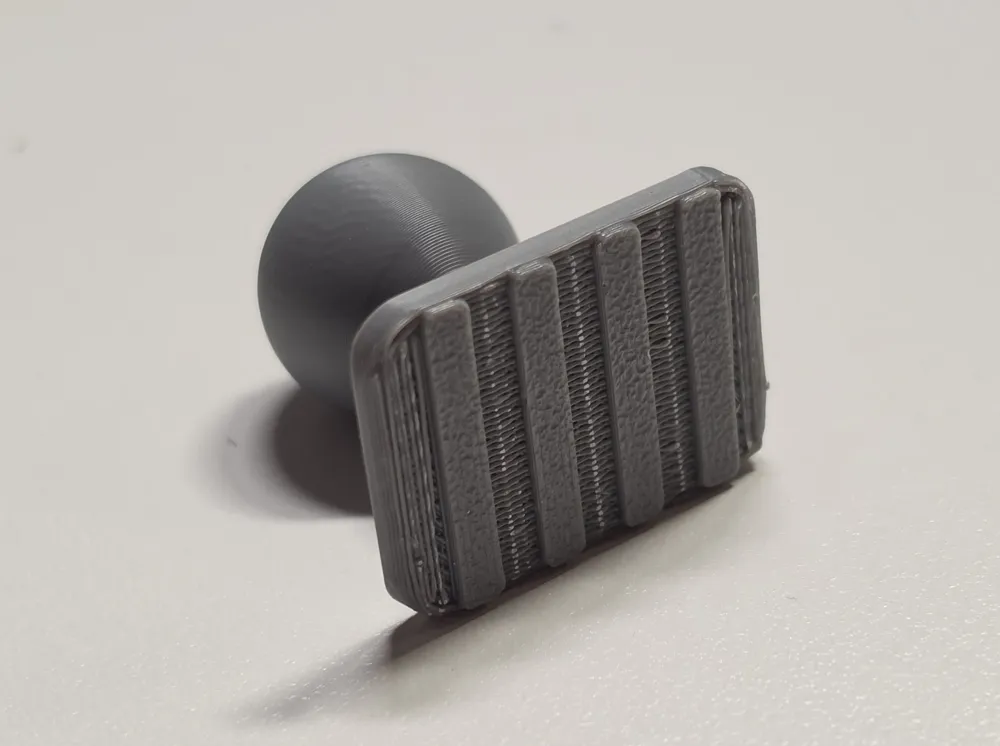

A 17mm ball joint (male connector) on a ribbed base plate. Used on certain car phone holders.

Dimensions:
Ball Head: 17mm Diameter

Base Plate: 20mm x 29mm

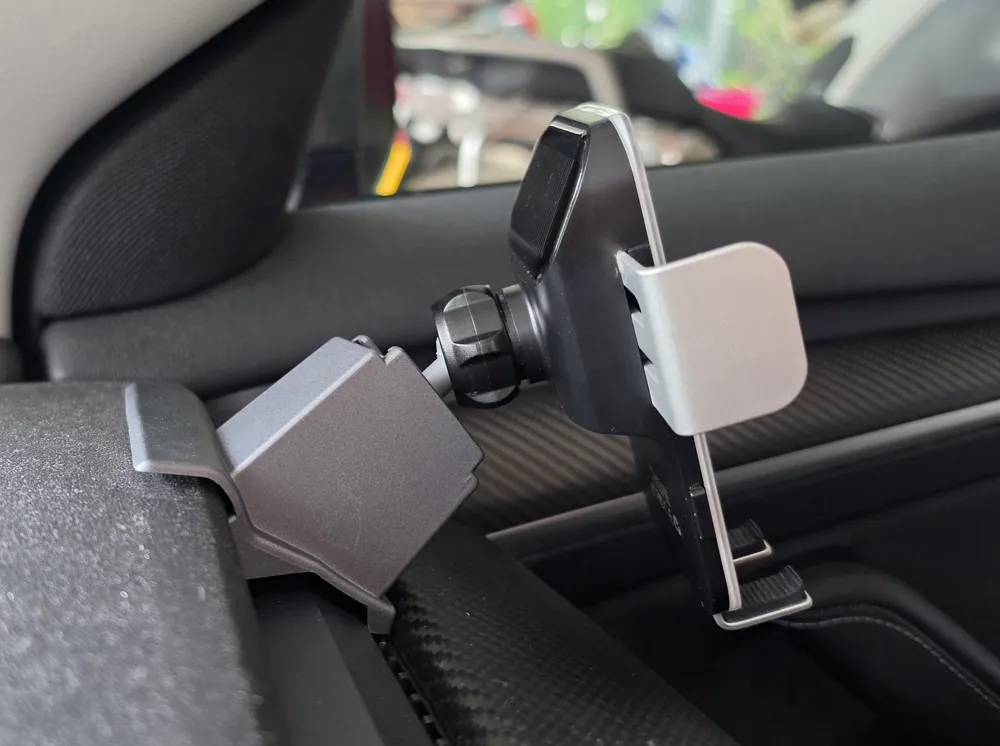

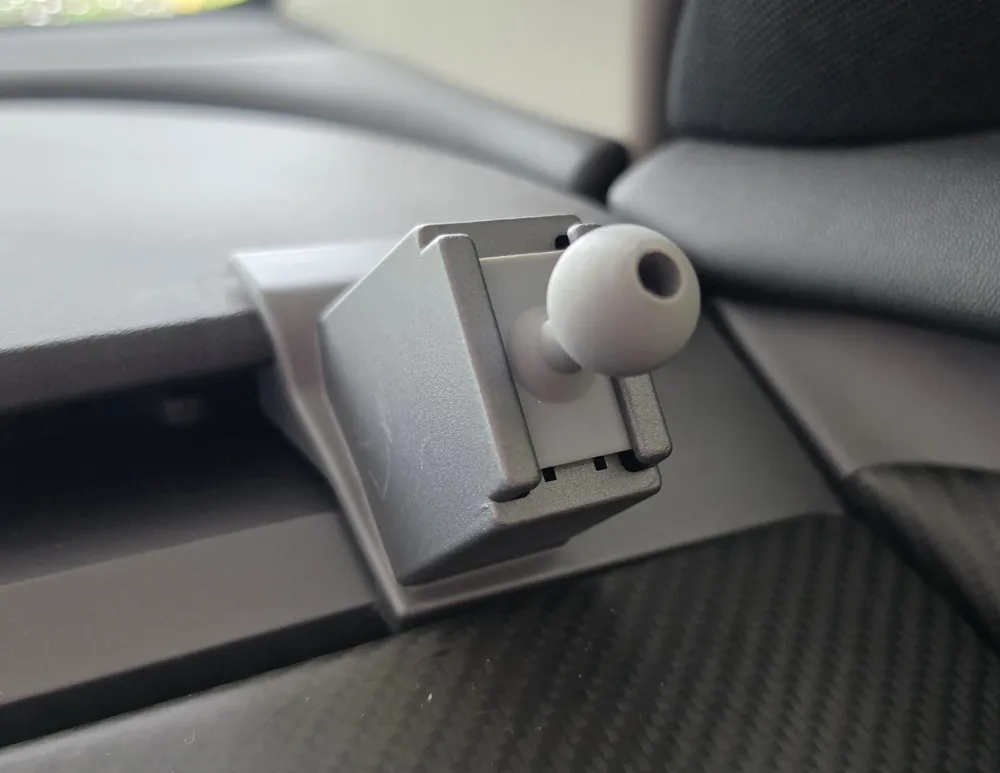

I printed mine on ASA and it's been working in my car with no problems. Be sure to print with a high infill (I printed in 100%), otherwise the support snaps off real soon.
