Noble Cat's Starry Eyes Embossed Bookmark | Creative Embossed Bookmark | 【Animal Series Bookmarks】
Print Profile(1)
Description

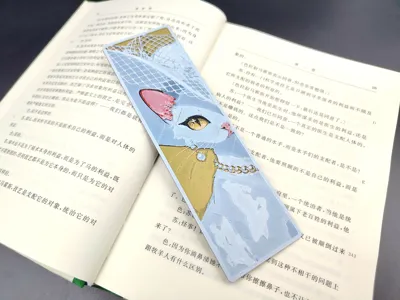

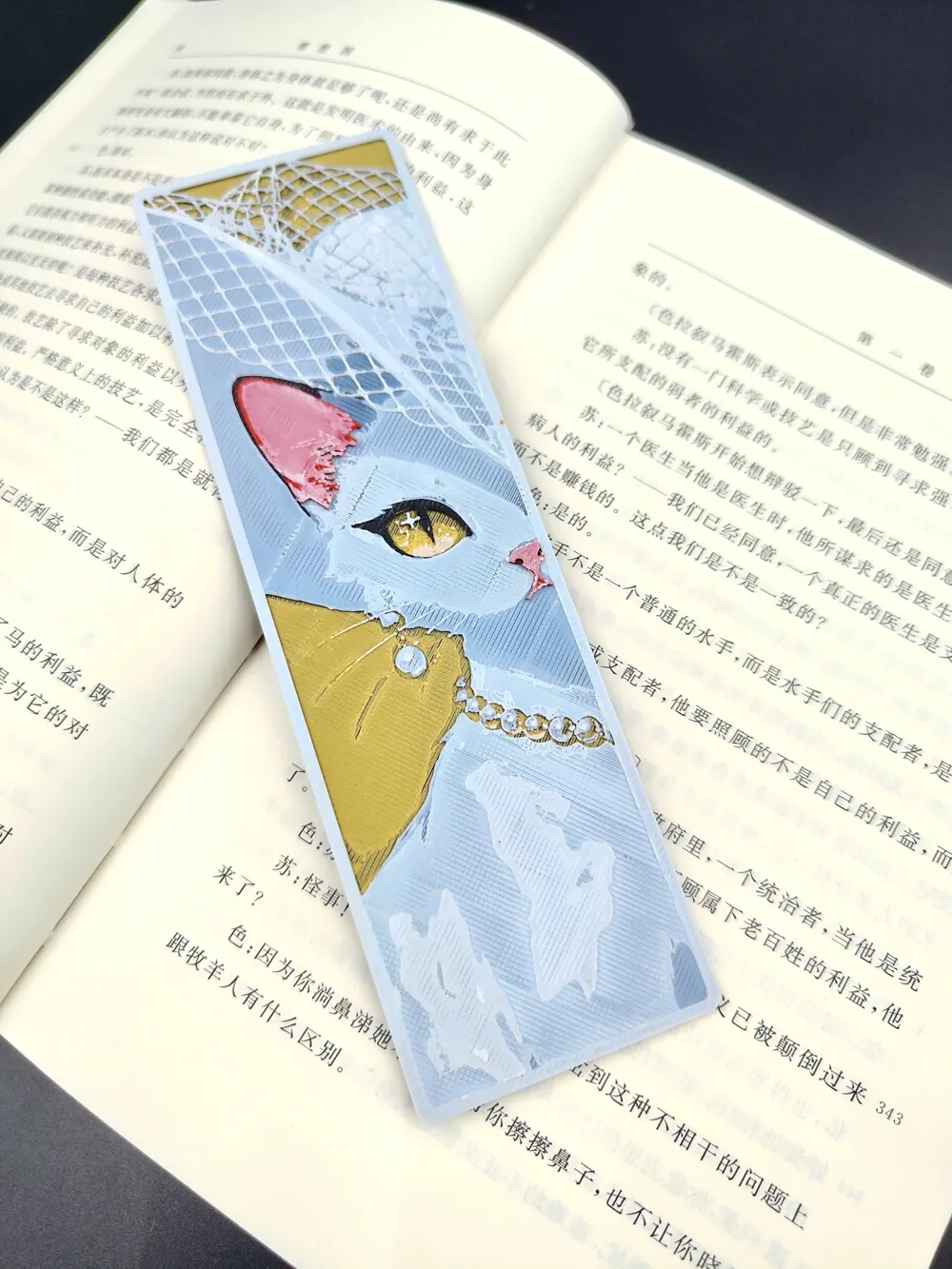

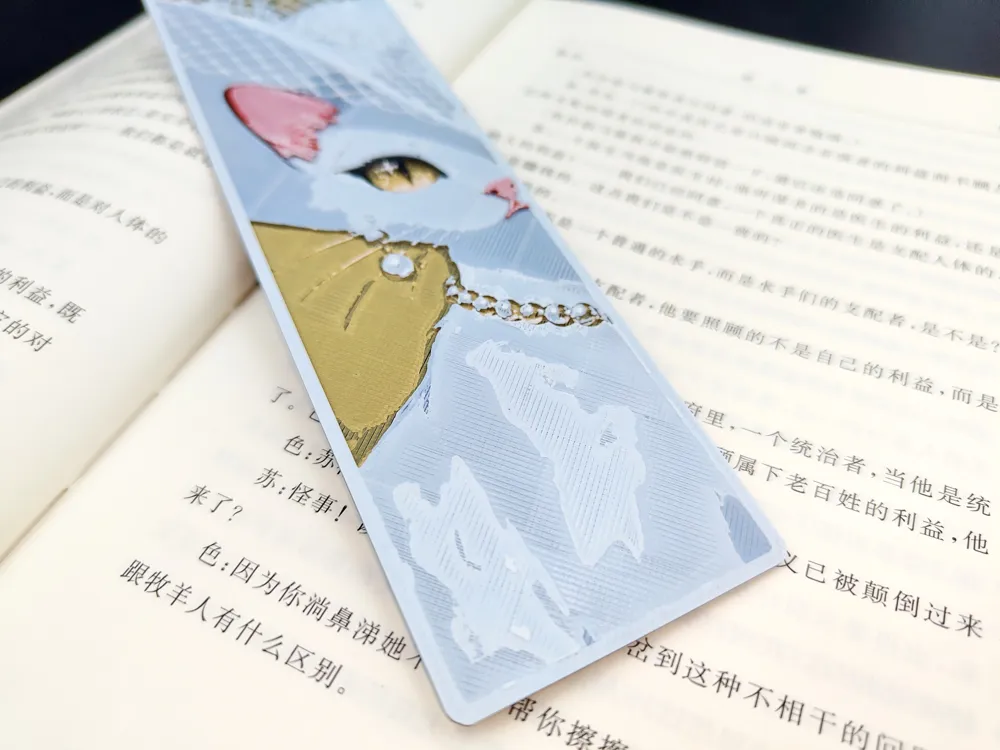

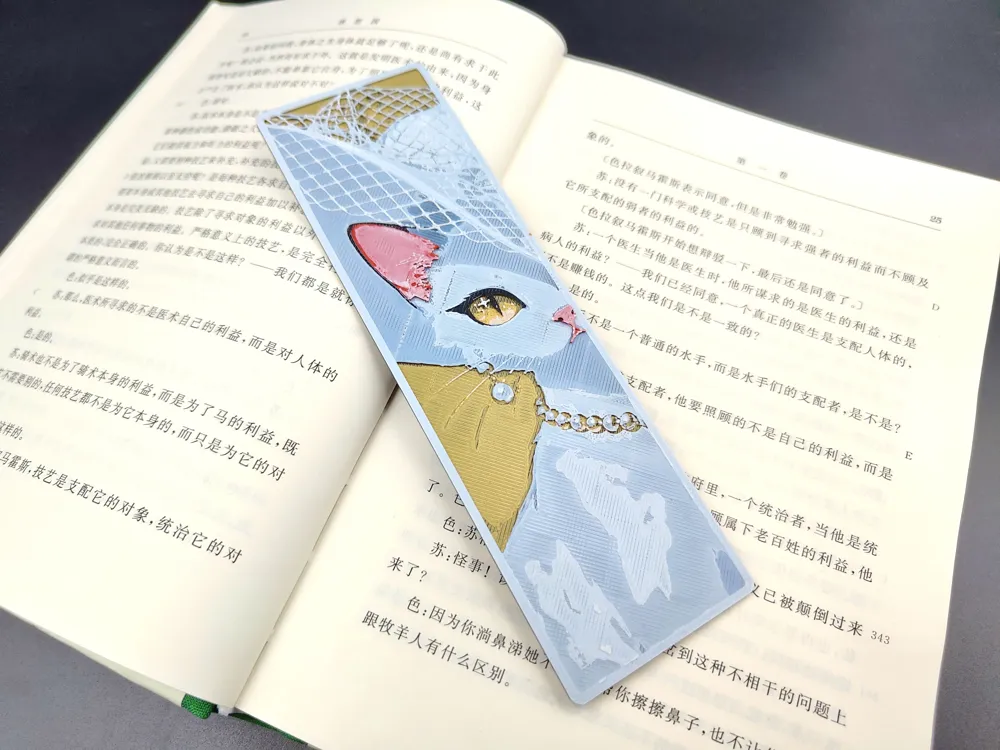

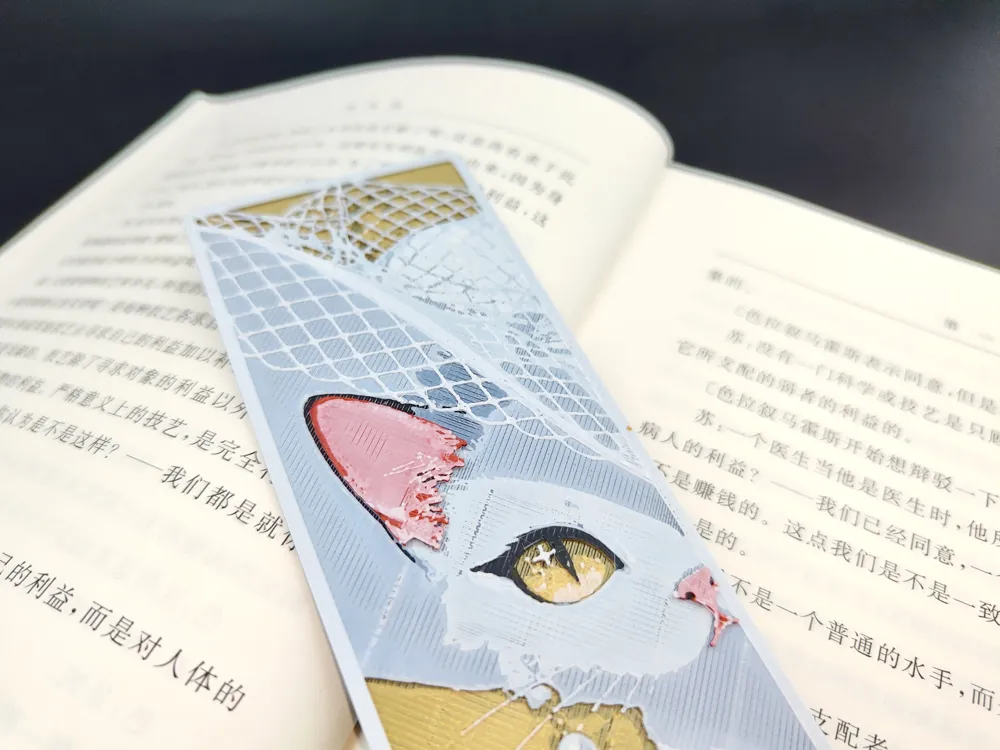

🌟 [Noble Cat's Starry Eyes Embossed Bookmark]
🎨 Description | Description

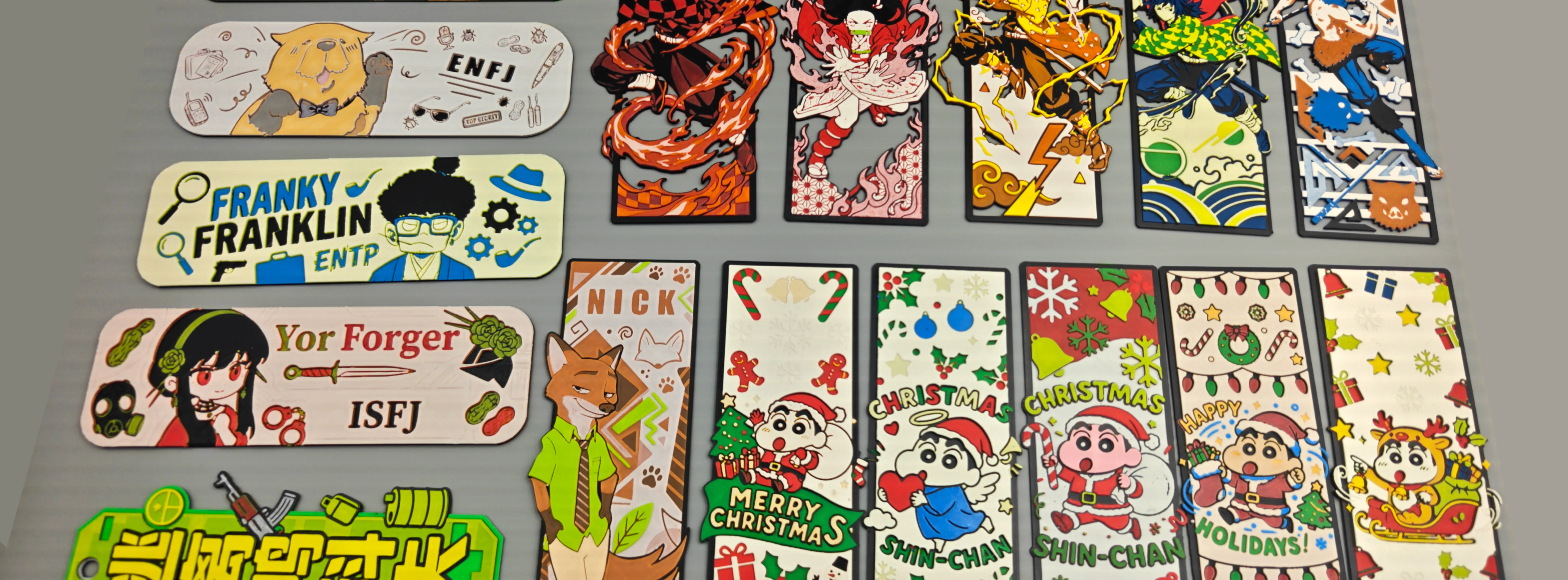

A cat whose eyes are like the starry sky----------More exciting bookmarks, please stay tuned...
🚀 Core Technology: hicolors-3d
This model is generated using the hicolors-3d workflow, which offers the following advantages compared to traditional processes:
No AMS color changing system required: It adopts a layered color changing design, allowing you to print the model without a color changing system. You only need to manually change the filament at the corresponding layers, saving a lot of filament.
Precise layer height: By physically simulating all possible color overlays, the effective height is distributed among limited layer heights, saving layer height usage.
Intuitive Matching: Based on color and region matching logic (where regions can always match the desired color), it is more intuitive than traditional grayscale matching.
Physical Level Simulation: The preview effect is the print effect, accurately simulating color overlay at different layer heights.
Light and Shadow Aesthetics: Designed specifically for FDM printing, it fully utilizes the light-transmitting and color-stacking properties of PLA and other materials.
🔄 Color Change Instructions | Color Change Instructions
No multi-color 3D printer (AMS) is needed, a regular single-nozzle machine can change colors manually:
Color change information is included in the 3mf file and can be viewed directly after downloading.
Below is the filament information used for printing, for your reference:
***Base color**
- Color name: Black
- Brand: Cai Duo Wu
- HEX: #000000
- RGB: rgb(0, 0, 0)
- TD: 0.1
- Layers: 10
| Color change height | Cumulative layers | Change color to | Brand | HEX | RGB | TD |
|----------|----------|--------|------|-----|-----|-----|
| 0.96mm | 11 | Golden | Da Jian | #eab242 | rgb(234, 178, 66) | 2.3 |
| 1.28mm | 15 | White | Cai Duo Wu | #ffffff | rgb(255, 255, 255) | 4.4 |
| 1.44mm | 17 | Black | Cai Duo Wu | #000000 | rgb(0, 0, 0) | 0.1 |
| 1.52mm | 18 | White | Cai Duo Wu | #ffffff | rgb(255, 255, 255) | 4.4 |
| 2.00mm | 24 | Black | Cai Duo Wu | #000000 | rgb(0, 0, 0) | 0.1 |
| 2.08mm | 25 | Dark Red | Cai Duo Wu | #a3282b | rgb(163, 40, 43) | 3.2 |
| 2.40mm | 29 | White | Cai Duo Wu | #ffffff | rgb(255, 255, 255) | 4.4 |
🛠️ Print Settings | Print Settings
For best results, please strictly adhere to the following settings:
Infill: 100% (required)
Layer Height: 0.08mm
First Layer Height: 0.16mm
Nozzle recommendation: 0.2mm recommended (for strongest detail), 0.4mm is also acceptable (the actual photo was taken with 0.4mm).
Model Scale: Do not adjust the Z-axis scale of the model to ensure correct layered color change information. You can freely adjust the X and Y axes scaling to achieve your desired size.

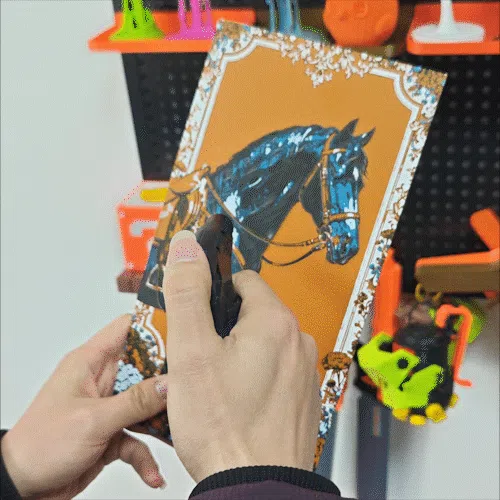

Post-processing tip: Quickly run a lighter over the model surface to perfectly remove common FDM fine stringing. 🔥
