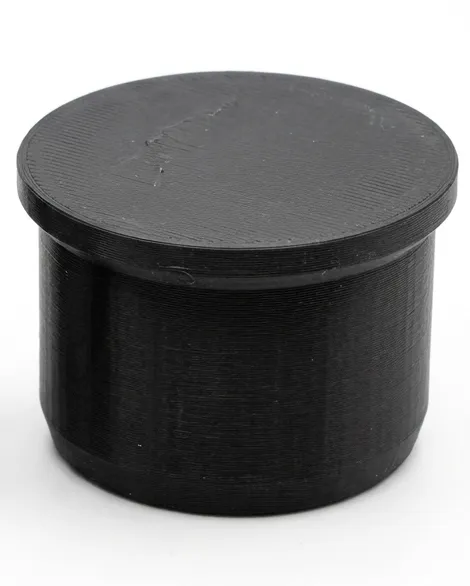

Heavy-Duty Parametric Pipe Plug Cap DN32 - DN100+

Designed for the harshest environments, this fully parametric pipe plug is built to survive extreme conditions on construction sites. Whether you need to temporarily seal a waste pipe, protect plumbing during rough masonry work, or permanently block odors, this heavy-duty cap is engineered to take a beating without failing.

The core of this design focuses on maximum structural integrity and printing efficiency. Thanks to carefully calculated geometry, models up to DN50 (including the ergonomic handle) can be printed entirely WITHOUT supports!

Customize the dimensions directly in MakerWorld to fit any standard or non-standard pipe.

🏗️ Construction-Site Ready: Engineered for Extreme Durability

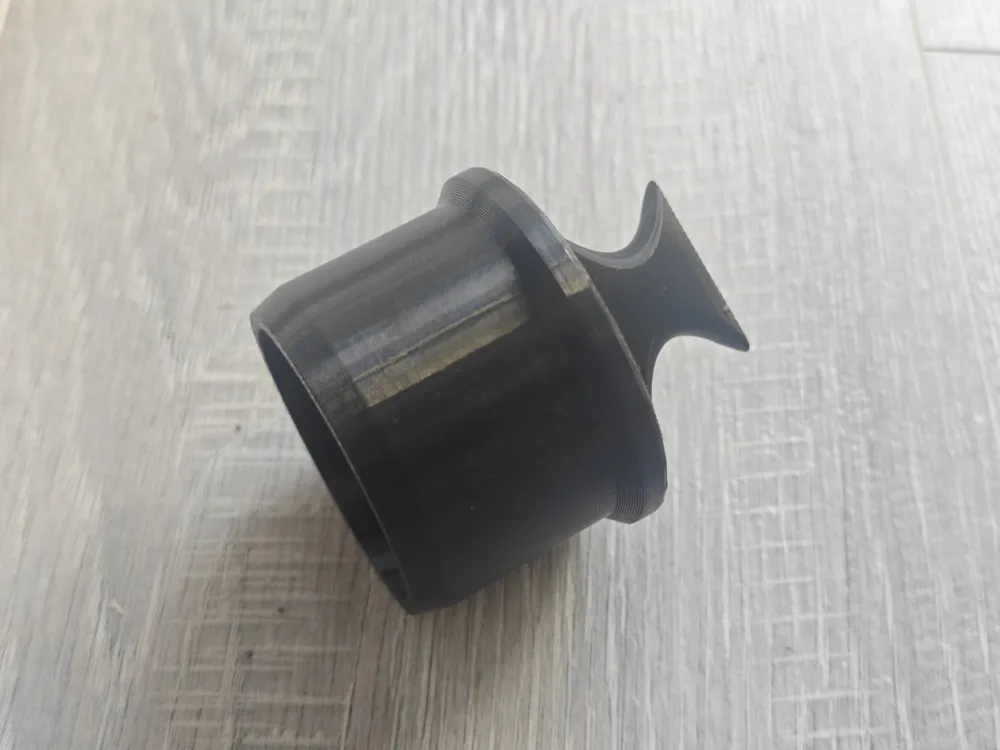

• Internal Corner Reinforcement: The critical transition between the insertion plug and the outer collar features a calculated internal fillet radius. This massively reinforces the weak point where standard caps usually snap off when kicked or yanked.

• Impact & Yank Resistant: The optional seamless handle blends tangentially into the base, eliminating stress concentrations and ensuring it won't break off even if you pull it with force.

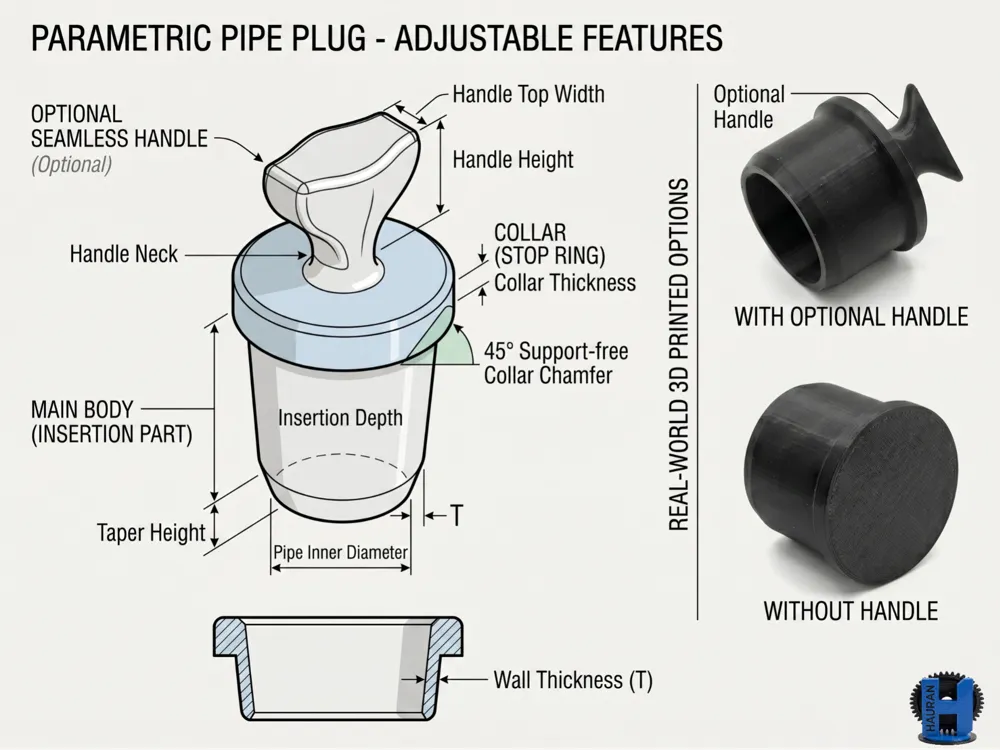

⚙️ Adjustable Features (Customizer)

1. Main Body (Insertion Part):

• Pipe Inner Diameter: The exact diameter of your pipe's inner wall.
• Insertion Depth: How deep the plug goes into the pipe for a secure hold.
• Taper Height: The height of the bottom chamfer, making it easy to guide the plug into the pipe even in tight spaces.

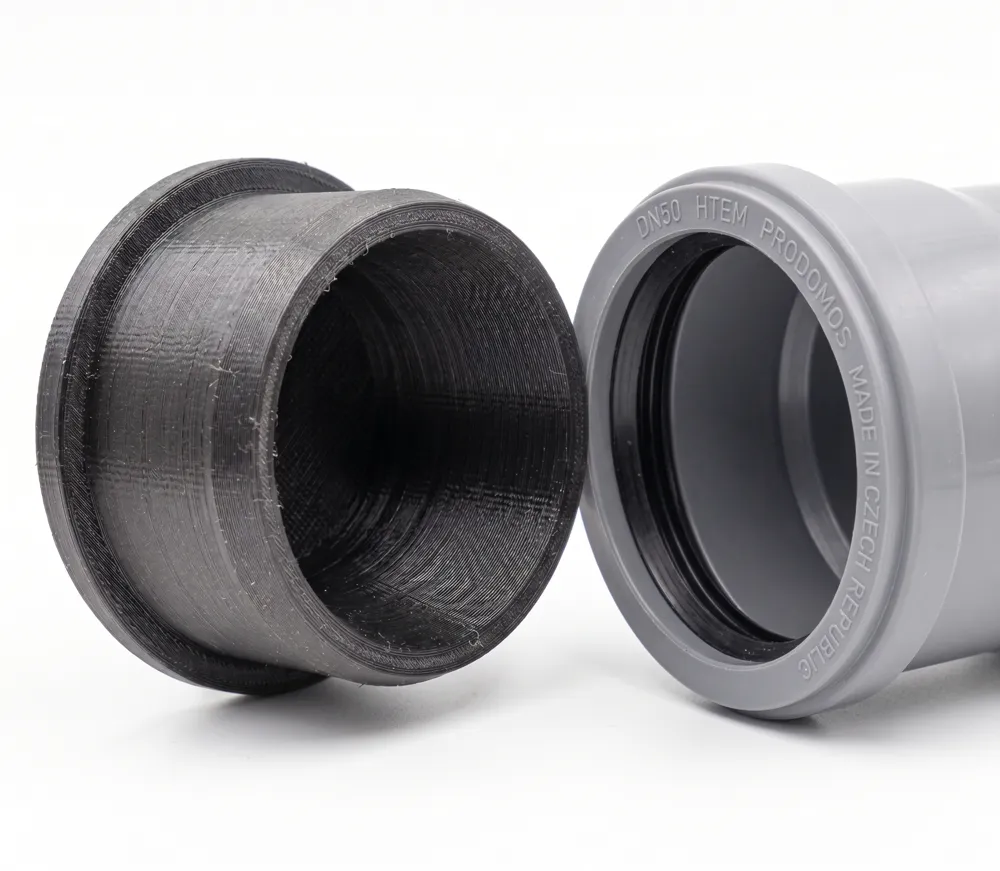

2. Collar (Stop Ring):

• Collar Thickness: The straight vertical thickness of the stop ring preventing the plug from falling in.
• 45° Collar Chamfer: The bottom of the collar is angled at 45° to allow for support-free printing.

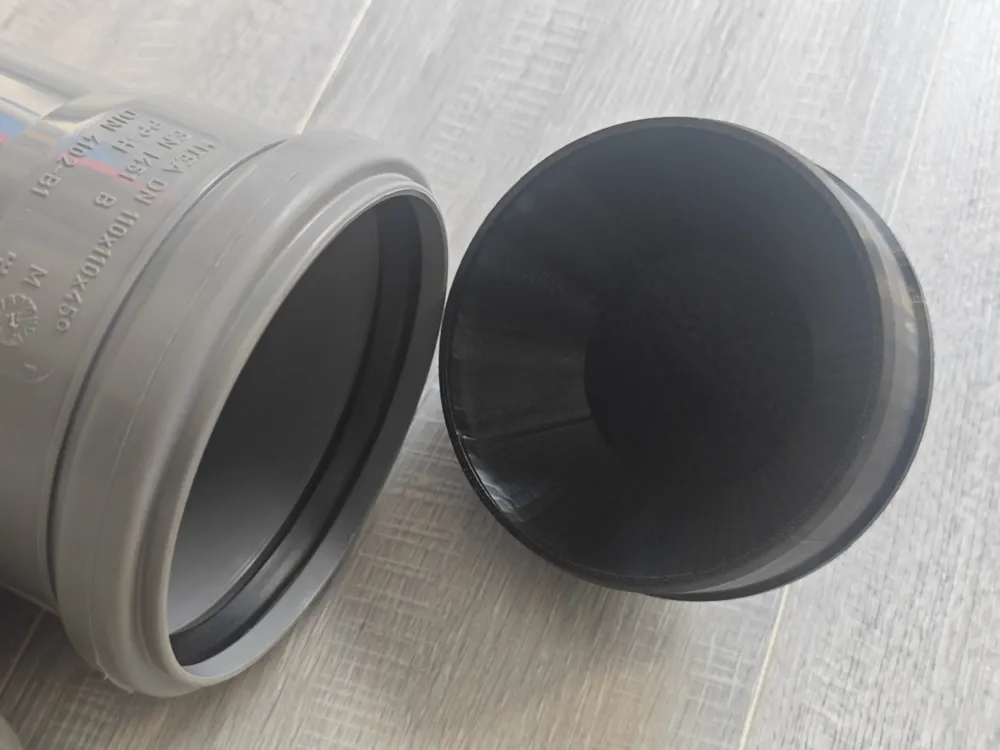

3. Hollow Interior (Material Saving & Strength):

• Wall Thickness: Defines how thick the outer walls are. Increase this for extreme heavy-duty applications.

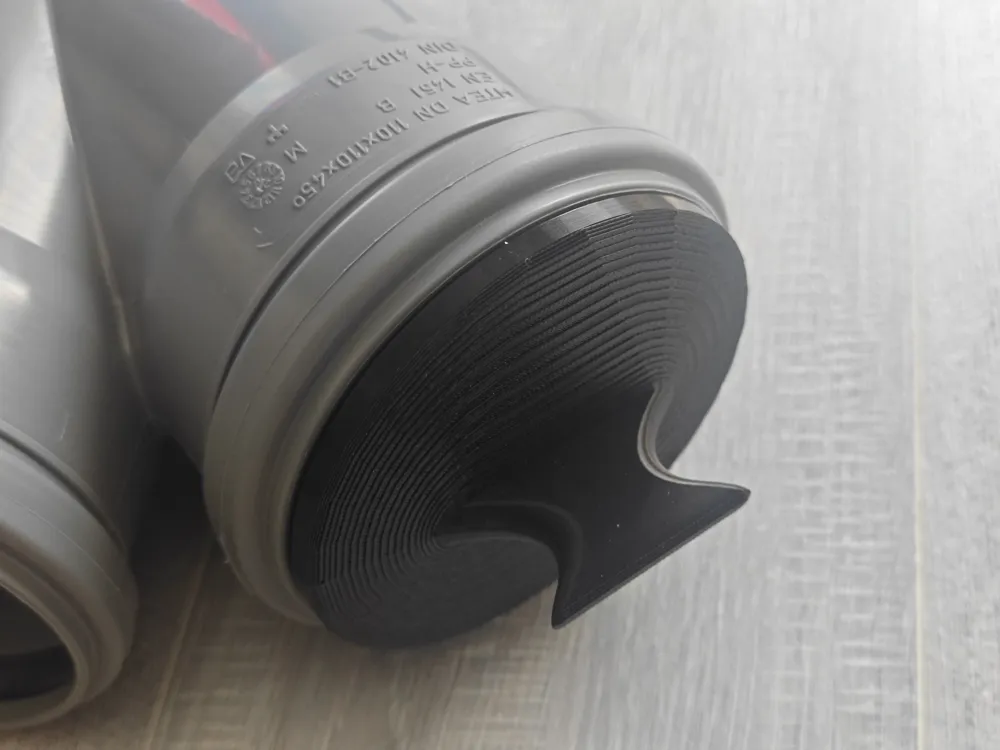

4. Ergonomic Handle (Optional): You can choose a flat cap (no handle) or enable the seamless ergonomic handle.

• Handle Top Width: Width of the top grip for your fingers.
• Handle Height: Overall height of the grip.
• Handle Neck: The narrowest part of the parabolic curve.
