Supermoto Crash Pads - sliders
Print Profile(1)
Bill of Materials
Description

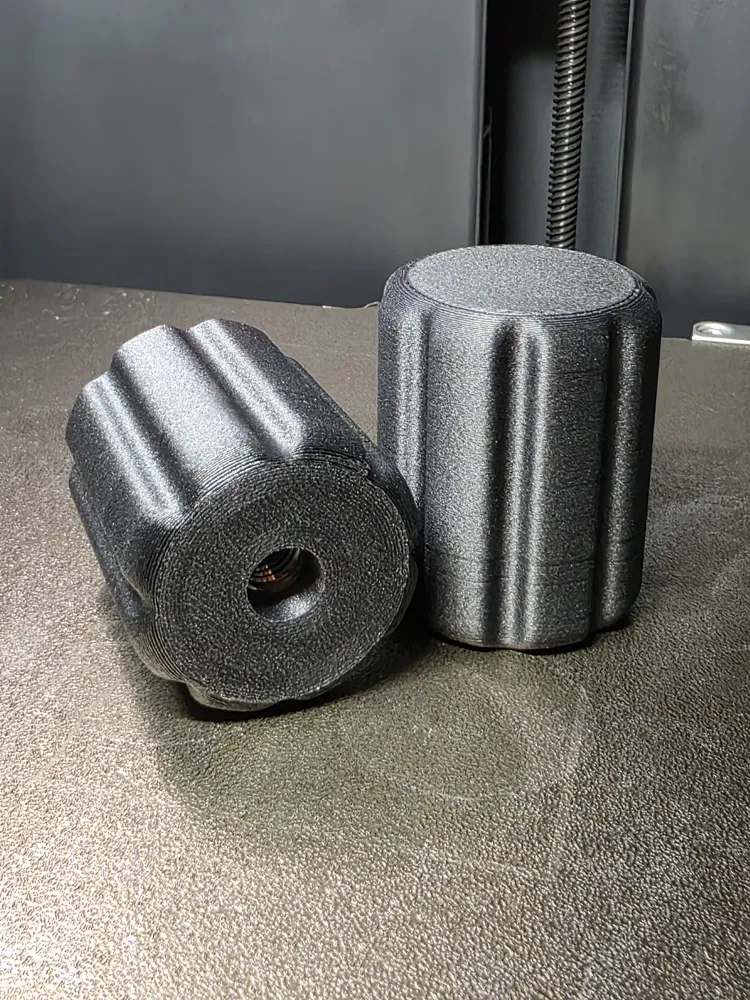

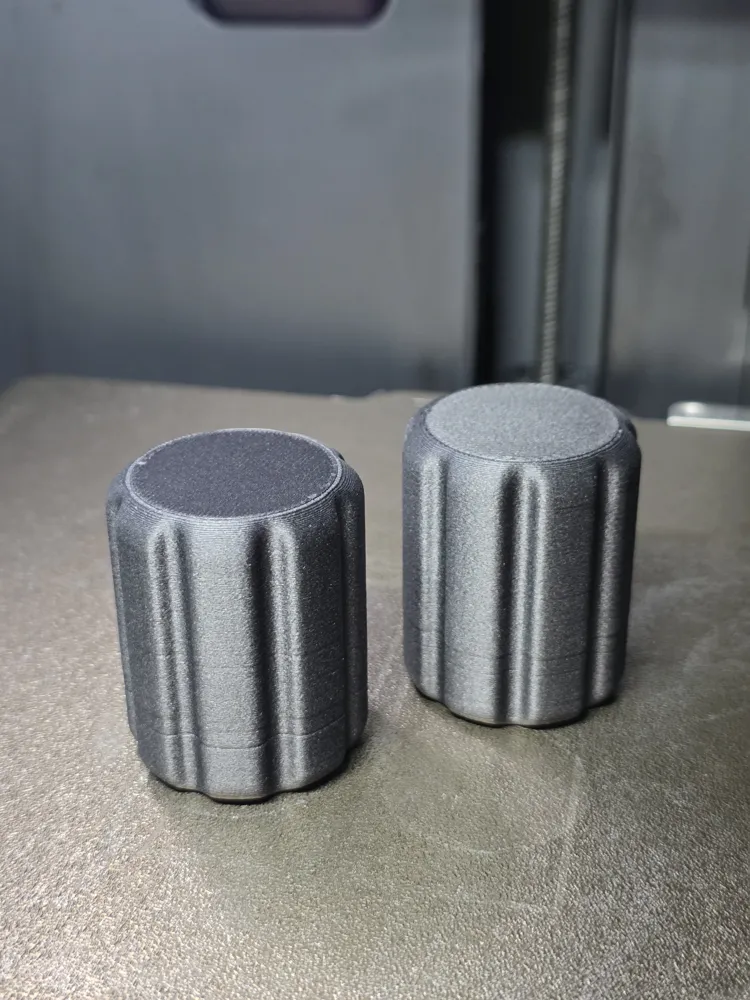

Crash pads / sliders designed for supermoto, made to offer protection to the frame, swingarm, and main components in case of a slide or impact.
Constructed with high abrasion-resistant materials and designed for street and racing use, they ensure an excellent compromise between lightness, durability, and impact absorption.
Clean and aggressive design, perfectly integrated with the bike's aesthetics, with refined finishes and precision machining.
Ideal for:
- track use
- stunt and motard riding
- daily bike protection
- reduction of damage in case of a fall
Compatible with various supermoto configurations and developed to ensure simple assembly and maximum reliability.
⚠️ For assembly, you will need:
- 2 M10 threaded rods to be cut to the desired length based on your motorcycle (flexible cutting tool recommended)
- 2 M10 nuts
(dimensions used in the prototype: height 8 mm)
IMPORTANT:
Use ultra abrasion and impact resistant materials. I strongly recommend using PA6-CF.
It may also be interesting to use ABS-GF or ABS-CF, although my main recommendation remains PA6-CF.
The provided model is optimized for using PA6-CF, please make sure to dry your filament well!
