Quick Release Fire Extinguisher Holder

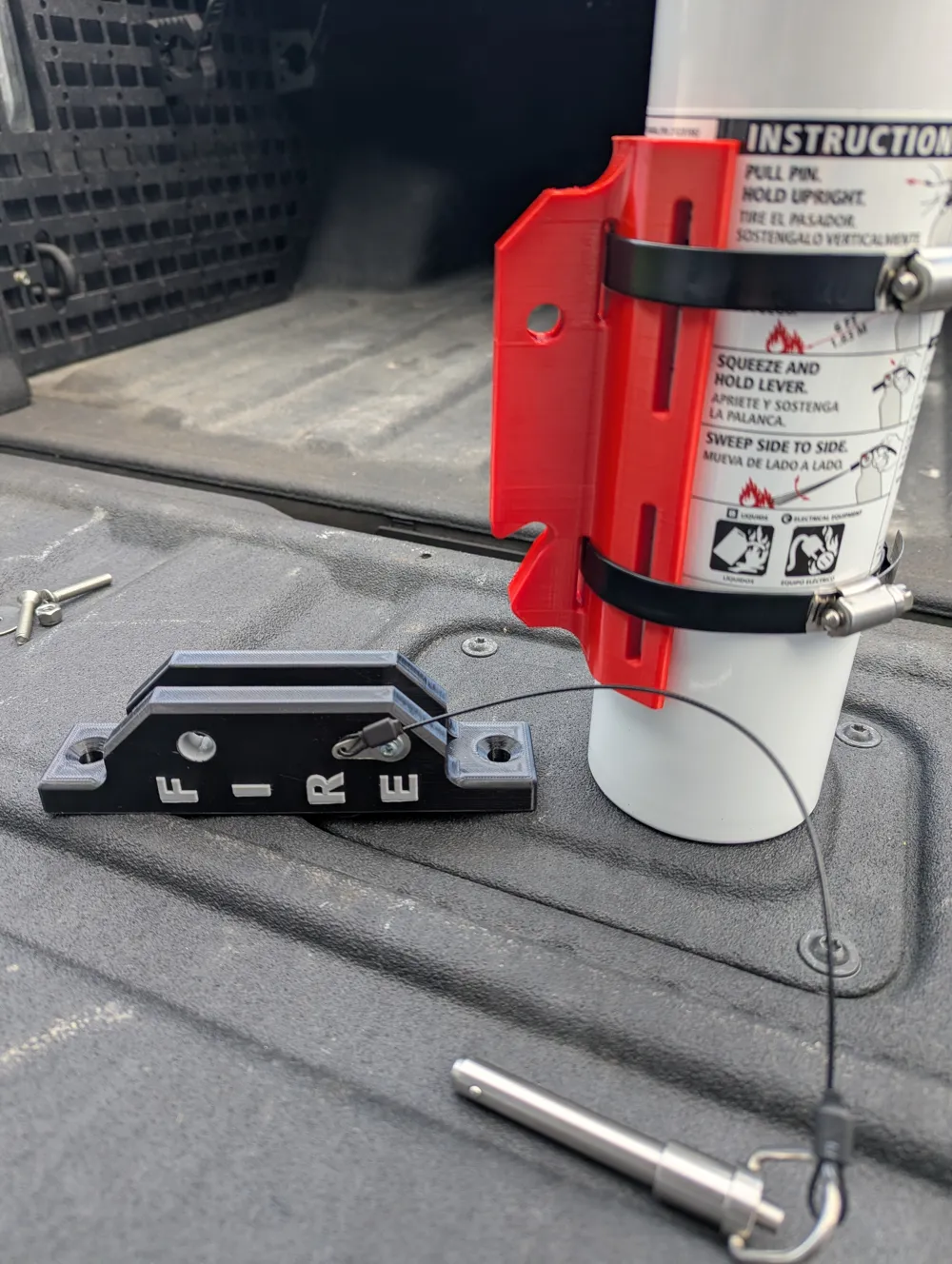

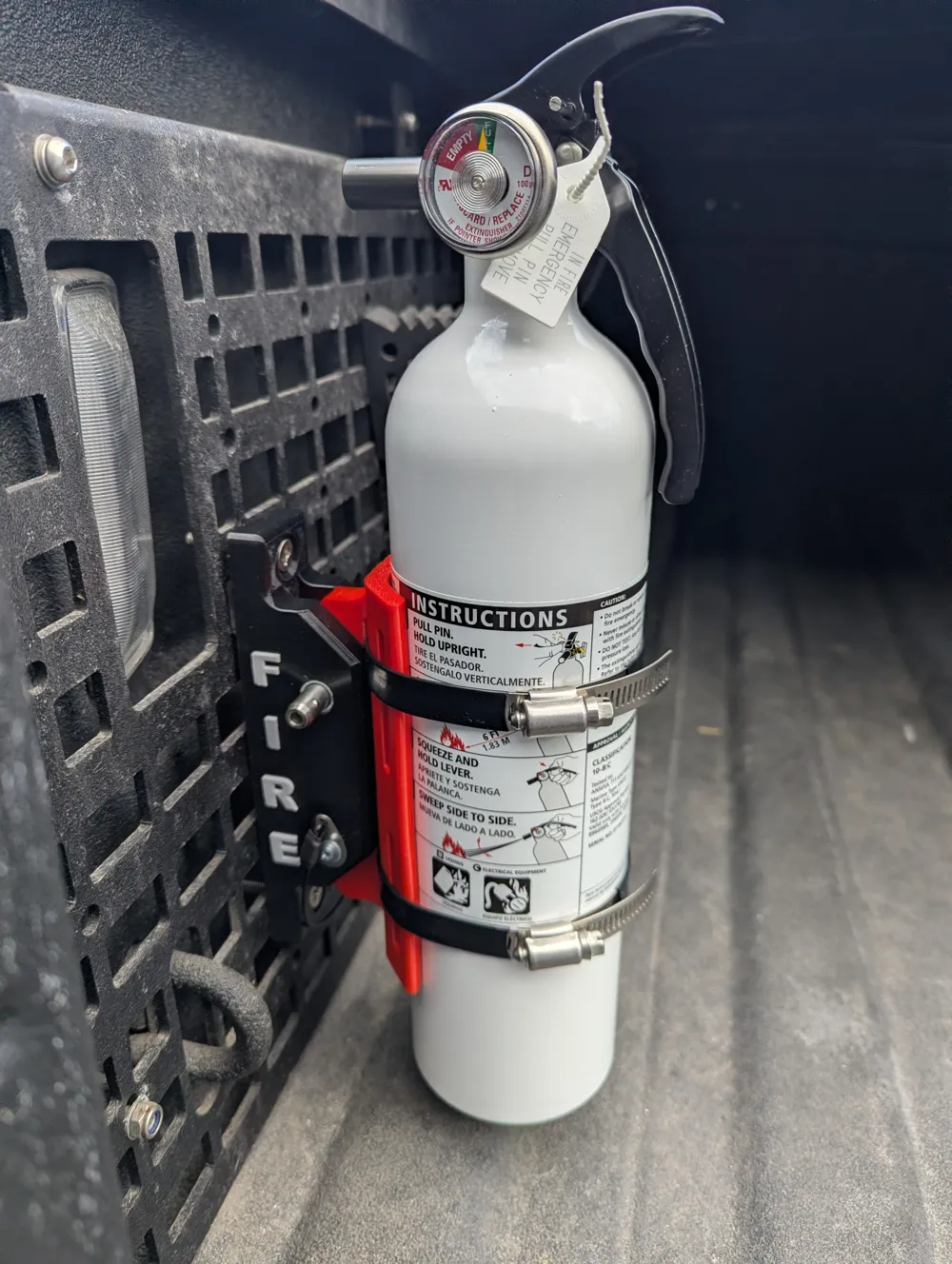

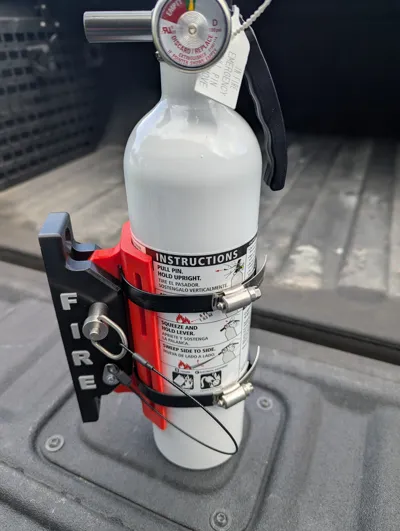

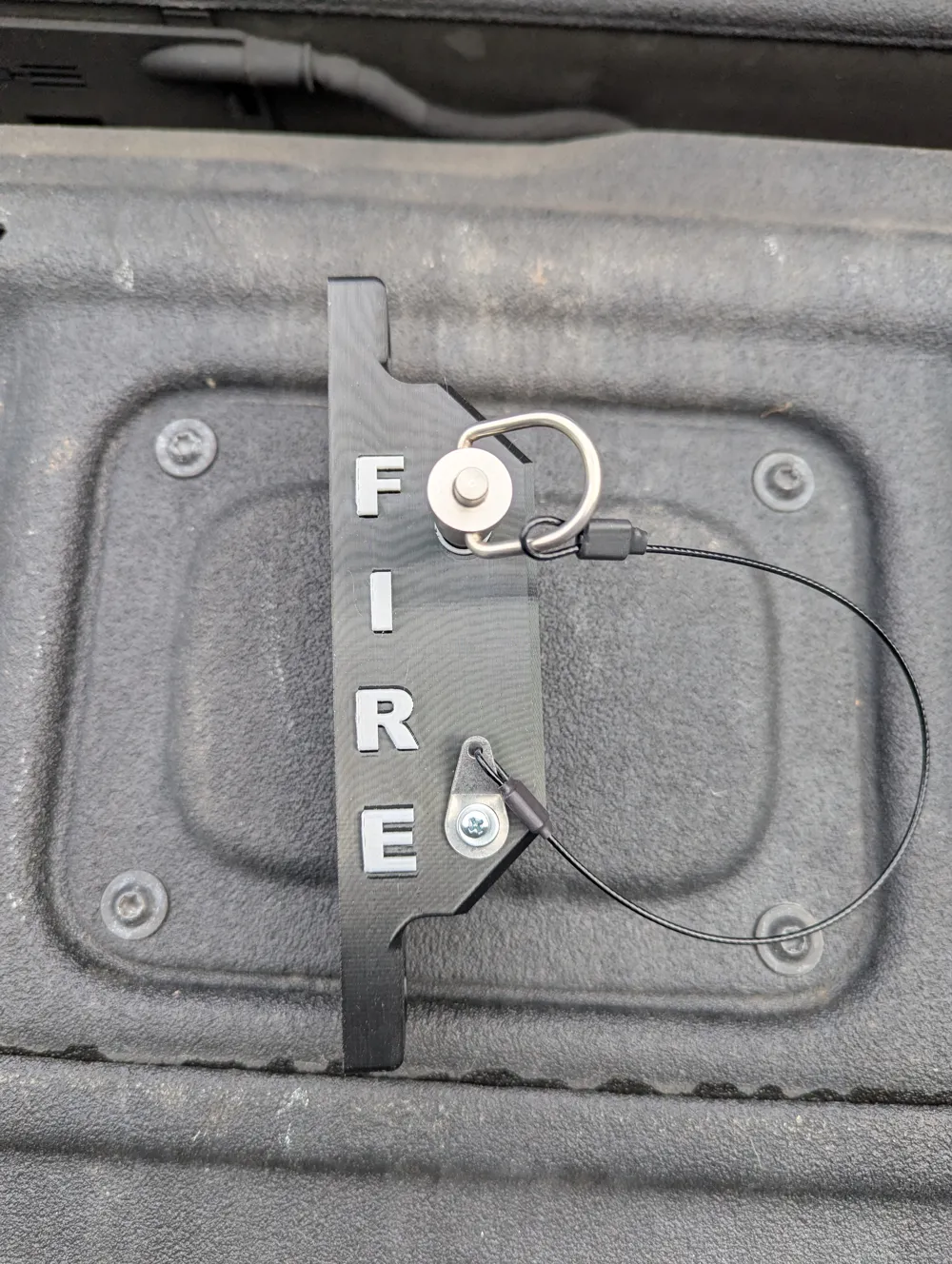

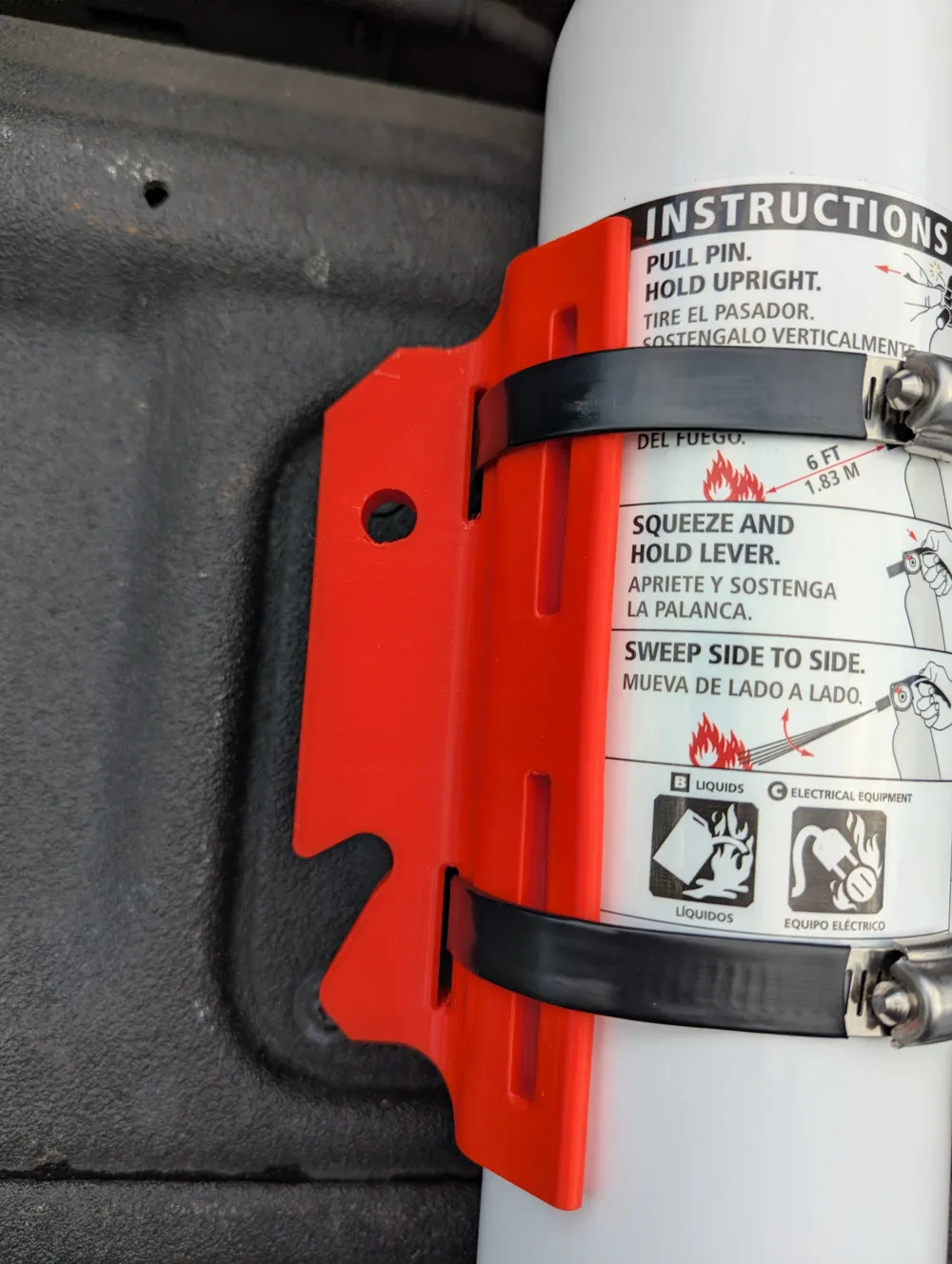

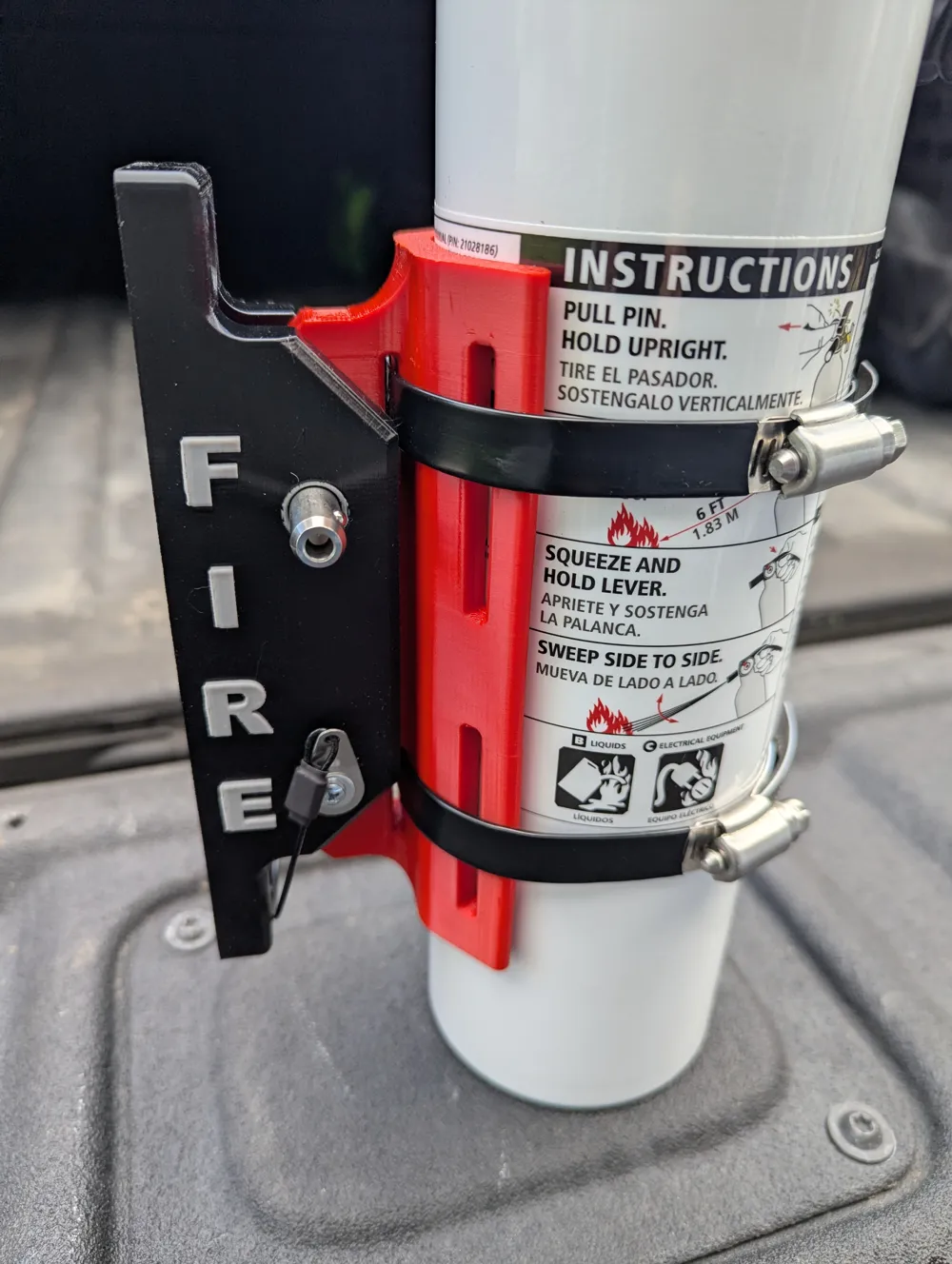

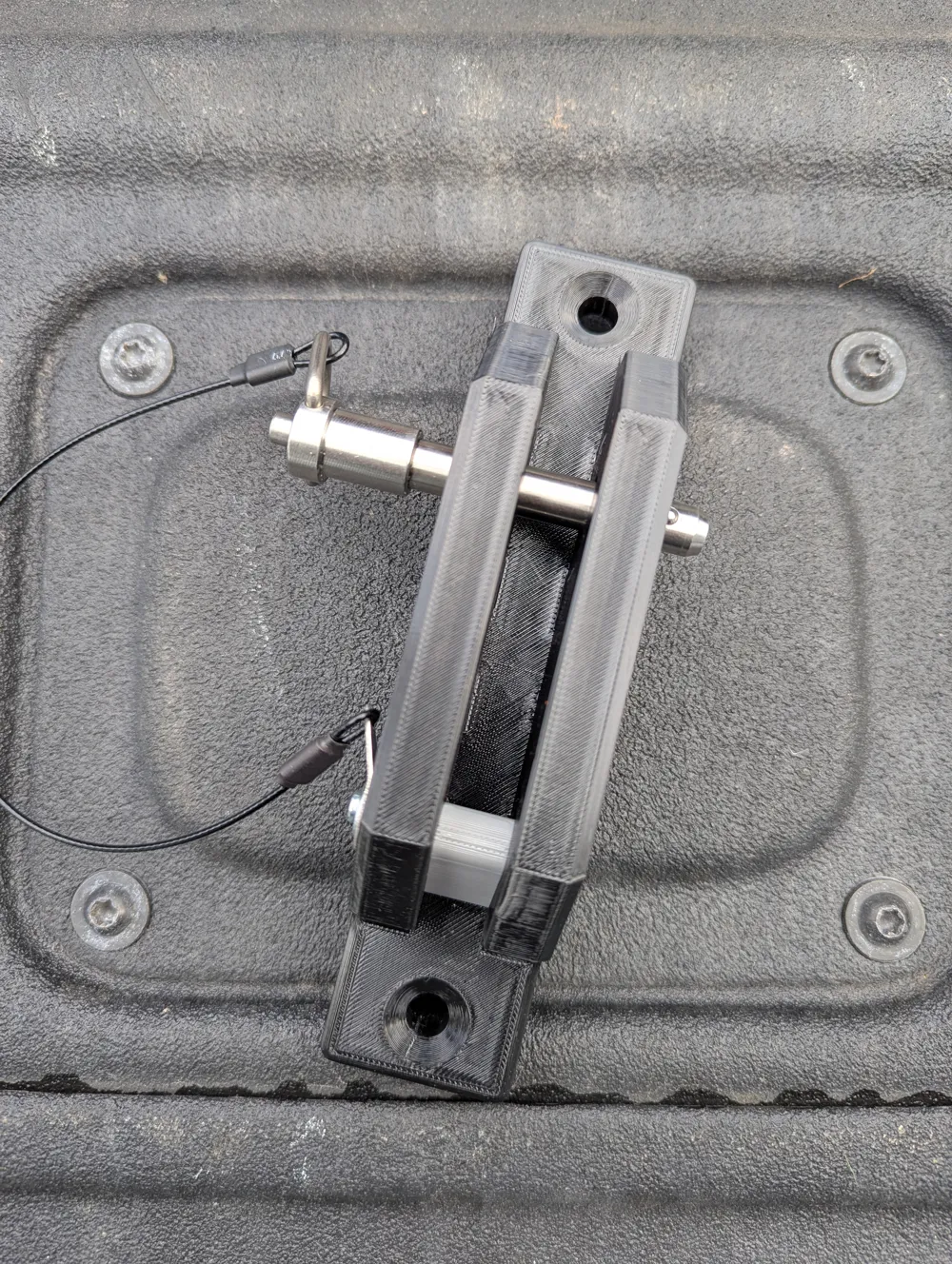

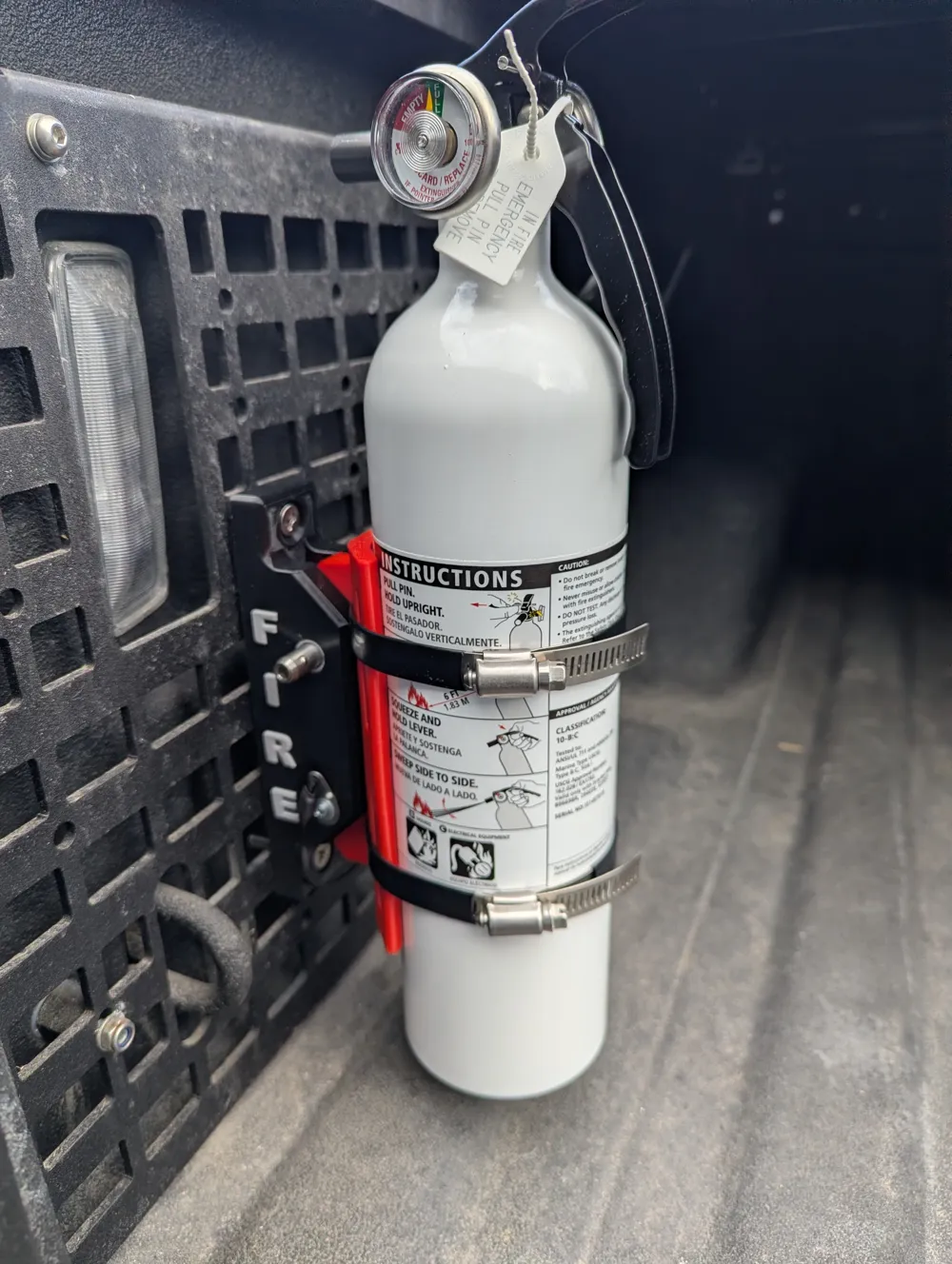

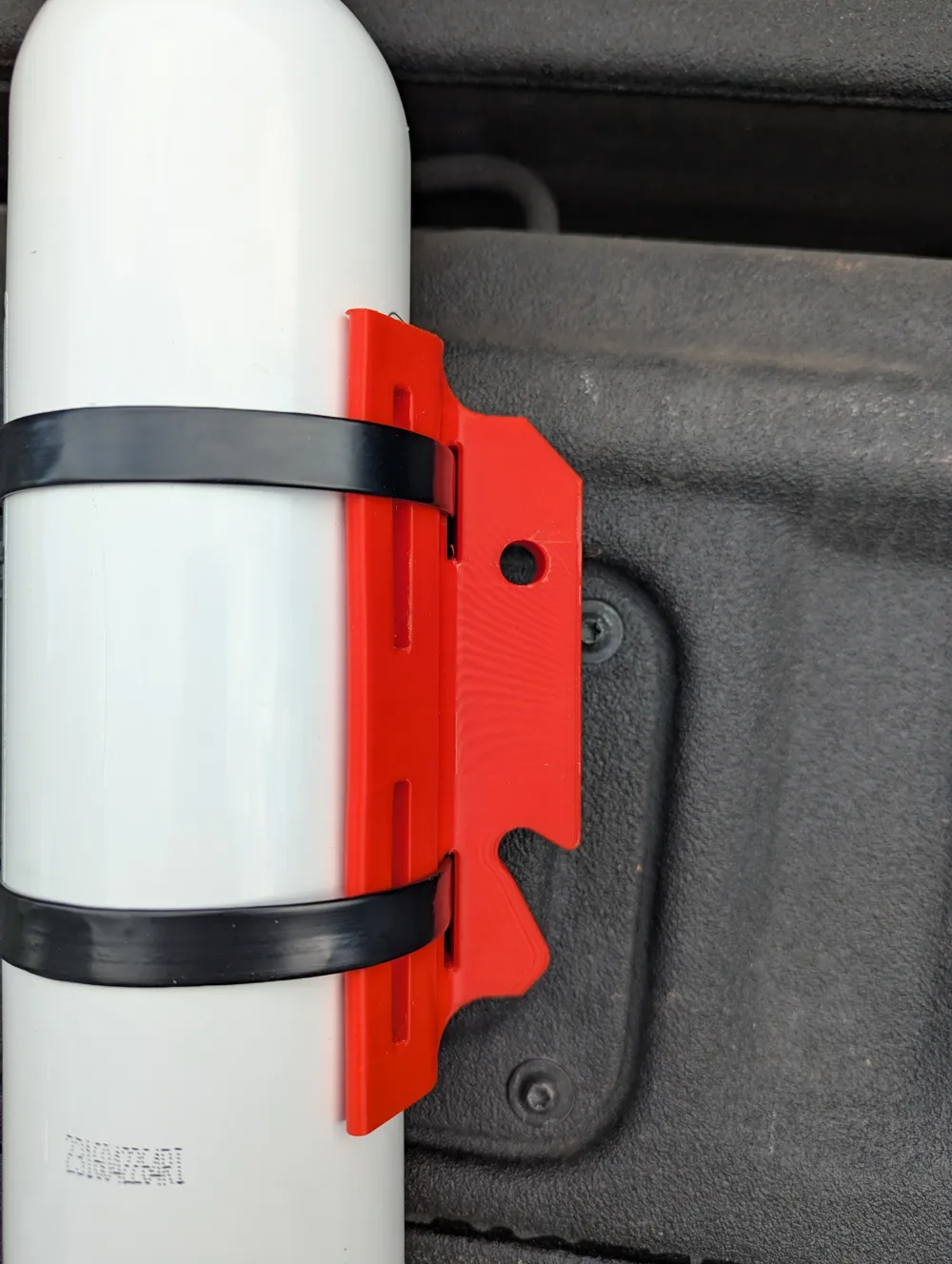

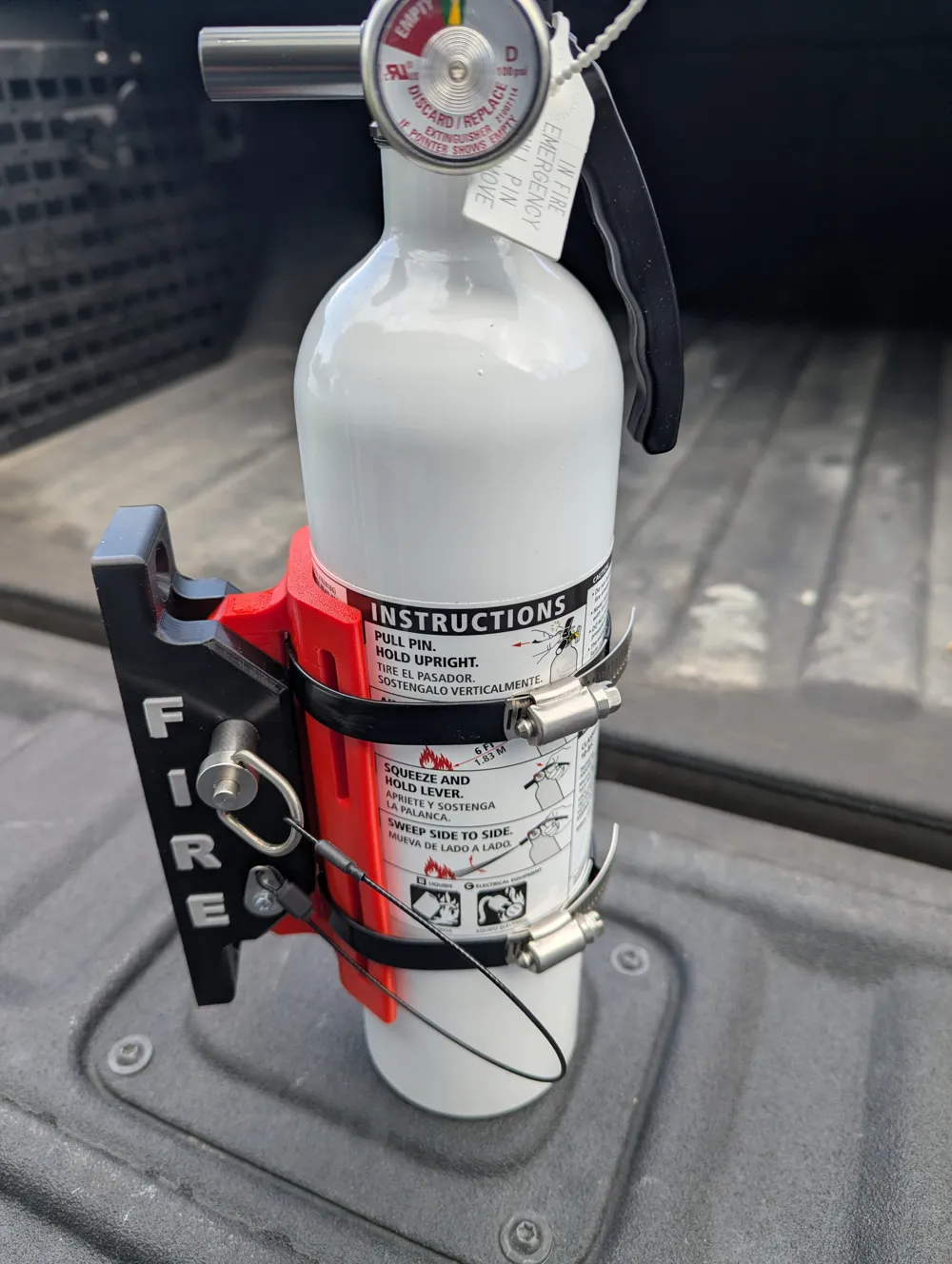

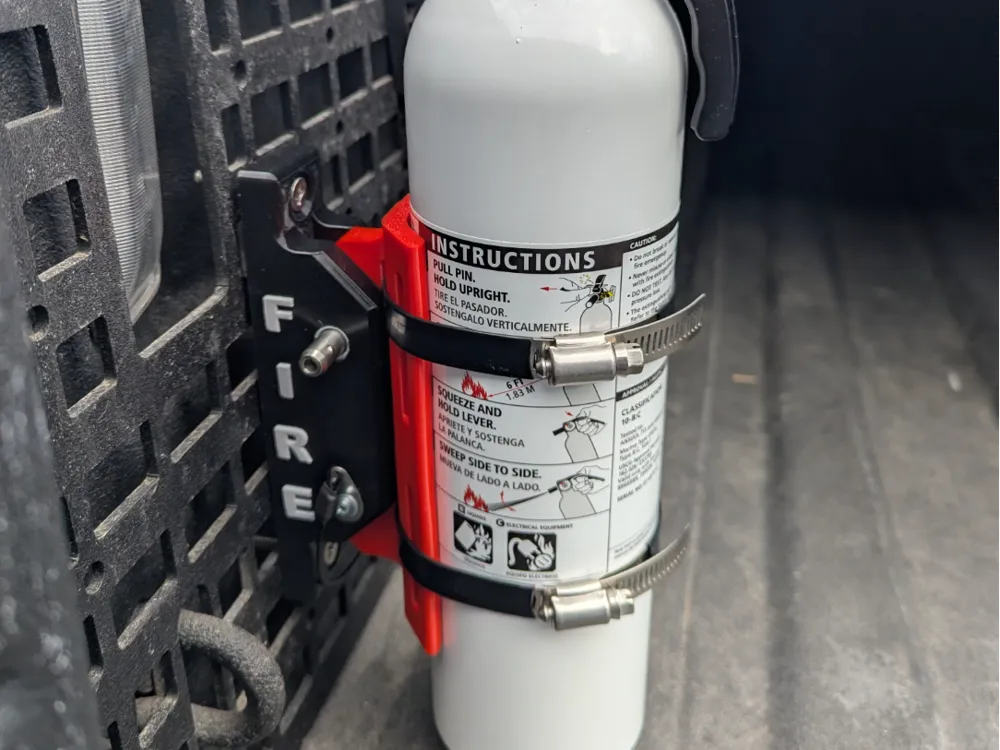

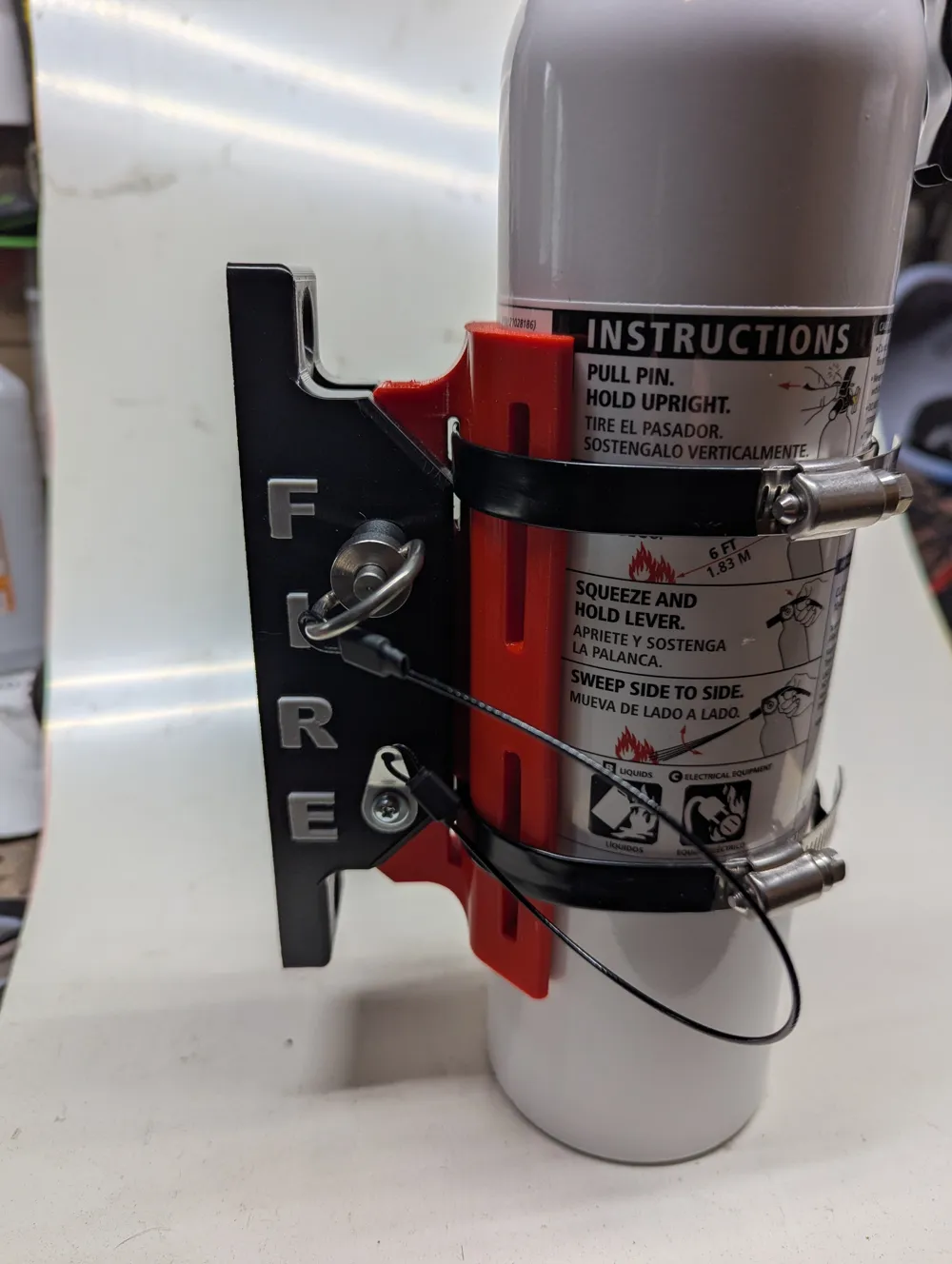

This is a quick release fire extinguisher holder for Jeep, Trucks, SXS UTVs, 4x4's with molle panels or any way you can attach it elsewhere. It uses a 3/8 x 1.75" SS quick release pin to hold in place. When it's pulled, the Extinguisher will fall from the bracket for quick use. The mounting holes are for M6 (or ¼ in) flat head bolts. I used fender washer on the back side of the molle panel with Nylock nuts to hold in place. I used brass threaded inserts in the small holes on each side to attach the tether of the pin. I used stainless steel 3-5 in hose clamp to clamp the extinguisher to the holder.
