Infinity Knot Torus

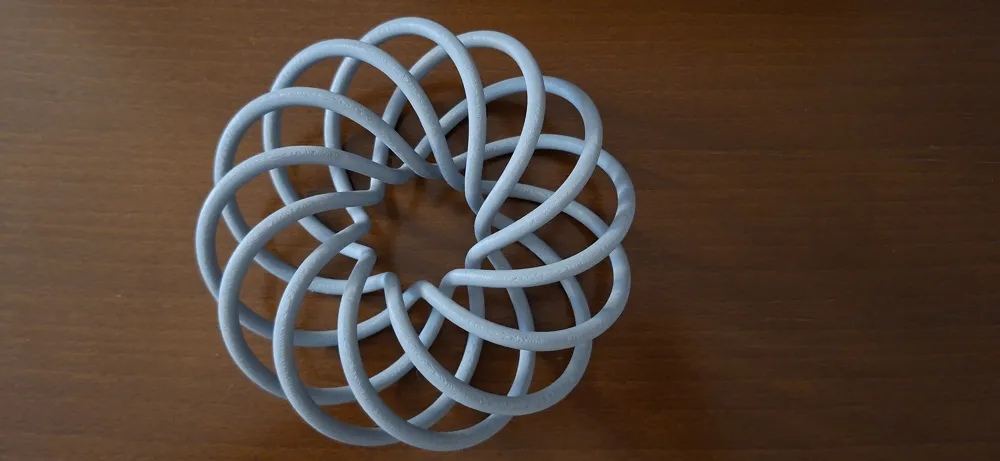

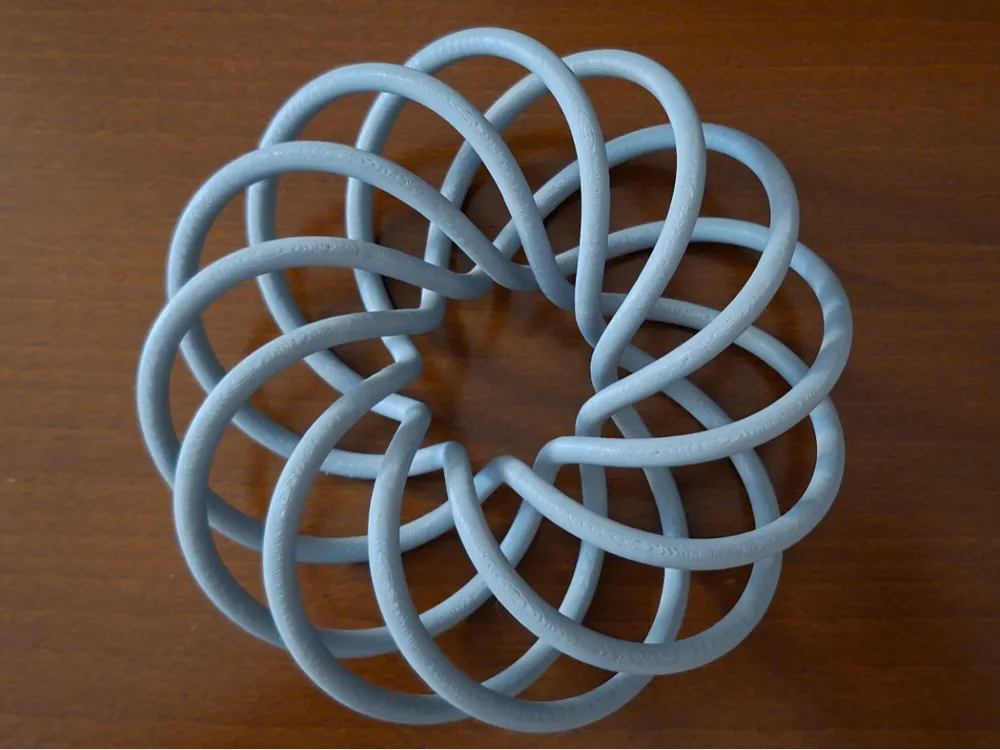

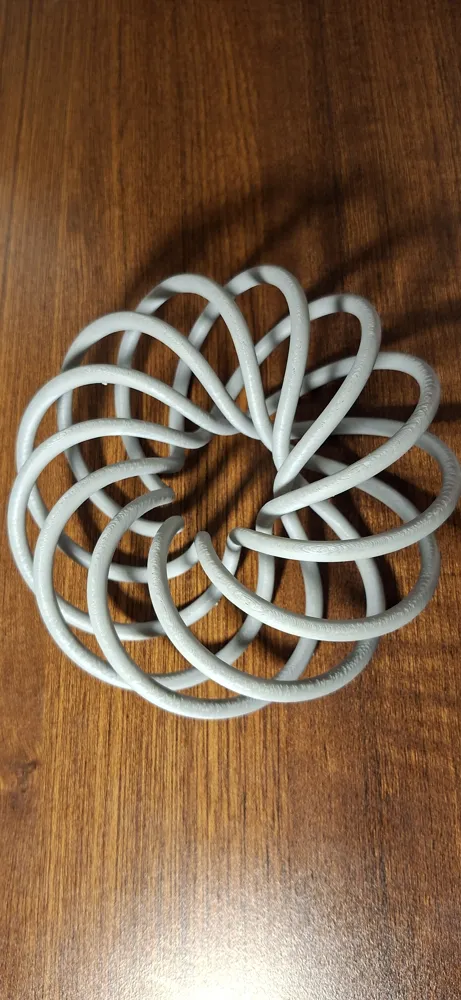

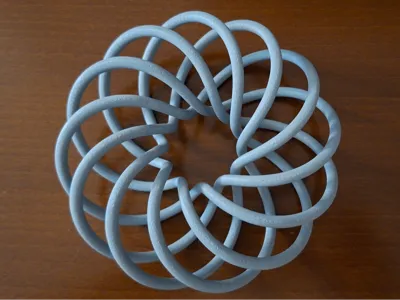

The Infinity Knot Torus is a stunning 3D representation of mathematical elegance. This model visualizes a single, continuous toroidal winding path, isolating one half of the geometry traditionally found in a Rodin Coil or Vortex Math topology.

By removing the intersecting mirrored path, this sculpture highlights the pure, uninterrupted trajectory of a single vortex flow. Whether you are a tech enthusiast, a fan of sacred geometry, or simply looking for a high-complexity "torture test" for your 3D printer, this model serves as a perfect desktop centerpiece. The interlocking tube creates a mesmerizing visual flow that looks completely different from every angle.

Print Settings & Recommendations:

This model features complex overhangs and interlocking geometries. To achieve a clean print, I have optimized the following settings in Bambu Studio:

• Supports: Tree Supports are mandatory. They navigate the gaps between the tubes much more efficiently than standard supports.
• Support Threshold Angle: Set to 35°. This ensures the "cradle" of the support climbs slightly higher on the sides of the round tubes, preventing sagging and maintaining a perfect circular cross-section.
• Top Z Distance: 0.20 mm. This provides the perfect balance between support stability and easy, clean removal.
• Support/Object XY Distance: 0.35 mm. This prevents the support trunks from accidentally fusing to the sides of the tubes.
• Orientation: Print it as shown (flat on the bed) to allow the tree supports to grow vertically through the center and around the perimeter.

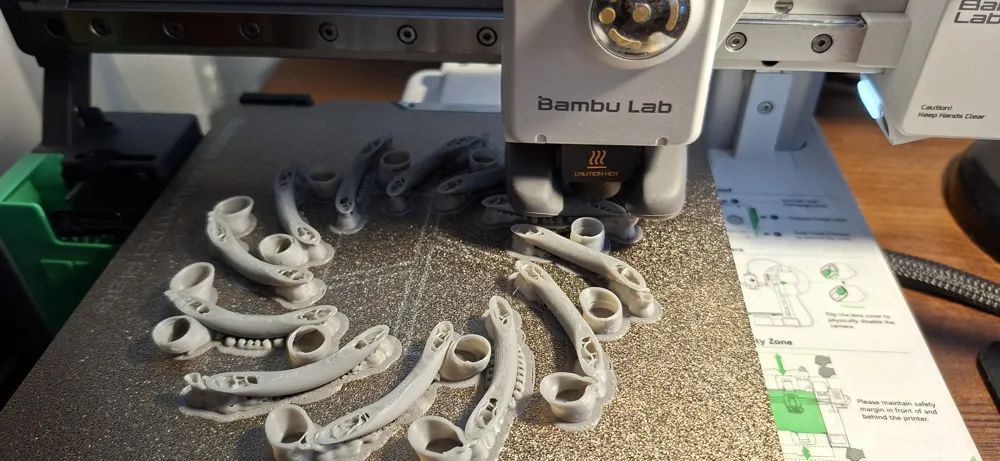

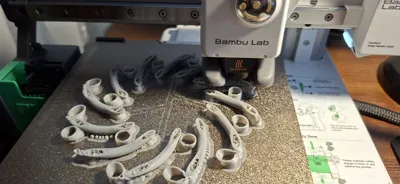

Post-Processing Tip: When removing the supports, use a pair of fine snips. Start from the outside and work your way in, clipping the "branches" into small pieces. Avoid pulling on large sections of the support tree to prevent putting unnecessary mechanical stress on the thin tube.

Mathematical Context: While a functional Rodin Coil uses two mirrored paths intersecting each other, this sculpture intentionally isolates just one direction. Mathematically, it is a pure (p,q) Torus Knot, demonstrating how a single line can wrap around a donut shape to create a continuous infinite loop without ever touching itself.
