Yamaha TT 360/600 Choke Buttons / Caps
Print Profile(1)
Description

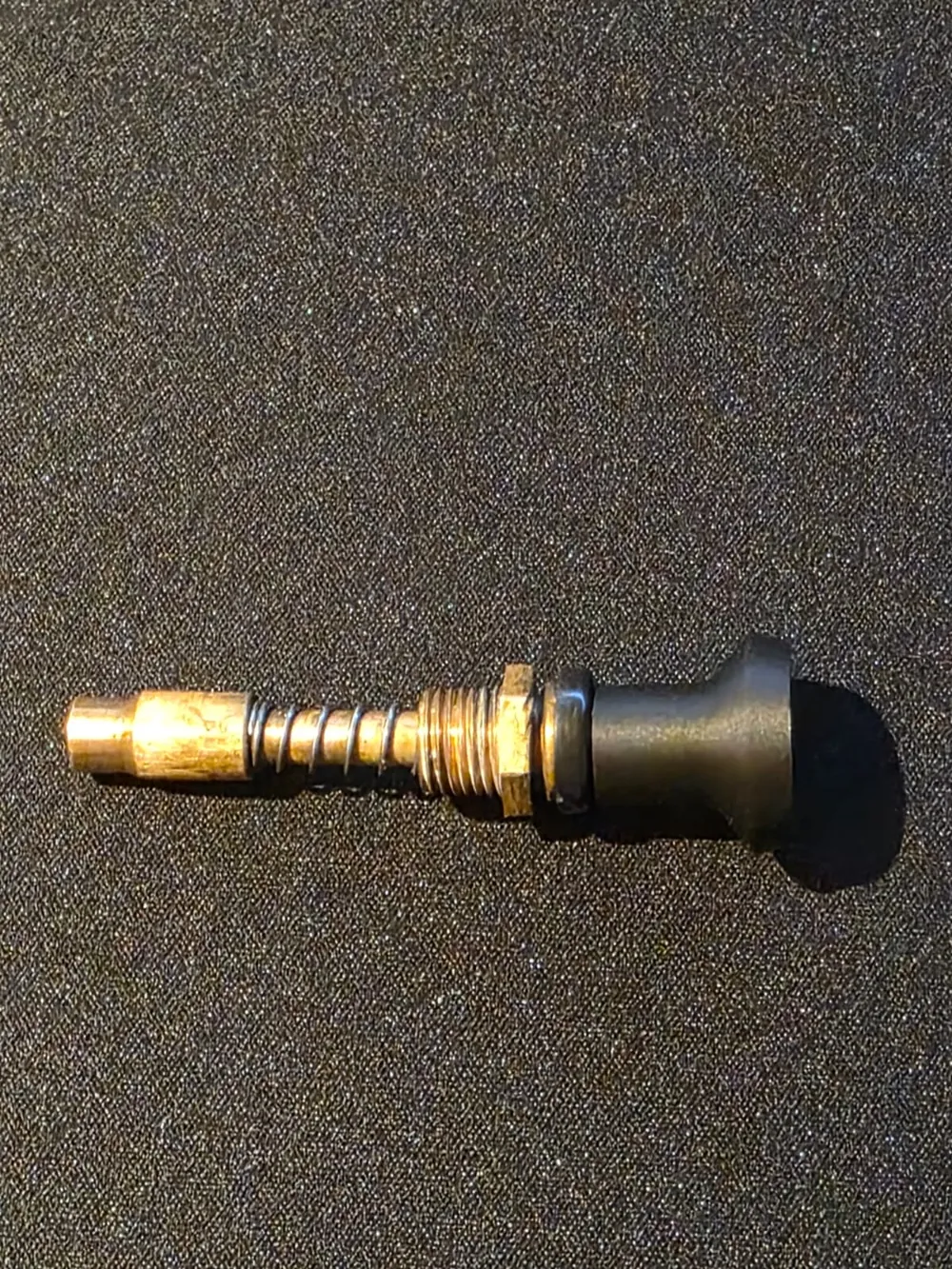

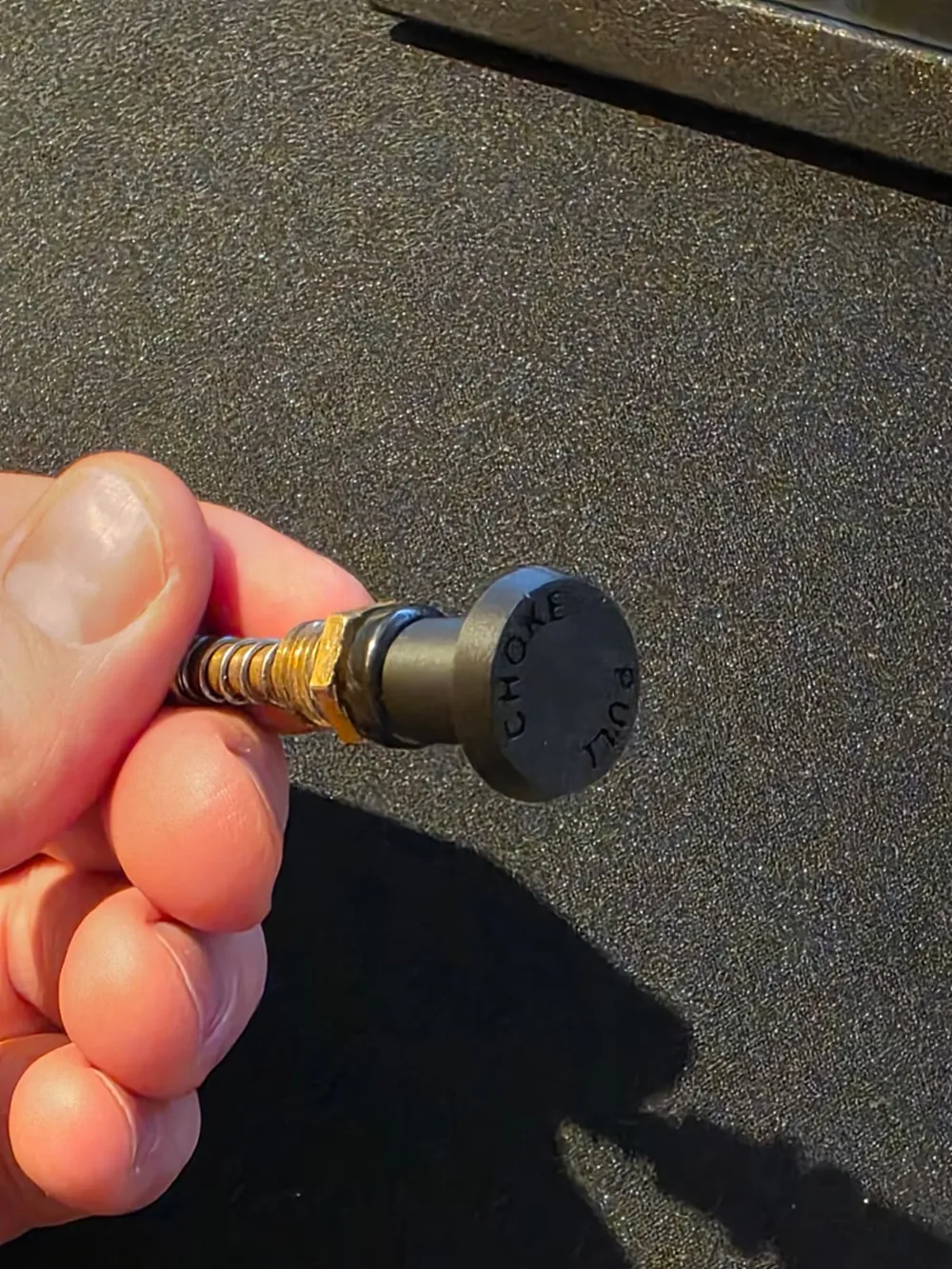

I designed buttons for all 3 types of plungers for the older Yamaha TT350/TT600 models. Print it in PETG/ABS/ASA for heat & UV resistance.

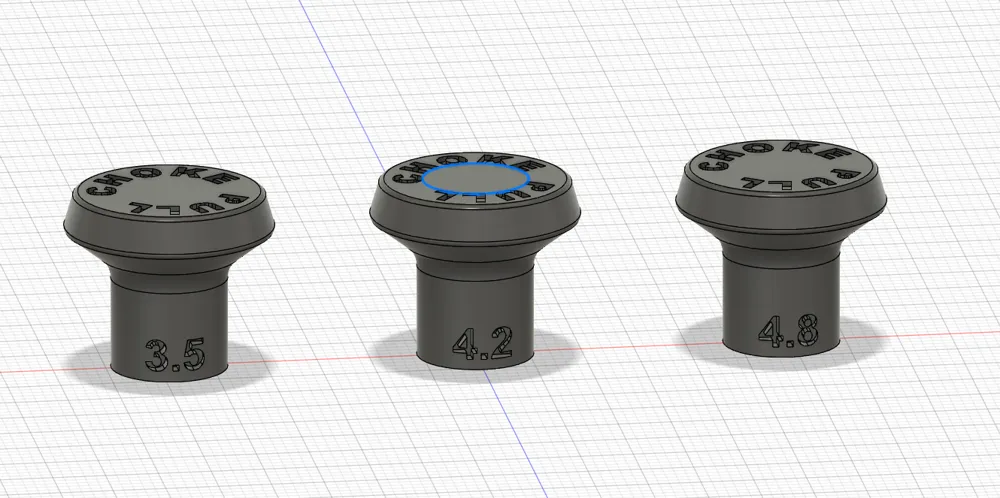

The diameter of the shaft is written on the outside of the model:
-4,8mm
-4,3mm
-3,5mm

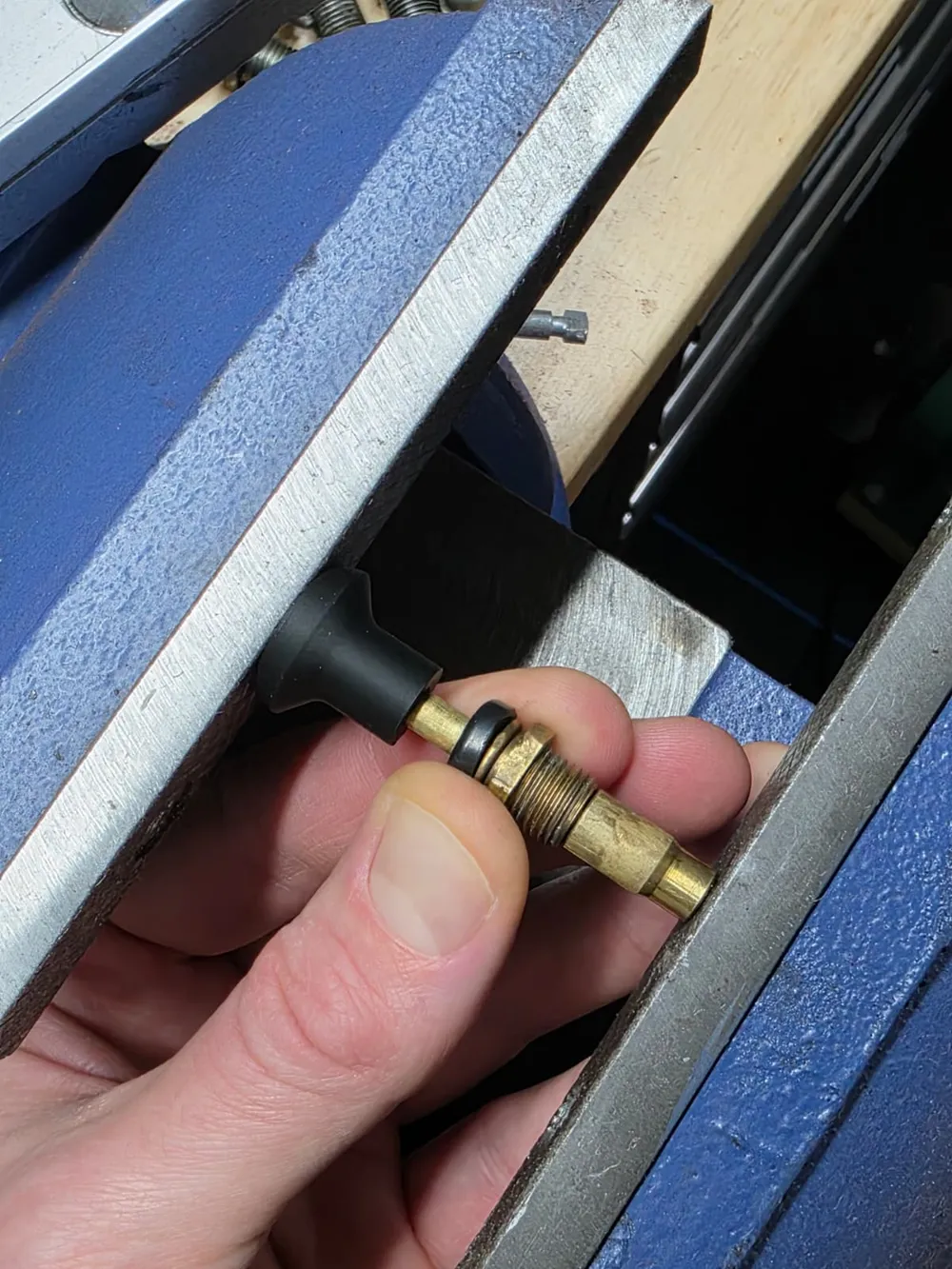

I made them press-fit if you put the button and the plunger between a vice. Or you could heat the plunger to press the button on top of it.
There are also 3 corresponding rubber bushings in the file but these are kinda hard to print since TPU tends to sag.
