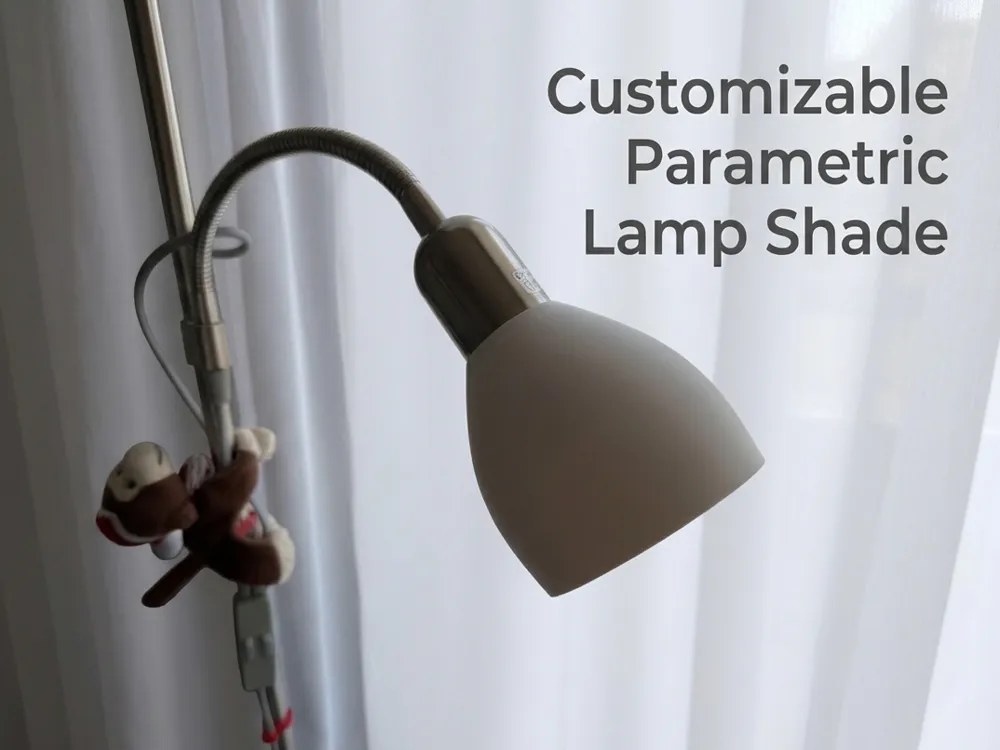

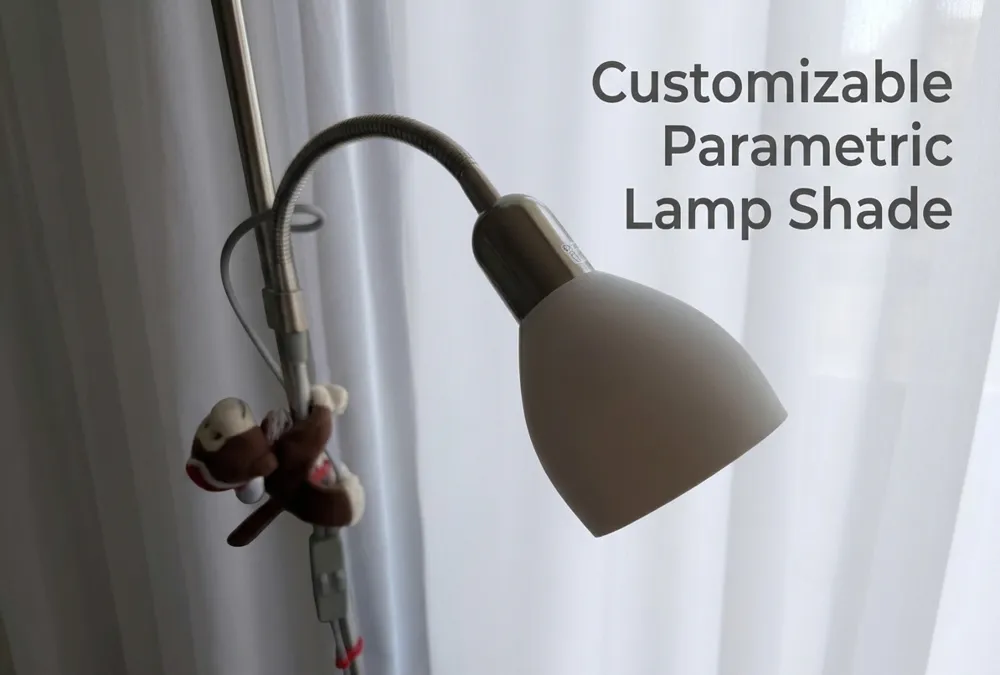

Customizable Parametric Lamp Shade

Customizable Parametric Lamp Shade

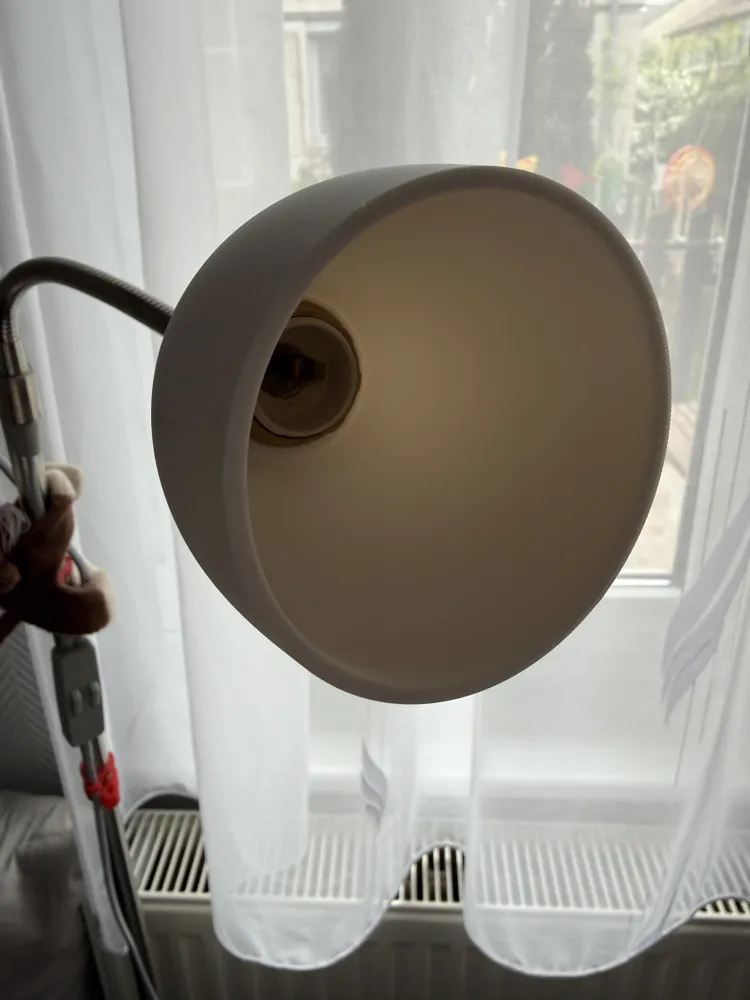

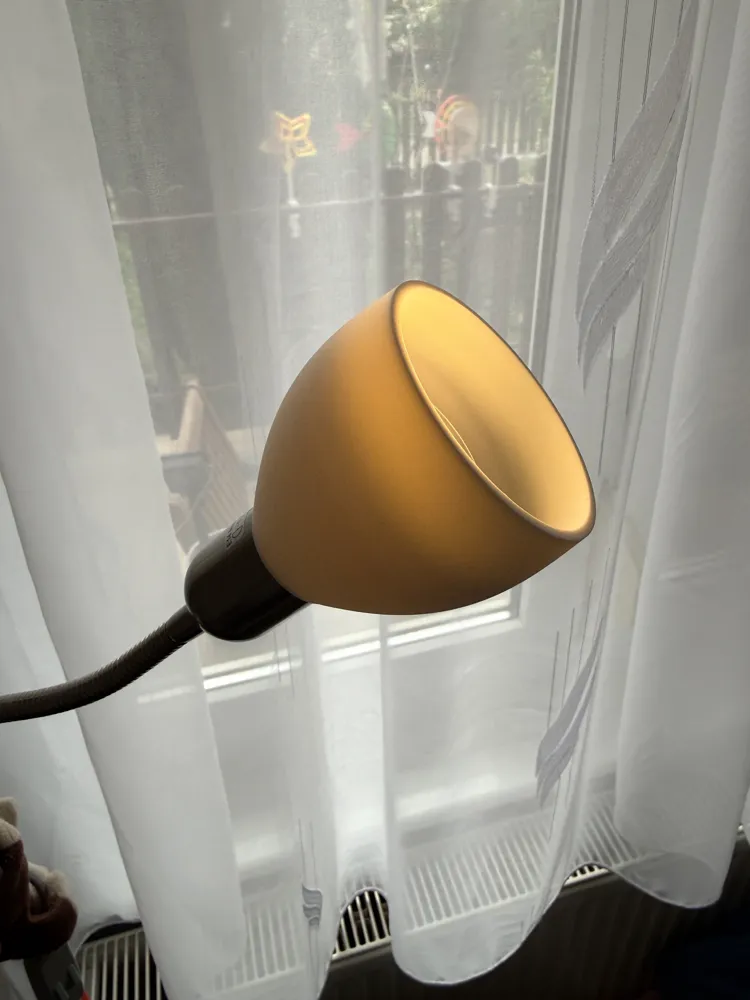

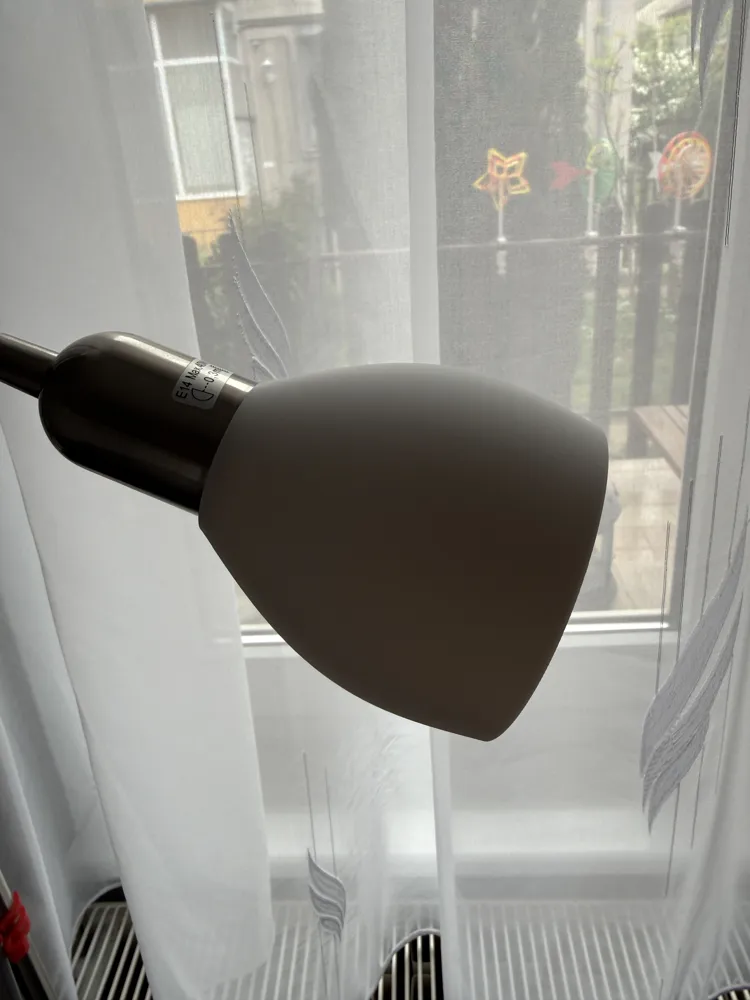

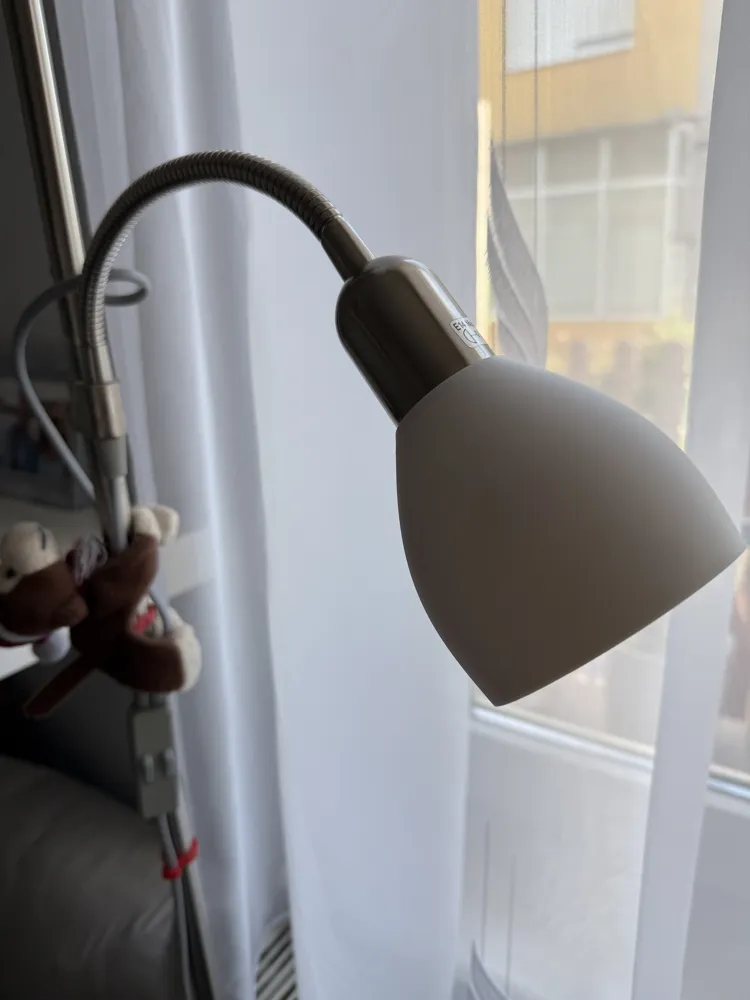

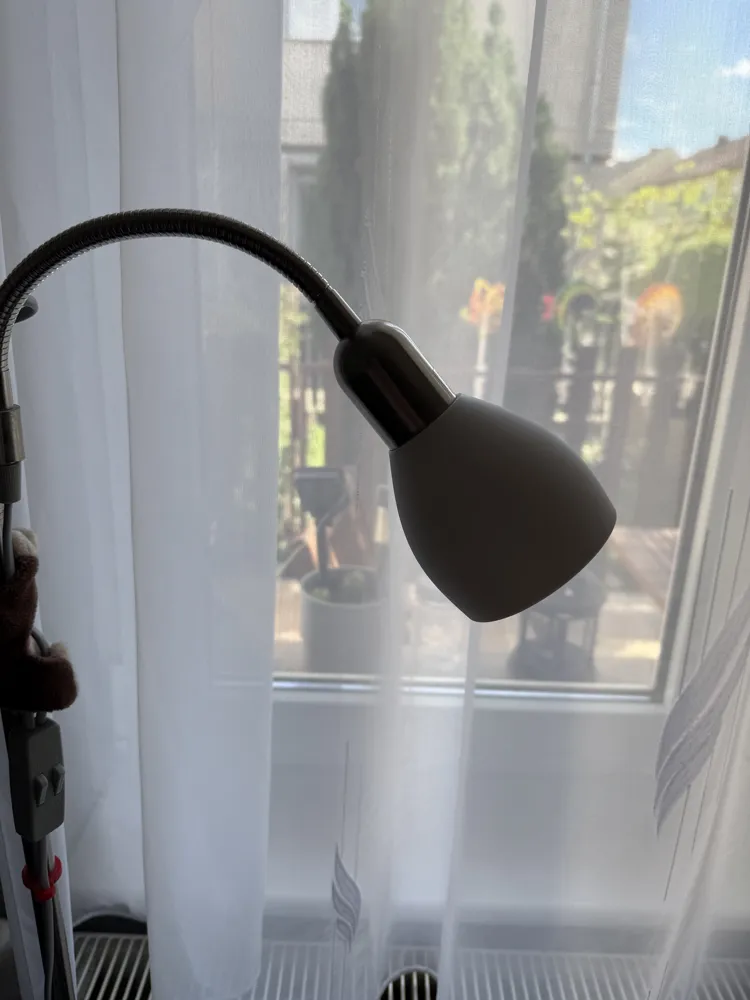

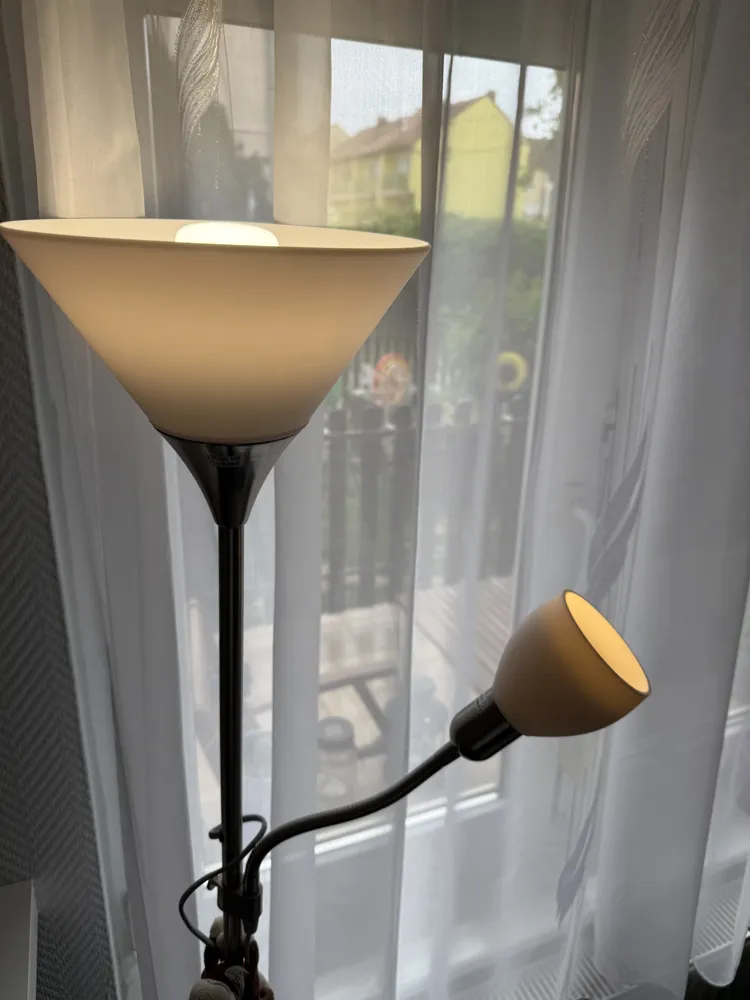

You can use the model to create different lampshades. There is a wide range of curved, smooth, and patterned lampshades at your disposal. Just enter the parameters and download the finished lampshade.

Printing tips: When printing, use 100% fill.

1. Base Dimensions

• shade_height: The total vertical height of the lamp shade.
• bottom_diameter: The diameter of the lamp shade at its very bottom.
• top_diameter: The diameter of the lamp shade at its very top.
• wall_thickness: The thickness of the shade's shell (the distance between the outer and inner surfaces).

2. Shape Style

• shape_type: Determines the profile of the shade.
  • straight: Creates a classic conical/linear slope.
  • curved: Adds a bulge or indent to the sides.
• curvature: Controls how much the side profile bows out or in.
  • Positive values create a "belly" (bulge).
  • Negative values create a "waist" (inward curve).

3. Pattern Settings

• pattern_enabled: A true/false switch to turn the decorative cutouts on or off.
• pattern_type: The geometric shape of the cutouts (circle, hexagon, square, or slot).
• pattern_rows: How many horizontal "rings" of patterns are stacked vertically.
• pattern_count_per_ring: How many individual cutout shapes are placed around the circumference of each ring.
• pattern_size: The overall scale/size of each individual cutout.
• pattern_rotation: Rotates the individual cutout shapes themselves (e.g., turning a square into a diamond).

4. Bottom Mounting Plate

• bottom_plate_thickness: The height/thickness of the solid floor at the base of the shade.
• mounting_hole_diameter: The size of the hole in the center of the bottom plate where the lamp socket or bulb fixture passes through.

5. Rendering Quality & Technical

• quality: Controls the smoothness of the curves. Higher values make the circles look rounder but increase the time it takes to render the 3D model.
• slices: The number of vertical segments used to calculate the curvature. More slices result in a smoother vertical profile.

If you are satisfied with my work, please, in addition to downloading the model, printing and evaluating it, you can also support it with boost.

Custimize, Download, Print and Use!
