Lenovo M720Q M920Q/X NEC8 Tiny5 Network Card Baffle Electrical Port Network Card Baffle

M720Q Baffle / M920Q Baffle / M920x Baffle / NEC8 Baffle / P330 Baffle / Tiny5 Baffle

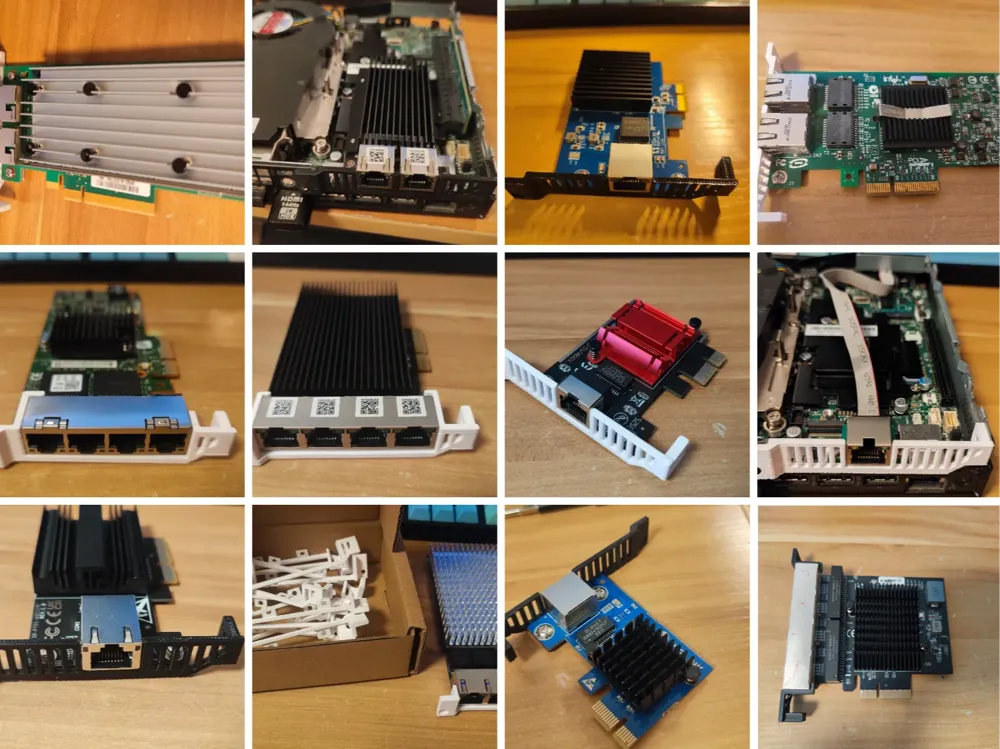

This project is derived from the domestic site | international site. This project only collects electrical port network card models (the original project could no longer fit the print profiles).

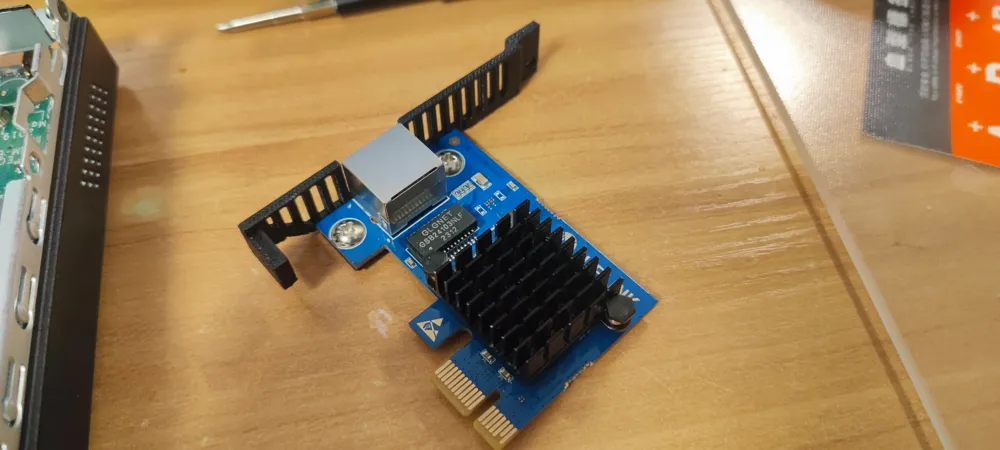

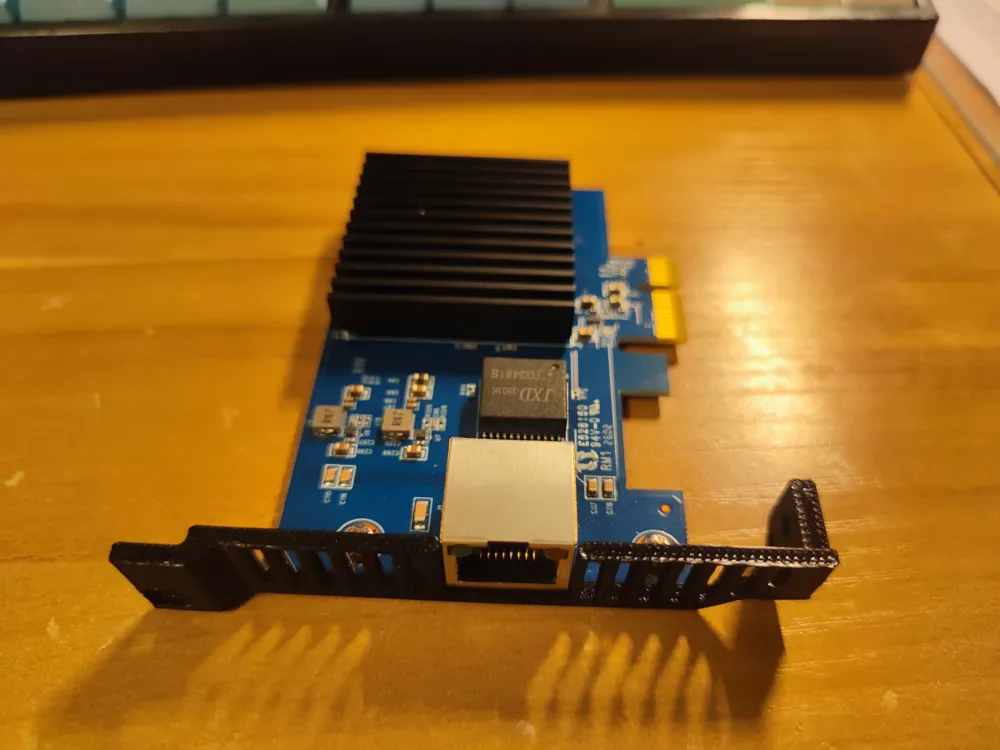

1. Compatible with JUPLINK 8125BG 2.5G single Ethernet port (note the distinction between versions) - Fig. 1

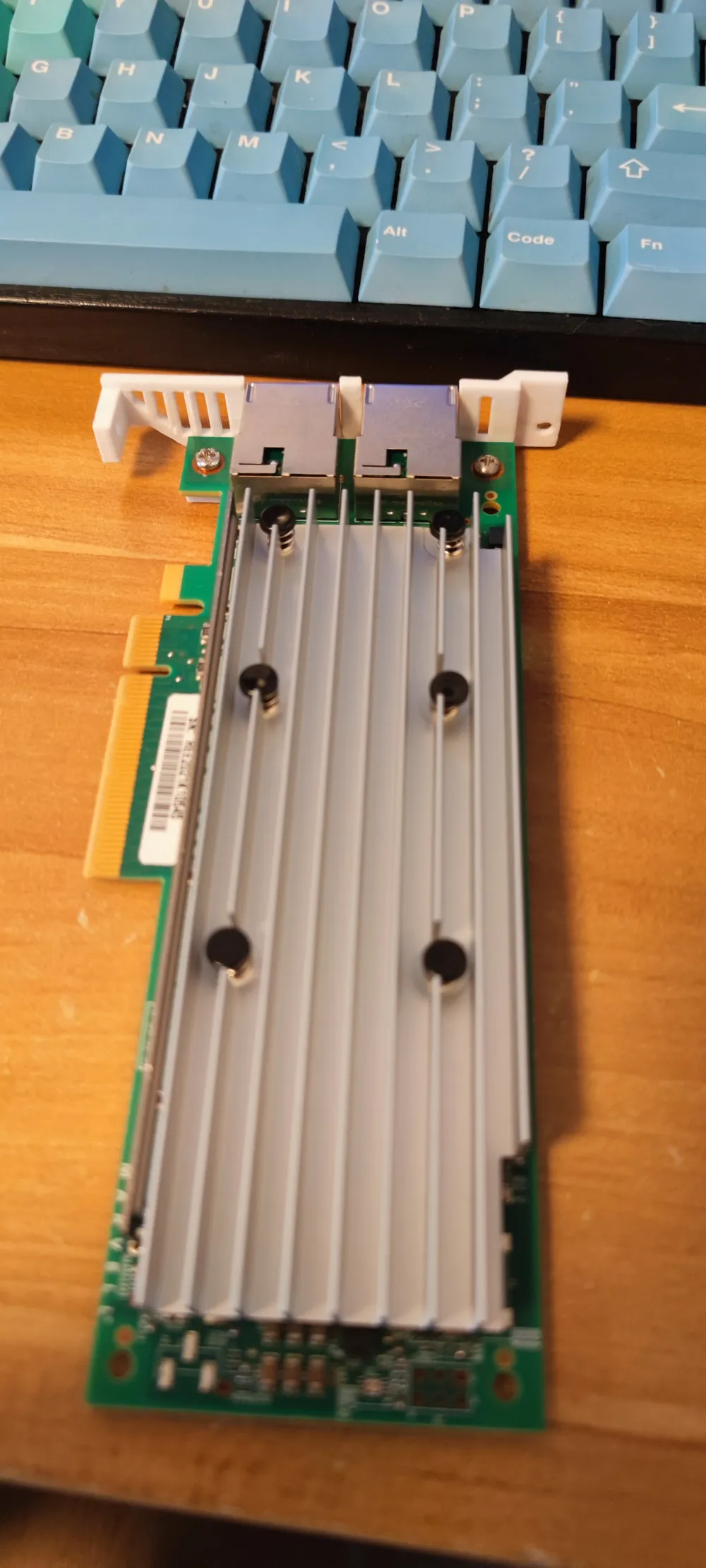

2. Compatible with DELL QLogic QL41162HLRJ dual Ethernet port - Fig. 2

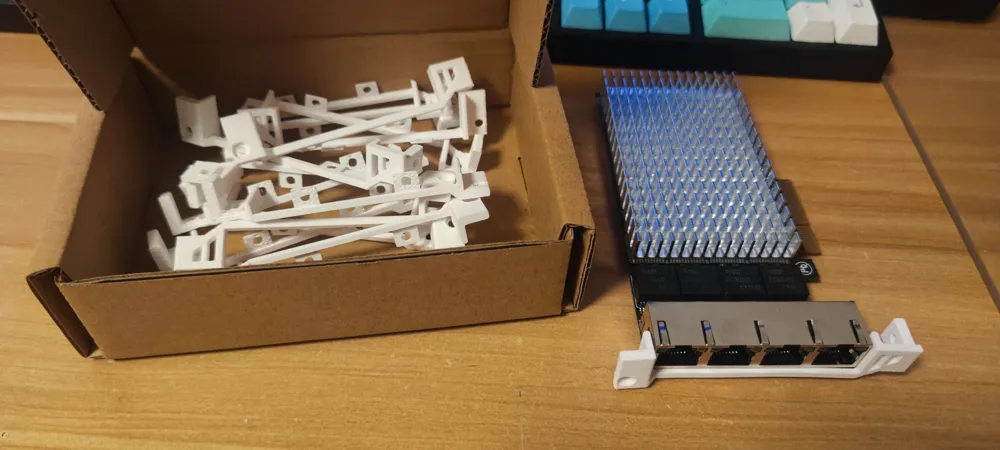

3. Compatible with RTL8125BG 2.5G quad Ethernet port (black heat sink, see figure to distinguish between versions) - Fig. 3

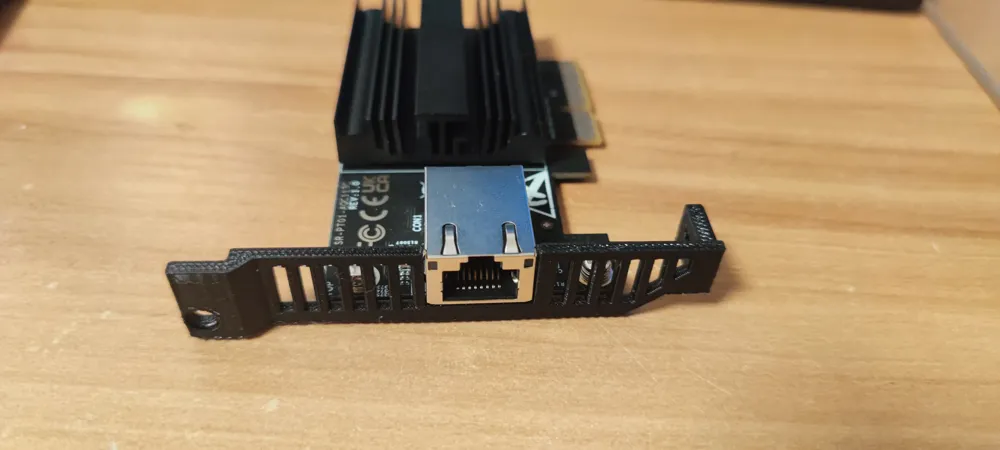

4. Compatible with Xiliweishi AQC113C-SR-PT01 2.5G single Ethernet port - Fig. 4

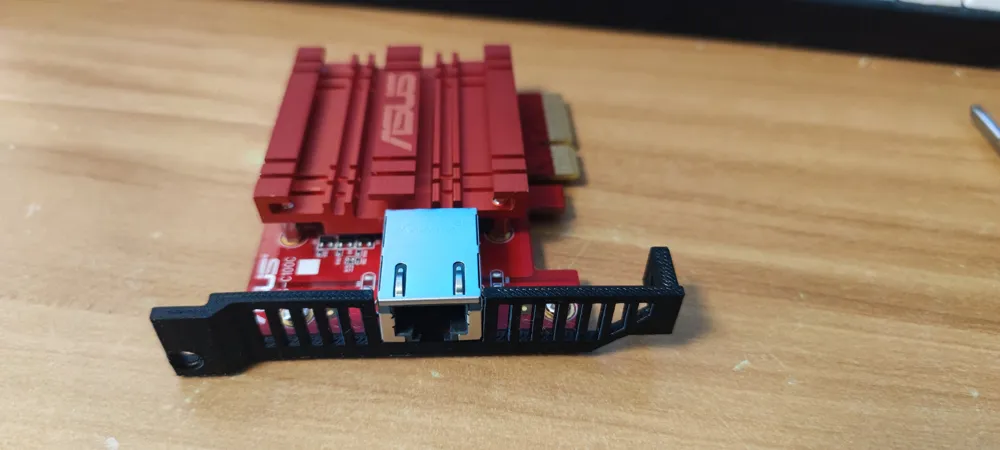

5. Compatible with ASUS XG-C100C 10G single Ethernet port - Fig. 5

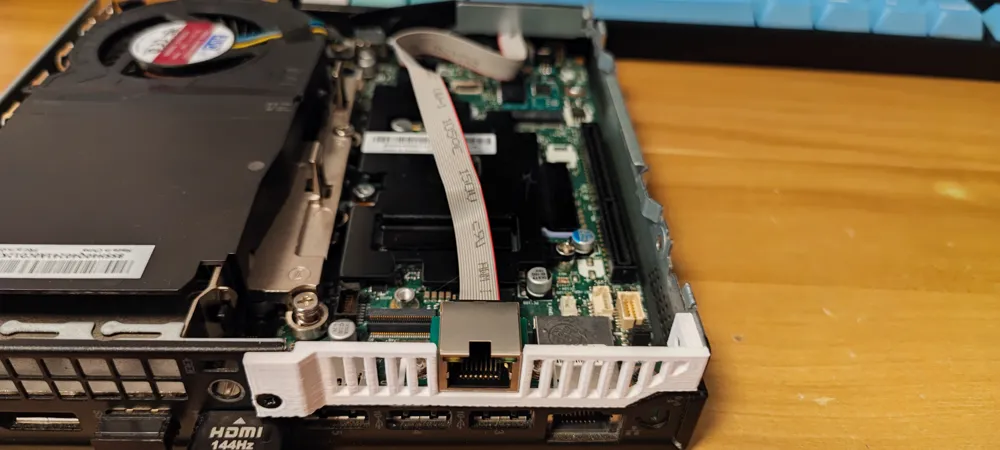

6. Compatible with M.2-AE RTL8125B 2.5G single Ethernet port - Fig. 6

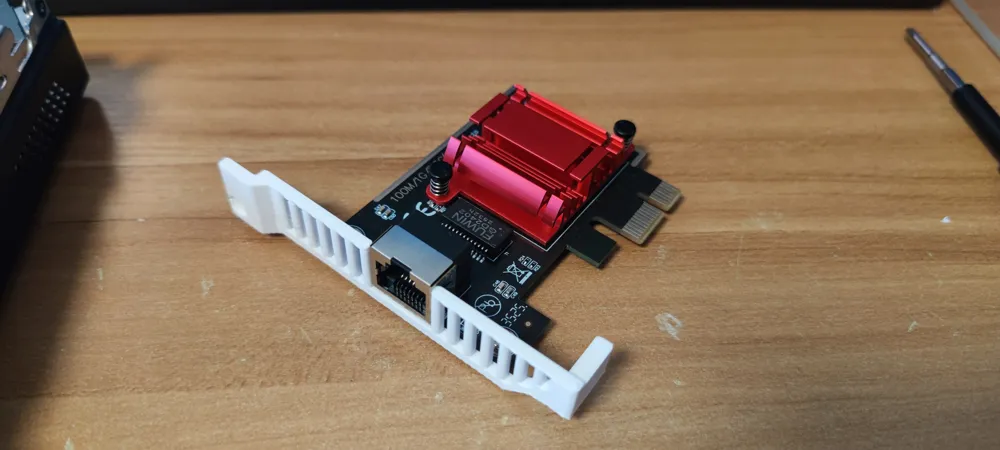

7. Compatible with RTL8125BG-Red 2.5G single Ethernet port (red heat sink, see figure to distinguish between versions)- Fig. 7
8. Compatible with Intel i226v quad Ethernet port - Fig. 8
9. Compatible with Intel i226v quad Ethernet port Ver2 (small heat sink version, see figure to distinguish between versions) - Fig. 9

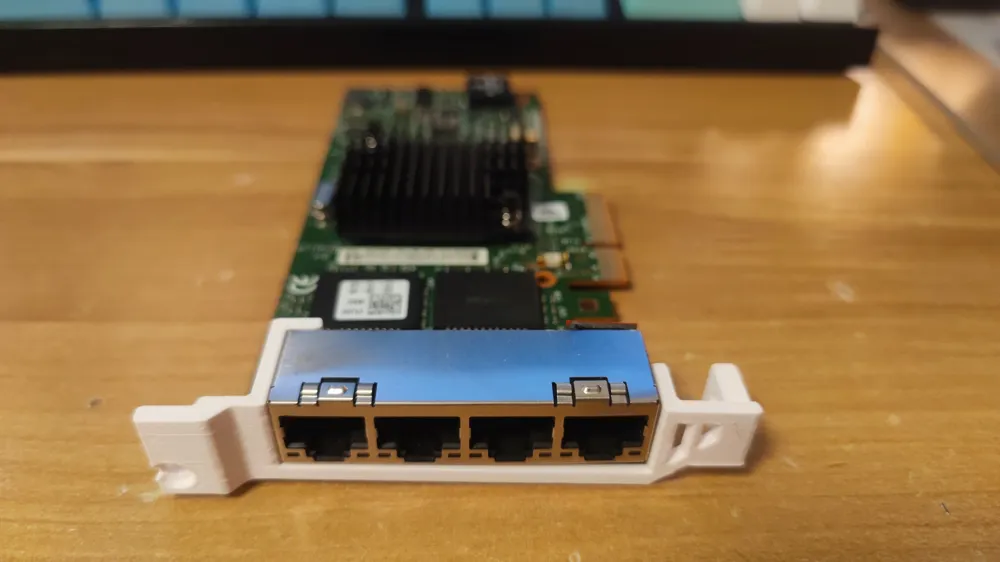

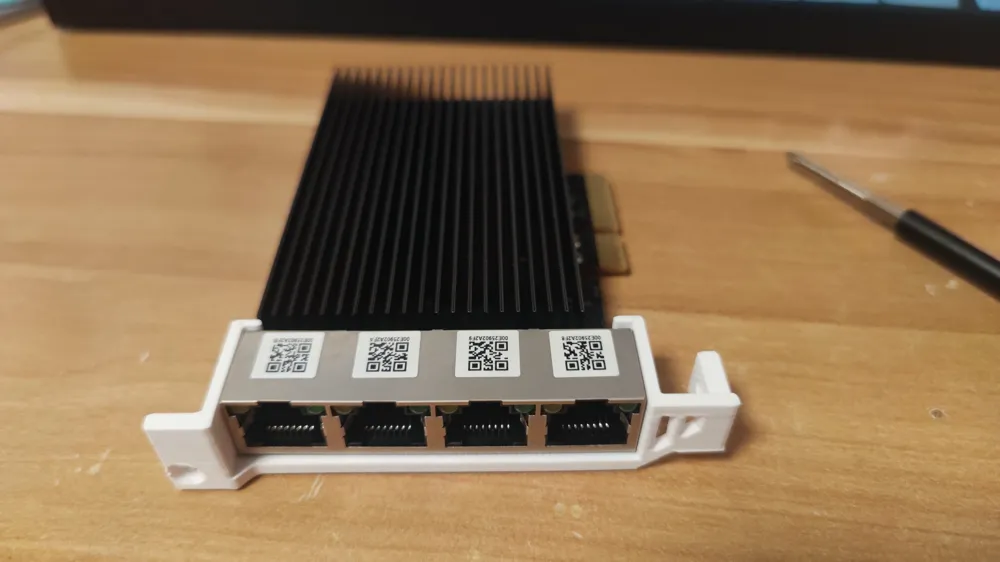

10. Compatible with Intel i350T quad Ethernet port - Fig. 10

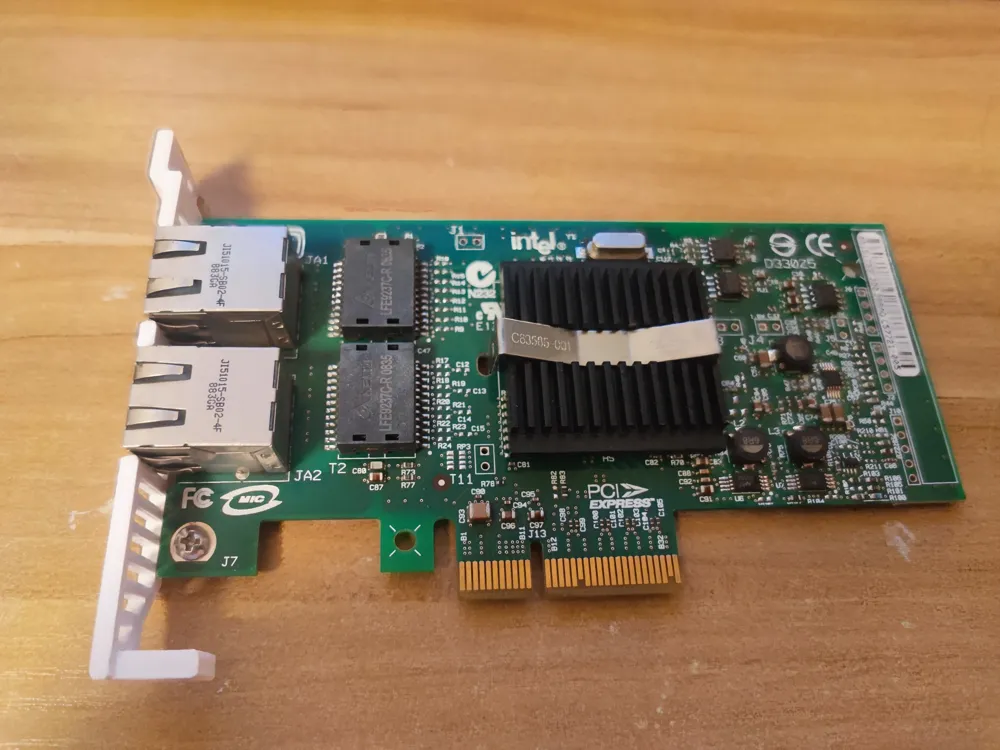

11. Compatible with Intel 9402PT dual Ethernet port - Fig. 11
12. Compatible with Intel i226v dual Ethernet port - Fig. 12
13. Compatible with RTL8127 single Ethernet port (black heat sink, blue PCB) - Fig. 13

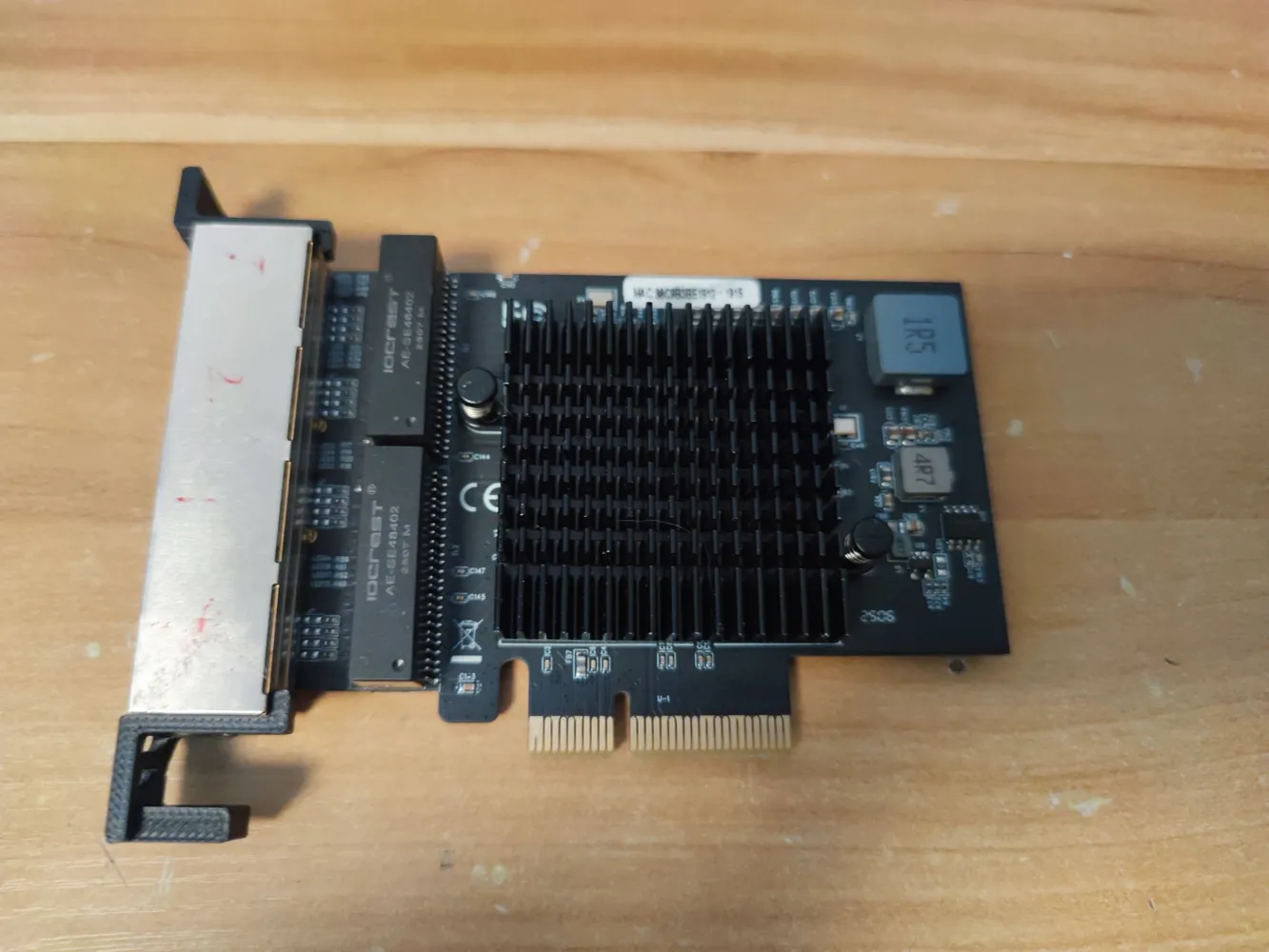

14. Compatible with Lekuo 8125B 2.5G quad Ethernet port - Fig. 14

PETG heat distortion temperature is 65 degrees Celsius. Actual measurements show that hardware below 8500T+ will not deform. Deformation is not guaranteed in sealed enclosures or very high ambient temperatures.

In the 3MF project, one board contains 10 items that can be directly duplicated for a single print. AMS is required (or you can modify the profile yourself). Supports are already drawn.

• 20250618 Added JUPLINK single 2.5G network card (8125BG), thanks to Xianyu users who sent cards for dimension information
• 20250805 Added DELL QLogic QL41162HLRJ 10G dual Ethernet port, thanks to Xianyu users who sent cards for dimension information
• 20250826 Added RTL8125BG 2.5G quad Ethernet port, thanks to Xianyu users who sent cards for dimension information
• 20250831 Added Xiliweishi AQC113C-SR-PT01, thanks to Xianyu users who sent cards for dimension information
• 20250907 Added ASUS XG-C100C 10G single Ethernet port, thanks to Xianyu users who sent cards for dimension information
• 20251002 Added M.2-AE RTL8125B 2.5G single Ethernet port, thanks to Xianyu users who sent cards for dimension information
• 20251116 Added RTL8125BG-Red 2.5G single Ethernet port with red heat sink, thanks to Xianyu users who sent cards for dimension information
• 20260114 Added Intel i226v quad Ethernet port / Intel i350T4 quad Ethernet port, thanks to Xianyu users who sent cards for dimension information
• 20260314 Added Intel i226v quad Ethernet port Ver2 (small heat sink version, details can be seen in the print profile pictures), thanks to Xianyu users who sent cards for dimension information
• 20260327 Added Intel 8402PT 1G dual Ethernet port, thanks to Xianyu users who sent cards for dimension information
• 20260504 Added RTL8127 10G single Ethernet port, thanks to Xianyu users who sent cards for dimension information
• 20260516 Added Lekuo 8125B 2.5G quad Ethernet port, thanks to Xianyu users who sent cards for dimension information
