Big TreeTech SFS v2 Mount to Ender Direct Extruder
Print Profile(0)
Description
For Ender 3 Pro (and other Enders) that have been modified with the original Direct Extruder from Creality.

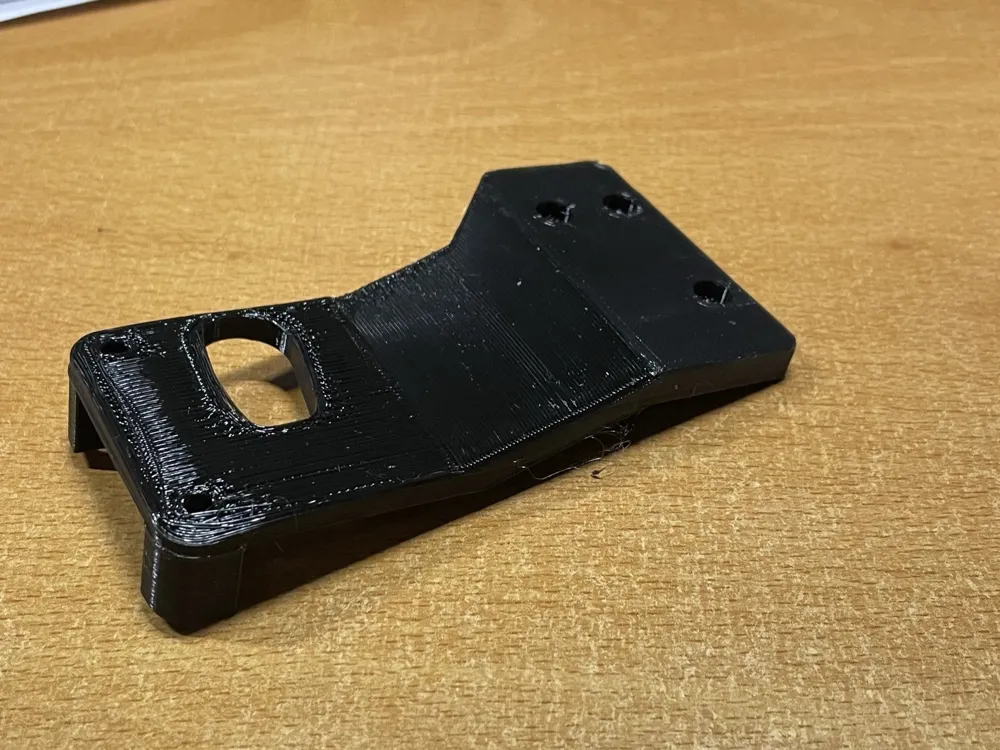

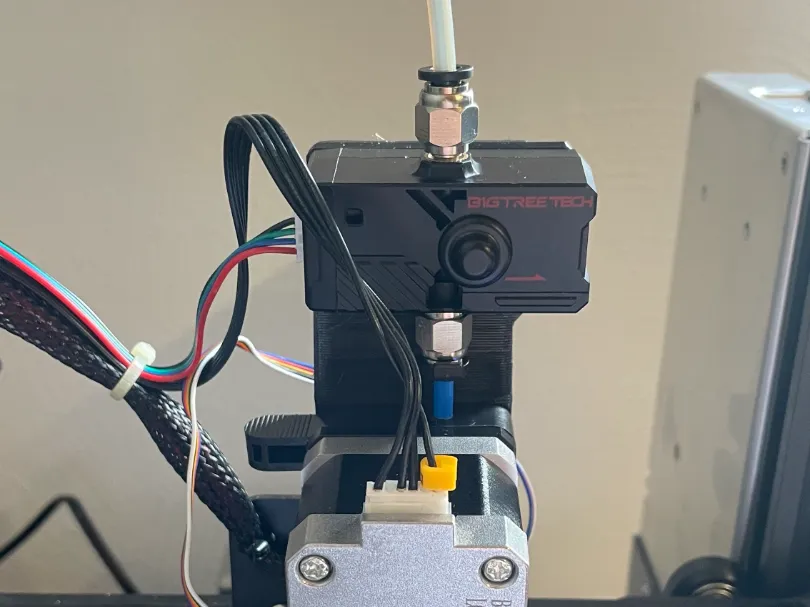

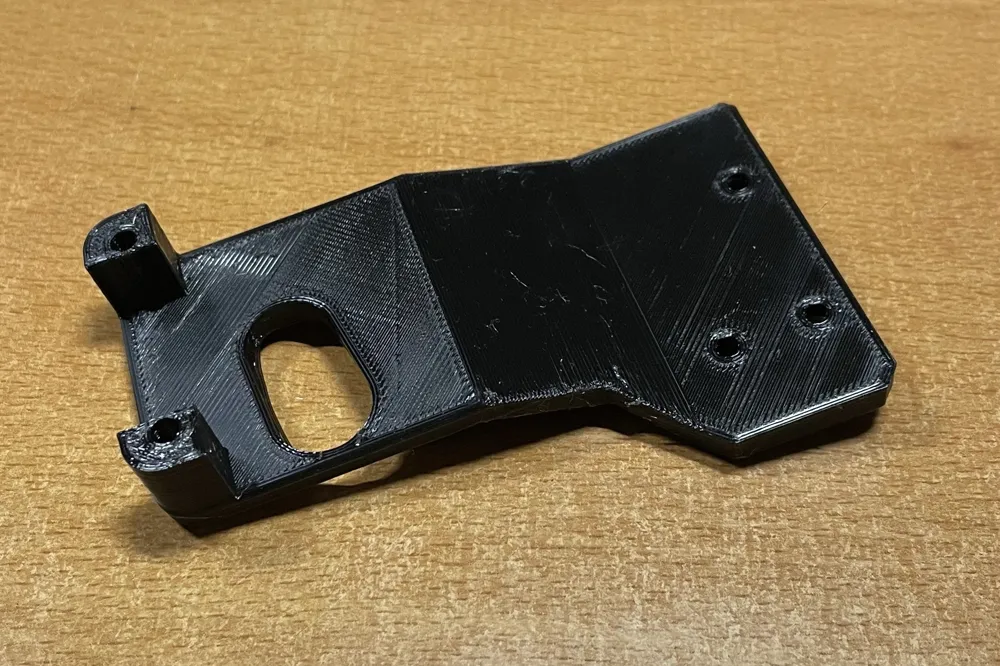

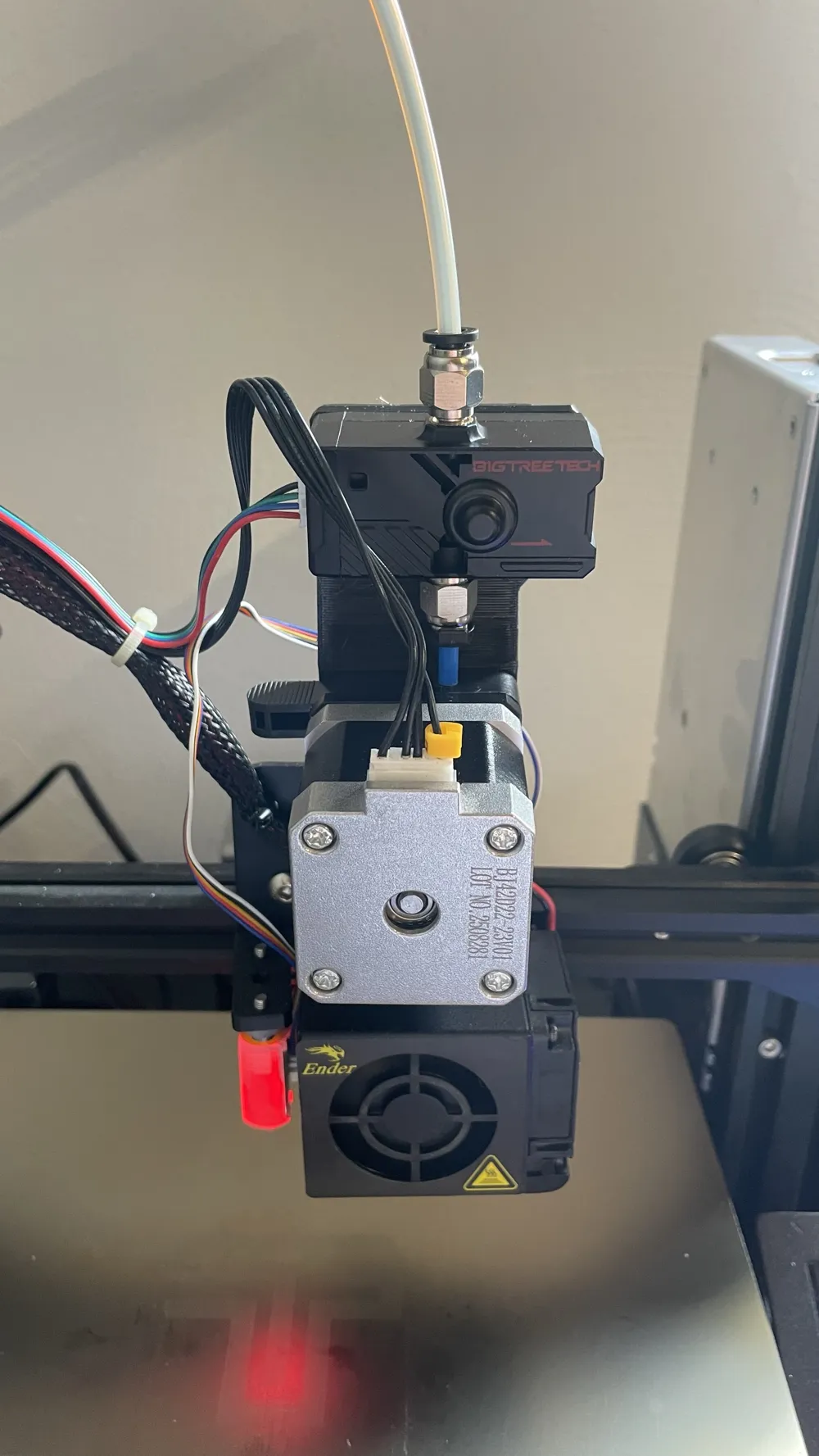

This mount replaces the spacer behind the direct extruder, to mount the Big TreeTech Smart Filament Sensor above it.
You can use the standard screws to remount the extruder stepper-motor, and use the enclosed screws to mount the filament sensor.
I printed it in PETG on my Ender 3 Pro (direct extruder) with the following settings:
0.4 mm nozzle
0.2 mm layer height
3 layer walls
15% infill
Normal (straight line) supports (threshold 20 °, support/object XY distance 0.5 mm, Support/object Z distance 0.25 mm)
You will need an Octoprint (or something similar) to connect the SFS to, since Ender firmware doesn't support a filament sensor directly!
