Articulated Odradek Scanner

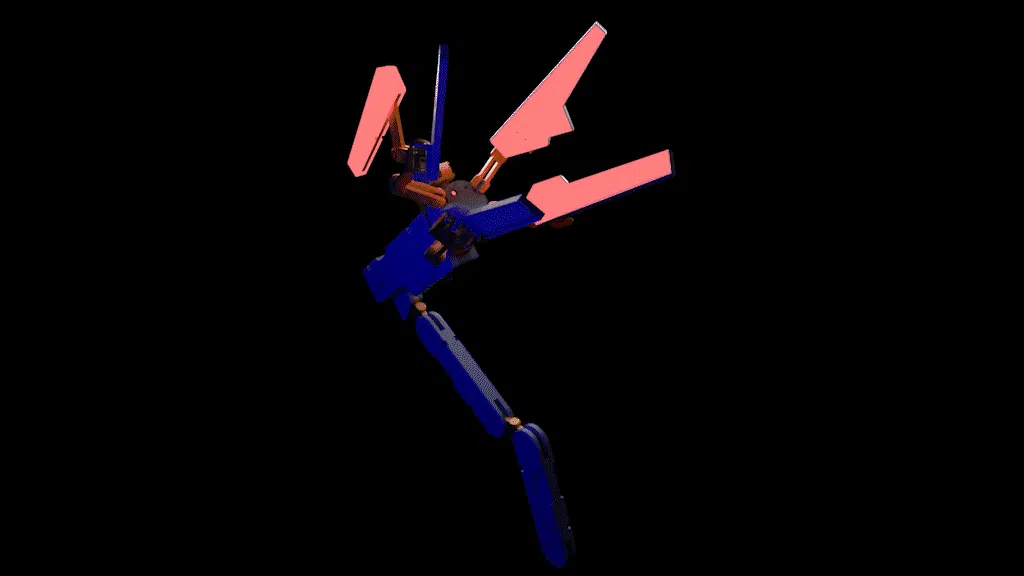

I've always wanted to create the Odradek Scanner from Death Stranding, and after extensive online searching, I found that there were no open-source articulated versions. After more than a month, I finally made it into a functional, illuminated, and controllable device via built-in web control.
It's not just an ornament; once completed, it feels more like a truly "living" desktop device.
It can switch between different action states and features lighting effects, making the overall experience more engaging.
This project also includes detailed content, such as:
- Detailed installation instructions
- BOM for hardware and electronic components
- PCBA engineering and code are open-source on GitHub (gradually being uploaded), making it easy for everyone to modify and play around with (https://github.com/Hades2001/OdradekScanner)
If you also enjoy bringing game items to life, or simply want a cool, articulated desktop gadget, this project should be perfect for you.
If you print and assemble your own version, feel free to share it with us.
Also welcome interested friends to join the group for discussion:
QQ Group: 838521785
Update Log:
| Date | Version | Update Content |
| 20260325 | B0.1 | Project created |
| 20260405 | B0.5 | Modified the installation method of the support arm |
| 20260418 | V1.0 | Removed all heat-set inserts, switched to nut + self-tapping screw installation |
| 20260426 | V1.1 | Added limit for the main support arm |
Couldn't upload the BOM in Excel format, so it's placed at the end of the article
| # | PART NUMBER | DESCRIPTION | QTY. |
| Hardware Components | |||
| 1 | Socket Head Cap Screw M4x14 Hex | 24 | |
| 2 | Socket Head Cap Screw M3x5 Hex | 13 | |
| 3 | Socket Head Cap Screw M2x12 Hex | 11 | |
| 4 | M2.5x4 Screw | MG90S Servo Spindle Screw | 5 |
| 5 | M2x8 Self-tapping Screw | 10 | |
| 6 | M3x6 Screw | MG996R Servo Spindle Screw | 1 |
| 7 | Socket Head Cap Screw M3x25 Hex | 4 | |
| 8 | Socket Head Cap Screw M3x12 Hex | 12 | |
| 9 | Socket Head Cap Screw M2x5 Hex | 4 | |
| 10 | Socket Head Cap Screw M4x18 Hex | 7 | |
| 11 | Socket Head Cap Screw M4x12 Hex | 6 | |
| 12 | M4 Nut | 7mm width across flats, 3.1mm thickness | 7 |
| 13 | Metal 21T Servo Horn (for MG90S) | Material: Aluminum | 5 |
| 14 | Metal 25T Servo Horn (for MG996R) | Material: Aluminum | 1 |
| Electronic Components | |||
| 1 | MG90S | Metal Gear Servo 180° | 5 |
| 2 | MG996R | Metal Gear Servo 360° | 1 |
| 3 | GK2249-4P02.prt.step | Conductive Slip Ring Model GK2249-4P02 | 1 |
| 4 | EE_SPY302KT | Infrared Optocoupler EE_SPY302KT | 1 |
| 5 | RGB_LED_140mm | WS2812 LED Strip 5mm Width | 1 |
| 6 | ZXYoke-Odradek-Ring | Top Connection Synchronizer Board | 1 |
| 7 | ZXYoke-Odradek-Hand-A1 | Light Board A1 | 1 |
| 8 | ZXYoke-Odradek-Hand-A2 | Light Board A2 | 1 |
| 9 | ZXYoke-Odradek-Hand-B1 | Light Board B1 | 1 |
| 10 | ZXYoke-Odradek-Hand-B2 | Light Board B2 | 1 |
| 11 | ZXRoot_v14_AIO | Control Host | 1 |
| 12 | ZXRoot_Spk_AIO | Voice Module | 1 |
| 13 | ZXYoke-SERVO6 | Servo Module | 1 |

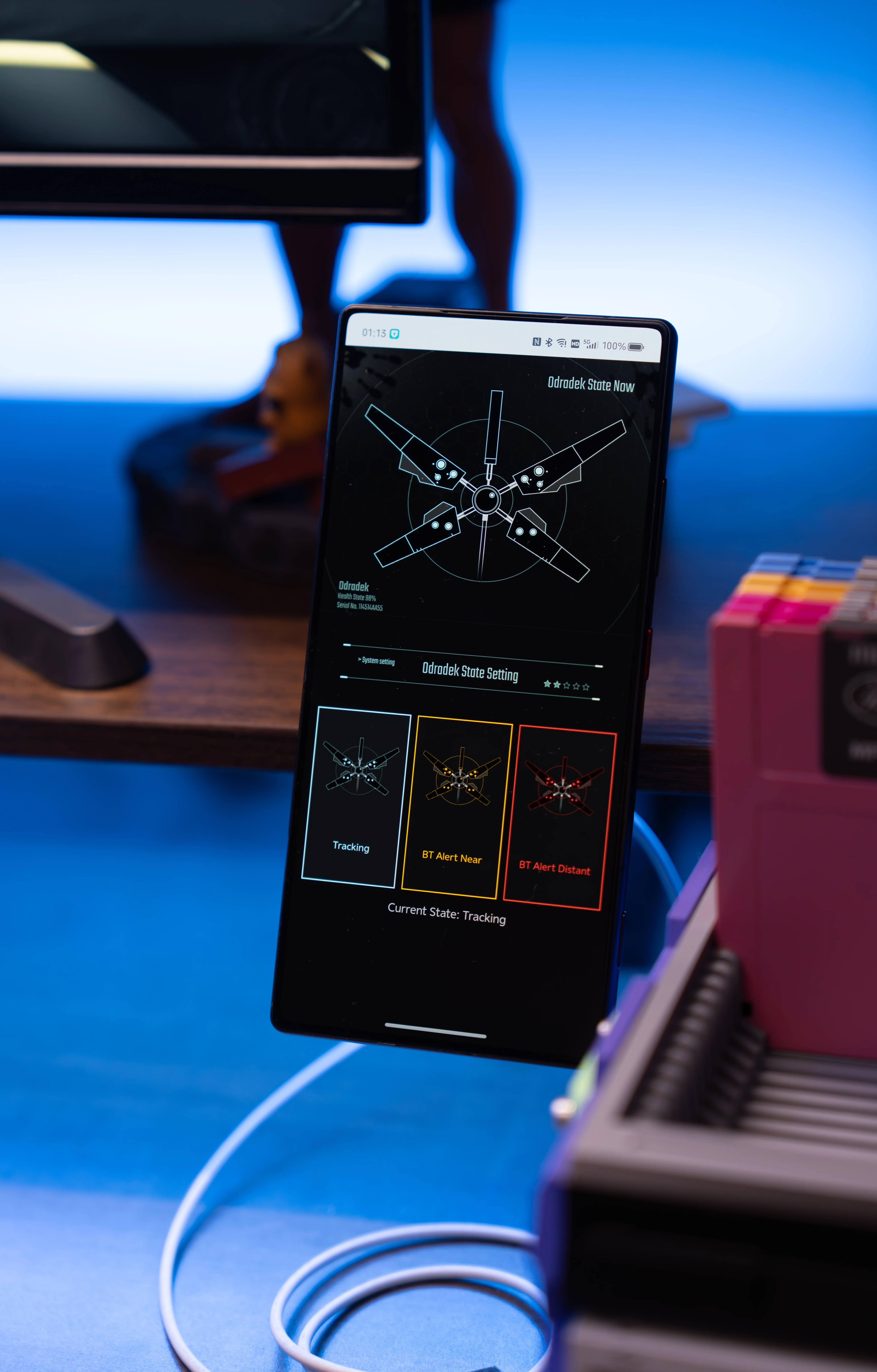

Mobile Web Control Device
