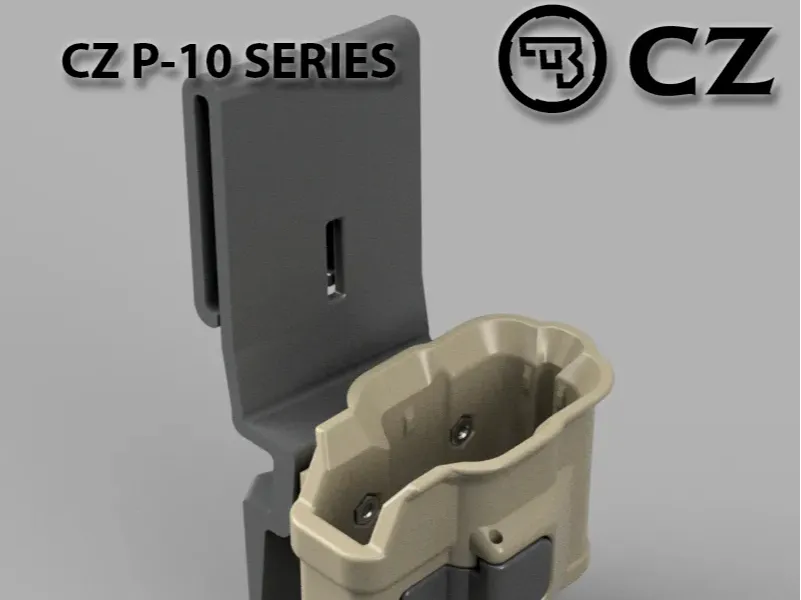

Holster for CZ P-10C, P-10 F, P-10 M

Holster for CZ P-10C, P-10 F, P-10 M

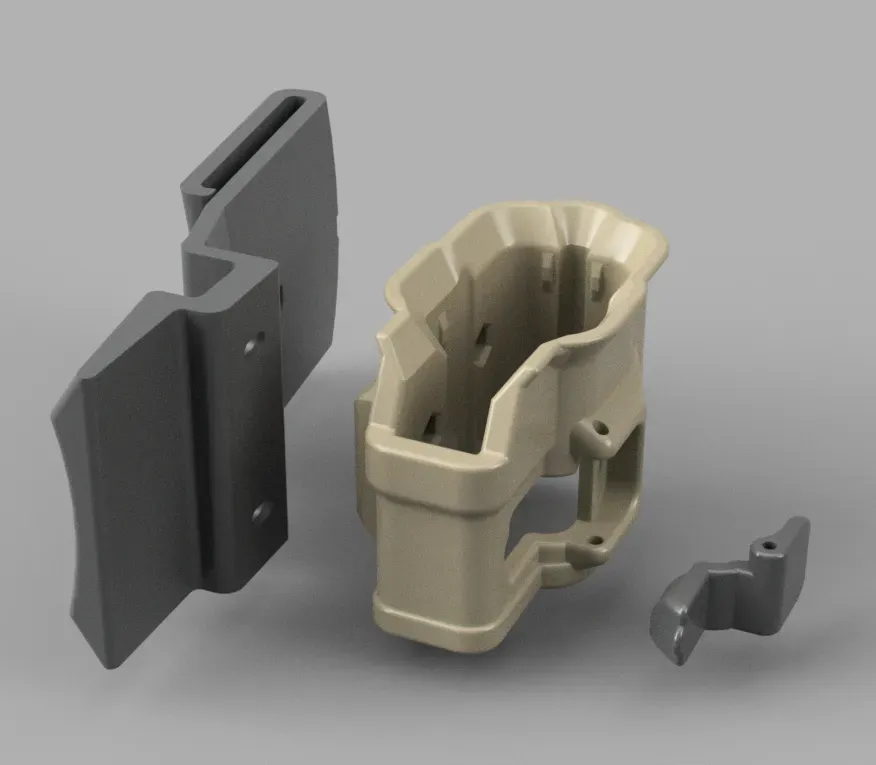

Mount for Molle or 50mm belt

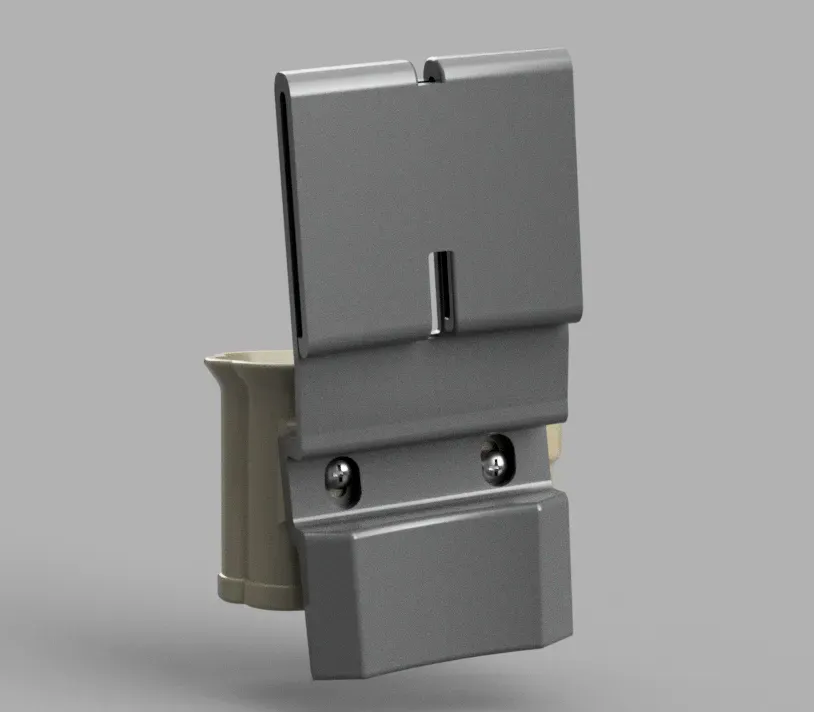

Used material screw:
- M4x15 DIN 7985
- M4x9 DIN 7985
- 2x NUT M4 DIN 934
- 2x M3x10 DIN 913
- spring from pen diameter 4mm

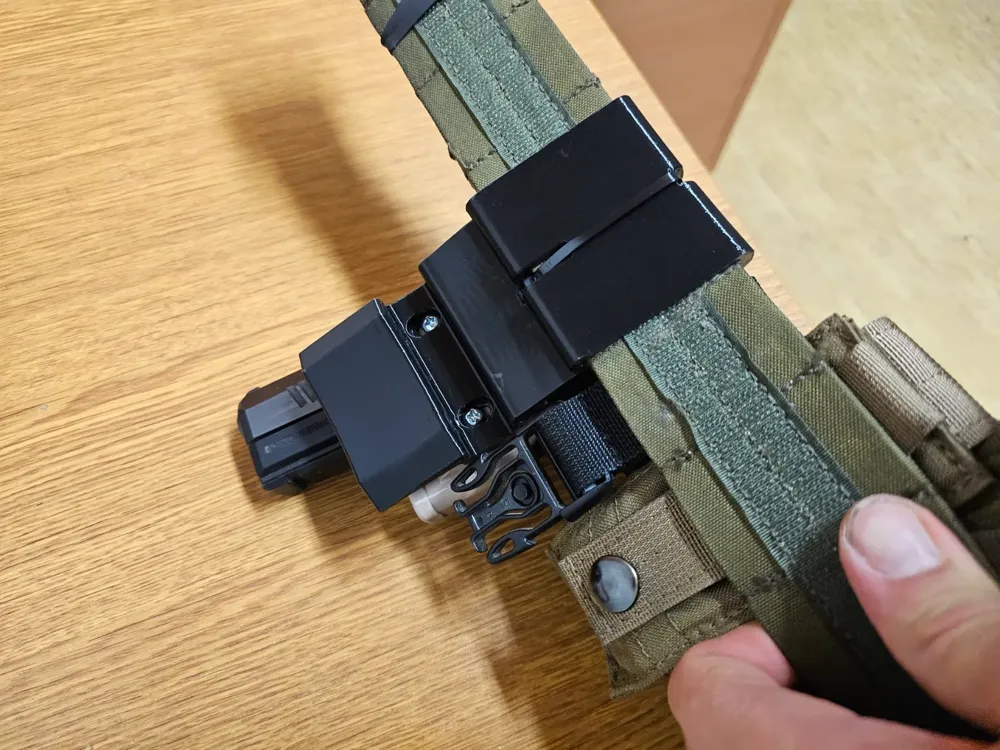

I recomend to use ziptie to belt mount like on photo.

3D printing settings

Holster and latch:

- 0,2 layer height
- 8 walls
- infill 30%
- use brim 5mm
- supports YES - organic tree - angle 25° - On build plate only

Mounts:


- 0,2 layer
- 5 walls
- brim 5mm
- supports 20° - organic tree - on build plate only
