PiStack NAS
Print Profile(2)
Description

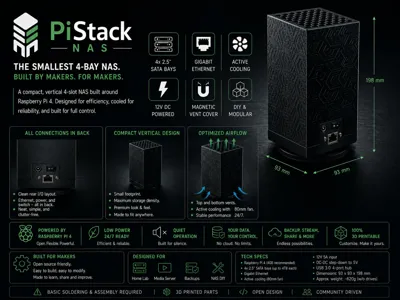

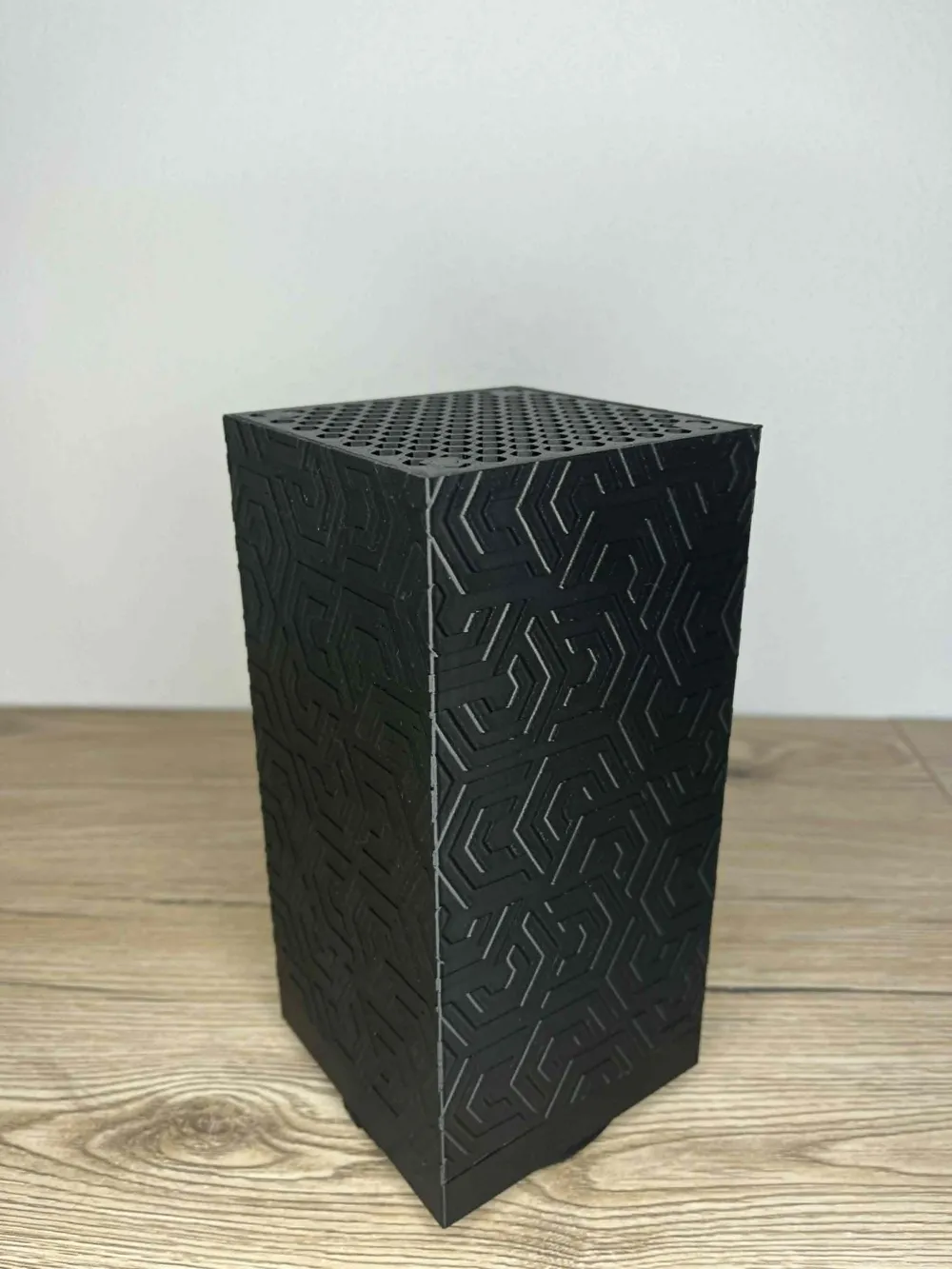

Designed with one goal in mind: build the smallest possible 4-bay NAS.

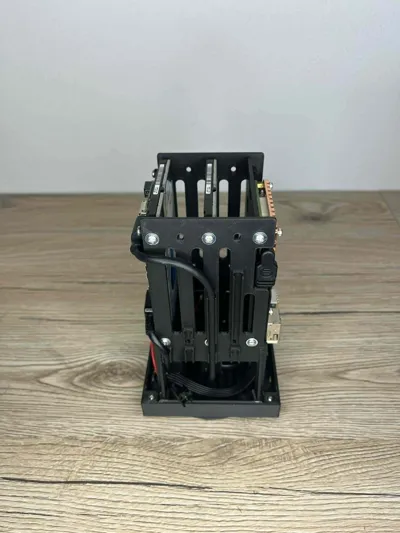

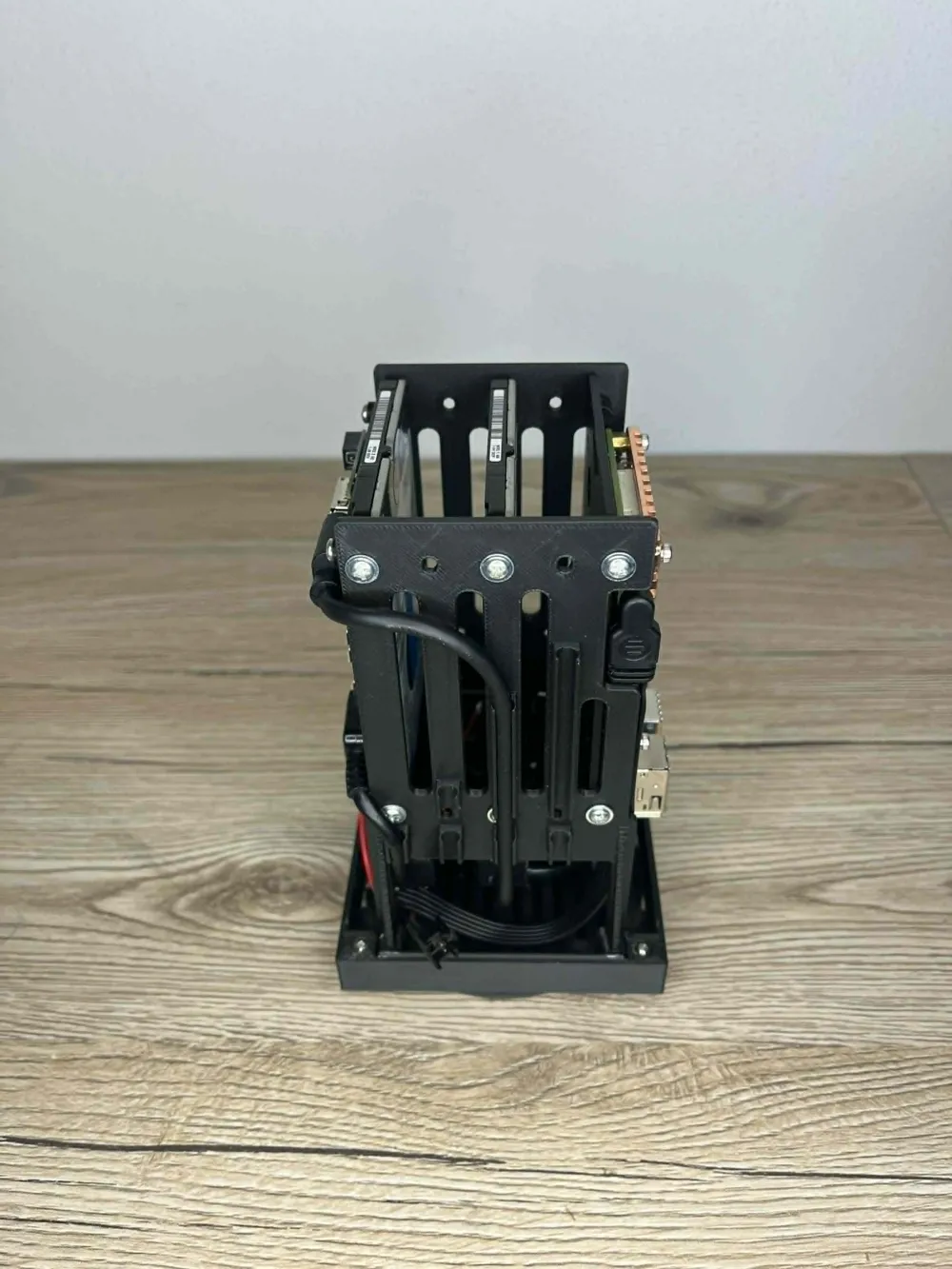

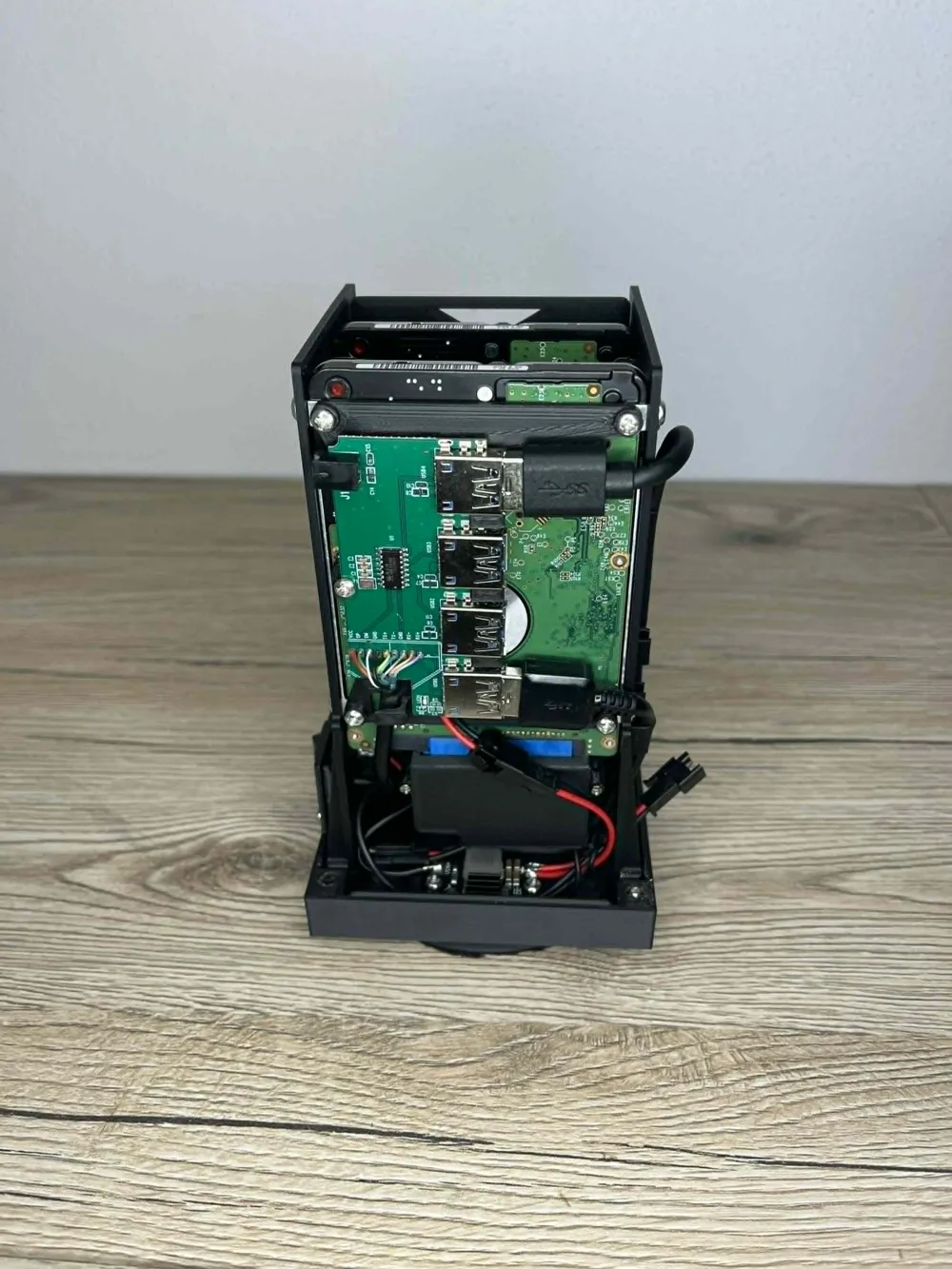

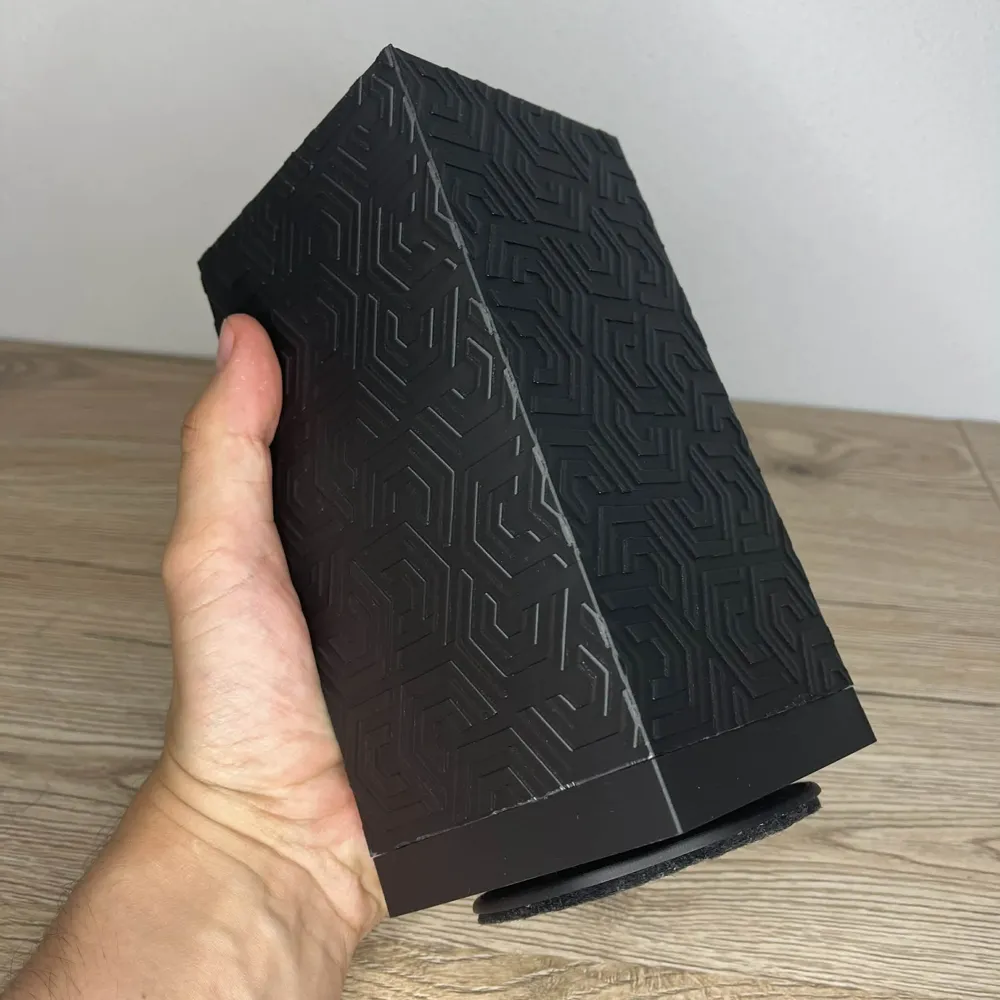

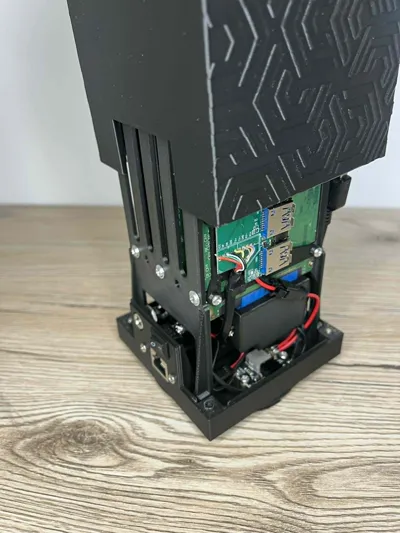

This compact, vertically stacked system is powered by a Raspberry Pi 4 Model B and takes design inspiration from the Xbox Series X to maximize space efficiency and airflow.

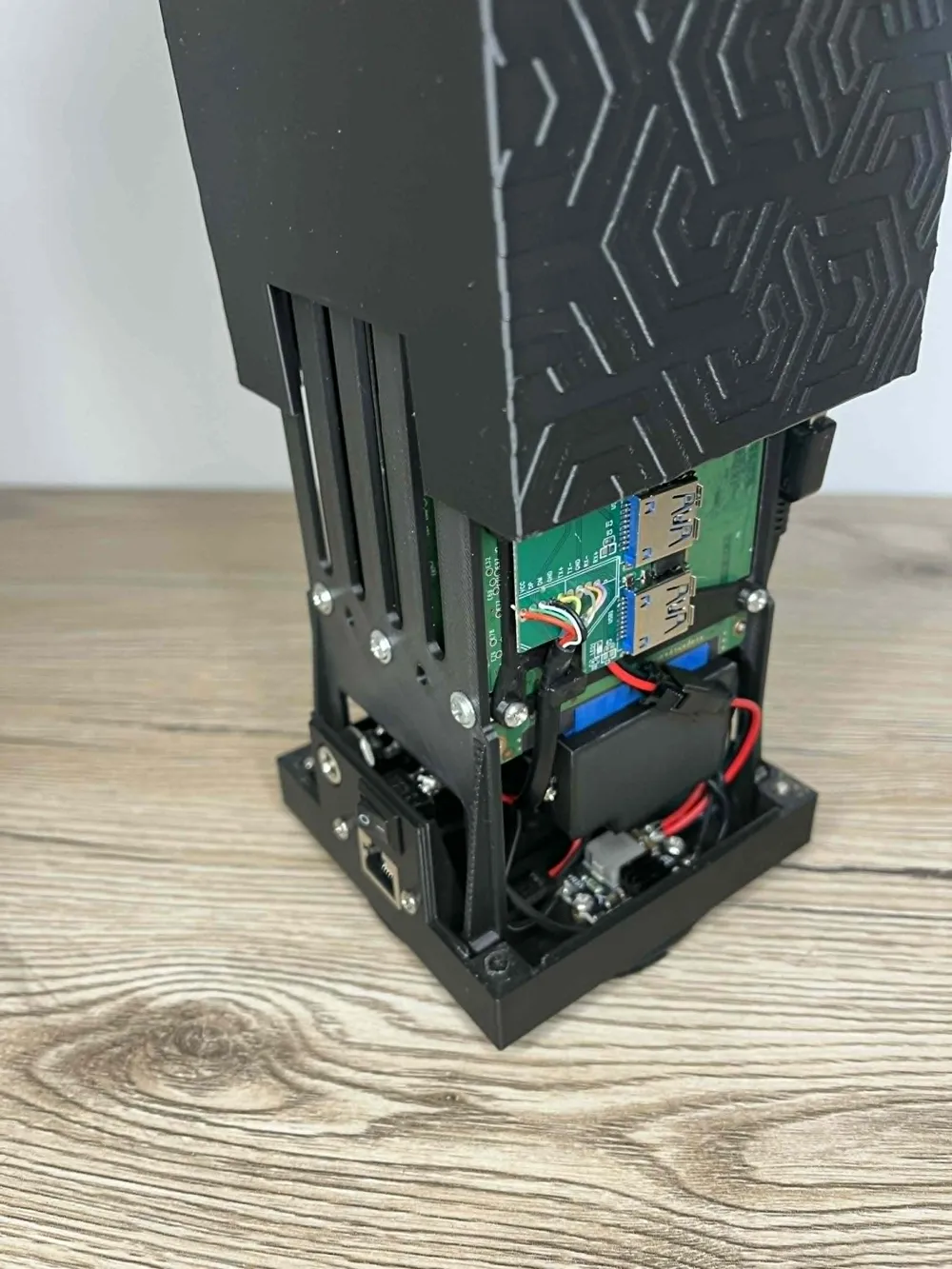

Supports up to 4× 2.5” SATA drives via USB 3.0, all powered from a single 12V input with onboard step-down conversion. The vertical layout enables efficient cooling using an 80mm fan, while keeping the footprint minimal.

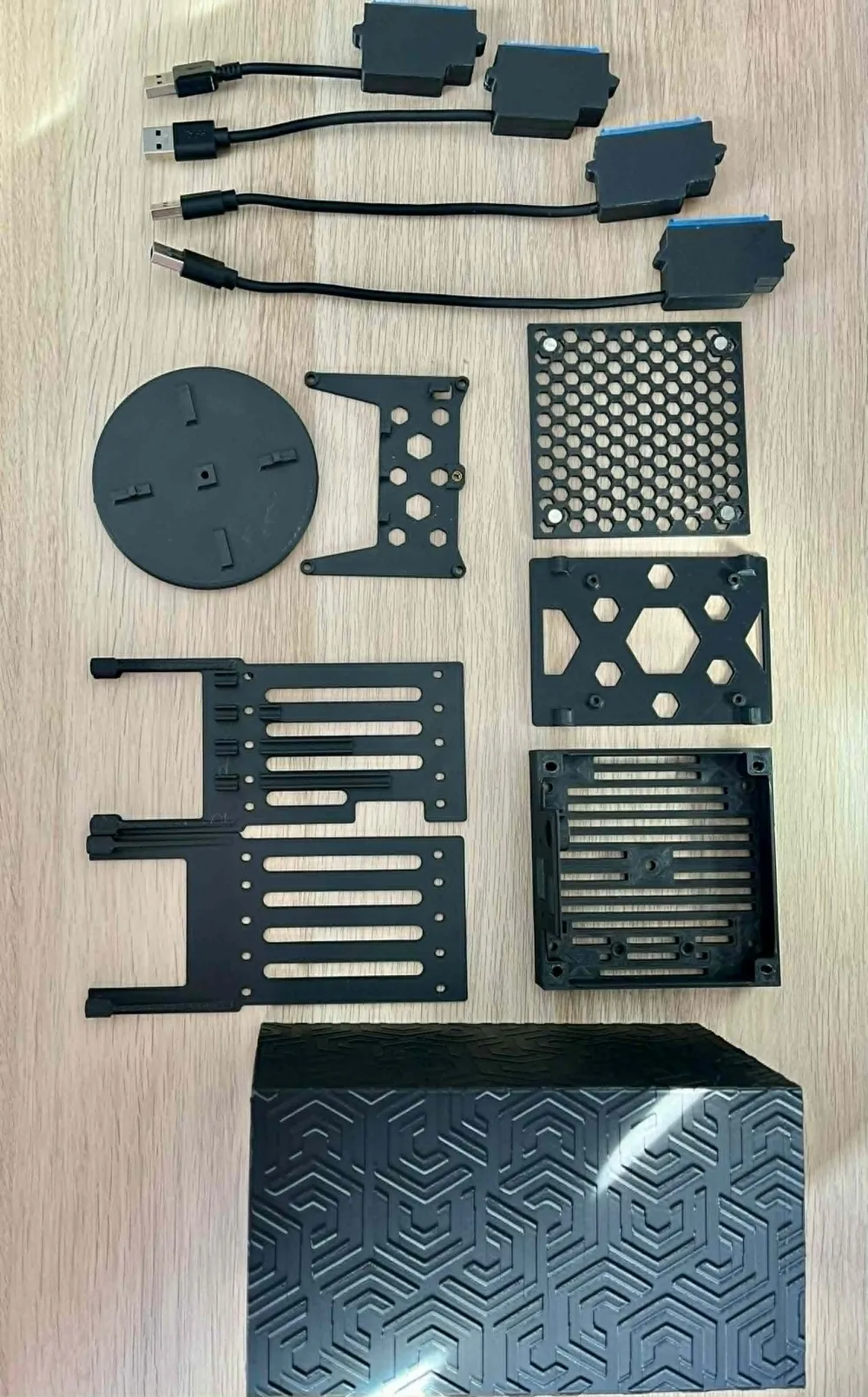

Fully 3D printable, modular, and built using off-the-shelf components.

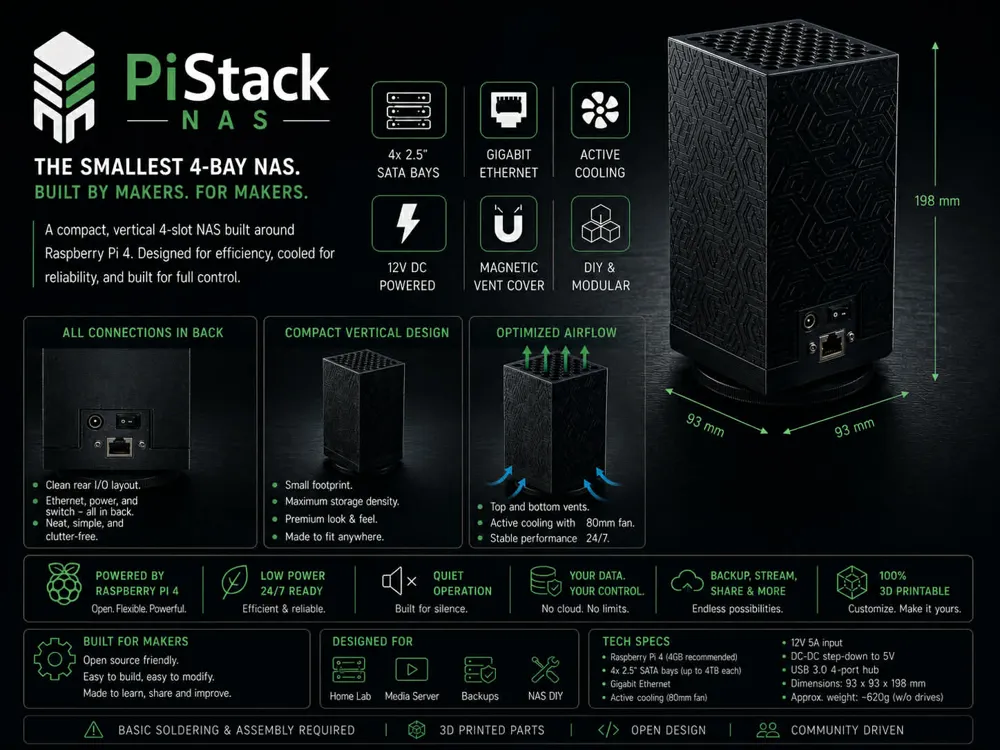

Key Specs

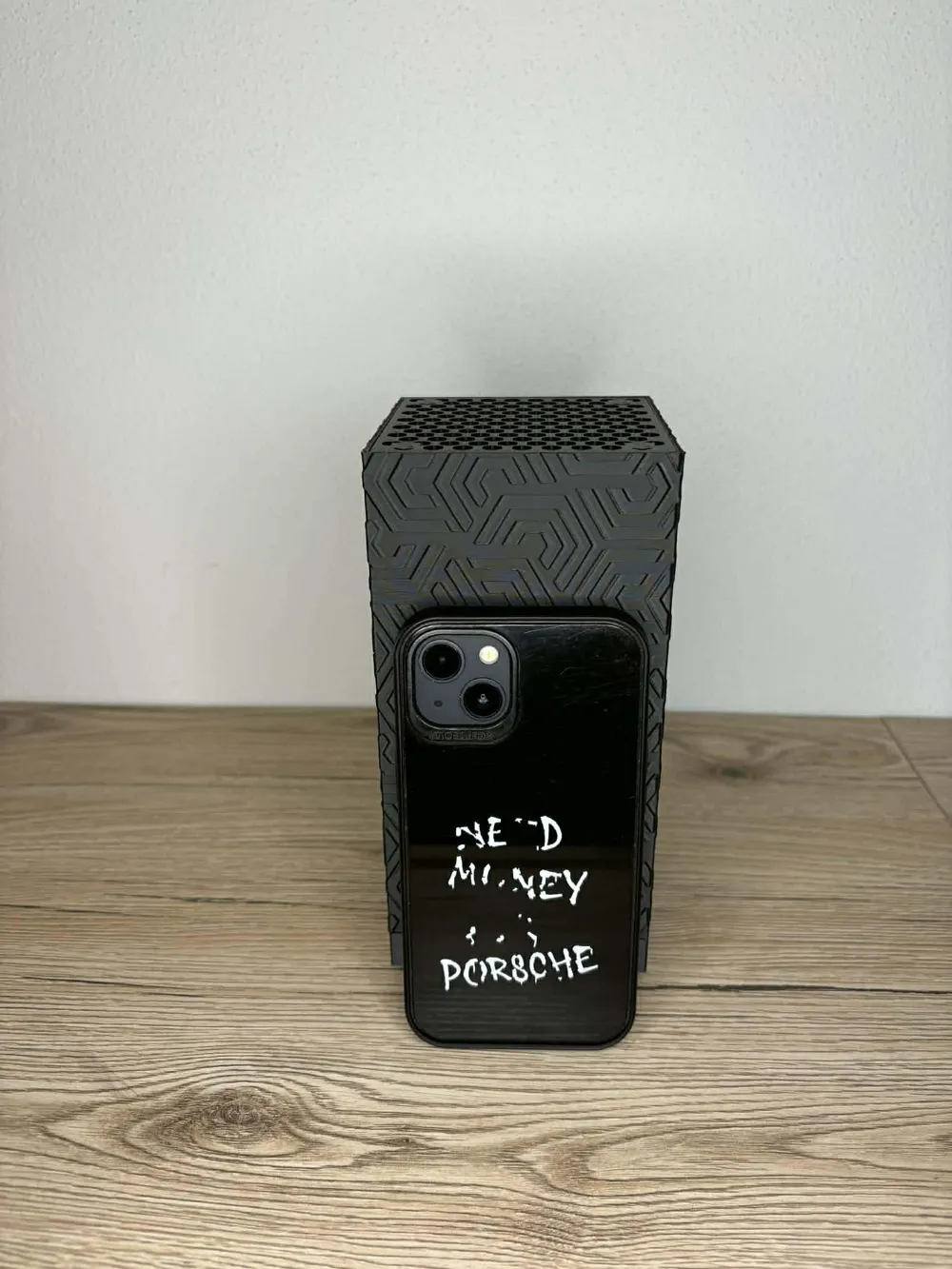

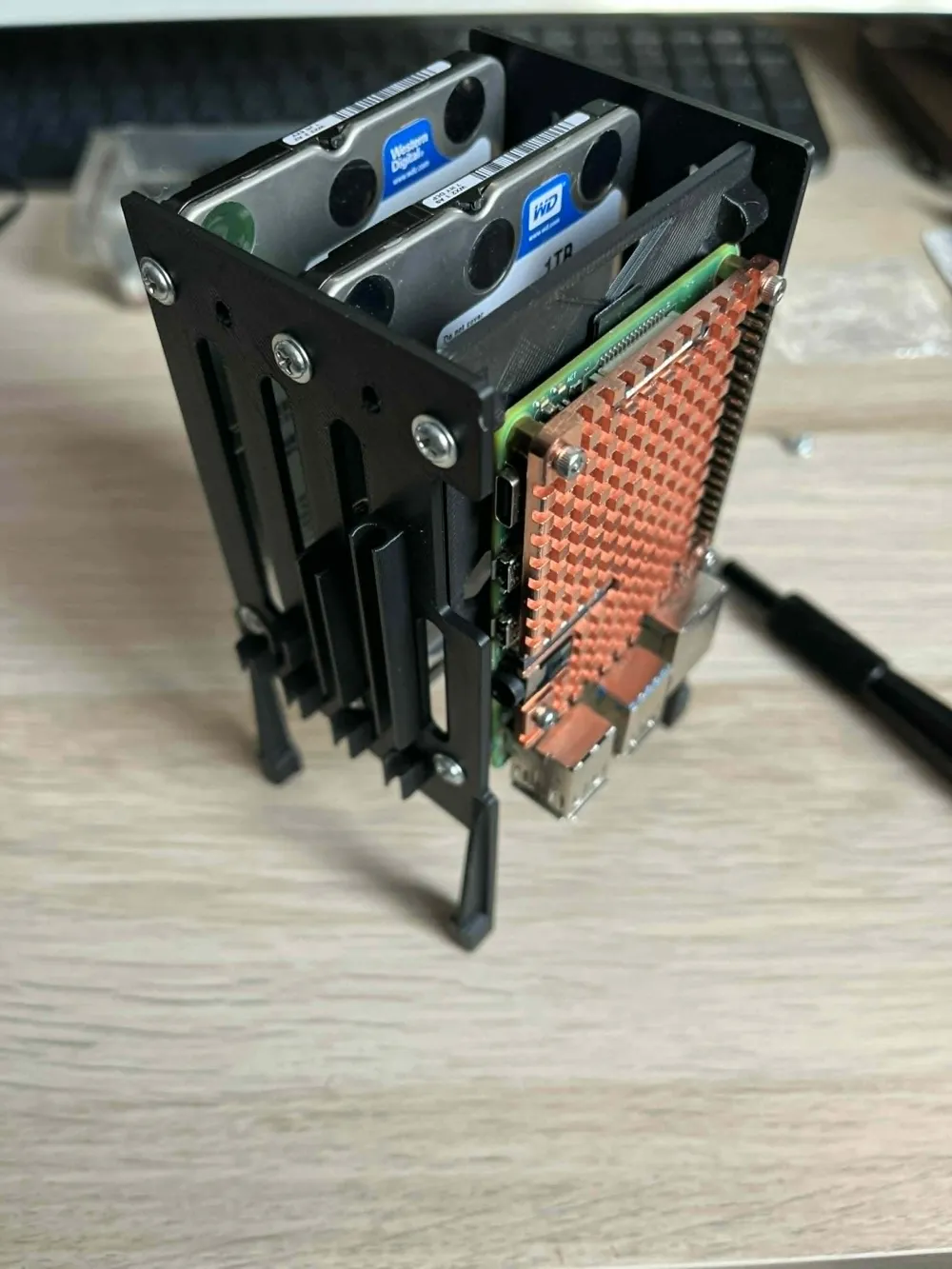

* Smallest form factor target for 4× 2.5” drives
* Raspberry Pi 4 (4GB recommended) all the pis can be fitted (Raspberry Pi 1B+, 2B, 3B, 3B+, 4B, and 5) but you have to use low profile heatsink
* USB 3.0 → SATA storage (shared bandwidth)
* Gigabit Ethernet
* 12V DC input + 5V buck converter
* Active cooling (80mm fan ≤25mm thick)

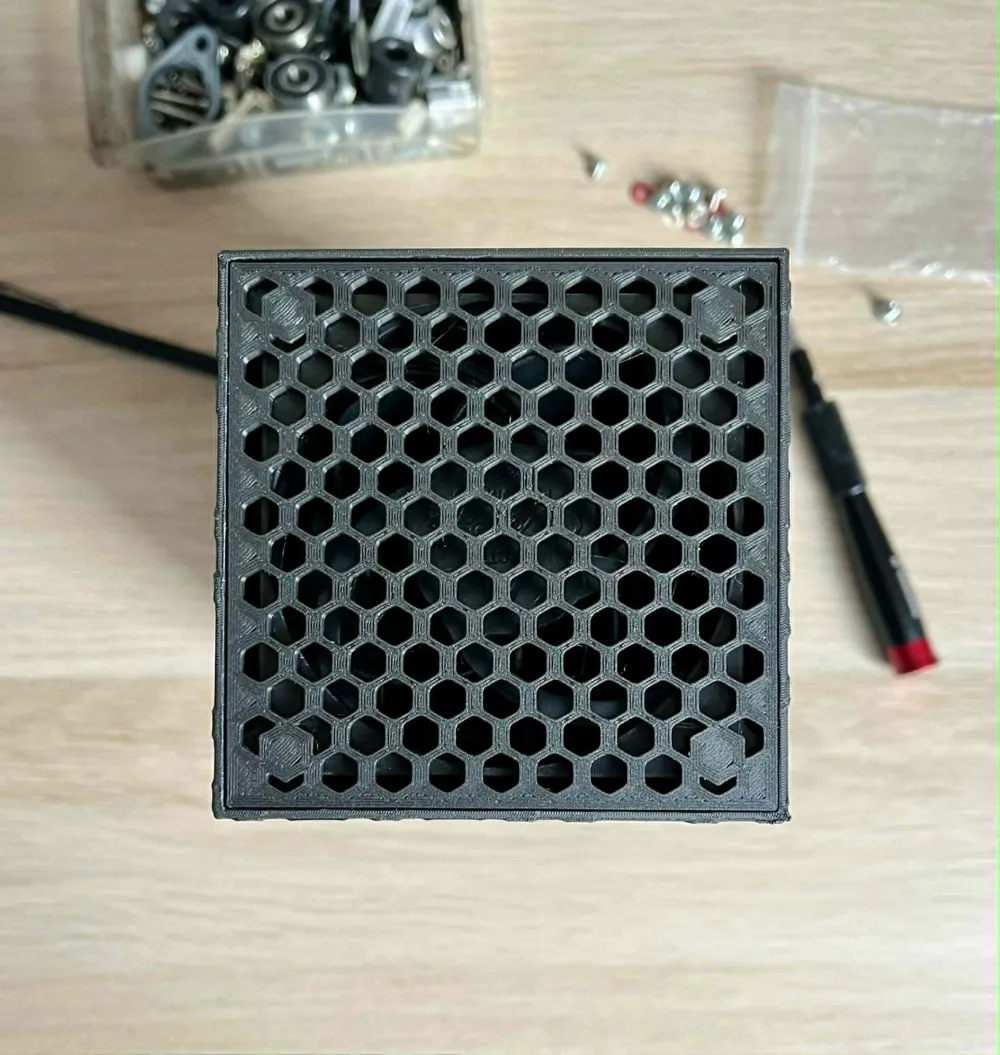

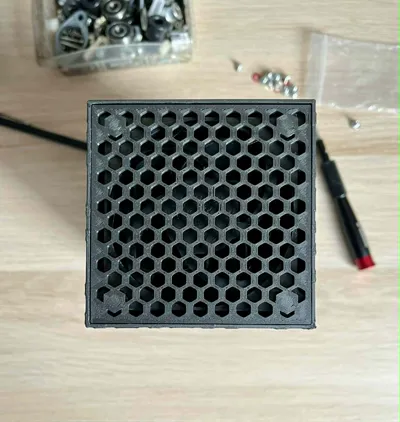

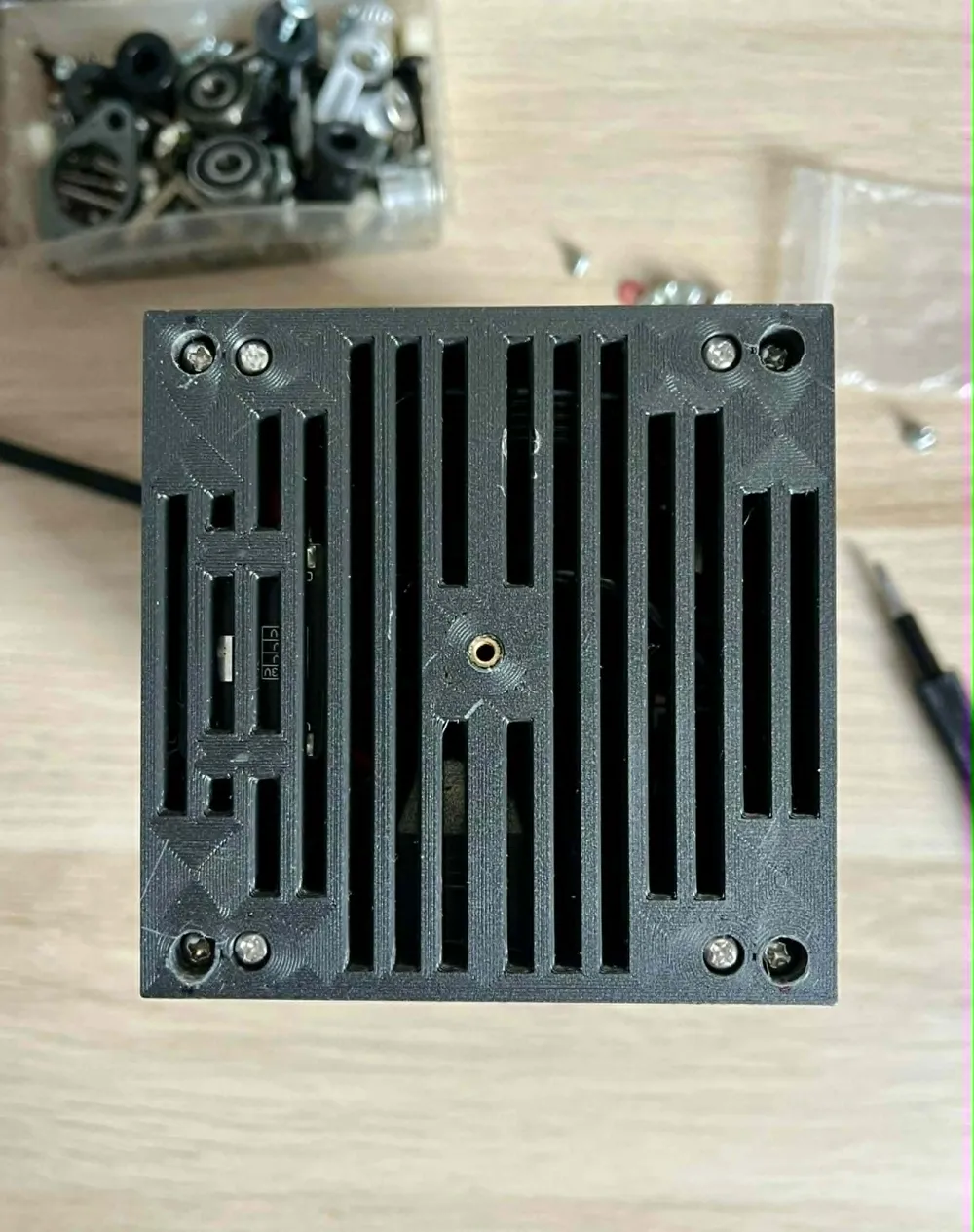

* Magnetic vent cover
* Standard M2/M3 hardware
Use Cases
NAS, Media Server, Backup, Homelab, Self-hosting
Minimum size. Maximum storage density. Full control.

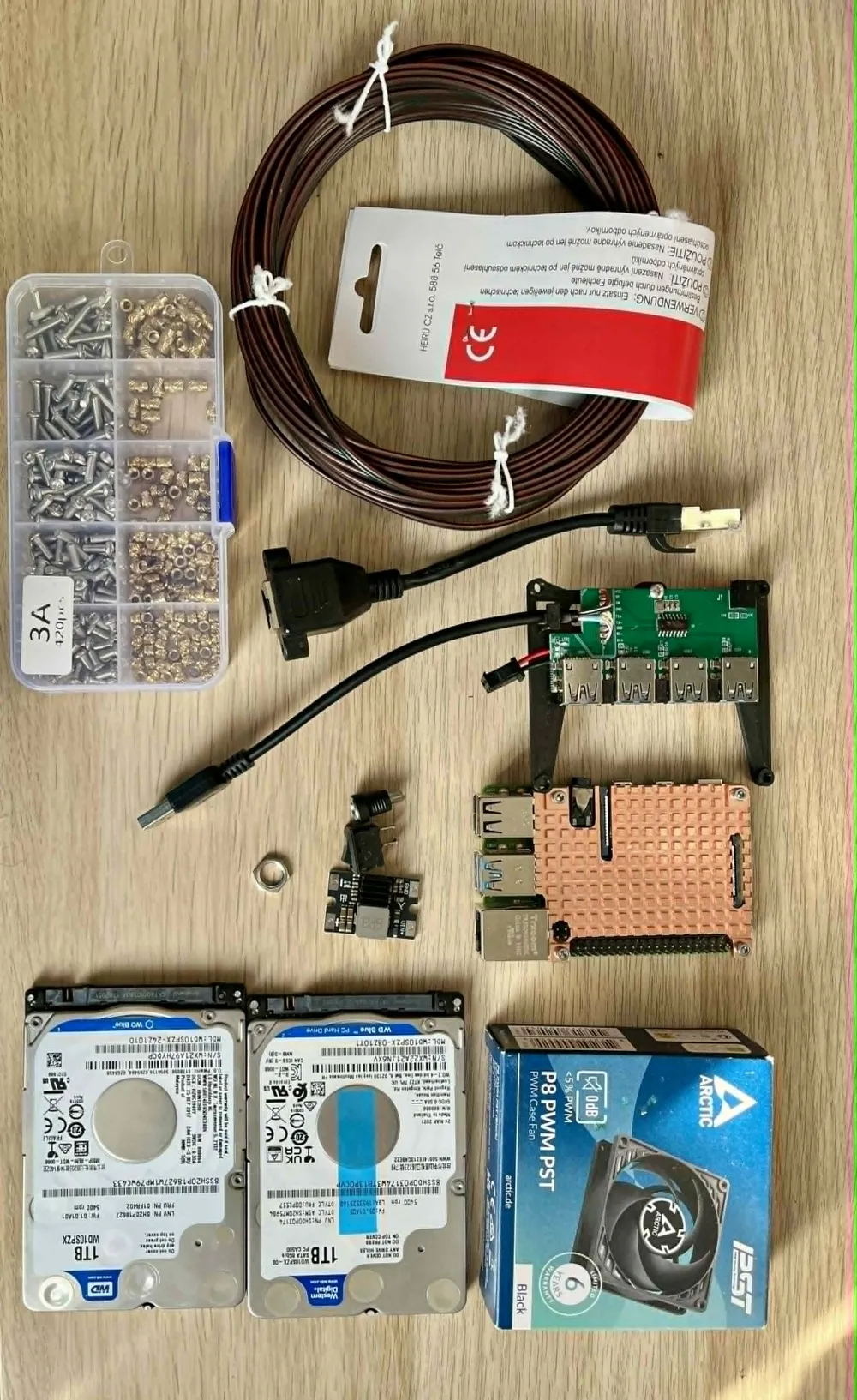

Parts List (BOM)
Core Components

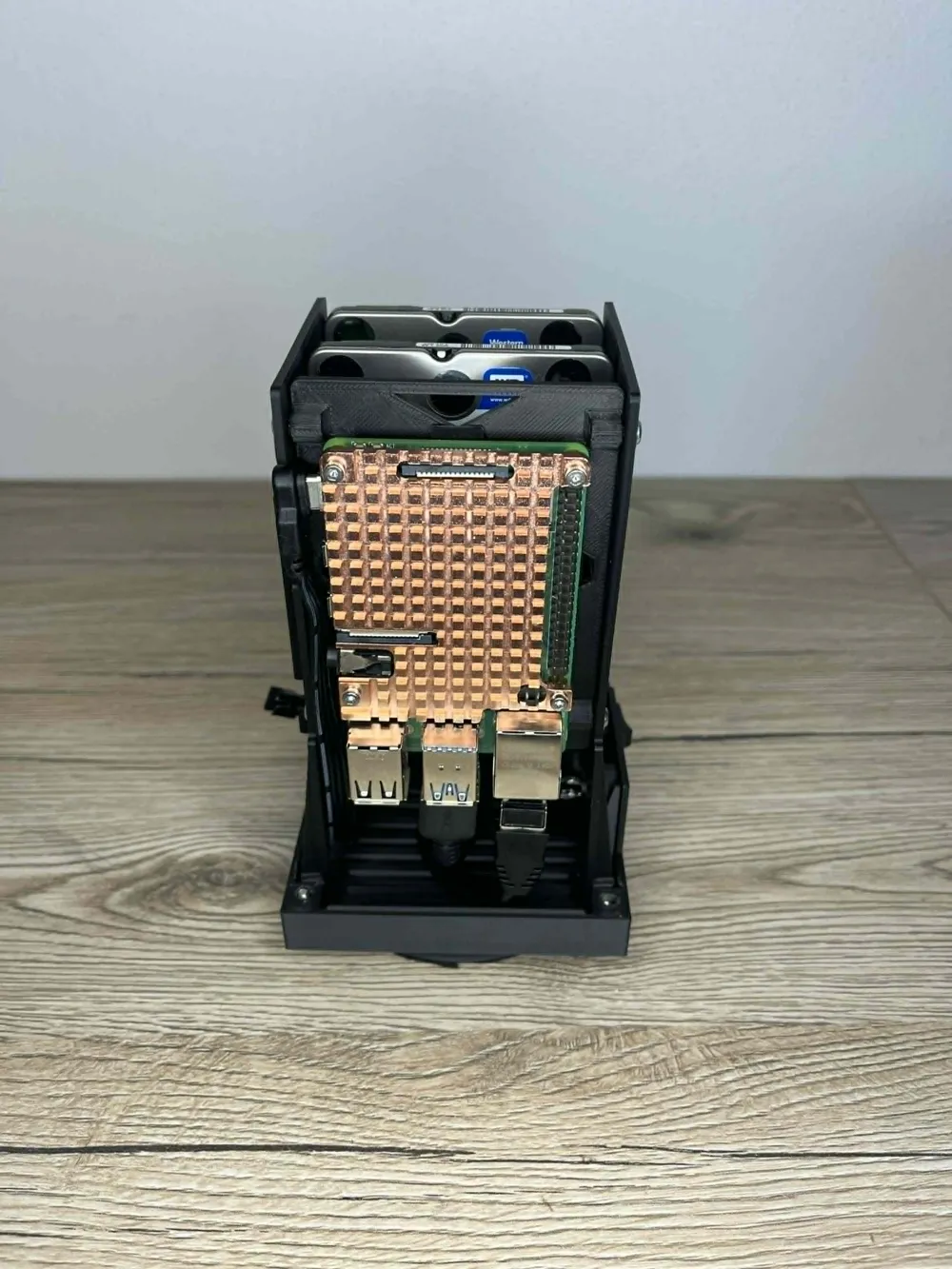

* Raspberry Pi 4 Model B (4GB recommended)
https://rpishop.cz/raspberry-pi-4/1598-raspberry-pi-4-model-b-4gb-ram.html?currency=EUR
* Copper heatsink (4mm, full base cooling)
https://a.aliexpress.com/_EwsMUGI
⸻
Storage
* 4× SATA to USB 3.0 adapters (2.5” drives, up to 6Gbps)
https://a.aliexpress.com/_EwDeBgS
* 2.5” HDD/SSD (up to 4TB per drive, optional) (example: Western Digital Blue or similar)
⸻
Power System

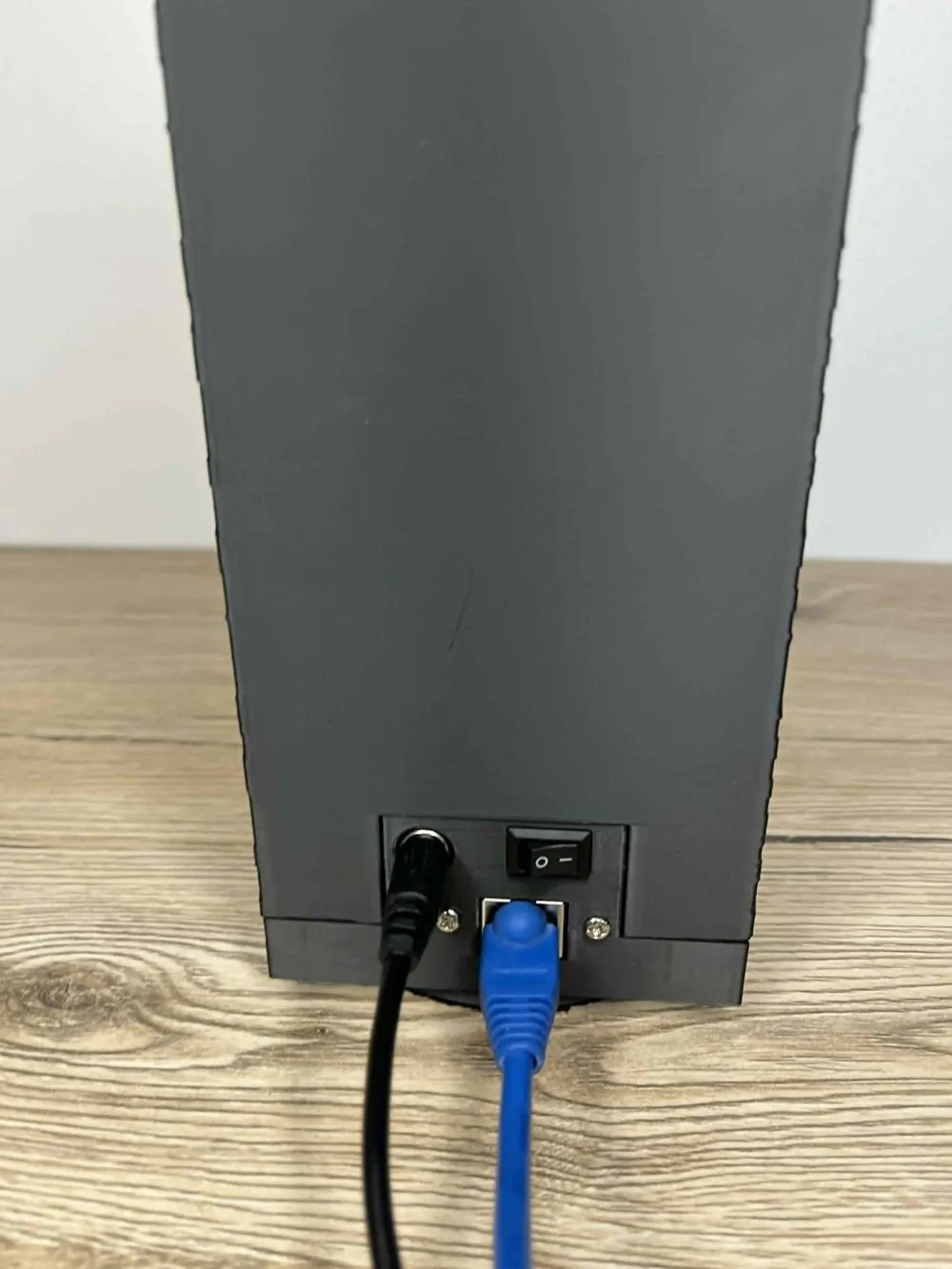

* 12V 5A power supply (5.5×2.1mm)
https://a.aliexpress.com/_EulLgl0
* DC barrel jack (panel mount, DC-022B)
https://a.aliexpress.com/_Exzr9h4

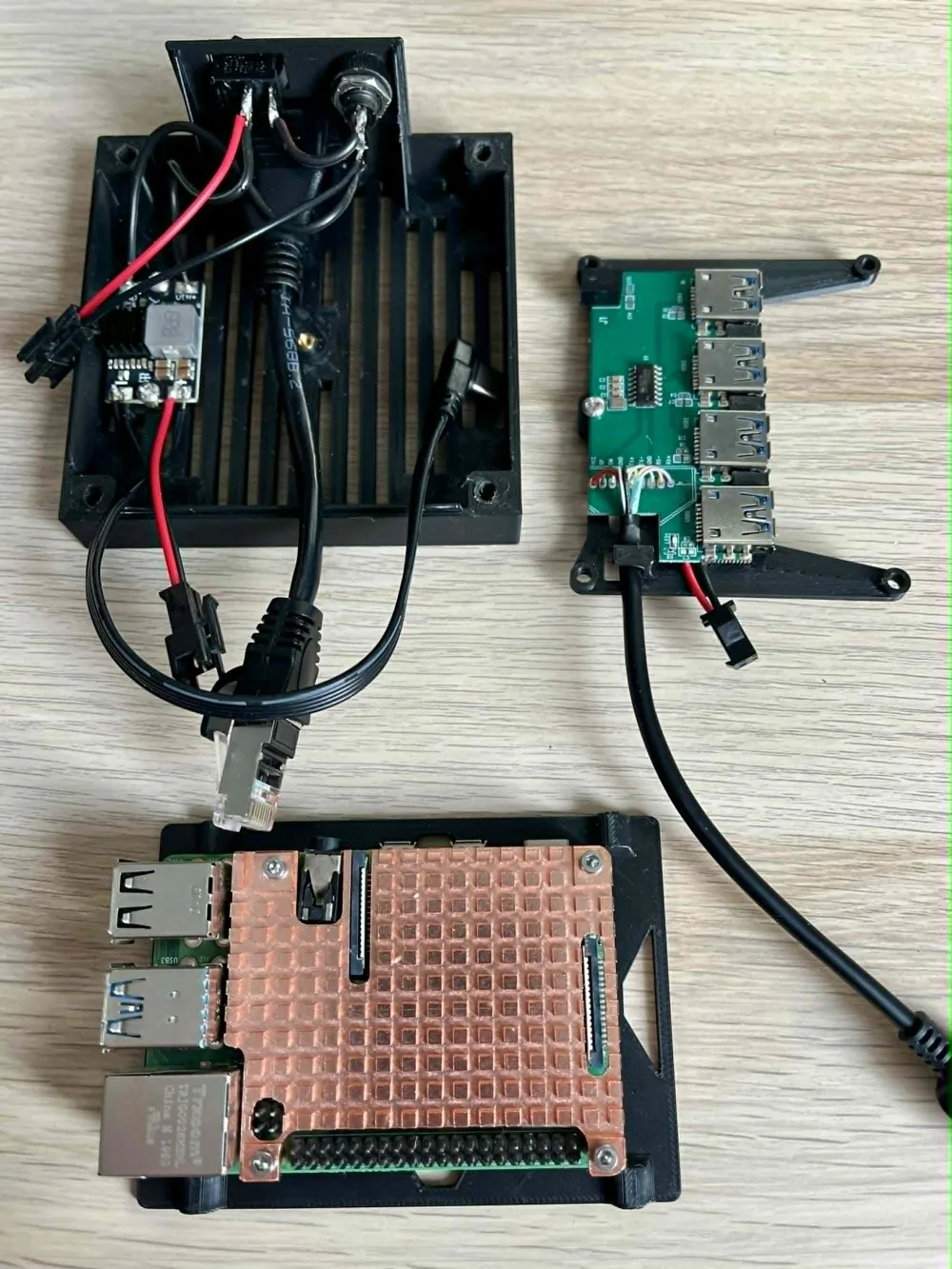

* DC-DC step-down converter (12V → 5V, ≥8A)
https://a.aliexpress.com/_Eyd1Tbo
* USB-C power cable (for Raspberry Pi)
https://a.aliexpress.com/_EHUloj8
* SPST rocker switch (ON/OFF, panel mount)
https://a.aliexpress.com/_Ev1bRuK
⸻
Connectivity

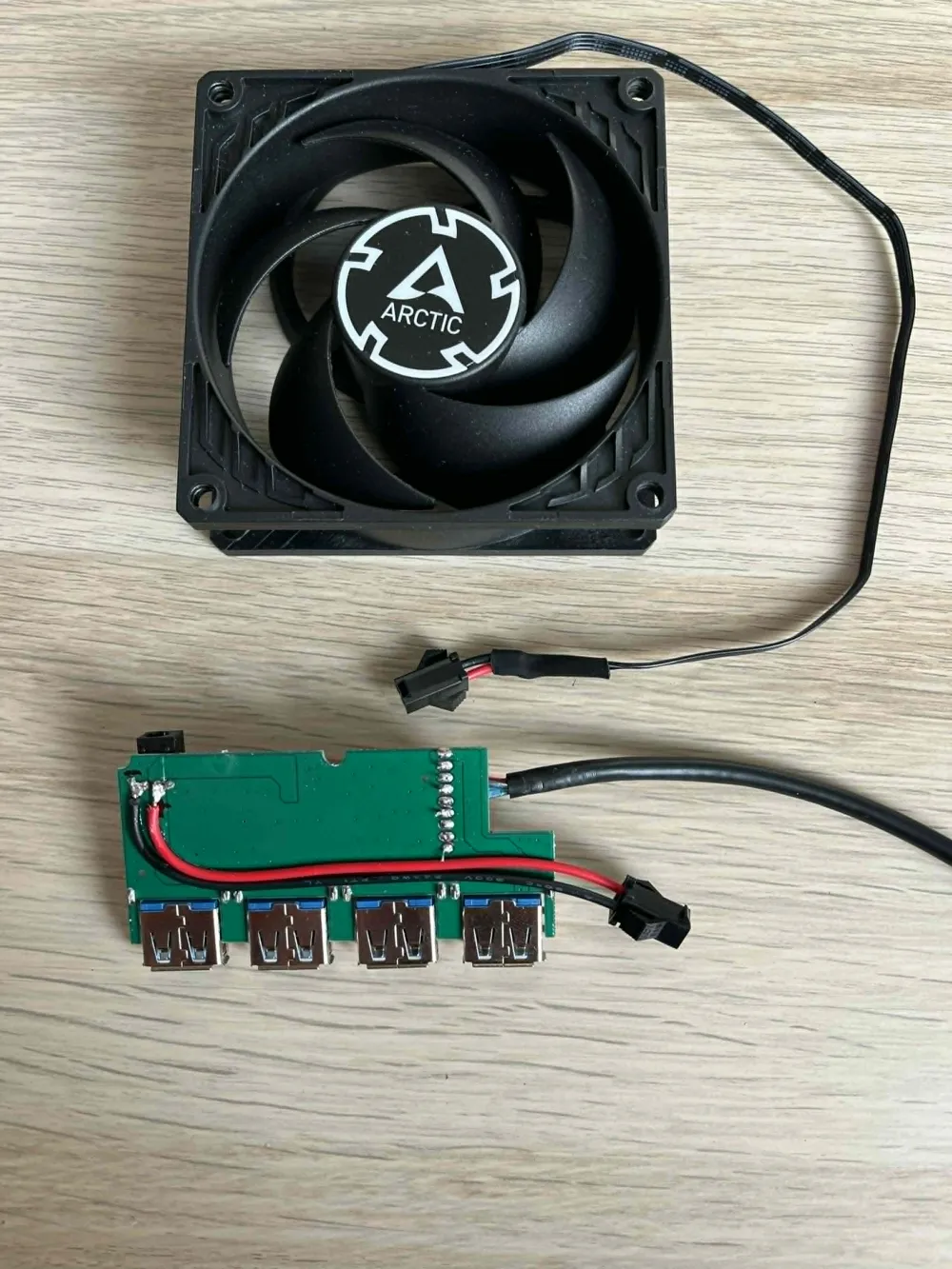

* USB 3.0 hub (4-port, compact)
https://a.aliexpress.com/_EIH5BEm
* RJ45 Ethernet extension cable (panel mount)
https://a.aliexpress.com/_EuB6phy
⸻
Cooling

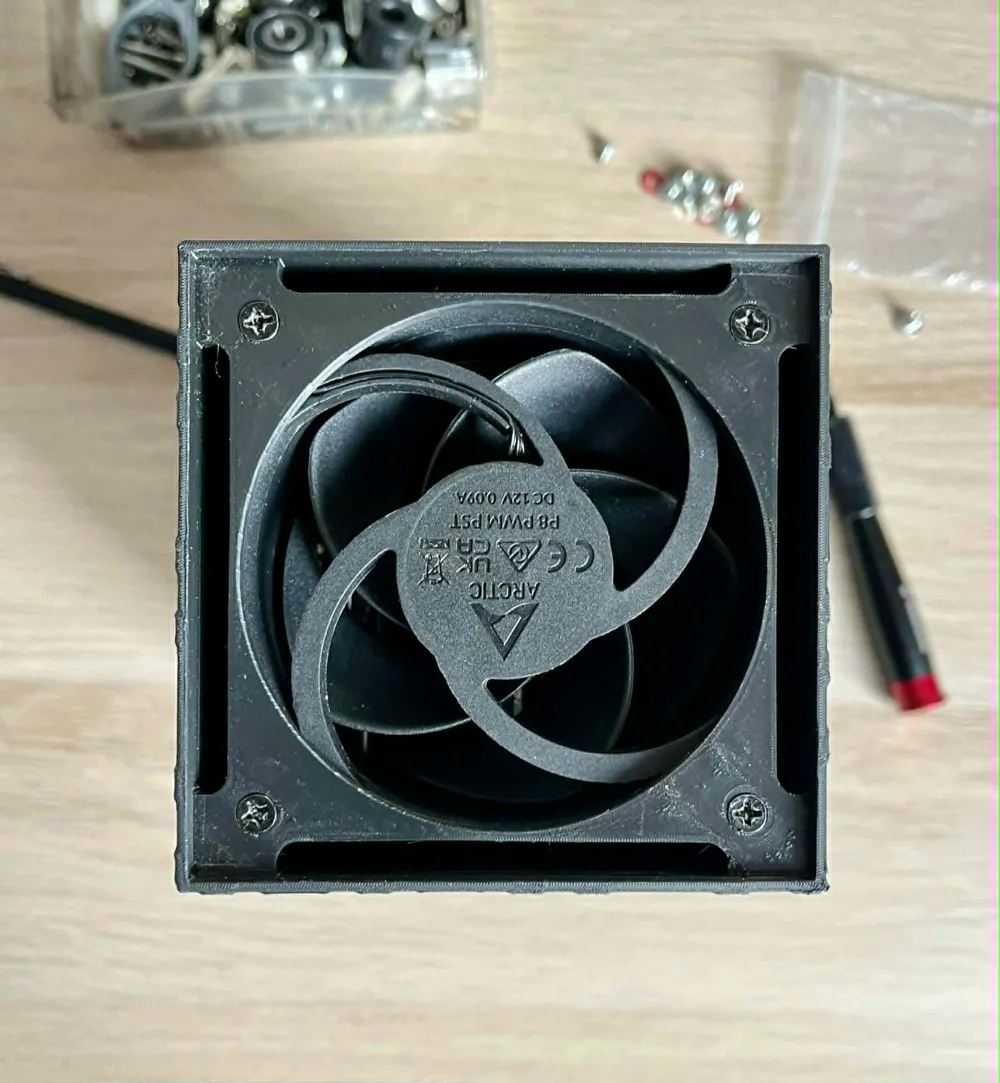

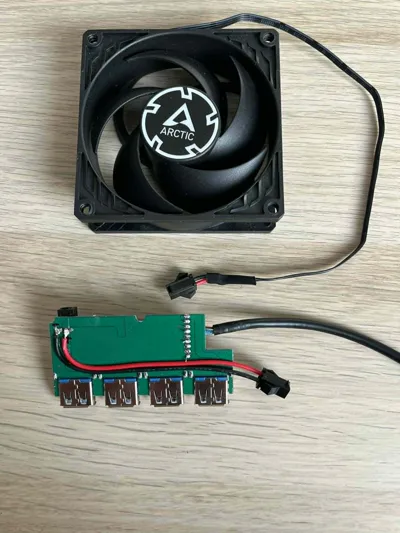

* 80mm fan (80×80×25mm max height)
https://www.amazon.com/ARCTIC-P8-80-Pressure-Optimised-Noise-Level/dp/B07XL9QJHF
* JST connector cables (for fan wiring)
https://a.aliexpress.com/_EzmS3ui
⸻
Mechanical & Assembly
* 6×2 mm magnets (for magnetic vent cover)
https://a.aliexpress.com/_EHyRunG
* Anti-slip pads / rubber feet
https://a.aliexpress.com/_EHeWjCi
* M3 screws (for HDD mounting)
* M2 + M3 screws (general assembly)
* Heat-set inserts (M2 + M3)
* Wires / cables for internal connections
⸻
Printing * PLA or PETG filament
⸻
Notes
* Raspberry Pi 4 (4GB) is sufficient
* Fan height must be ≤25mm
* SATA drives connect via USB (shared bandwidth)
* Basic soldering required
* You have to cut the SATA to USB cables and solder them back to the board again to fit them in the case
