Description

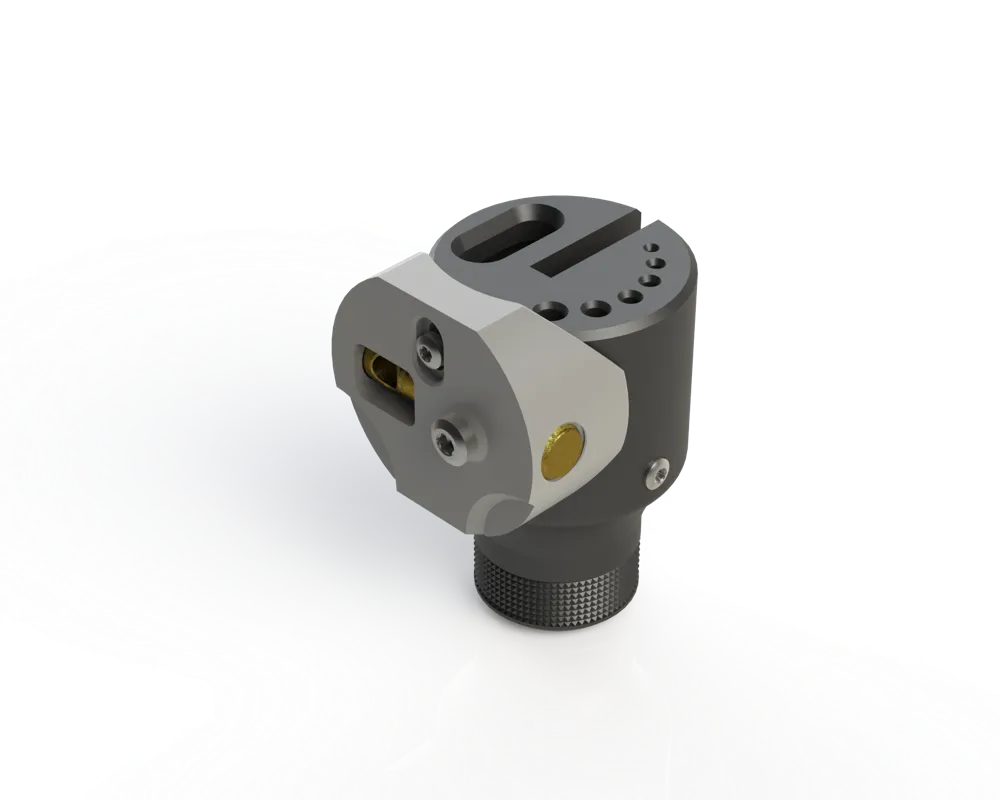

Tungsten sharpener head
- For 30-35mm Diamond grinding discs
- Adjustable angle + Bolt lock
- Adjustable height used to correct height after sharpener installation

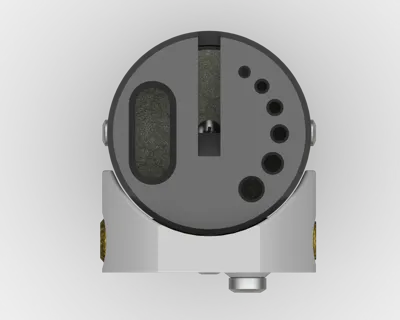

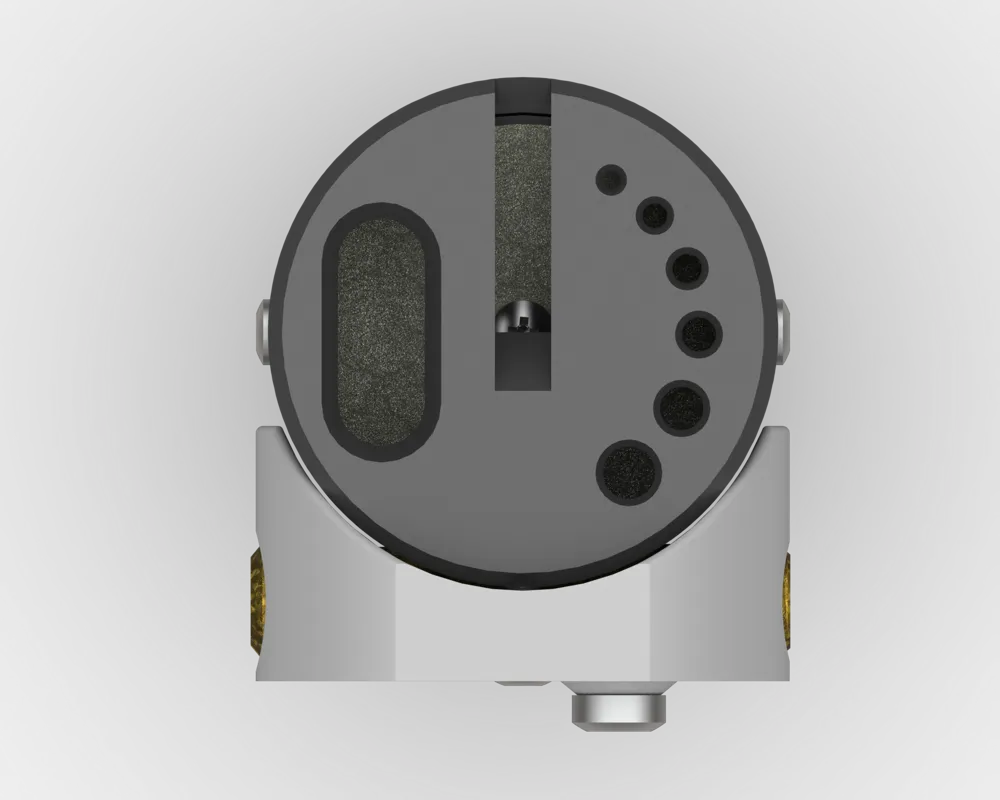

- Tungsten Tip Flat (On top) supports all standard Tungsten electrode diameters)

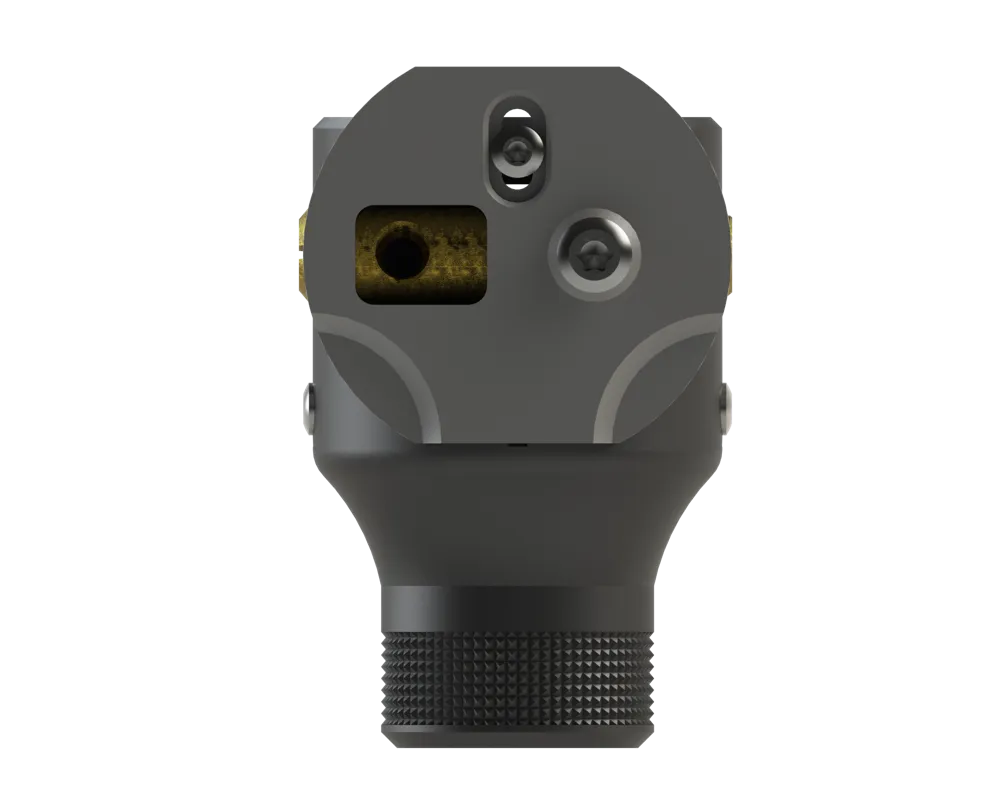

- Cut off opening (On the back) allowing you to cut and remove contaminated Tungsten
- Window (On top) to watch progress when sharpening

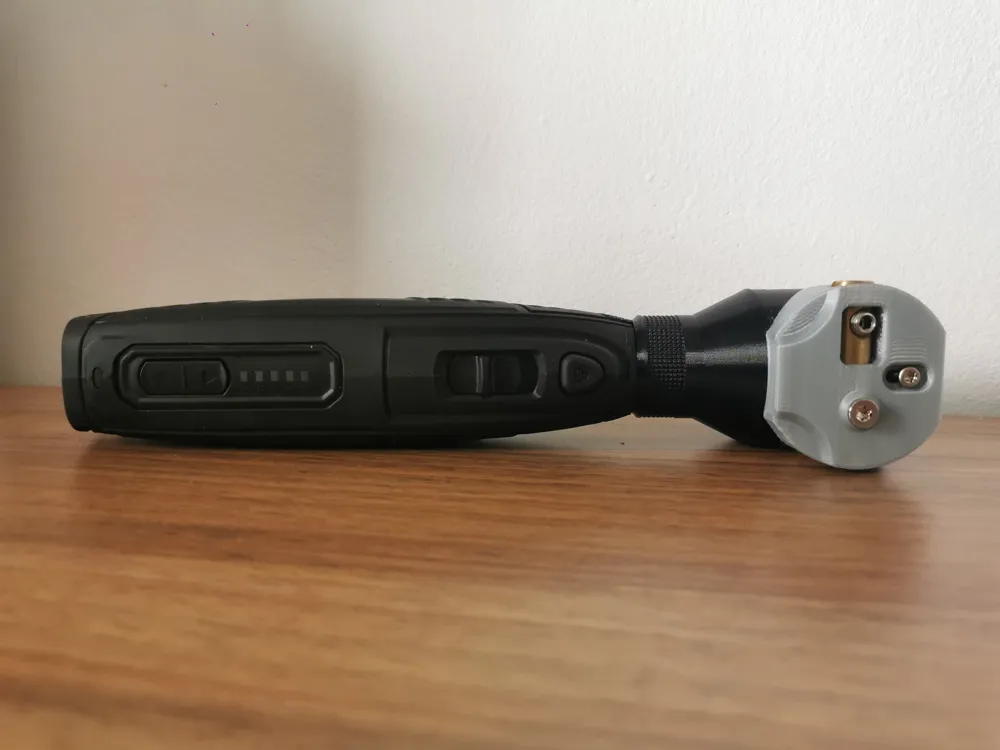

- Supports all Rotary tools with standard thread such as: Dremel, Milwauke etc.
To create a collet use M6x8 or M6x10 threaded pin and drill preffered hole for your Tungsten electrode, ensure correct tolerance. Collet then threads in the adjustable Bolt and acts as a guide for Tungsten electrode and heatsink to prevent melting plastic Bolt. Caution: 3D printed Bolt may still deform under prologed use because of heat when grinding; grind in 1+ steps to prevent plastic to overheat. Better heat resistant filament for Bolt is recommended.

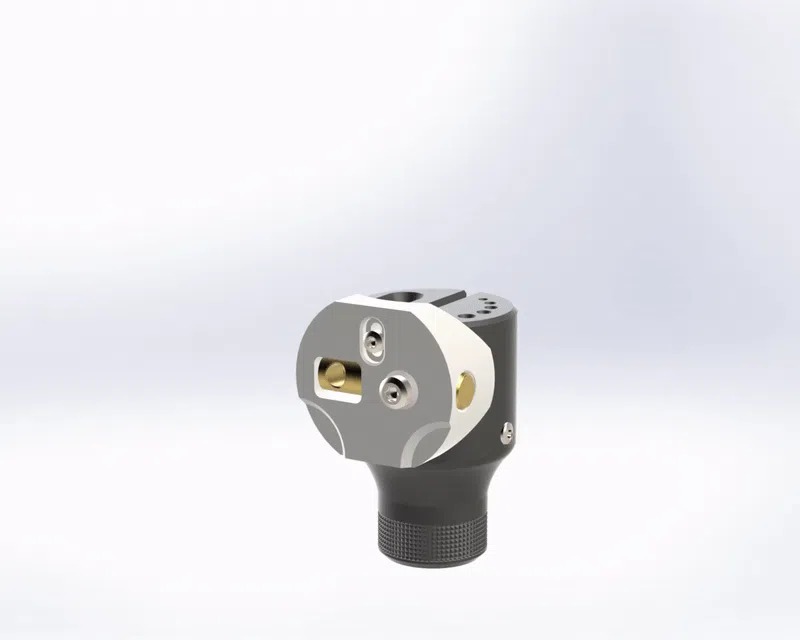

For installation check attached GIF.
You will need:
- 3x Heat insert M3 (use short heat insert on cap)
- 3x M3x10 Screw
- 1x M4x8 Screw (used to lock the Bolt)
CUSTOMIZABLE
- Use any color to your liking for different parts
- 4 Different Bottom parts (Chamfered bottom with knurling; and without, Rounded bottom with knurling; and without)
Happy sharpening.
