Boat Deck Foot Shower Plate - Dufour Gibsea 33
IP Report
Print Profile(1)
0.28mm layer, 5 walls, 15% infill
Designer
24 min
1 plate
Open in Bambu Studio
Boost
2
2
0
0
2
0
Released
Description

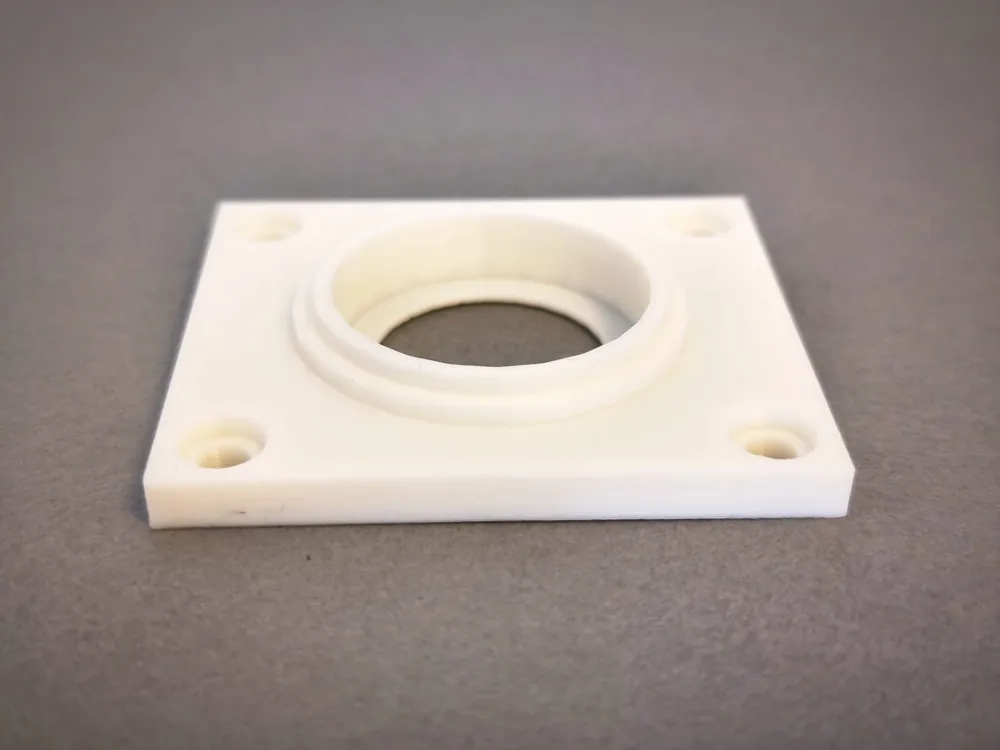

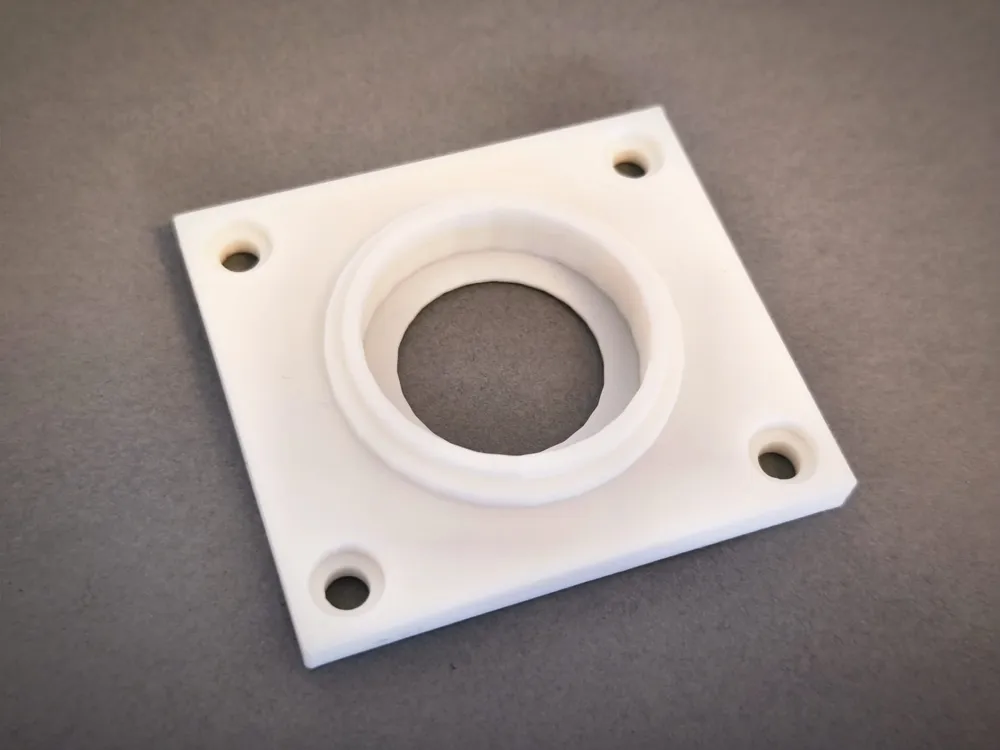

🚢 Boat Deck Foot Shower Plate — Dufour Gibsea 33 Replacement Part

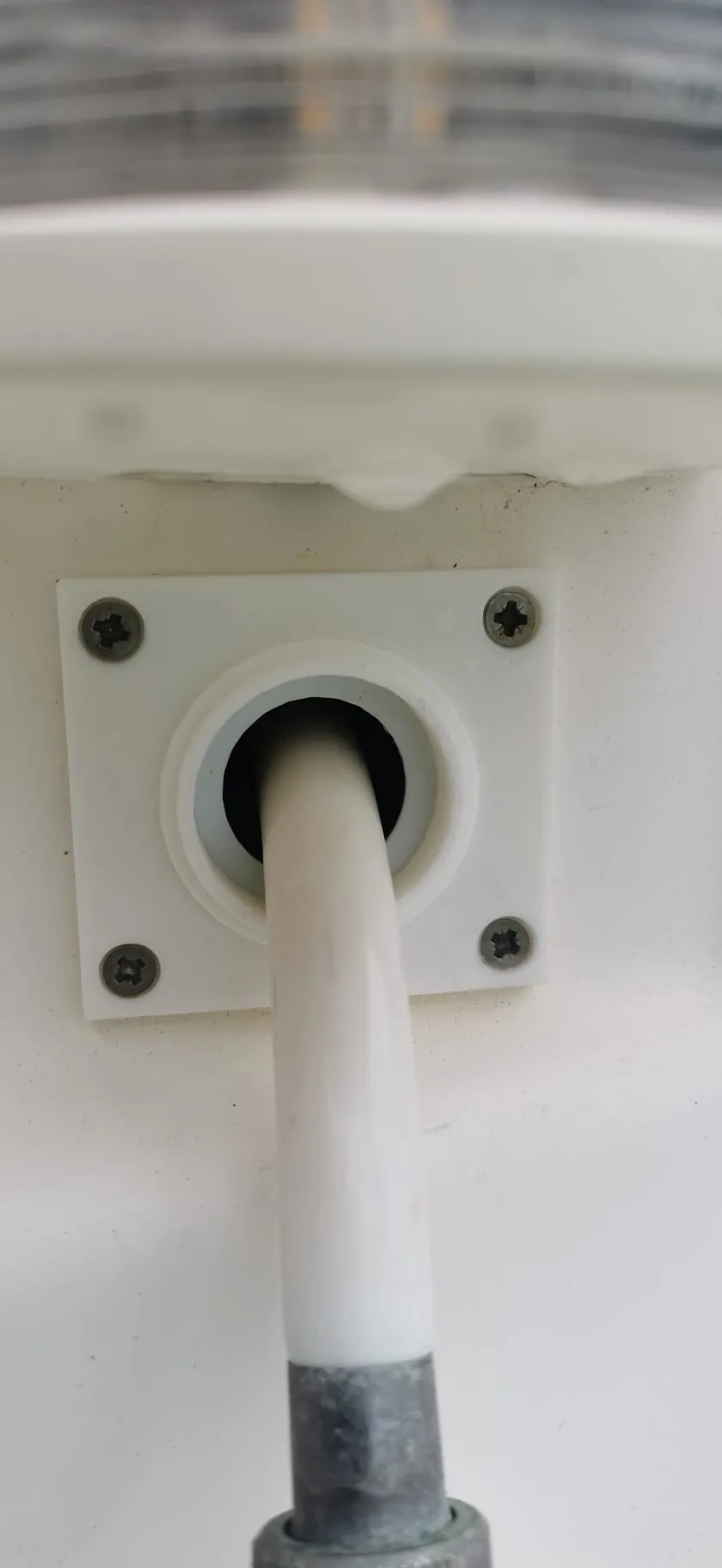

Replacement deck plate for the foot shower ("duchette") of a Dufour Gibsea 33 sailboat, designed to seal the hose entry point on the deck. The original part was worn out and no longer available as a spare — so I reverse-engineered it from scratch.
Fits a standard 24mm diameter hose with a sealing collar and gasket recess. Four corner fixing holes for secure deck mounting.
Perfect for Dufour Gibsea 33 owners — or anyone with a similar foot rinse shower fitting on their boat deck.
📐 Key Dimensions
- Plate: 55 × 61mm
- Central opening: 24mm diameter
- 4x corner fixing holes
- Includes gasket recess for watertight seal
License
This user content is licensed under a
Creative Commons Public Domain
