Univer FR1 Digital 433Mhz replace remote cover
Print Profile(1)
Description
Description

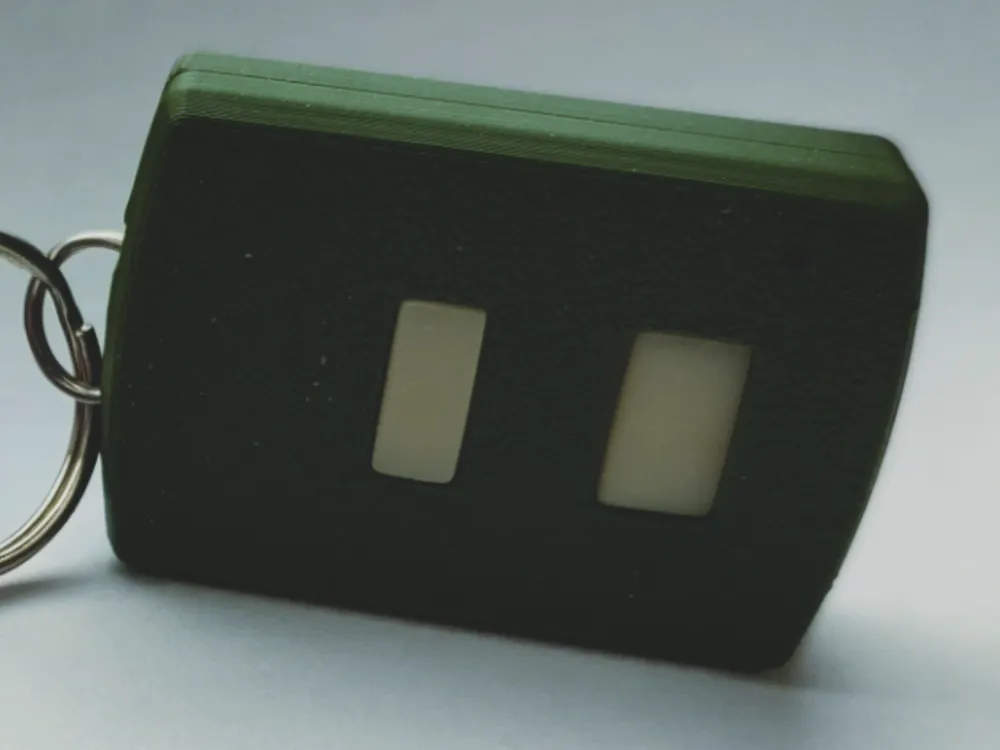

This cover serves to replace the broken remote cover of the Univer FR1.
Specifications
- about 30 minutes to print
- uses about 15 gram of filament

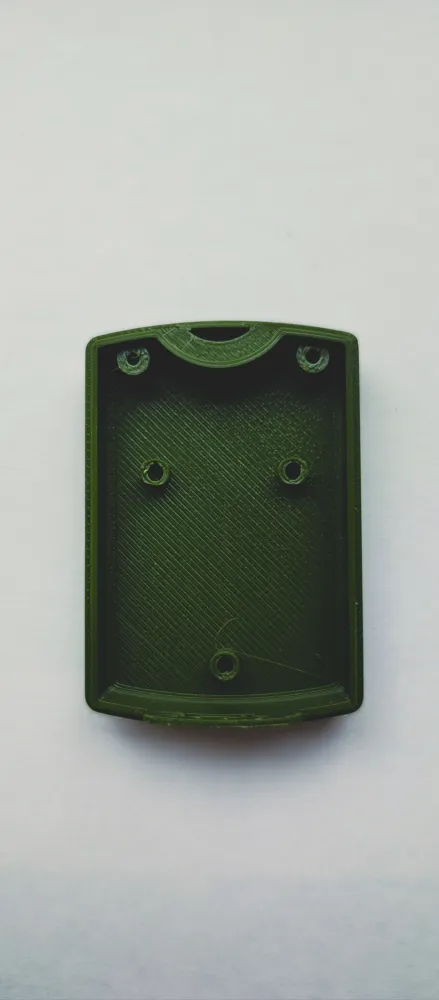

- 3 walls and 6 bottom layers for robust design
- use the screws and transmitter print from broken remote
Assembly

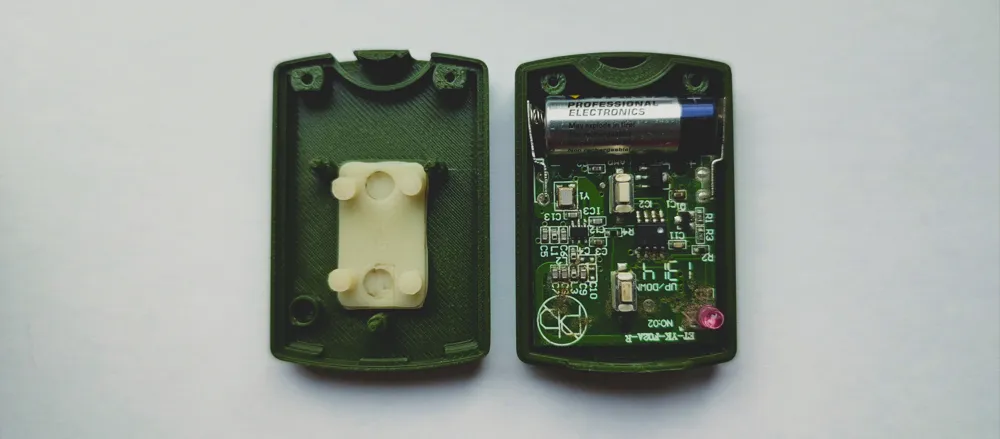

Place the rubber buttons in position in the top section.

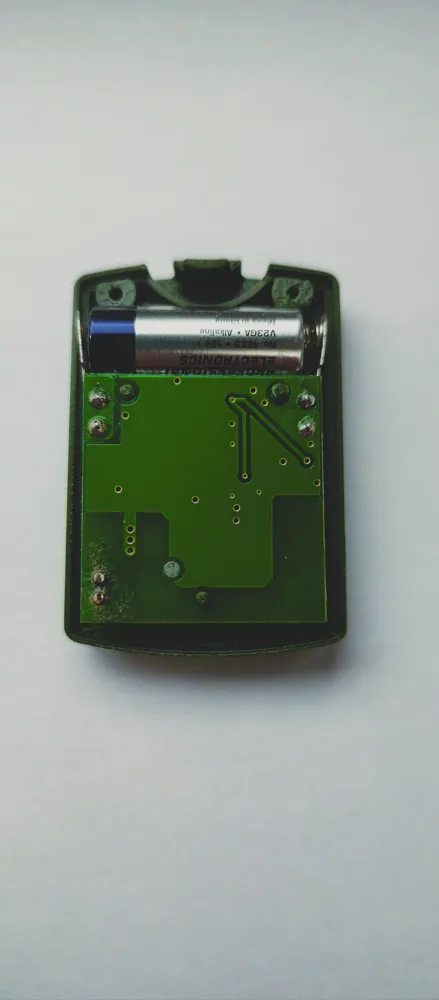

Because the pins are delicate, I recommend placing the transmitter circuit board over the pins of the top section first, then tilt the bottom part against it and screw it in place with the small screws.

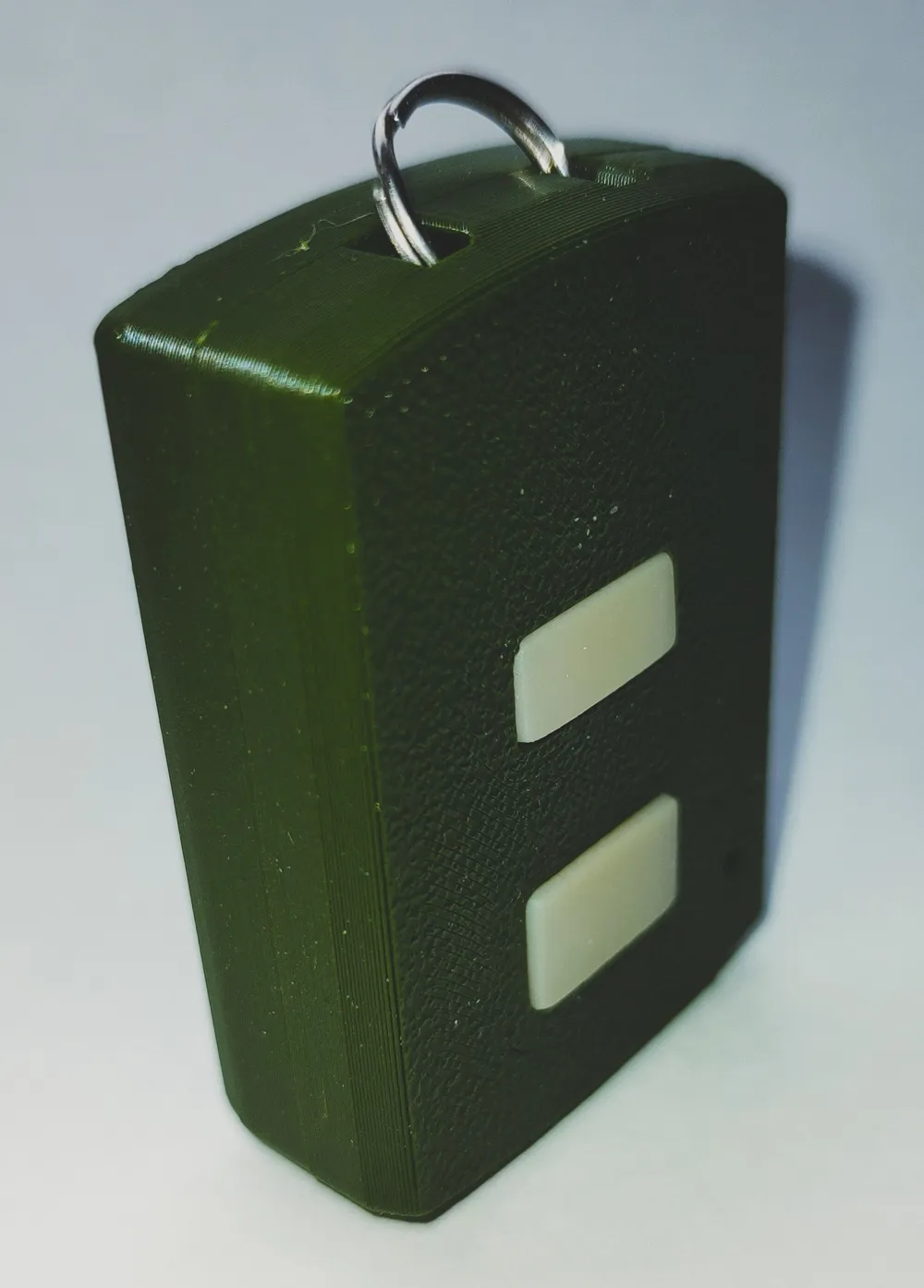

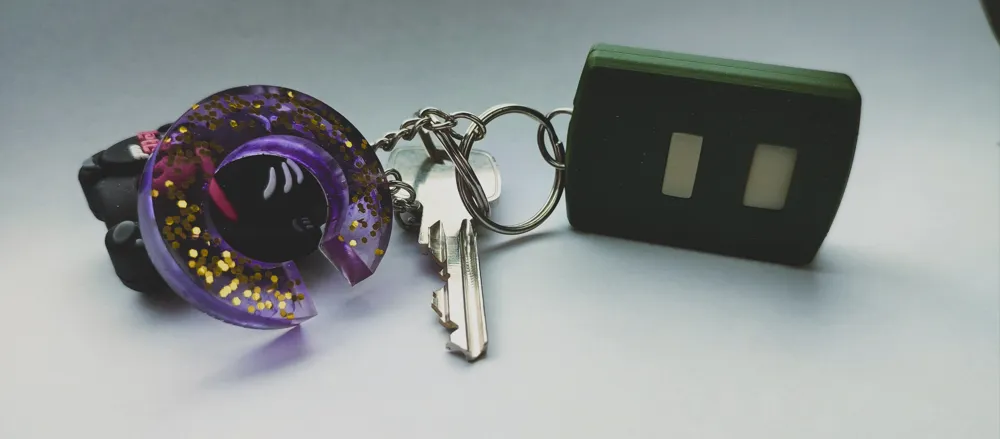

A notch is provided for inserting a key ring.
Enjoy!
