This project is mostly for my enjoyment, any feedback is greatly appreciated, especially with the print configuration since I mostly created the model and commissioned someone else to print it, I have 0 other 3D printing knowledge.

-------------------------------------------------------------------------

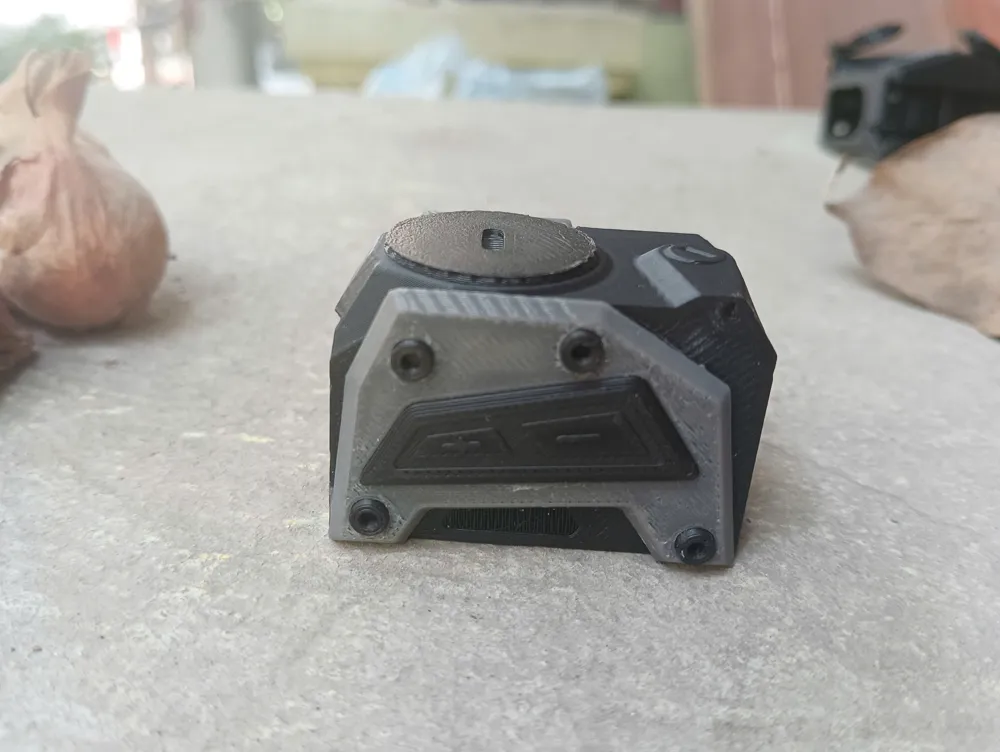

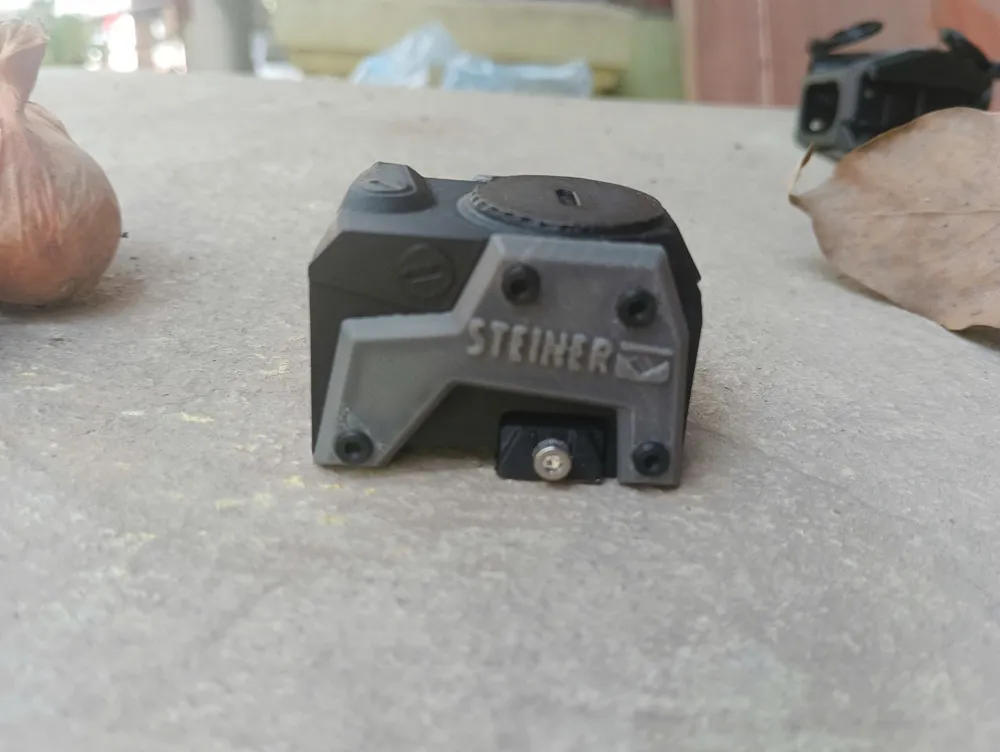

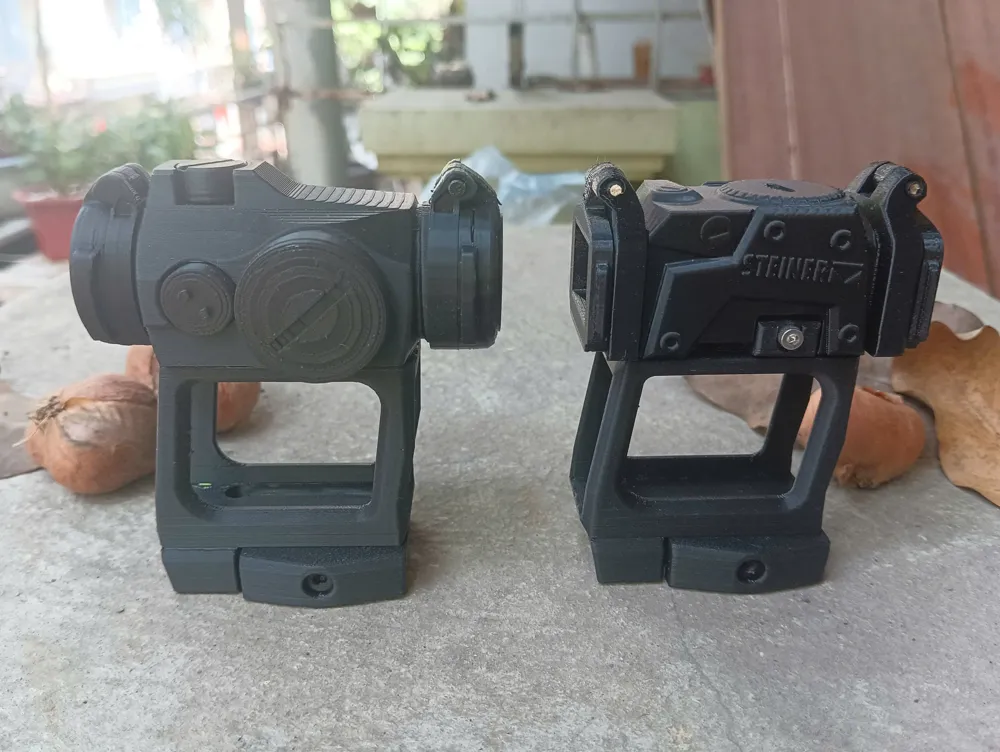

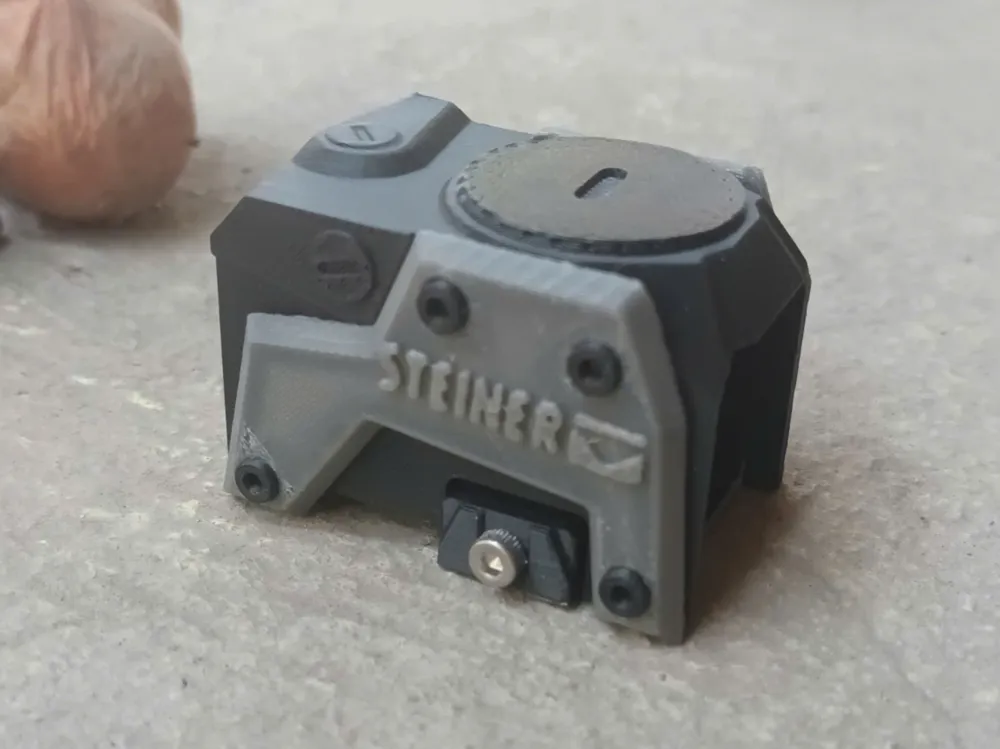

A replica of the Steiner MPS red dot sight purely for decoration. Compatible with Aimpoint ACRO pattern mounts, features 2 Resident-Evil-9-style lens caps.
Assembly should be straightforward. Use superglue if the parts don't hold well. For hardware you should only need a single screw

  • If you have a printer capable of extremely precise printing like the Original Prusa Mk4, an M2.5 screw of any length (from 5 to 25mm) will do. Otherwise, the bottom part is likely to protrude when you insert the screw, and you might have to cut the protrusion away to make it fit on the mounts.
  • If you don't have such a capable printer, consider smaller screws like M2 or smaller

-------------------------------------------------------------------------

I have a list of prints, mostly dummy optics/optic risers/optic mounts, that I can't really afford to print. If you're interested in testing the prints and sending me showcase photos then feel free to contact me, all files will be free of charge:

  • Trijicon MRO + Trijicon 3X Magnifier
  • Aimpoint magnifiers with LaRue flip to side mount
  • Aimpoint T2 red dot sight v2 (with lens caps that can be removed/rotated)
  • ANVL UKON RMR mount for RMR pattern red dot sights
  • Unity Tactical RAXIS for B.E Meyers MAWL laser
  • Arisaka Low/2.26" Magnifier Mounts
  • Geissele 30mm scope mount
  • ACR stock for A&K/DS/STS/AKA/JM gel blasters
