ArkLamp, Double Rod Set

Designer

7.6 h

6 plates

5.0(6)

ArkLamp XL (Universal)

Designer

6.6 h

4 plates

5.0(2)

Add-On: Banker's Shades

Designer

11.5 h

2 plates

Paint Job: Roadster Edition

Designer

7.2 h

3 plates

5.0(1)

Click to see more

Open in Bambu Studio

Boost

240

136

Released

Bill of Materials

List other parts

5.2mm Steel Rod (150-180mm) x 2: Option 1: 2x5.2mm steel rods. 153mm makes the top of the ArkPro level with bottom of shade. Feel free to adjust to preference.
8mm Steel Rod (150-180mm) x 1: Option 2: 1x 8mm steel rod. 153mm makes the top of the ArkPro level with bottom of shade. Feel free to adjust to preference.

Description

UPDATE 2026/05/19: Added an “XL” version that supports up to Marauder 2 Series! (this version will not have alignment cutout for the ArkPro/Arkfeld)

I love my ArkPro, and it's my daily carry. But I found it not terribly useful in situations where our power goes out (we live in rural Thailand) and we're doing just normal activities (eating, playing games, etc). So I decided to turn it into a LAMP!

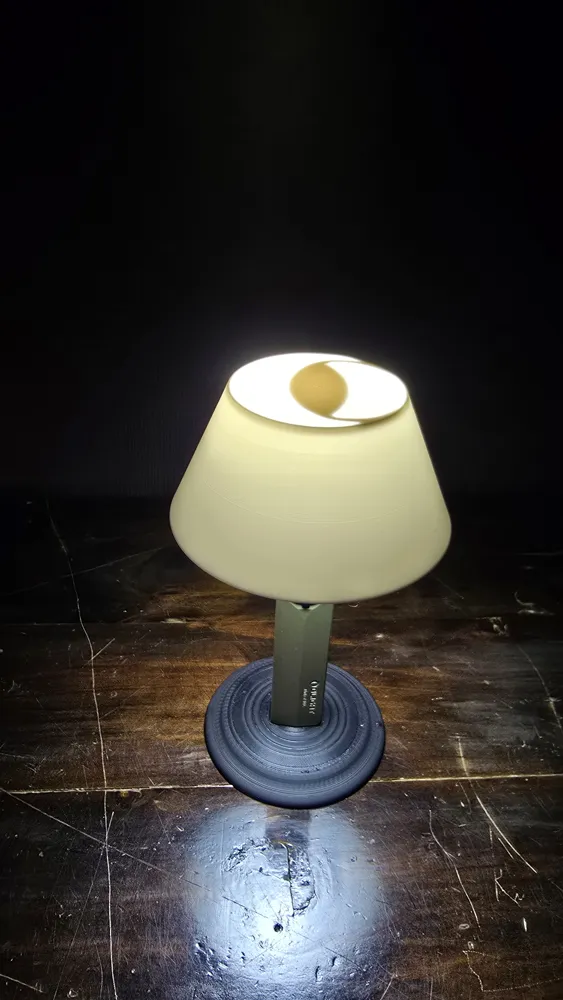

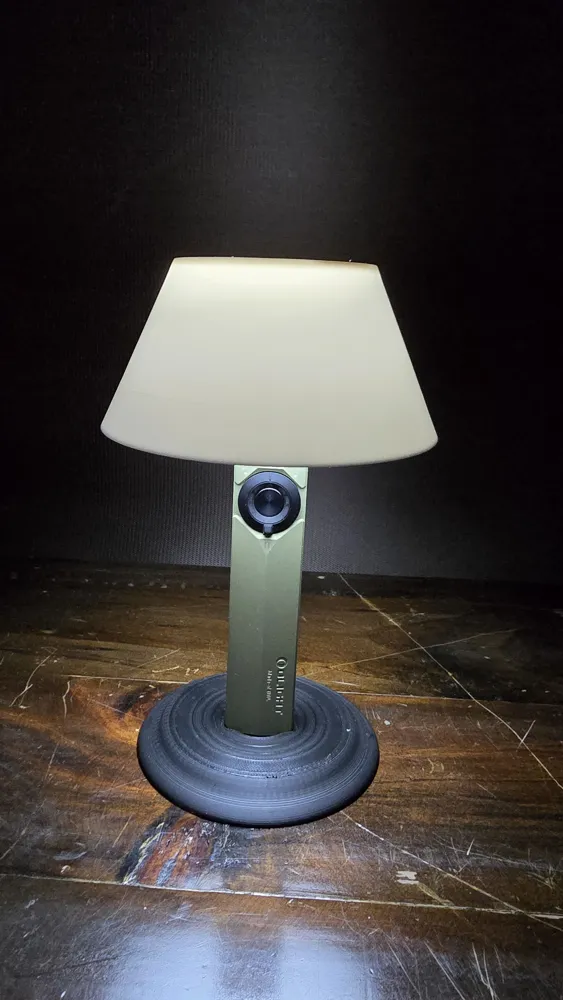

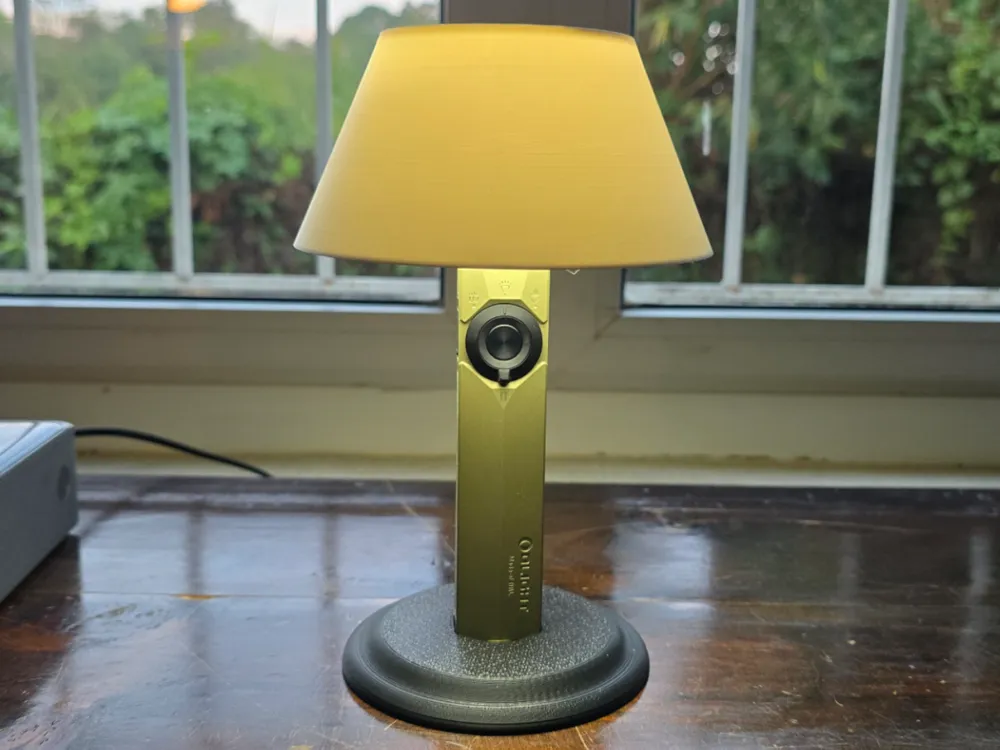

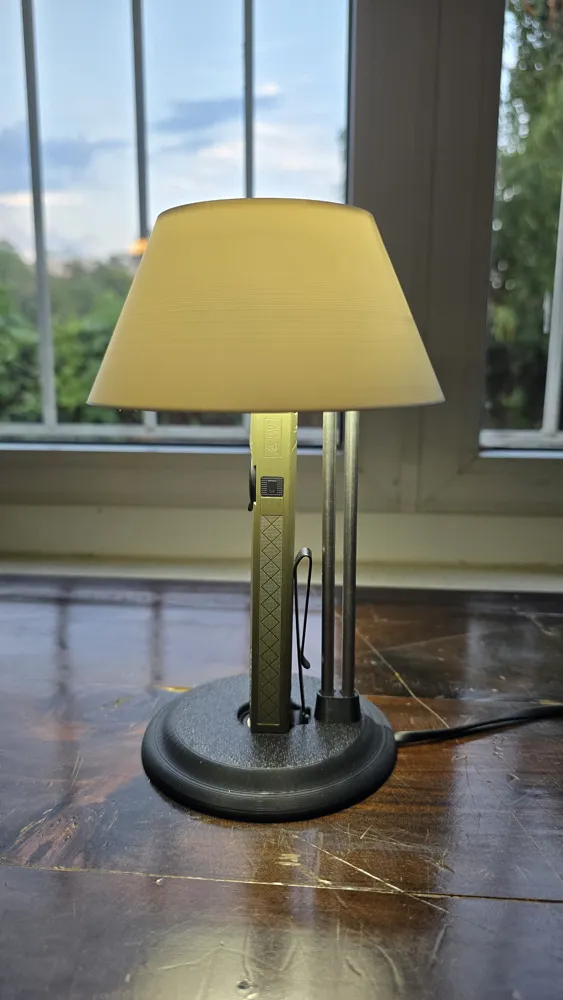

This design is intended to make the ArkPro look like it's the body of the lamp, though it's actually held up by steel rods (or printed equivalents).

You can certainly use other flashlights with this, but you may want to adjust rod height so you don't blind yourself with a straight shot at the beam.

Boost Me (for free)

If you like this model, please help me out and give me a Boost! :)

The following options are available:

Stands:
- Base Type:
  1. MCC1 Charger: Prints the base with an open hole to attach the MCC1 charger and route cable underneath. Glue may be recommended
  2. Magnetic (no charger): Uses a 25x6mm Magnet inserted mid-print to stabilize the flashlight.
- Rod Type:

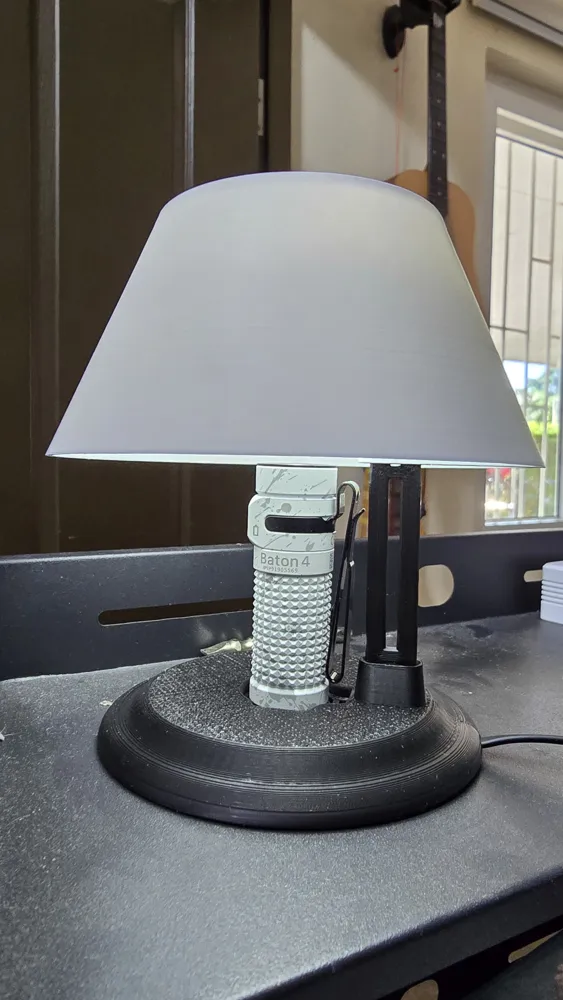

  1. 2x 5mm rods (I like this as it keeps the shade from swiveling)
  2. 1x 8mm rod (this option has been deprecated in favor of 2x 5mm only)
Shades:

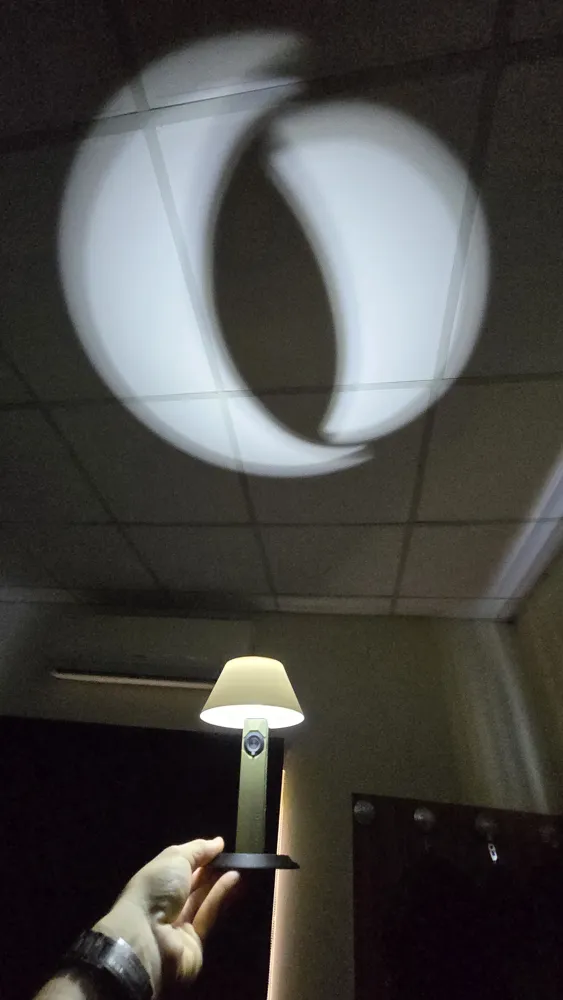

- Open Top: Projects the Olight logo on the ceiling (if fixed properly, and depending on ceiling height)
- Closed Top: The top of the shade will diffuse glow (available with or without hidden logo).
- Banker Shade: wider and designed to be printed with 2 colors (white inside, then preferred color outside).

Comment & Rating (37)

@frankenkj03

Boosted

Print Profile

ArkLamp, Double Rod Set

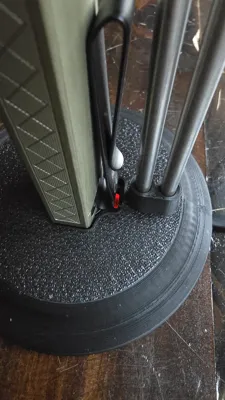

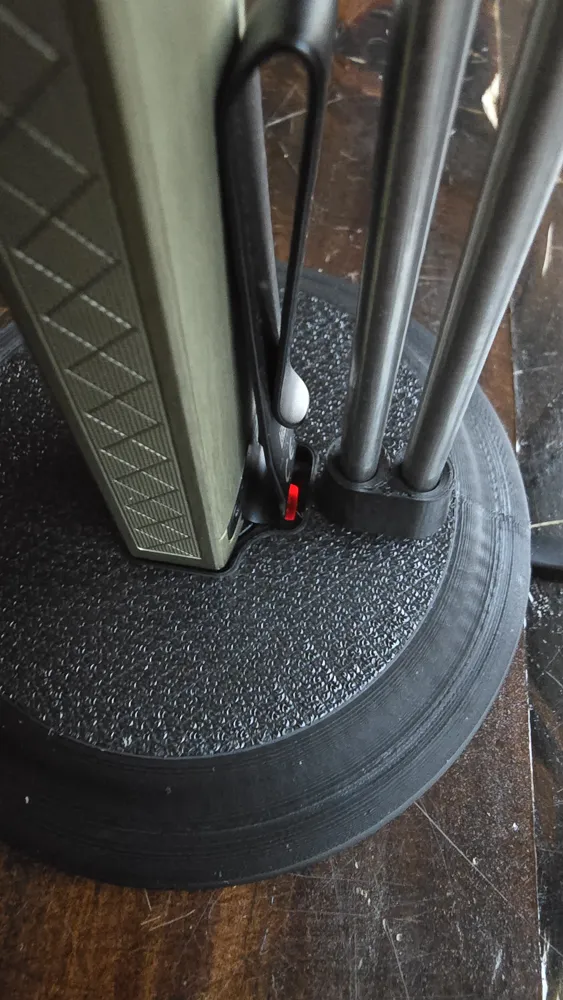

very cool little gadget! the arkfield fits perfectly and charges without issue - the light stands perpendicular to the base and lights the shade well. the baton 2 doesn't quite fit in the base - when seated it sits slightly off square to the base which points the light into the side of the shade. I held the charger in place with a piece of scotch tape, this works well enough to allow the charger to float just a little for either light to charge. suggestion for improvement - add a cutout to the back of the charger notch so the charging indicator light is visible

(Edited)

The profile uploader has replied

@DeadEye22x

Cool color scheme! I see the problem, though. This was designed for the new MCC1 charger, not the former MCC1AL (which is ~2mm smaller in diameter). It's not really an issue specific to that baton, just that the wider base of the Arkfeld helps cover up the issue. Give me a few minutes and I'll have an insert you can use

(Edited)

@DeadEye22x

MCC1AL adapter is live on a new [EXTRAS] plate in the main print profile. It's a tight fit, but it will stay put.

@frankenkj03

Boosted

Replying to @DeadEye22x :

the insert works perfectly! thanks for responding and coming up with a fix so quickly!

@Strooper94

Print Profile

ArkLamp, Double Rod Set

love it

The profile uploader has replied

@DeadEye22x

Looks great. Thanks for sharing!

@user_313792294

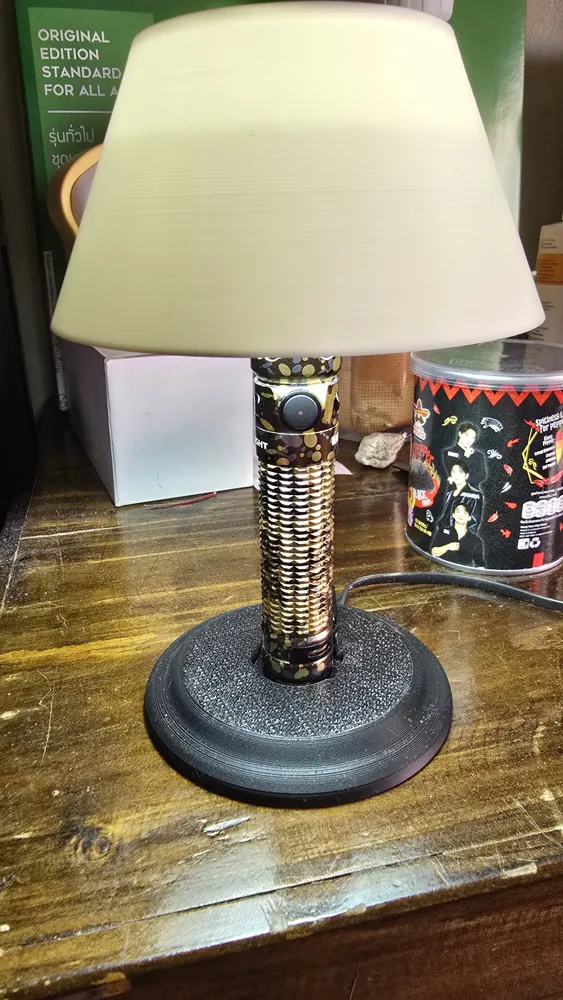

Great Print! Nice design- impressive!! I used the printed rods- and printed all three lengths to use with my other Olights. The Arkpro and Baton Pro 3 all fit and function wonderfully! Again- great design and thanks for sharing on the FB Olight group.

The designer has replied

@DeadEye22x

Looks great!

@Donkeythekidd

Boosted

Print Profile

ArkLamp, Double Rod Set

Came out so Awesome. Very clever design. Thanks for sharing and all the hard work that went into creating this.

The profile uploader has replied

@DeadEye22x

Looks great! Thanks for sharing

@Strooper94

came out great thanks for the great design

The designer has replied

@DeadEye22x

Zombie isn't usually my thing, but that's an awesome paint job you put on it. I feel like people might want to get their hands on that customization!

@Strooper94

Print Profile

ArkLamp XL (Universal)

the xl came out perfect I remixed it a bit to make it one of a kind thanks again for the great file

The profile uploader has replied

@DeadEye22x

I absolutely love this remix. Really creative addition with the saucer & beam!

@Zacks3DPrints

Print Profile

ArkLamp, Double Rod Set

works amazing! and prints great. the printed posts are tight on my printer. but they work!

The profile uploader has replied

@DeadEye22x

Looks great! Yeah, tolerances seem to vary, but glad they worked!

@Shaner67

Print Profile

Paint Job: Roadster Edition

Great file. Love the Roadster edition!

The profile uploader has replied

@DeadEye22x

Beautiful print! I really like your changes to the base, too!

(Edited)

@user_872645686

did you use any supports on the shade?

The designer has replied

@DeadEye22x

The original (archive) version did need support, but the ones in the newest file print fine without it.

@user_313792294

I didn't need any supports-

@user_872645686

Replying to @DeadEye22x :

Thank you, I have the shade printing now

@Scojay2328

Recommendations for where to buy the rods and magnets? Having a hard time finding the right diameter and length for the rods. Are the printed bars options for the steel rods?

(Edited)

The designer has replied

@DeadEye22x

Any 5mm rod should actually do. It will be hard to find perfectly at that length, so you could go longer or cut it yourself (I cut mine from a 1m length). Yes, the printed options in the profile would be in place of the steel rods. The magnet will be a 25x3mm

@Scojay2328

Replying to @DeadEye22x :

Thanks!!

@user_313792294

I printed the rods- they look good and printed well. I printed all three lengths for various flashlights.
