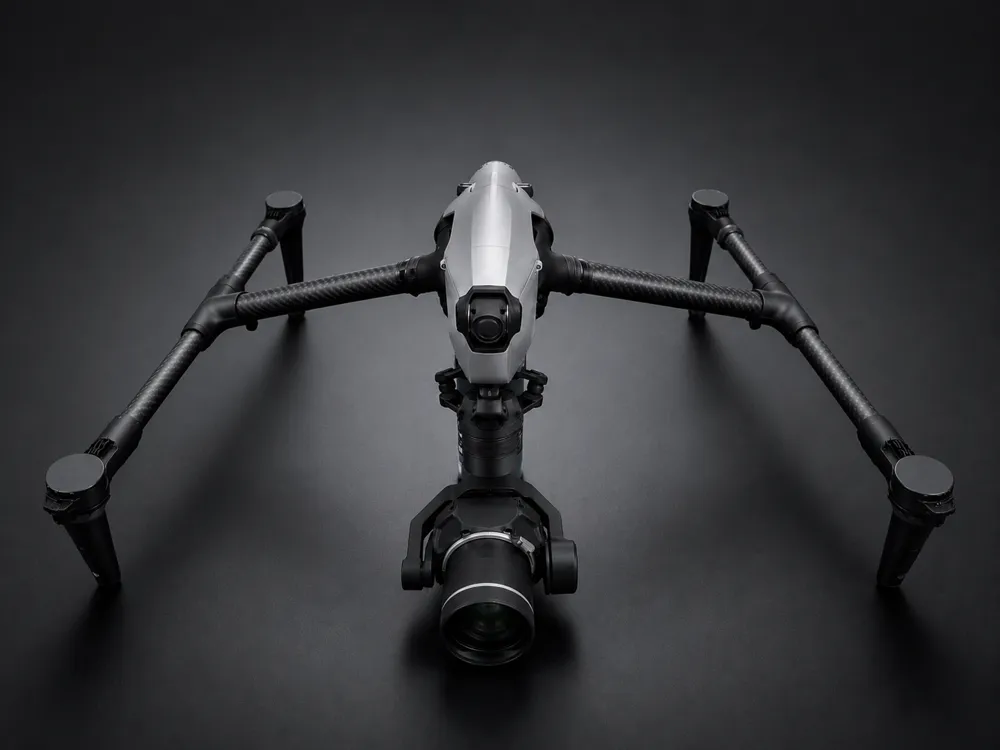

DJI Inspire 3 1:1 Model

DJI Inspire 3 (O3) 1:1 Complete Model Plans

A dynamic and playable 1:1 highly accurate Inspire 3 model, supporting scaled printing (recommended not less than 60% of original size)

Model Features

• High-precision split-part design, easy to print even without AMS
• Highly detailed restoration of the real machine's structure and appearance
• Printing layout optimized
• Fewer supports, easier to remove and post-process
• Optimized assembly structure, making assembly more convenient
• Re-designed model, modified based on the original to enhance stability

Recommended filaments

• Bambu Lab PLA Basic silver
• Bambu Lab PLA Matte matte black

For a more realistic lighting effect, it is recommended to print indicator light parts using glow-in-the-dark filament

Additional Accessories Required

To achieve full dynamic effects, you will need:

• Magnets ×20
  Specifications: 20×2mm
• Magnetic sheets ×5
  Outer diameter: 20mm

Carbon Fiber Arm Restoration Plan

To further restore the carbon fiber arm effect of the real machine, you will need:

• Outer diameter 25mm carbon tube ×1m
• Outer diameter 20mm carbon tube ×1m

(Specific dimensions can be referenced from the markings in the plans, or you can directly print the corresponding structural parts)

Function Restoration

• Magnetic memory compartment cover
• Magnetic FPV camera (detachable / adjustable angle)

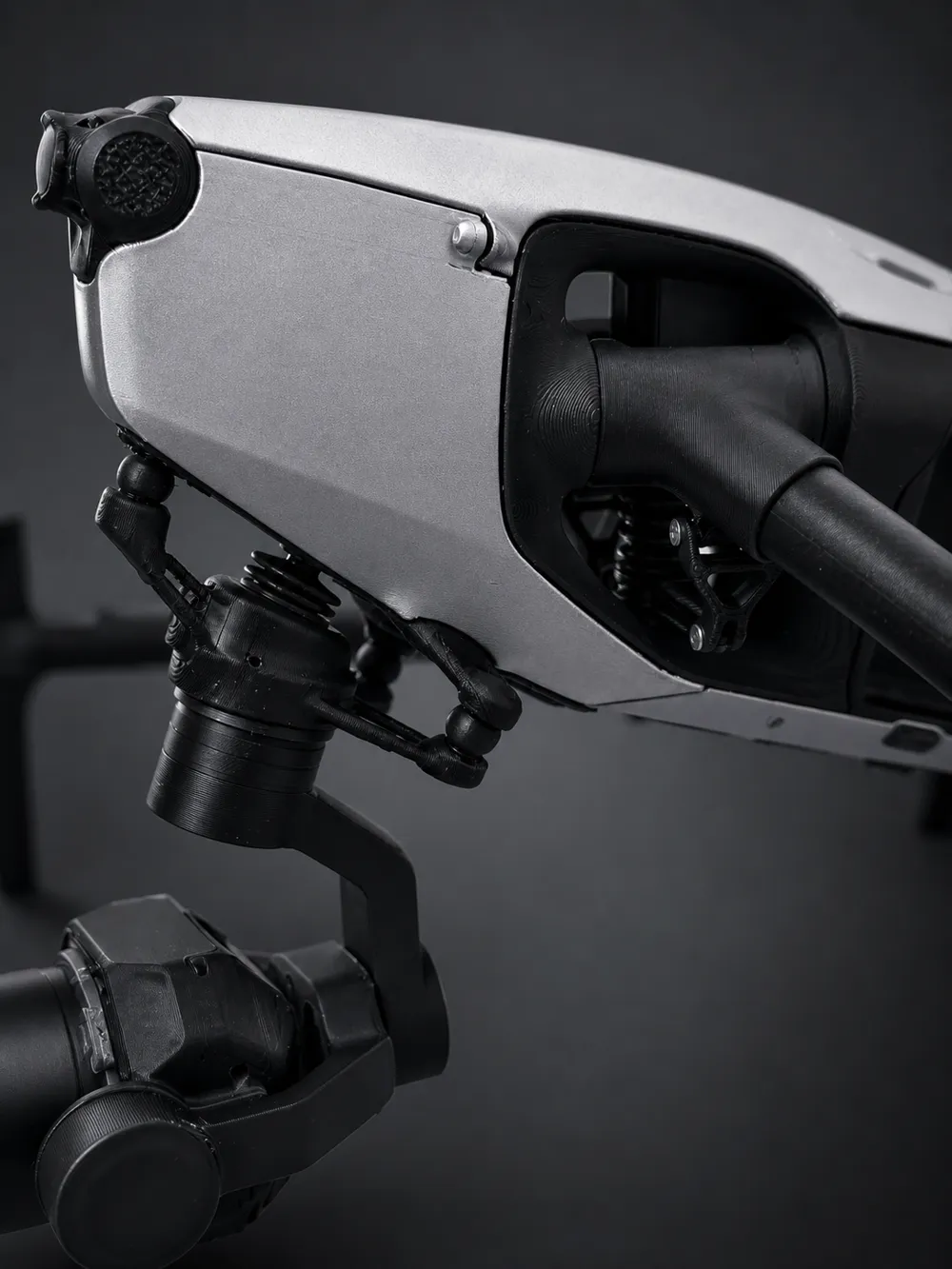

• Magnetic 360°x9 fully articulated gimbal (detachable / adjustable angle)
• Glow-in-the-dark indicator light restoration

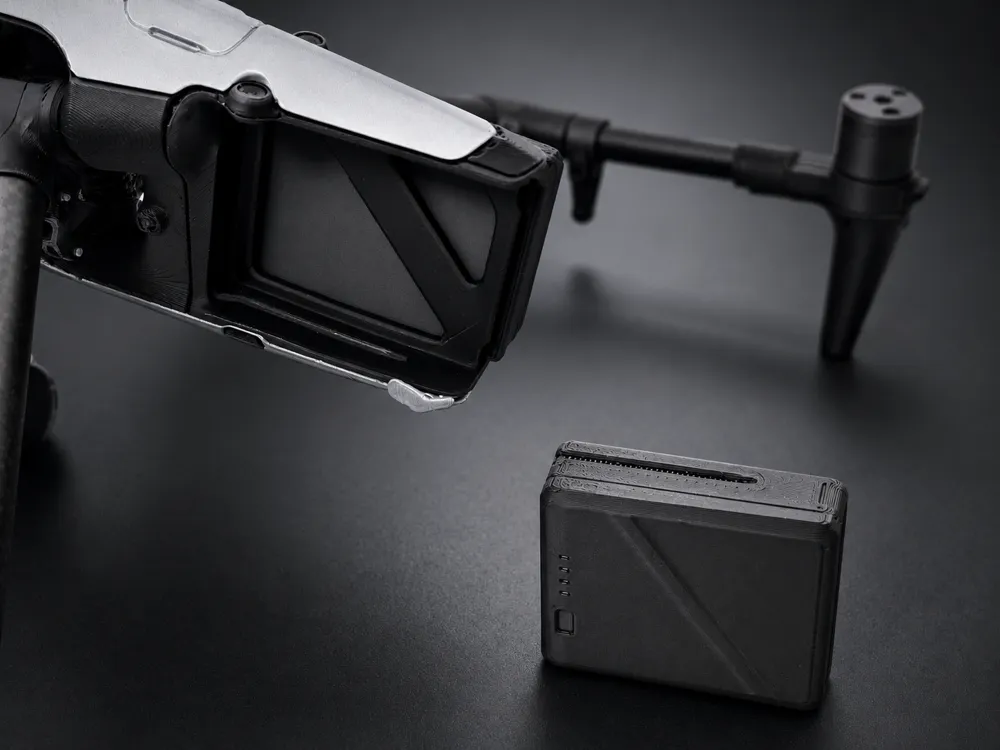

• Removable battery
• Rotatable magnetic motor
• Liftable arms (servo drive part not included)

Overall balance of:

• Display value
• Playability
• Print friendliness
• Authenticity to the real machine

Suitable as:

• Desktop display
• Aerial photography enthusiast's collectible
• Inspire 3 peripheral model

• Basic components for secondary modification and electronic development
