0.2mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including, but not limited to, publishing derivative works outside the Makerworld platform or hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money or collect fees.
Subject to the above restrictions, derivative works may be published only within the Makerworld platform, and all such derivative works must be licensed under the same SDFL‑C license, without modification or additional terms.
You may download the digital versions of this object, 3D print it, and display images, videos, or usage demonstrations of 3D printed versions of the object on personal social media platforms or Makerworld official channels, provided that no digital versions of the object are shared or distributed.

This work is licensed under a Standard Digital File License – Community Use (SDFL‑C).

Nova Versão para a rampa de aspirador, compatível com A1 MINI, com rebaixo atendendo a degraus de 28 mm a 36 mm de altura sem maiores problemas.   Imprima sua rampa de 450 mm tudo em uma única mesa.&nbsp;Mesa pronta para impressão, com brim configurado nas peças para evitar empenamento, que ocorreu em algumas impressões da versão anterior.  As 4 partes totalizam uma largura de 450 mm atendendo boa parte dos aspiradores. Caso necessite mais larga, basta adicionar uma nova mesa e clonar 1 das peças e 2 conectores para aumenta-la para 600 mm.o comprimento da rampa é de 170 mm aproximadamente com uma inclinação de aproximadamente 13 graus .&nbsp;Feita e testada com aspirador xiaomi x20 pro,  s20+ e xiaomi s40, ambos conseguindo acessar a rampa sem travamentos, então acredito que deva funcionar razoavelmente bem com outros modelos da xiaomi. &nbsp;Outras marcas de aspiradores não posso afirmar que funcionaram, devido as diferentes sensibilidades dos sensores de altura.  em um robô sansung vr5000, houve problemas ao subir a rampa, pois ao chegar na parte superior o sensor fica razoavelmente alto em relacao a rampa e interpreta como degrau, retornando para baixo. Indico recortar um papelão e improvisar uma rampa para esses modelos para testar o funcionamento, e somente após isso, realizar a impressão.   Feedbacks e sugestões serão bem vindas. Boa impressão.

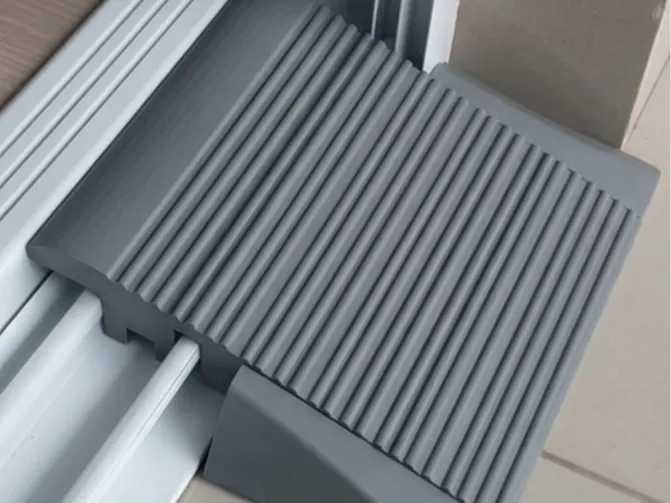

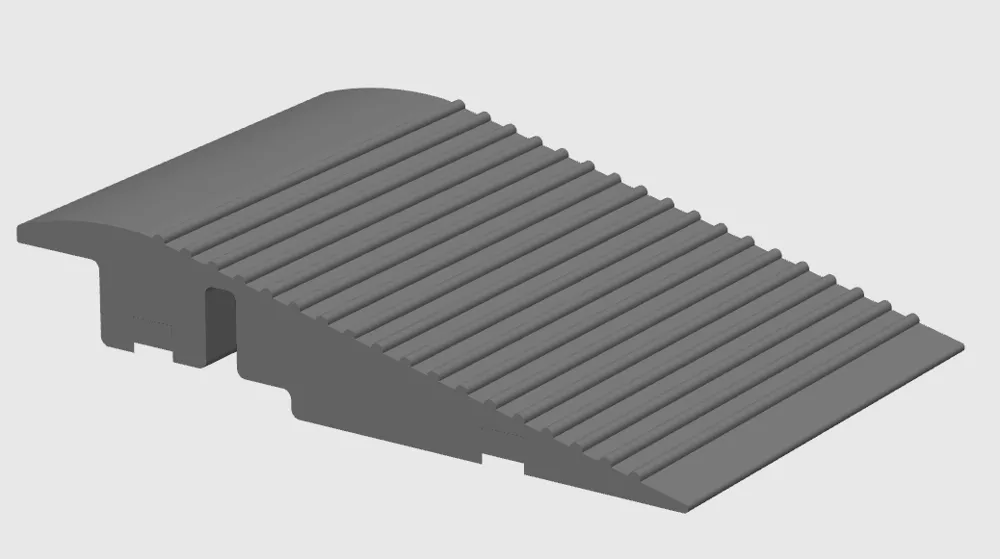

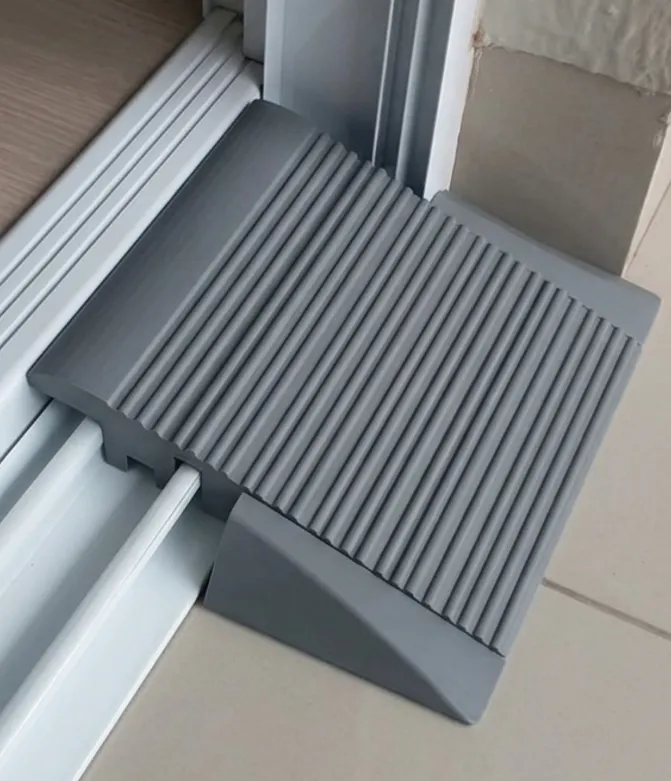

New Version for the vacuum ramp, compatible with A1 MINI, with a recess accommodating steps from 28 mm to 36 mm in height without major issues. Print your 450 mm ramp all on a single build plate.&nbsp;Print-ready plate, with brim configured on the parts to prevent warping, which occurred in some prints of the previous version. The 4 parts total a width of 450 mm, fitting most vacuum cleaners. If you need it wider, simply add a new build plate and clone 1 of the parts and 2 connectors to increase it to 600 mm.The ramp's length is approximately 170 mm with an incline of approximately 13 degrees.&nbsp;Made and tested with Xiaomi x20 pro, s20+ and Xiaomi s40 vacuums, both being able to access the ramp without getting stuck, so I believe it should work reasonably well with other Xiaomi models. &nbsp;I cannot confirm that other vacuum brands will work due to the different sensitivities of their height sensors. With a Samsung VR5000 robot, there were issues climbing the ramp, as upon reaching the top, the sensor is quite high relative to the ramp and interprets it as a step, causing it to return down. I suggest cutting out a piece of cardboard and improvising a ramp for these models to test functionality, and only then proceed with printing. Feedback and suggestions are welcome. Happy printing.

Robot Vacuum Ramp
