EKIY or KIY 5" display screen clamp shortener.

Made 2 designs as wasn't sure which holds the best.
1. Is meant to be used together with a M3 screw. (I used heated insert and 16mm screw to secure the plastic clamp)

2. Is meant to be used with a hose clamp - I think it is more secure design

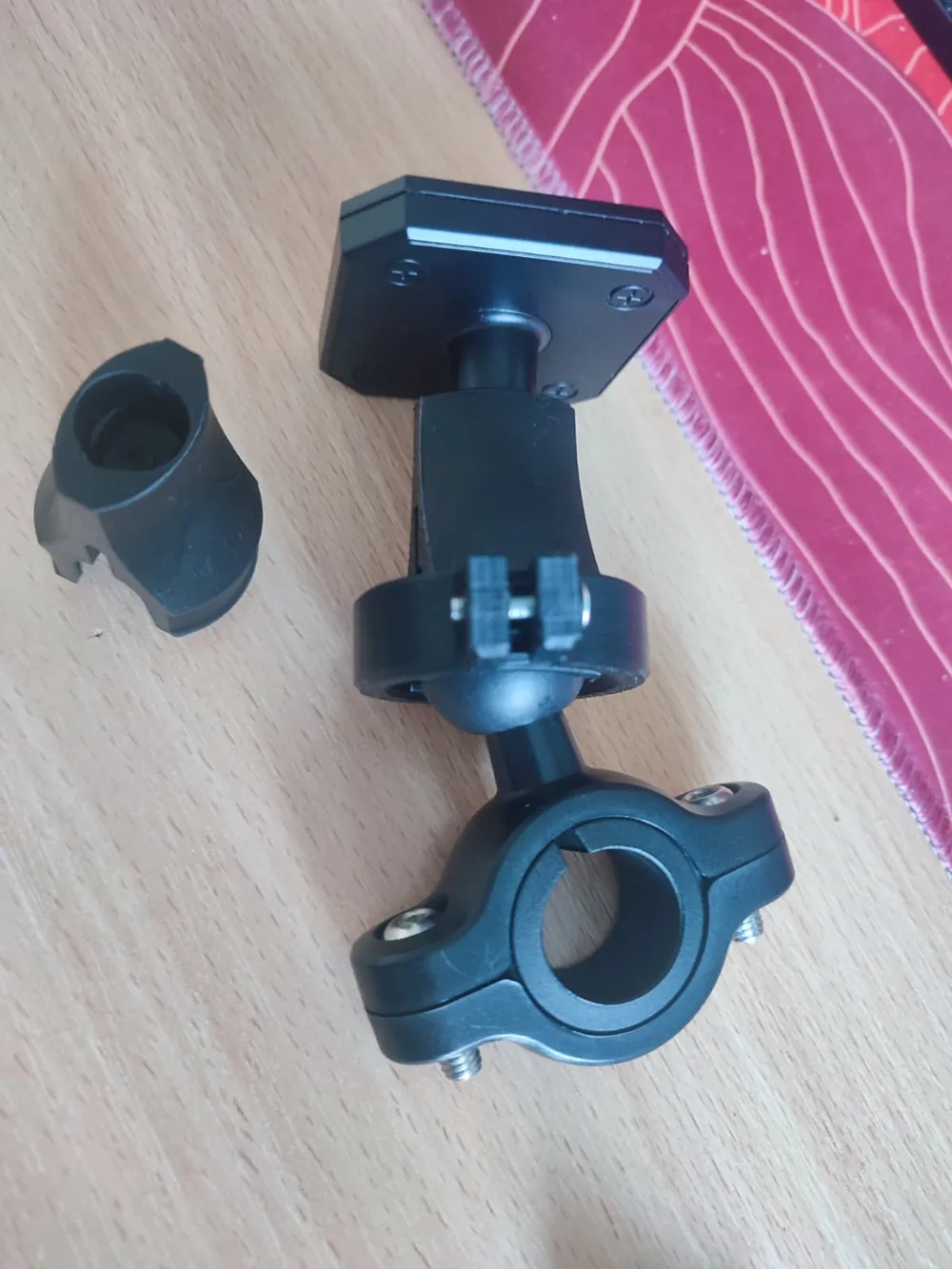

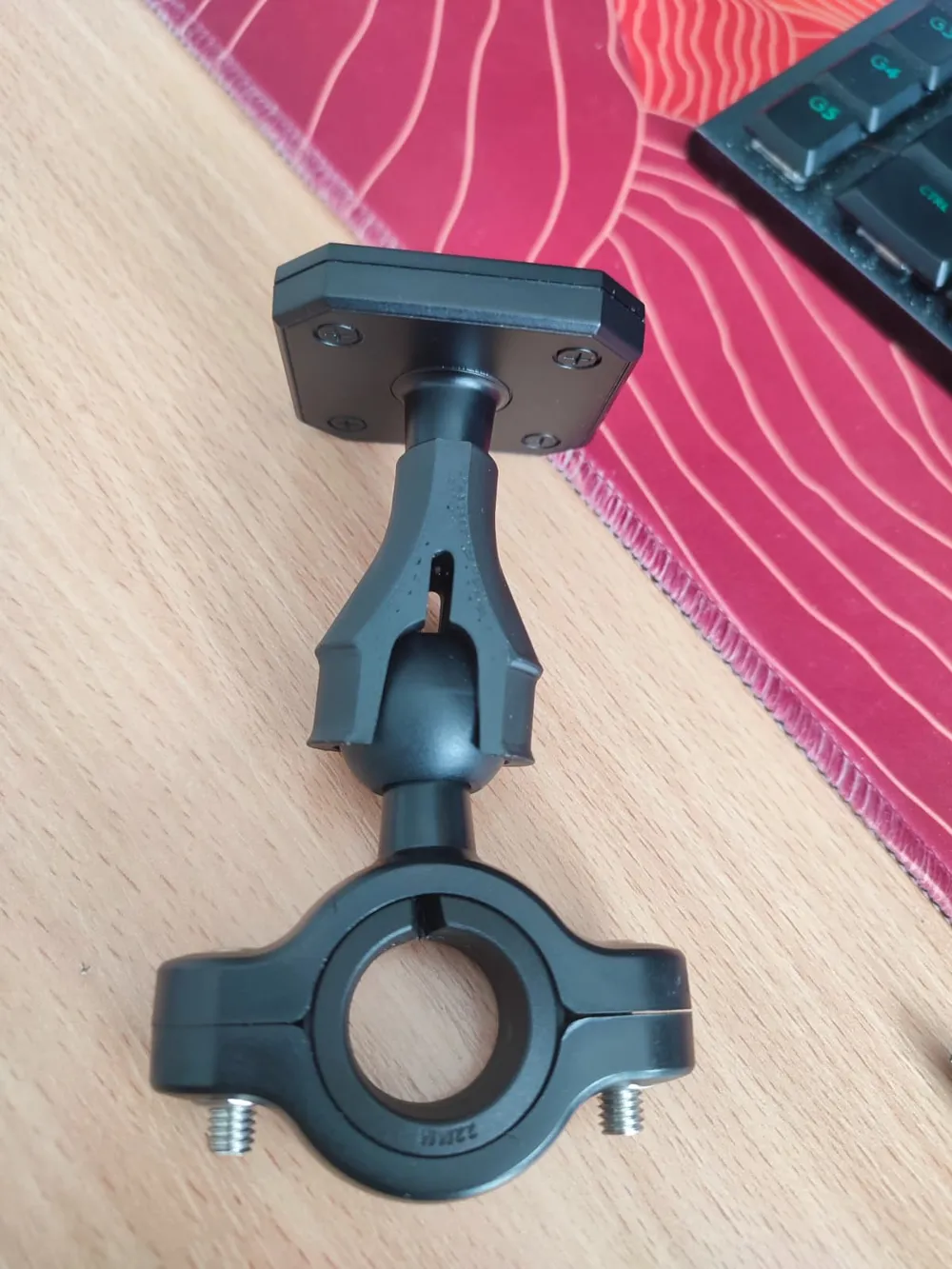

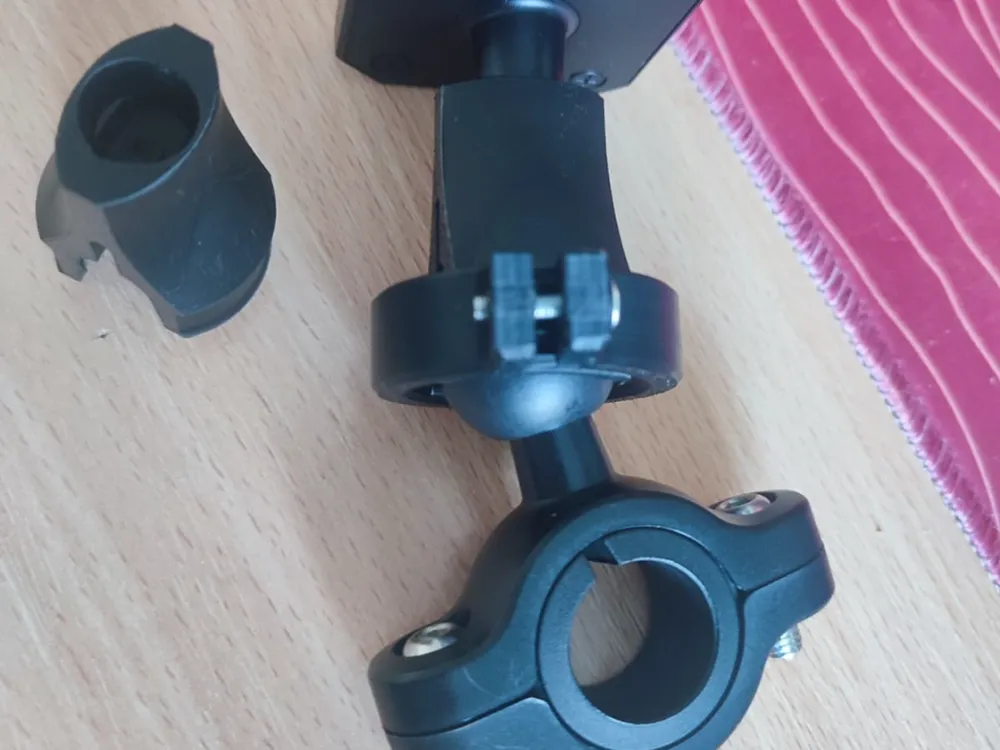

Had a problem where clamp for this specific display was too long, so designed a part to shorten it.
I suggest it printing in at least PETG as it is meant for outdoor use.

The diameter of the ball joint for the screen is 25mm and the screw hole is 3mm, so with small adjustments it can fit others with similar size ball joint.

If some adjustments are needed for your specific case, you can let me know :)
