Fully Customizable Name Sign with SVG Pattern

Custom Initial & Name Display with SVG Pattern

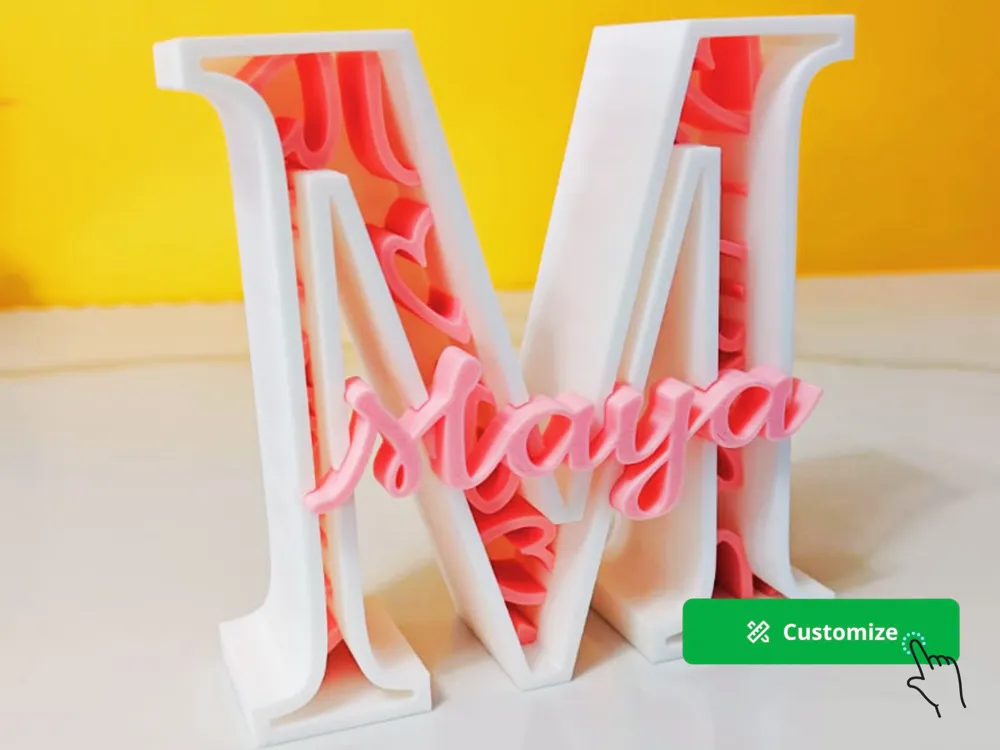

Create a fully customizable initial display with a hollow raised design, integrated name, optional SVG pattern. This parametric model is designed for flexibility, allowing you to fine-tune proportions, layout, and print behavior directly in MakerWorld.

The initial features a solid base with raised hollow walls, creating a recessed cavity where a user-uploaded SVG pattern can be placed. The pattern is automatically constrained to the internal space, ensuring clean and precise results.

I have added some SVGs here for your use - https://drive.google.com/drive/folders/1DcZVjNREL9roK-BbqZ6WXWiL6-1lQies?usp=sharing

Key Features

• Hollow initial with solid base and raised walls
• SVG upload support (MakerWorld file picker)
• Pattern automatically constrained inside the letter cavity
• Separate name element for multi-color printing
• Optional adjustable base (fully independent positioning)
• Optimized print layout (flat, stable orientation)

Parameter Guide

🔤 Initial Settings

• initial – Select the letter to generate
• initial_size – Controls overall size of the letter
• initial_base_thickness – Thickness of the solid bottom face of the letter
• initial_wall_height – Height of the raised walls above the base
• initial_wall_inset – Thickness of the wall (how far the hollow is inset)

👉 These settings define the structure of the main letter. The base thickness and wall height are independent, allowing flexible proportions.

✍️ Name Settings

• name – Custom text displayed on the front
• name_font – Font selection (default: Cookie Regular)
• name_size – Size of the name text
• name_offset_x / name_offset_y – Position of the name
• name_rotation – Rotate the name text

👉 The name is designed for separate printing, making multi-color setups easy.

🎨 Pattern (SVG Upload)

• svg_file – Upload your own SVG pattern (creates a file upload button in MakerWorld)
• pattern_enabled – Toggle pattern on/off
• pattern_thickness – Extrusion height of the SVG
• pattern_scale – Scales the SVG pattern
• pattern_rotation – Rotation of the pattern
• pattern_offset_x / pattern_offset_y / pattern_offset_z – Position of the pattern
• pattern_color – Color for multi-material printing

👉 The pattern is automatically clipped so it only appears inside the hollow of the letter.

🧱 Optional Base

• base_enabled – Turn the base on/off
• base_width / base_depth / base_thickness – Control overall size of the base
• base_offset_x / base_offset_y / base_offset_z – Position the base independently
• base_color – Color for the base

👉 The base is fully independent. Changing its thickness or size will NOT move or affect the main model.

🪝 Keyhole Slots (if enabled)

• Parameters allow positioning and sizing of wall-mount keyholes

👉 Useful for hanging the model on a wall.
