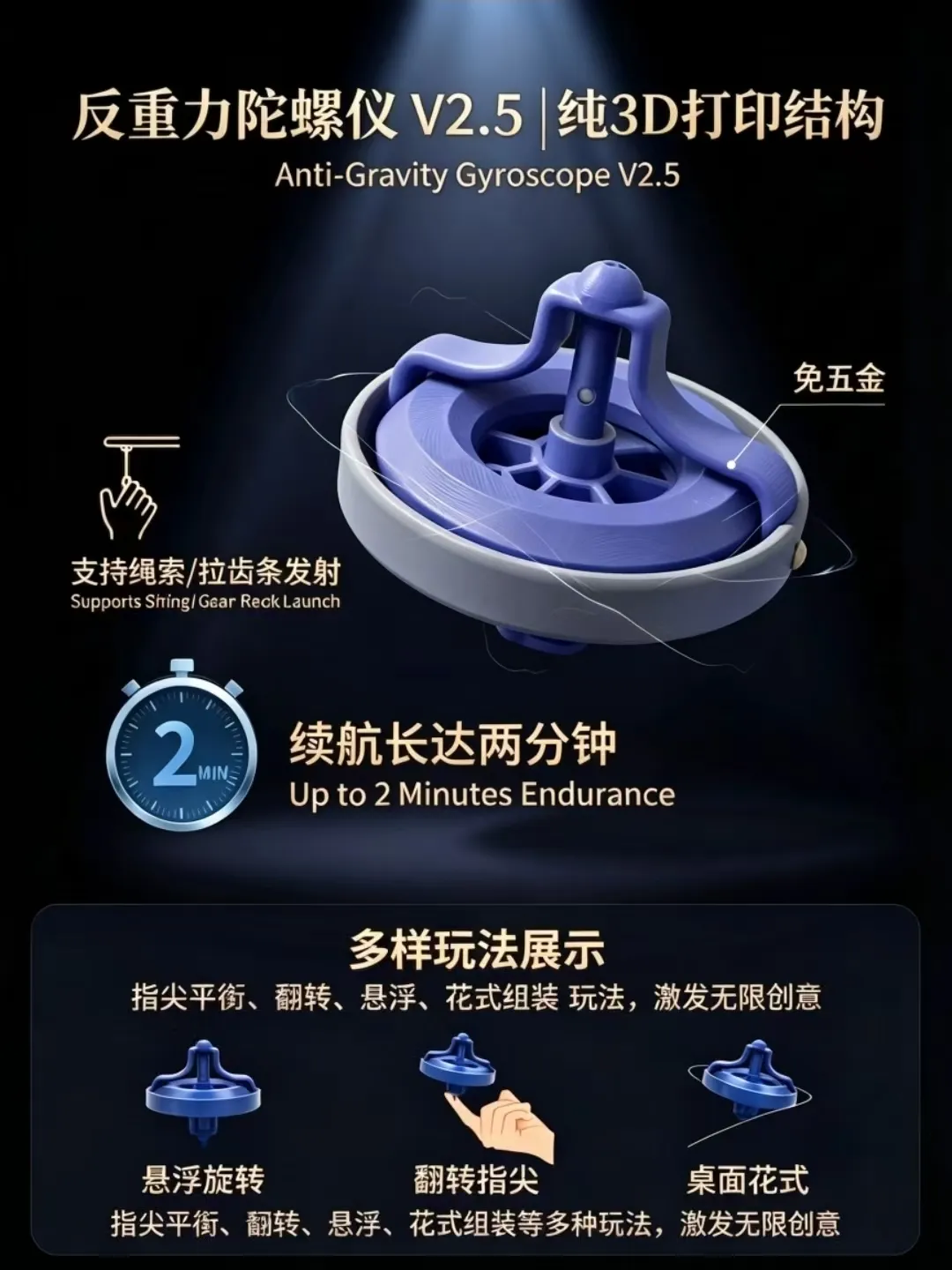

Anti-gravity gyroscope V2

Important Notes

Printing this model requires four M2.5x6 round head machine screws, and a material with a diameter of 2mm or less, such as filament or a toothpick, or you can purchase it from an e-commerce platform — 1.5*9 dowel pin If you do not have these screws, please print the hardware-free version — Anti-Gravity Gyro V1

These screws are included in the Maker Starter Kit and various official kits, and many models use these screws. Taobao purchase link — M2.5x6 round head machine screws

Model Features

This model supports chain mode and rope mode, allowing for easy switching between portability and use

The model itself consists of only 5 parts, making assembly simple

This model uses a unique operating structure, offering various play methods, not just as a gyroscope; many more ways to play are waiting for you to discover

Printing Suggestions

As the model features a rotating structure, it will experience significant wear, so please try to print with PETG or harder materials

The counterbalance shaft contains support structures that are difficult to remove, and a better solution has not yet been found. If you have an AMS, prioritize using dual material supports

Due to inconsistencies in the thickness of the connecting material, you will need to sand it yourself to control the clearance between the shaft and the hole, ensuring smooth operation without jamming

Lubricant can be applied to the connecting shaft to reduce wear
