Description

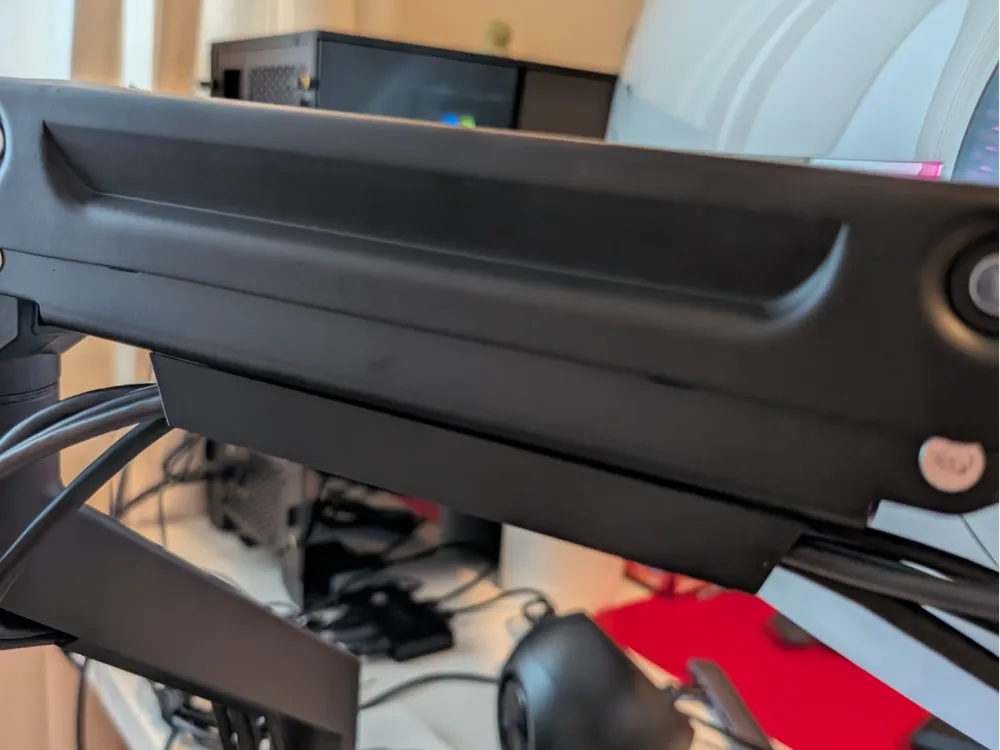

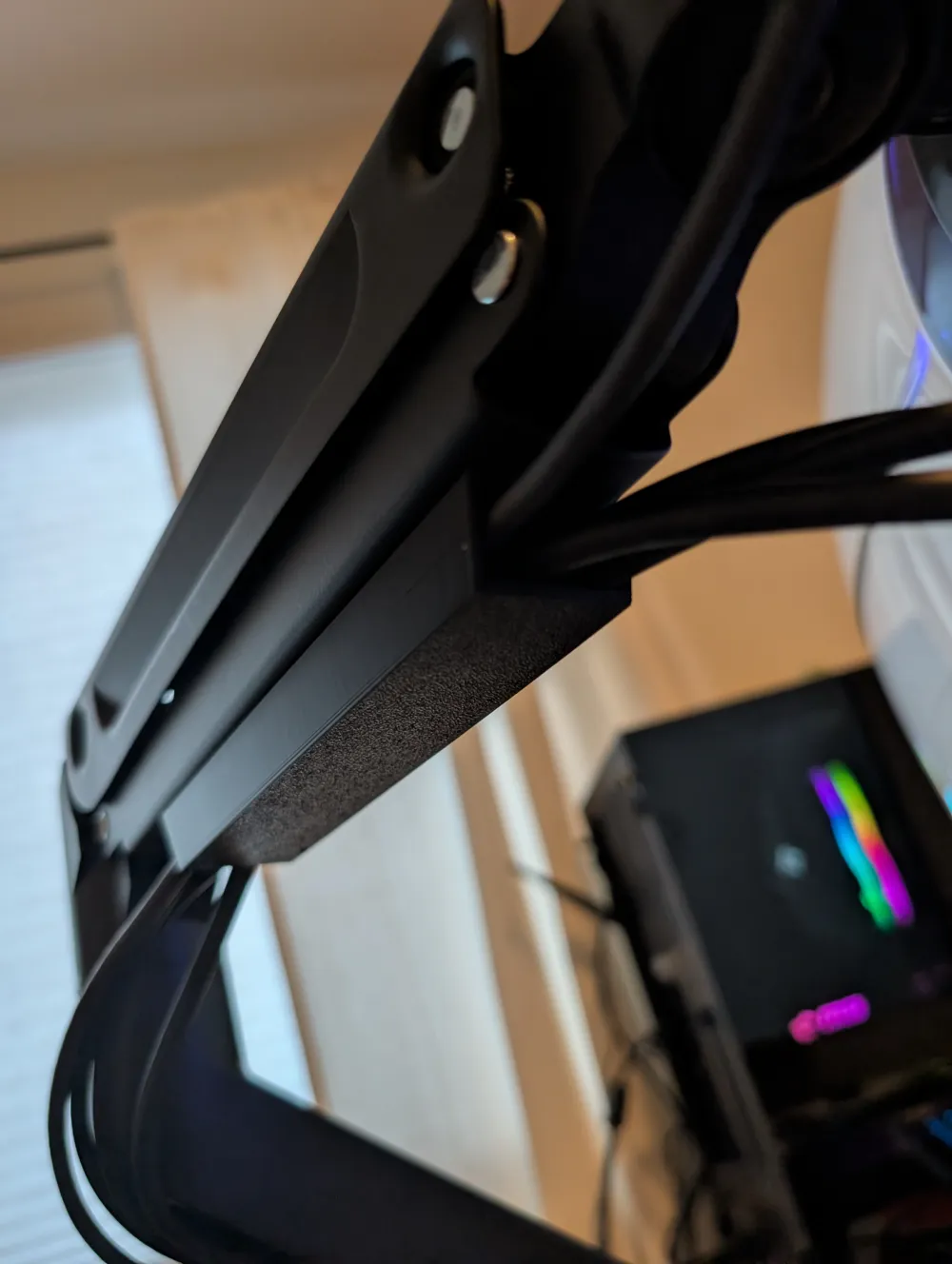

The original cable cover that comes with the WALI Heavy Duty Arm (GSM001XL) is too small for more than 2-3 cables and is hard to deal with.
This high capacity upgrade is engineered to provide that extra volume needed to easily manage more cables.

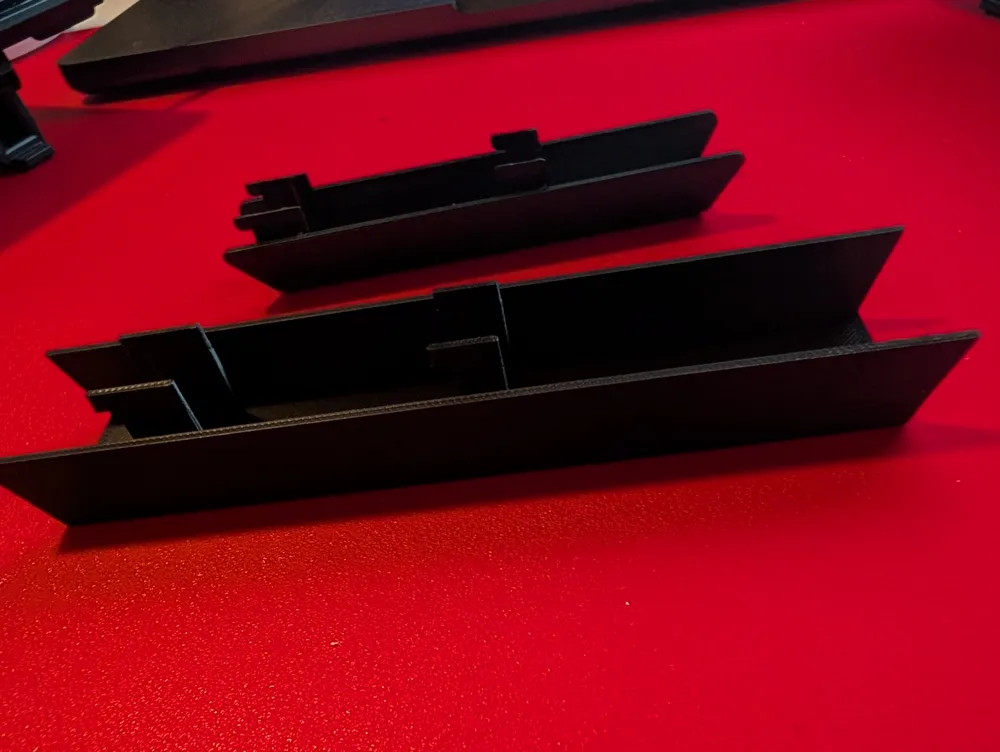

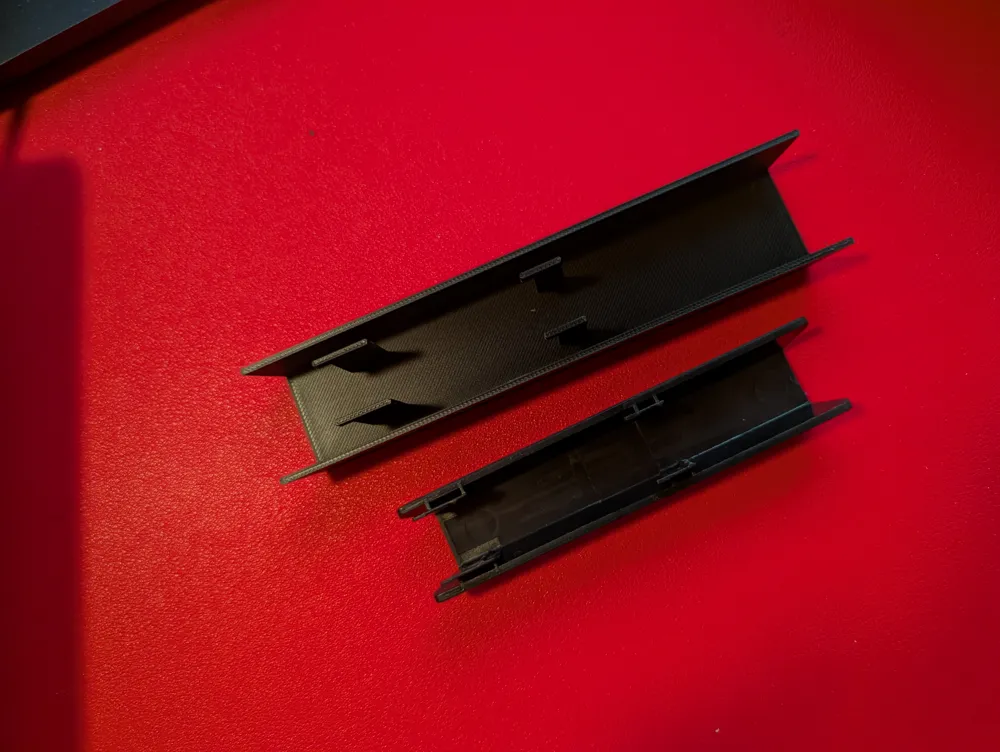

Dimensions & Comparison:
| Feature | Stock WALI Cover | This High-Capacity Version |
|---|---|---|
| Internal Width | 20.0 mm | 36.0 mm |
| Total Depth | 11 mm | 16 mm |
| Cable Capacity | 2–3 Cables | 4+ Heavy-Duty Cables |
| Length | 97 mm | 149 mm |
Printing Recommendations:
- Material: I did PETG but PLA should be fine
- Supports: Use a support interface (like PLA) for the hooks to ensure the locking faces are perfectly smooth and flat.
- Cooling: Disable Auxiliary Fans on printers like the Bambu X2D to prevent asymmetric shrinking and warping on the long edges.
