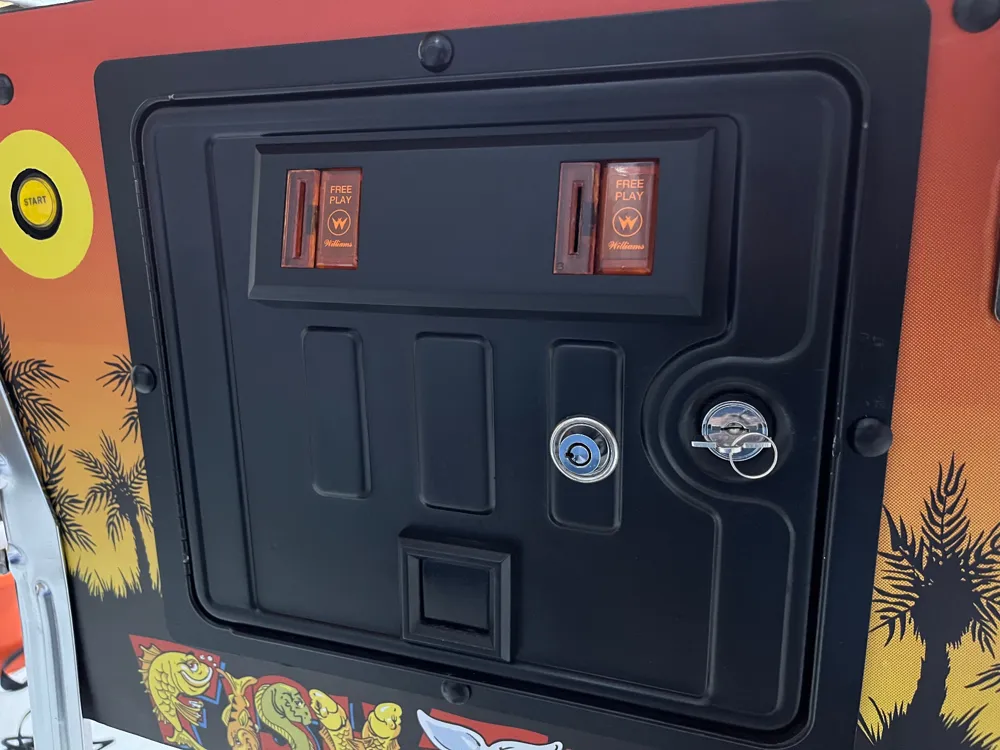

Bally / WMS - 90's Pinball 2 Coin Door Bezel

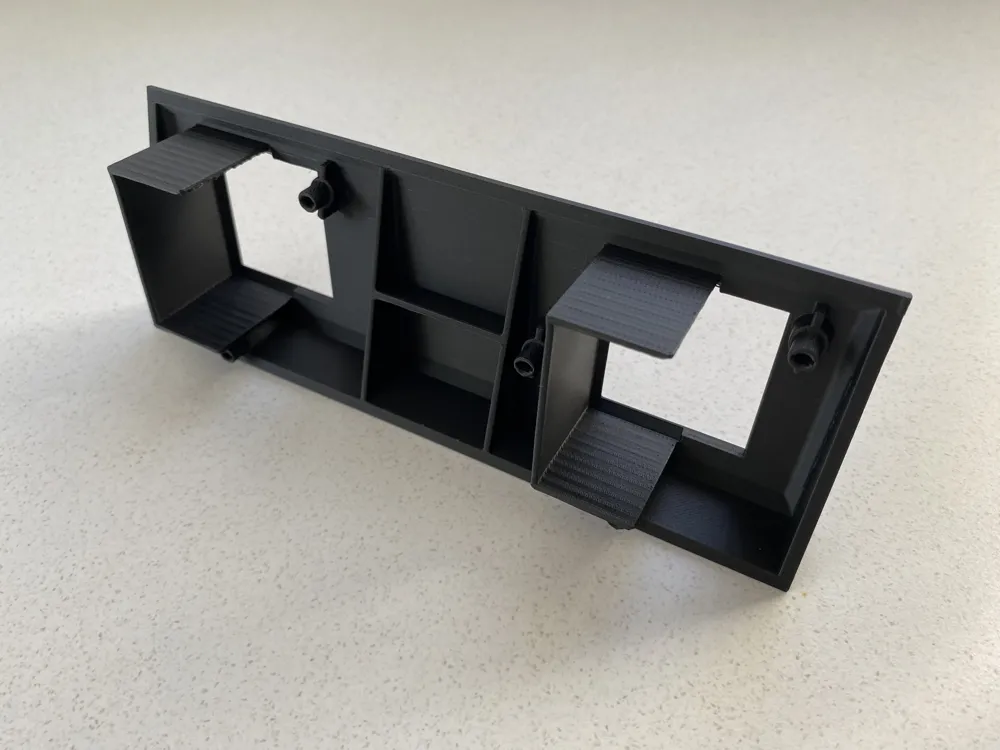

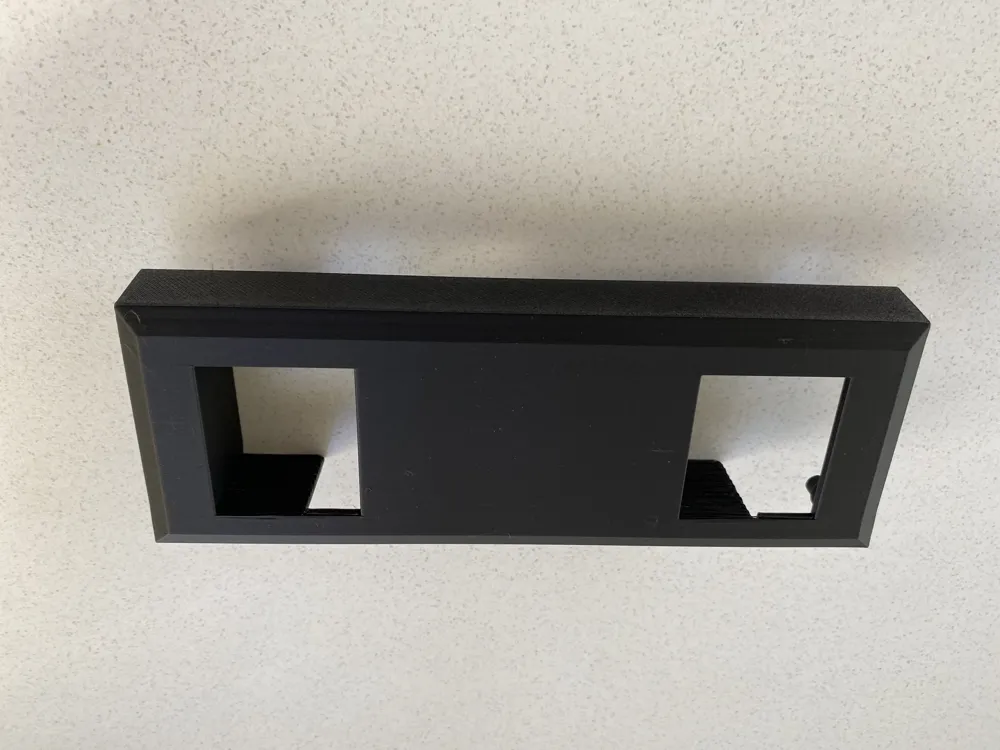

This is the 2 coin slot bezel for the 90's Bally / WMS Pinball coin door.

Actually updated with 2 versions:

• v1 - imperial tap thread
• v2 - metric tap thread

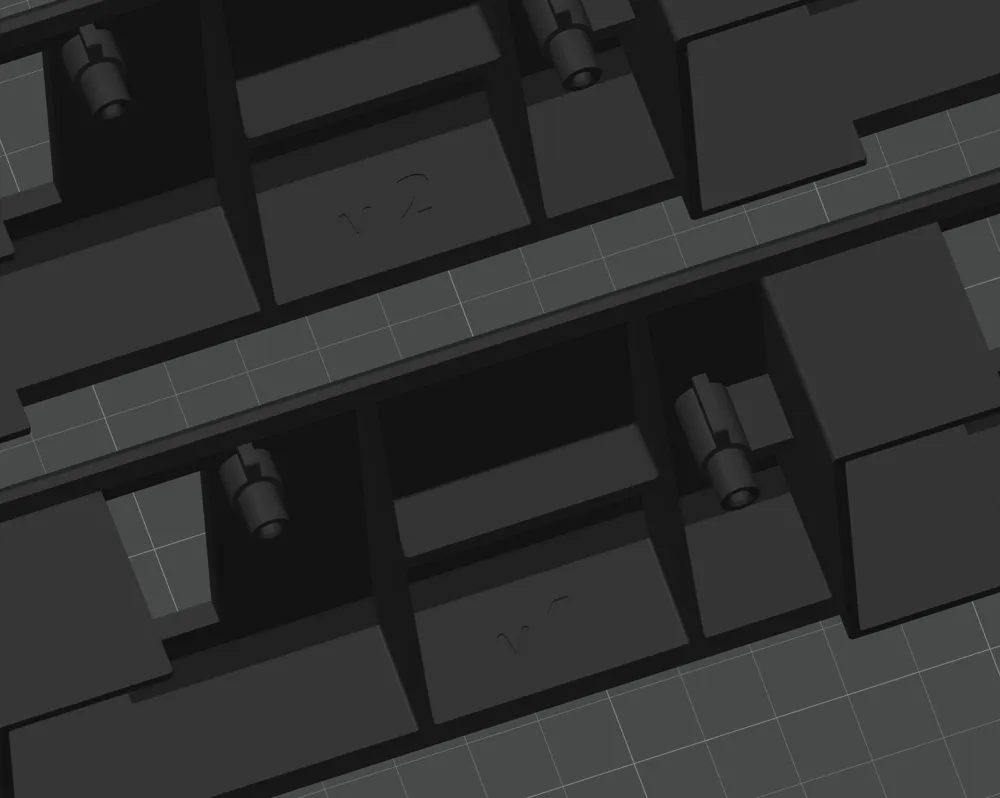

Note: check the last photo of where the version numbers can be found (bottom middle inside surface) so you delete the version that you do not want to print and you will halve the print time.

This version is the 2 coin slot bezel for the USA / Canada. The 3 coin slot bezel was commonly used in Europe and imported from Europe to Australia and sometimes back to the USA. If you would like the 3 coin slot bezel look up my other designs here.

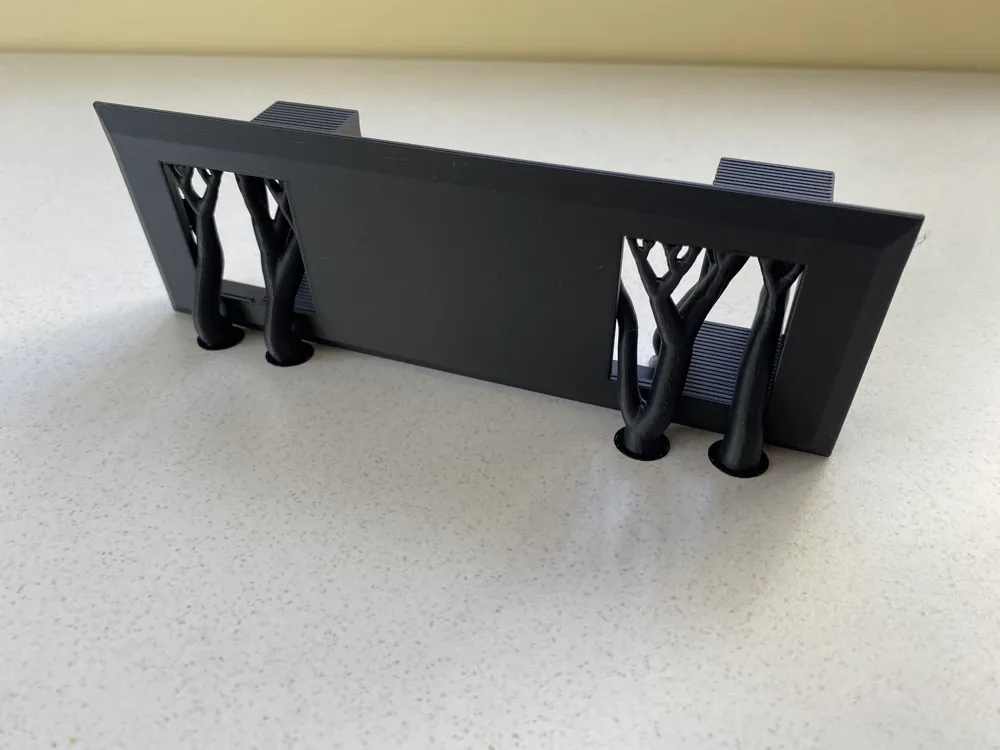

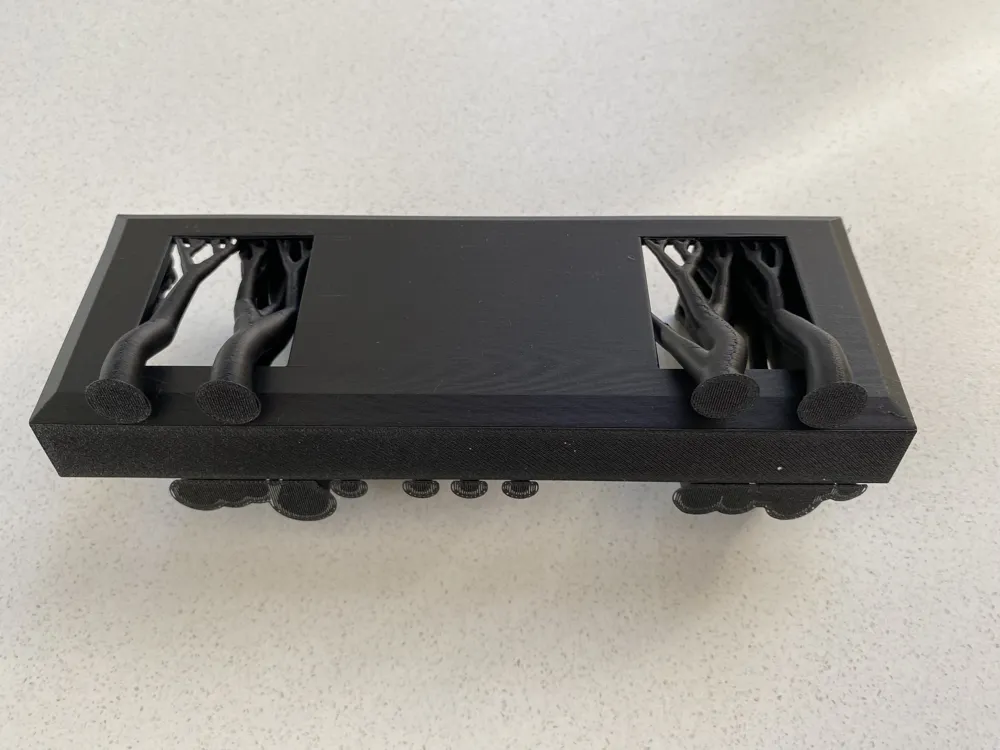

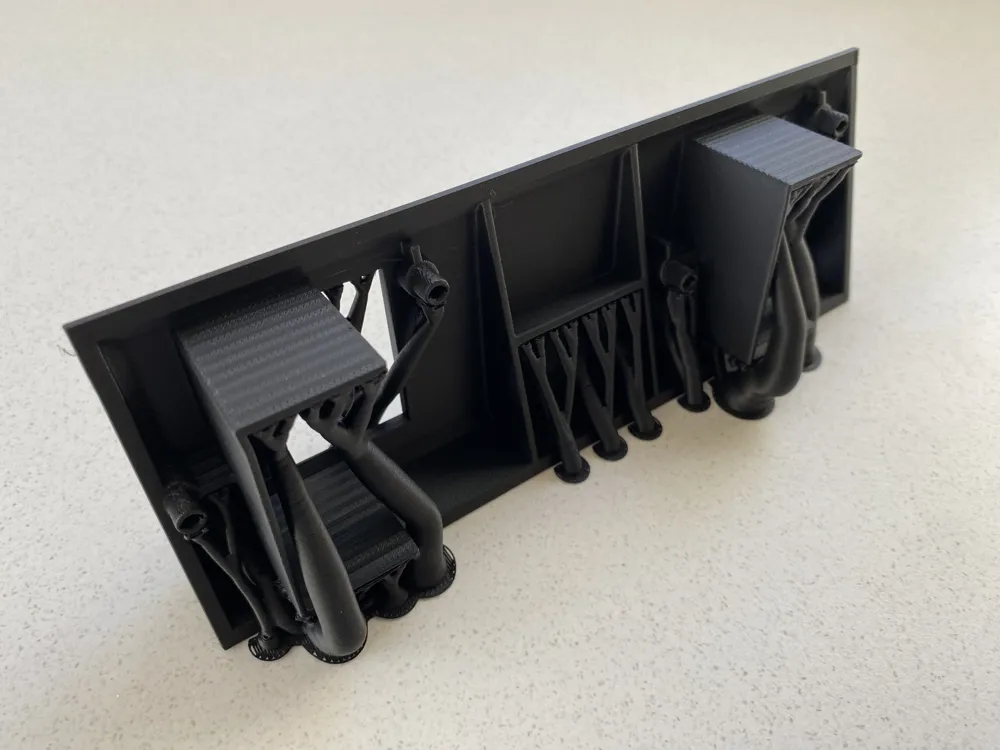

While printing front face down would be ideal the low angle bevel does not print great without supports and even then the supports affect the final finish. Therefore print as per the 3MF file bottom face down to plate with supports. The coin chute flanges will have steps in the print due the low angle approach but fortunately this is not seen once everything is assembled.

When it comes to preparing the posts for screws - please do not use self tapping screws as it will fail and split the small printed posts.

• For imperial bolts tap the existing hole with a 6/32" thread and then you can use 6/32" bolts - print v1.
• For metric bolts tap the existing hole with a 3mm tap and then you can use 3mm bolts - print v2.

Enjoy
