Cable Chain Clip PTFE Push Fit Connector X2D & P2S
Print Profile(1)
Bill of Materials
- M10 PTFE Push Fit Connector x 1: M10x1 Thread
Description

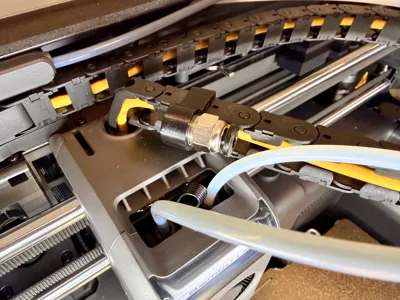

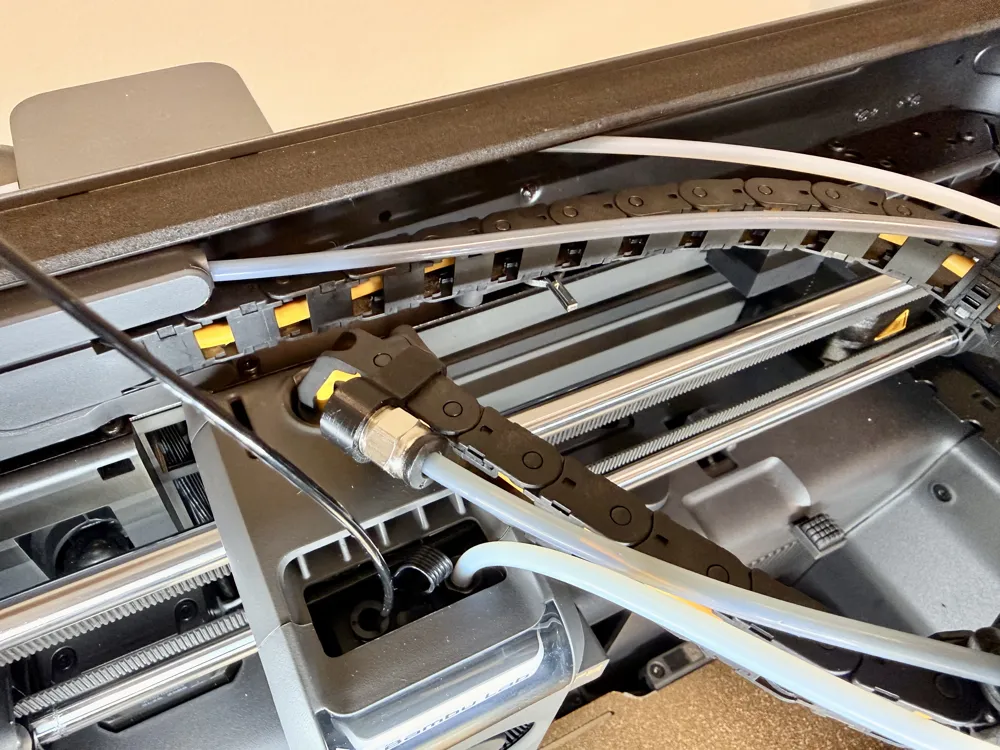

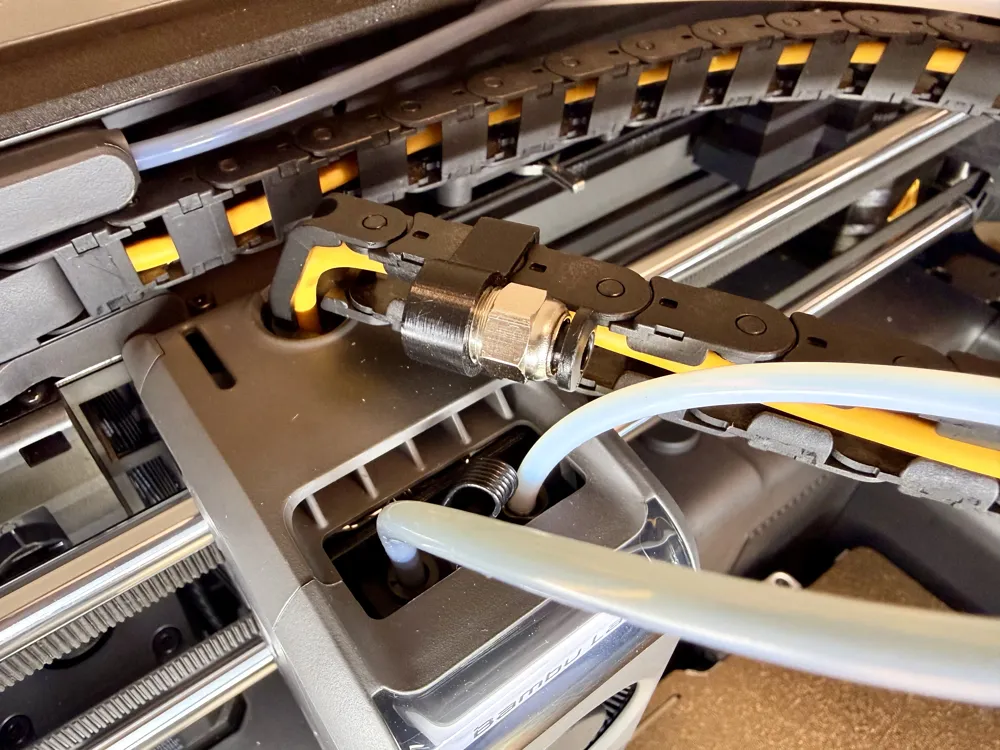

Press-fit cable clip for easy installation on the energy chain without any modifications.

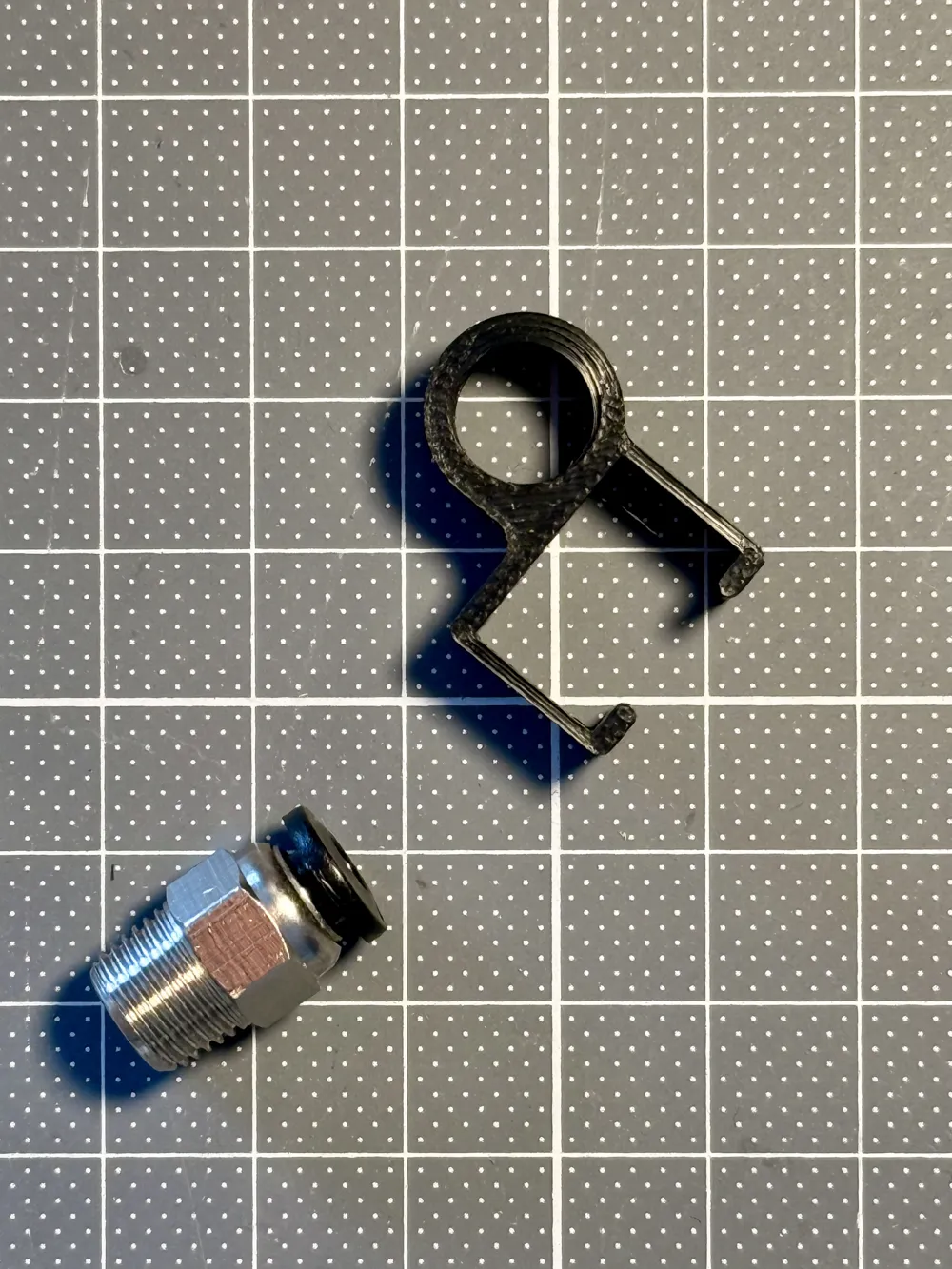

The printed M10x1 thread allows you to screw in a standard PTFE push-fit connector. The thread is designed with a 0.12 mm offset, allowing the push fitting to be installed without any post-processing.

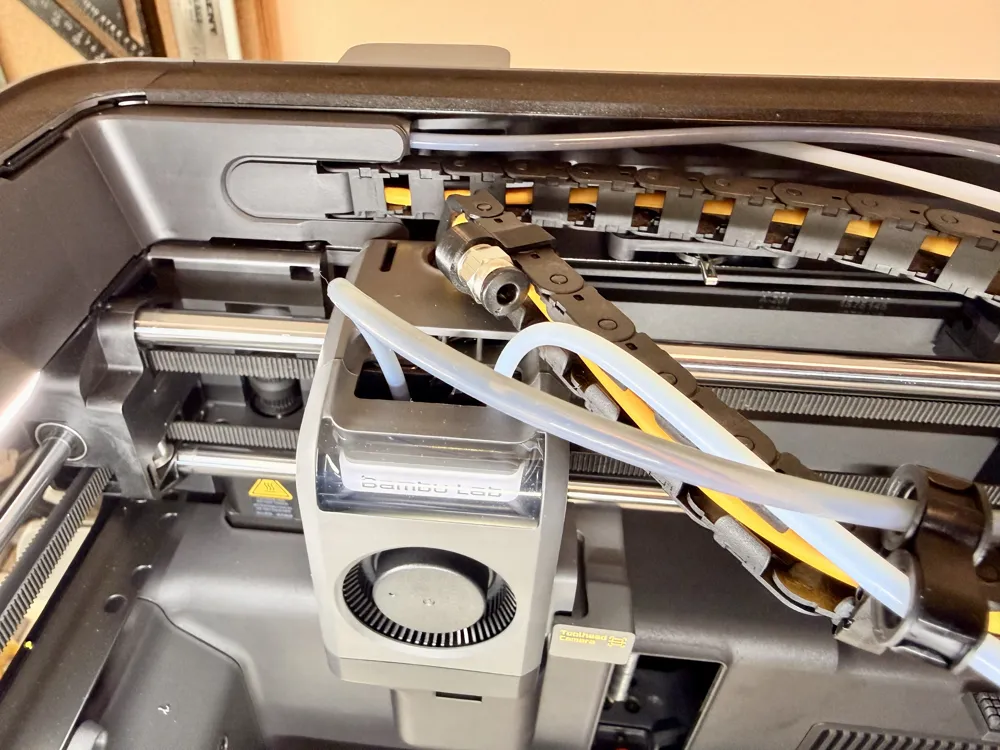

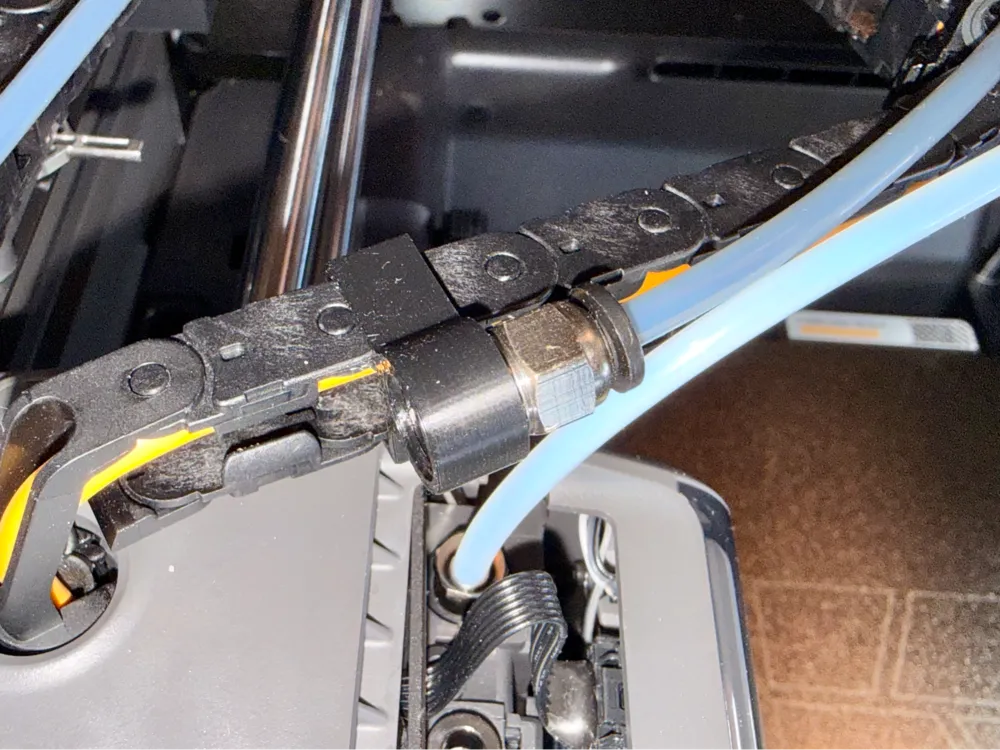

I designed this clip for printing TPU with direct feeding into the extruder, without using a PTFE tube. The PTFE tube can be unclipped from the extruder and stored securely in the push fitting during TPU prints, keeping it fixed and out of the way.

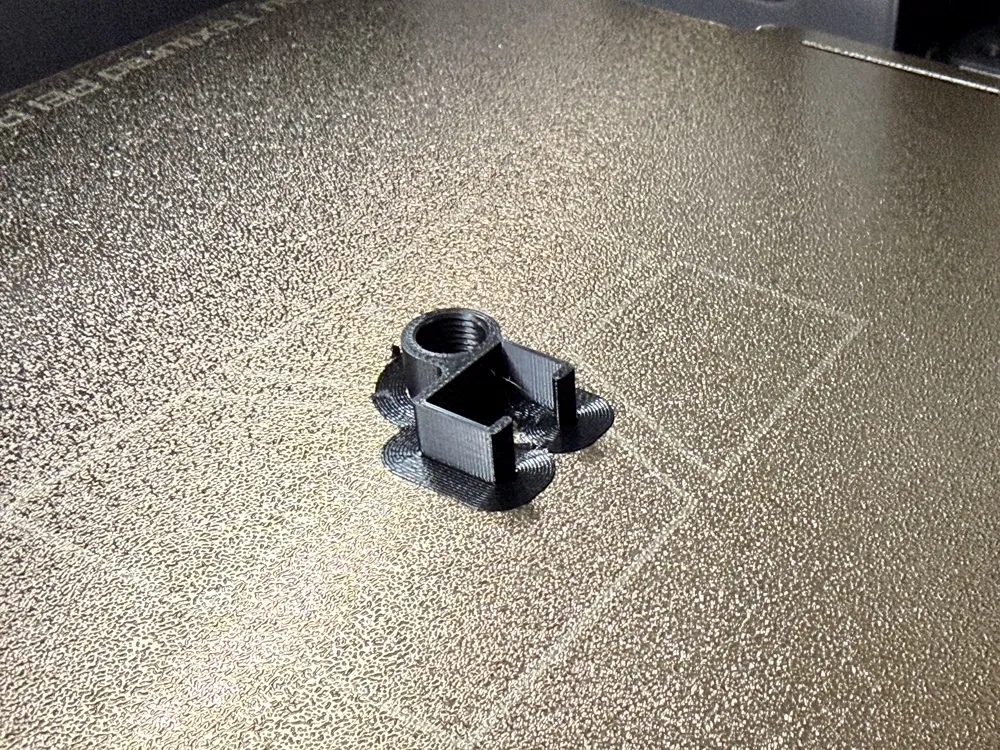

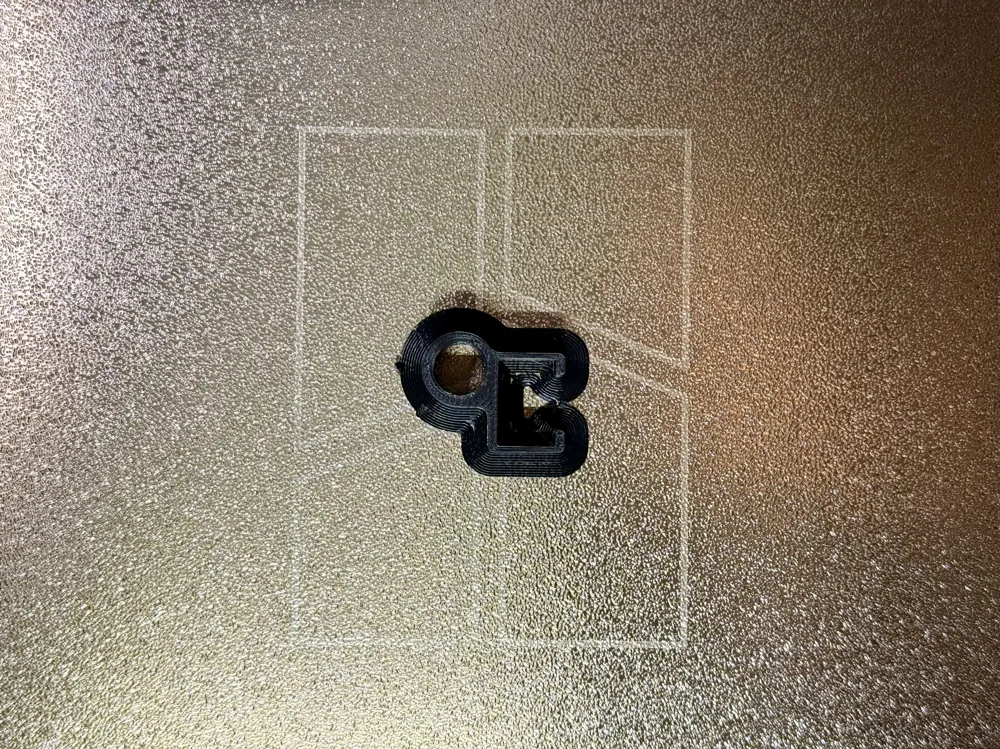

For best results, print with a low layer height. I achieved very good results with 0.08 mm layer height.
