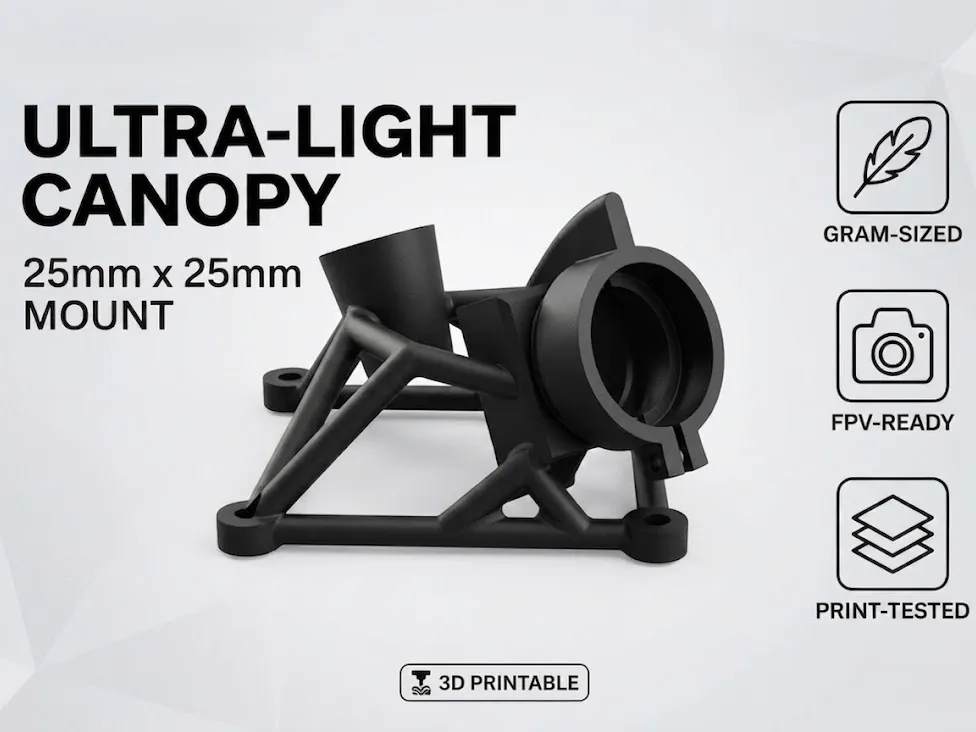

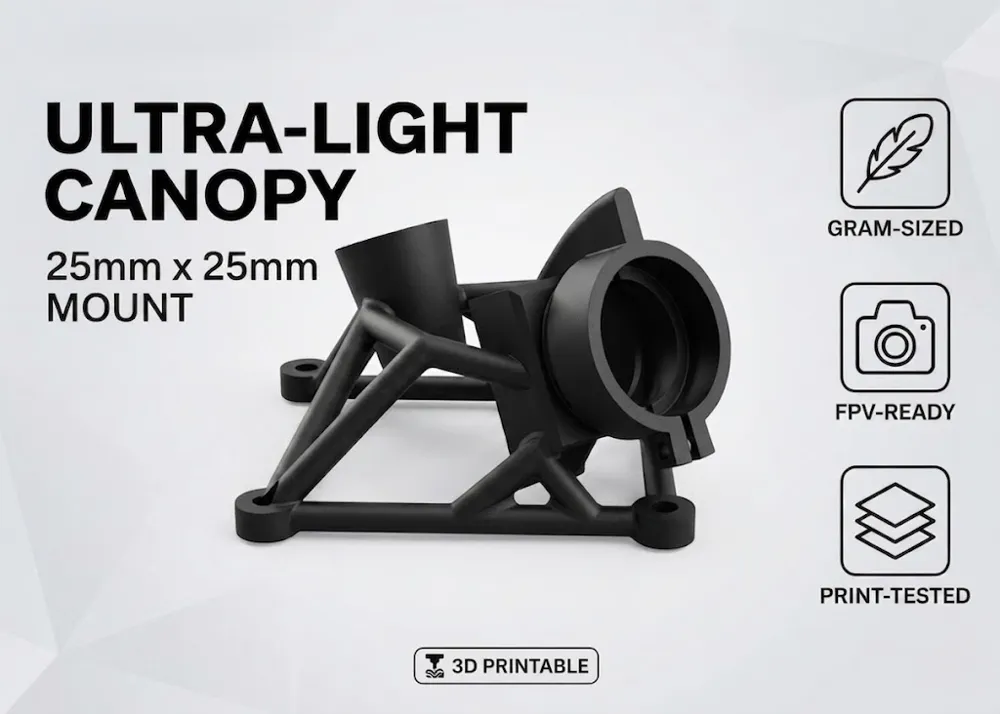

KriLab Ultralight 25x25mm FPV quad canopy

KriLab Ultralight 25x25mm FPV Drone Canopy

Looking to shed some weight on your micro build? This minimalist, ultra-light canopy is designed specifically for standard 25x25mm mounts, offering sleek and highly durable protection for your FPV gear without weighing down your flight times.

Specifications

• Weight: 1.2g
• Camera Compatibility: Precision-designed for the BetaFPV CO3. It is also compatible with the Caddx Ant Lite and other similarly sized nano FPV cameras.
• Antenna Mount: Features an integrated hold designed for the FlyfishRC Osprey or similar style antennas.

Printing Guidelines

• Recommended Filament: TPU 95A (Bambu Lab or any other reputable brand).
• Dry Your Filament: You must dry your TPU thoroughly before printing. If the filament holds any moisture, the supports will string heavily and will not come off cleanly.
• Print Profile: It is highly recommended to print using the settings provided in the uploaded .3mf file. In testing, the TPU supports detached very cleanly and without any serious struggle using these exact parameters.
• Disclaimer: Final print quality and support detachability will naturally vary depending on your specific printer calibration, filament brand, and environmental conditions.

Notes

• To permanently secure the antenna into the housing, it is recommended to apply a small amount of B-7000 or E-7000 glue

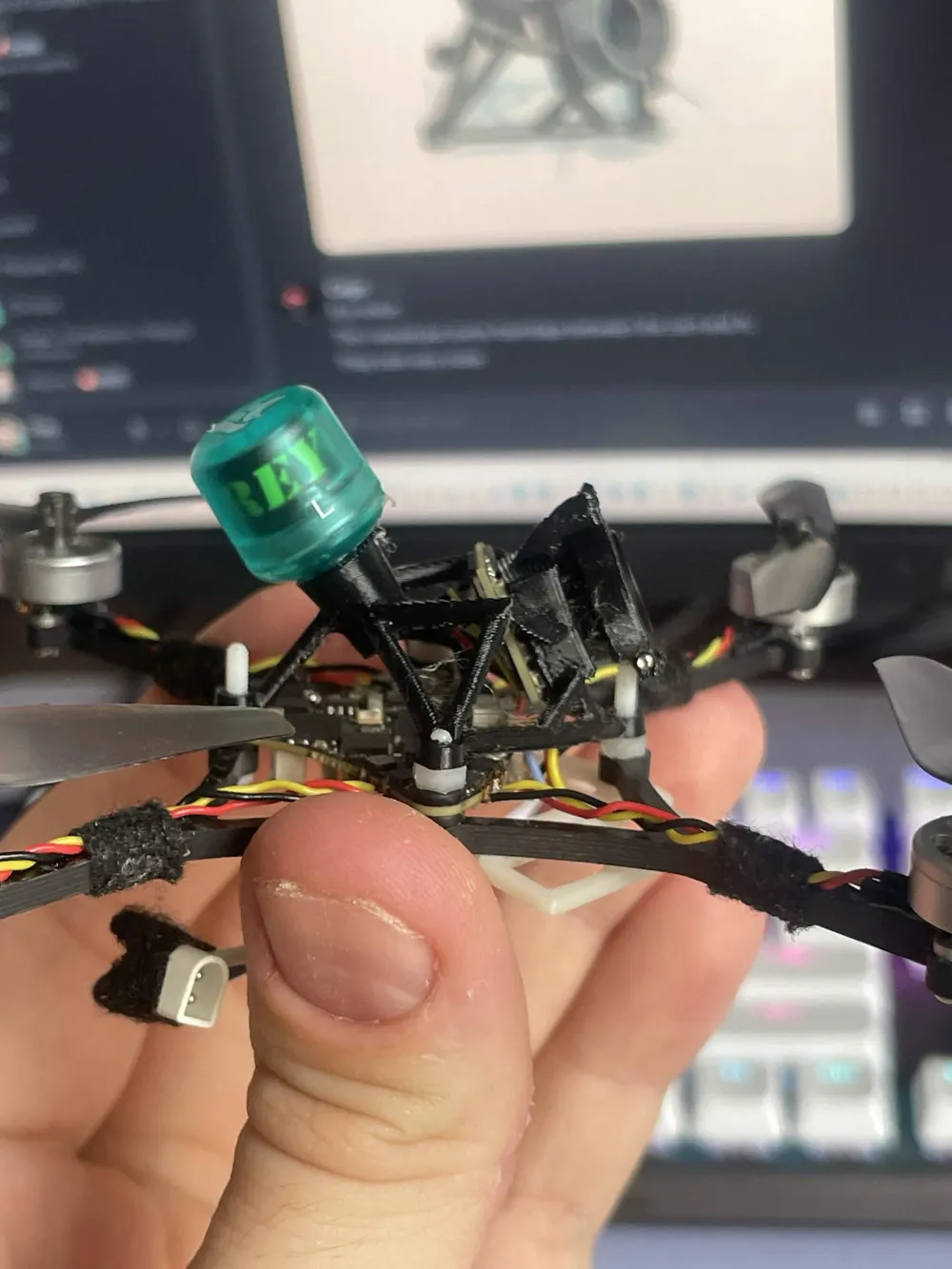

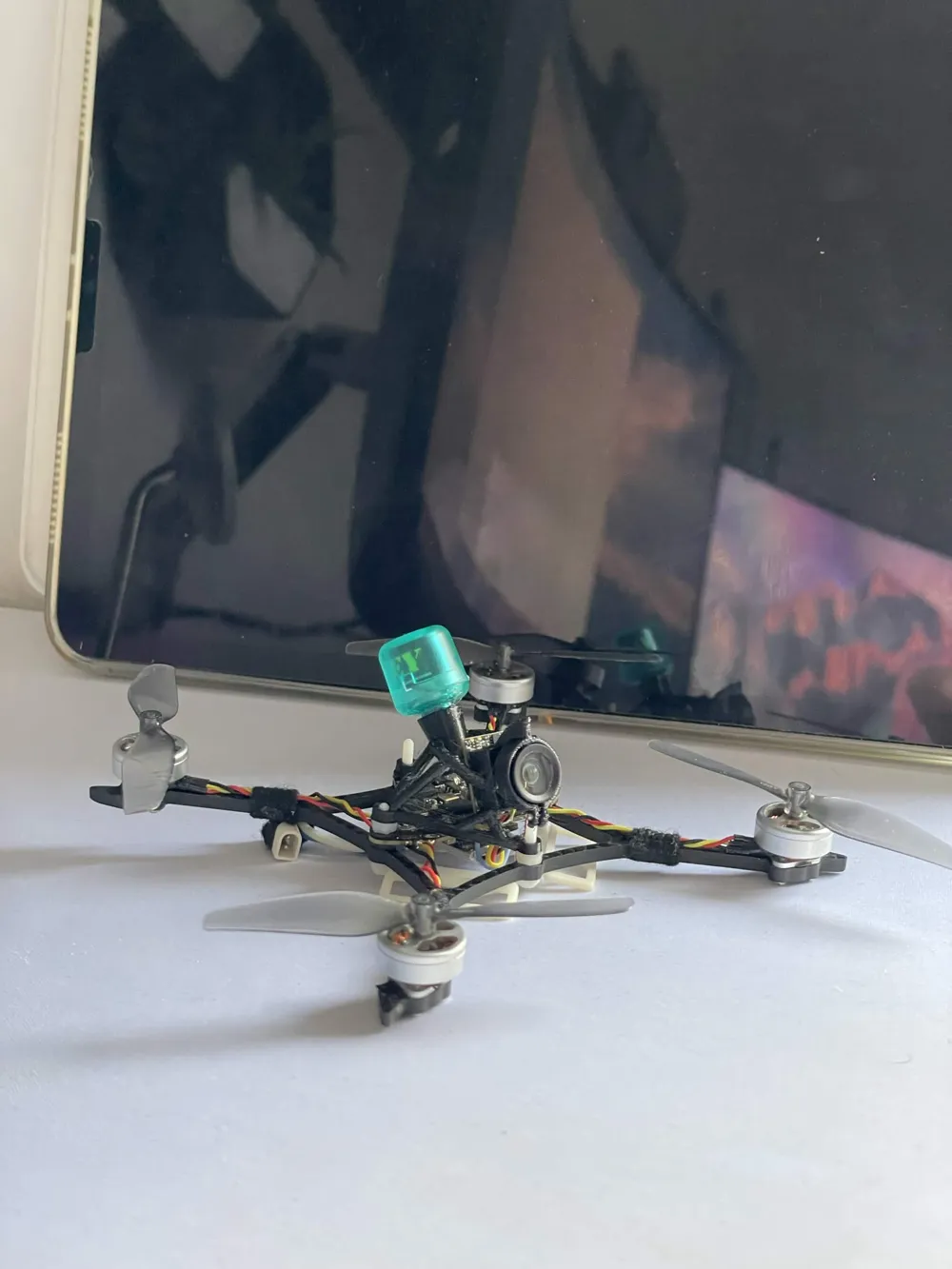

• I put it on my DaoDesign Nuffinga build but it should fit any TinyWhoop or micro with a standard 25x25mm mounting pattern.
• You will need a standard 1.4mm screw for securing the camera clamp.
