3D Parametric Initials + Names + Heart Generator

🎨 Customizable Parametric Monogram (1000+ Fonts)

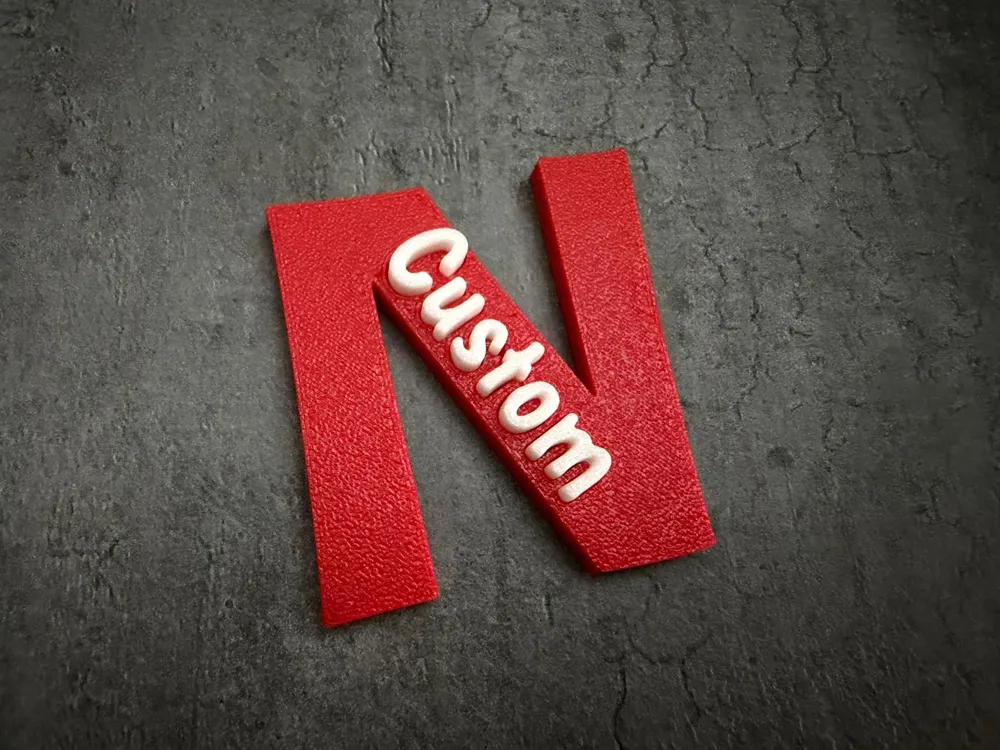

Take personalization to the next level with this 3D monogram generator Whether you're creating a unique gift a desk logo or a personalized sign this model allows you to combine a monumental letter with an inlaid name and a heart choosing from over 1000 different fonts directly in the MakerWorld Customizer

✨ Key Features

• 🔤 Update V6: Code completely rewritten to be neater and more complete with explanations

  All available fonts added over 2000 From elegant cursive fonts to "blocky" or artistic ones You can choose different fonts for the base letter and for the name

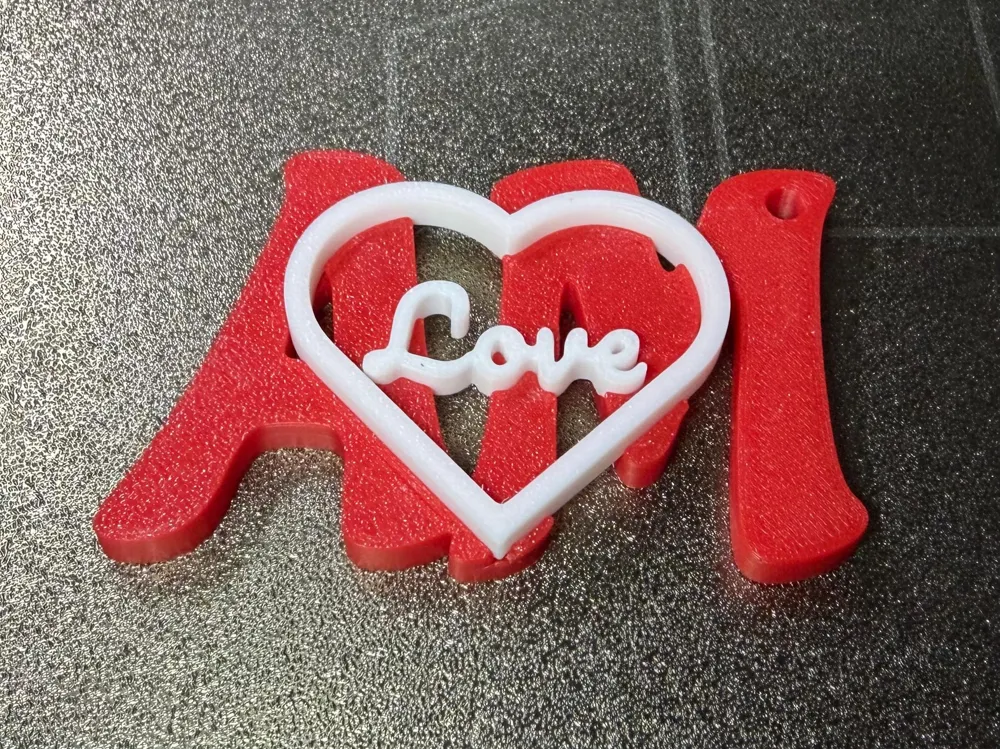

  Added the possibility to insert a heart and position it as desired

• 📐 Fully Parametric: Adjust every detail using the MakerLab Customizer tool
• 🛠️ Perfect Fit: The system automatically generates the recess in the base letter to accommodate the name You can adjust the tolerance for a press fit or for gluing

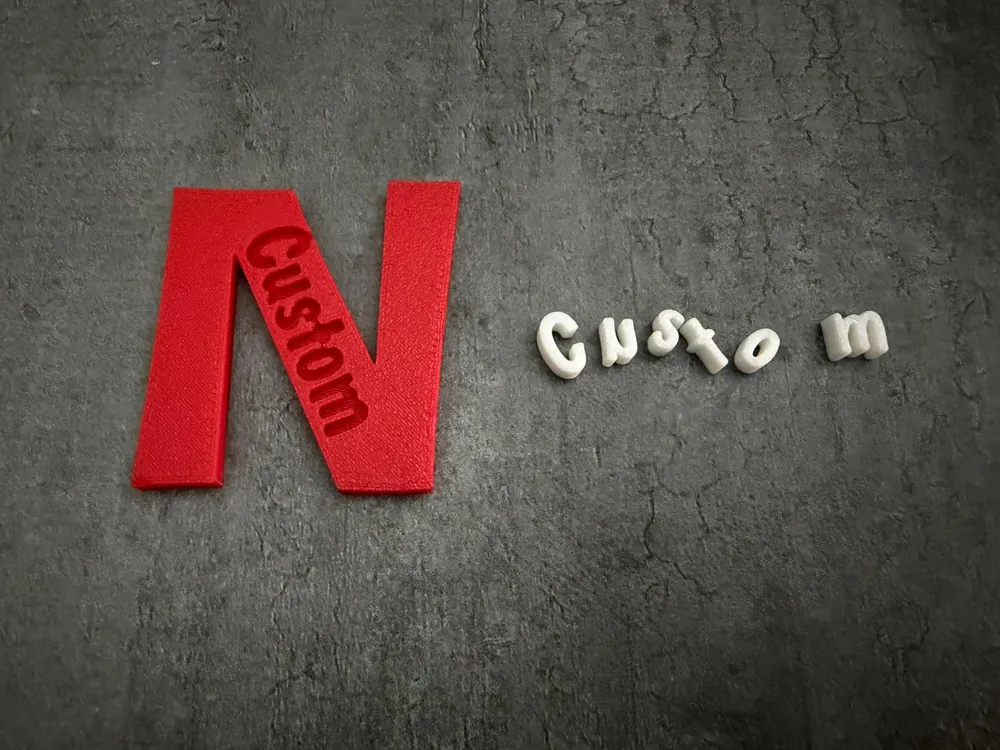

• 🌈 Optimized for Printing: The project is divided into two plates: one for the letter and one for the name insert facilitating multicolor printing even without AMS

✨To get an overview of the available fonts and a preview of them you can take a look at this link: https://fonts.google.com/?sort=alpha

⚙️ Customizable Parameters

Inside the Customizer you can modify

1. Text and Font: Enter your letter and name selecting your preferred fonts from the vast integrated list
2. Single double initial or Name: You can create either a single initial or an entire primary name and adjust the distance between the various letters
3. Dimensions: Adjust the height (letter_size) thickness and global scale with the scale_factor
4. Positioning: Move or rotate the name (name_pos_x, name_pos_y, name_rot_z) to find the perfect design
5. "Limit Inside" Function: If active the name will not go outside the edges of the main letter creating a perfect cutout effect
6. Tolerance: Modify the tolerance value (default 0.12) to adapt it to your printer's precision
7. Through Hole: Function to add a hole to create keychains
8. Keyhole: 2 Keyholes that can be activated separately and positioned wherever you want to hang the Letter on the wall

🚀 Printing Instructions

• Orientation: Both parts are generated flipped 180° to ensure that the top face (the visible one) is perfectly smooth due to contact with the print bed
• Material: PLA of any color Use contrasting colors (e.g. Red for the letter White for the name) for a "wow" effect
• Supports: Generally not needed if the chosen font does not have excessive overhangs
• Post-processing: If the tolerance is correct the name will fit by pressure In case of loose tolerances a drop of cyanoacrylate glue will secure everything
