ACMER S1 Laser Engraving Reference Point Ruler

ACMER S1 Laser Engraving Machine Accessory
Reference Point Ruler

This ruler helps create small, auxiliary walls in the X-Y direction relative to the reference point, useful when engraving the same object multiple times.

If you create a jig, you can find the same position by aligning it with this corner.

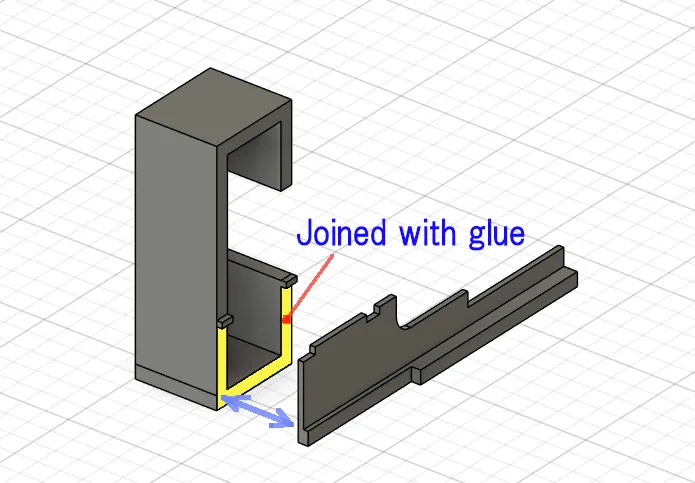

Refer to the assembly diagram and glue the two parts together.
Super glue is recommended.

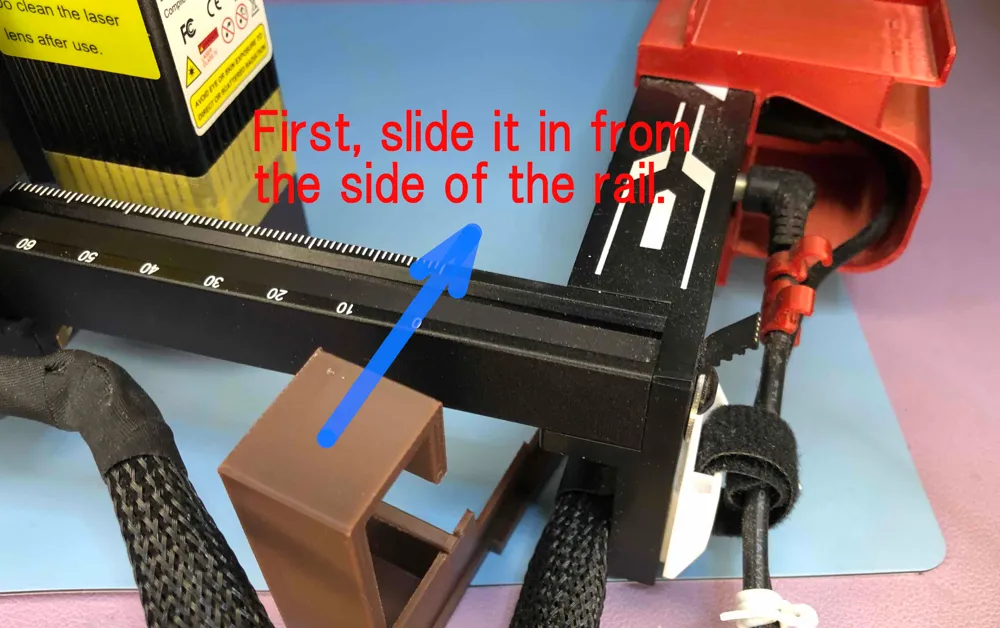

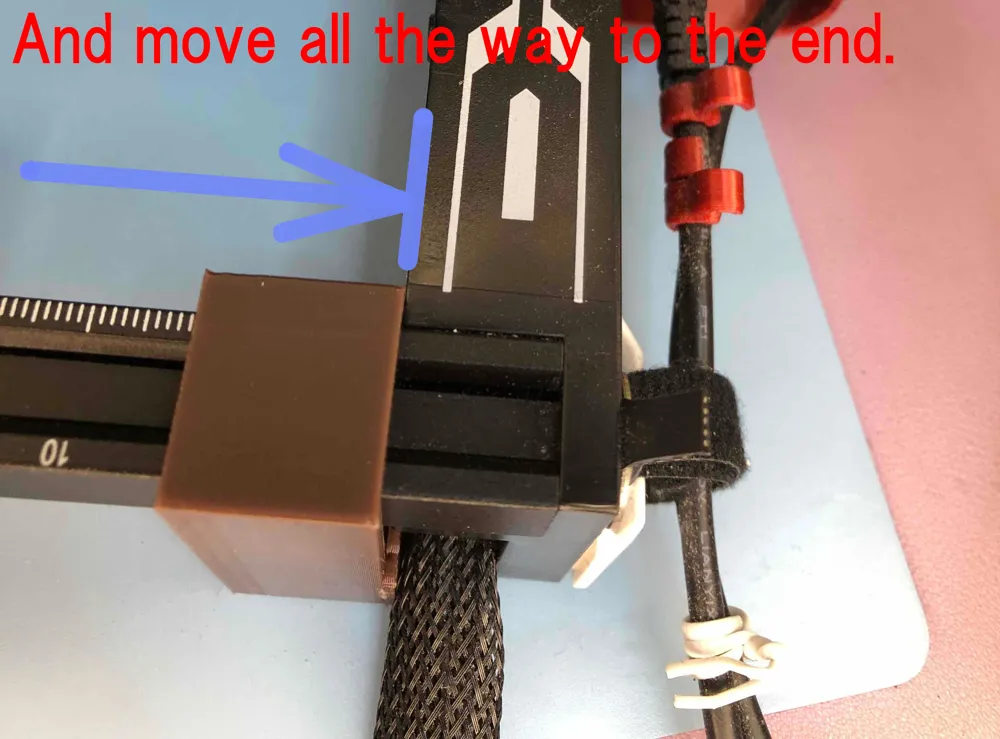

Please press firmly against the left corner and ensure it does not move.

It is designed to be located outside the machine's limit switch, so it will not interfere with the timing belt.

Please be very careful during use to prevent jigs or other objects from being pinched between the ruler and the laser head.

Also, while it works fine with my equipment, it may not fit properly with different versions.

Use at your own risk.
