Fujifilm Fujinon "Holy Trinity" Case (23/35/50)
Print Profile(1)
Description
Fujinon “Holy Trinity”

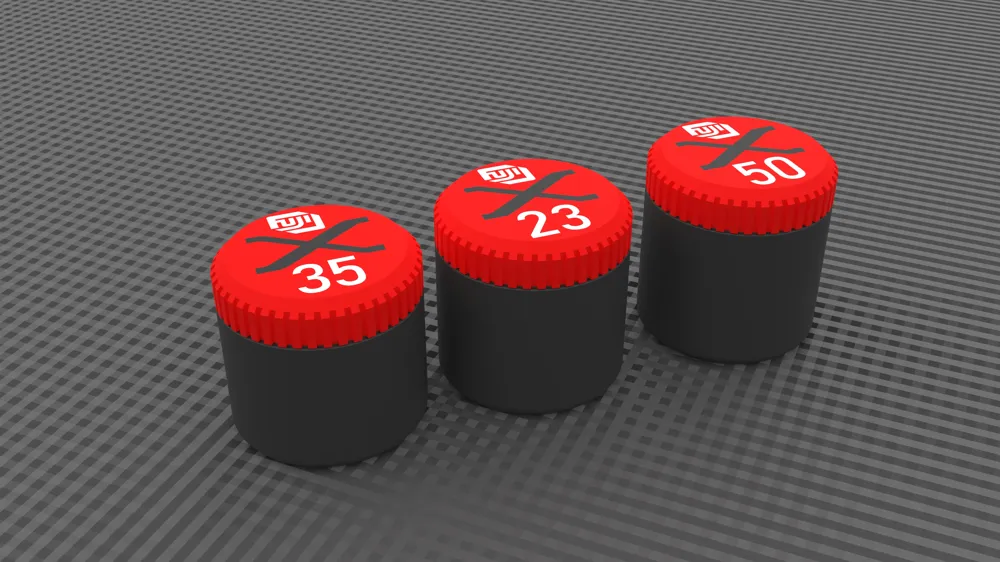

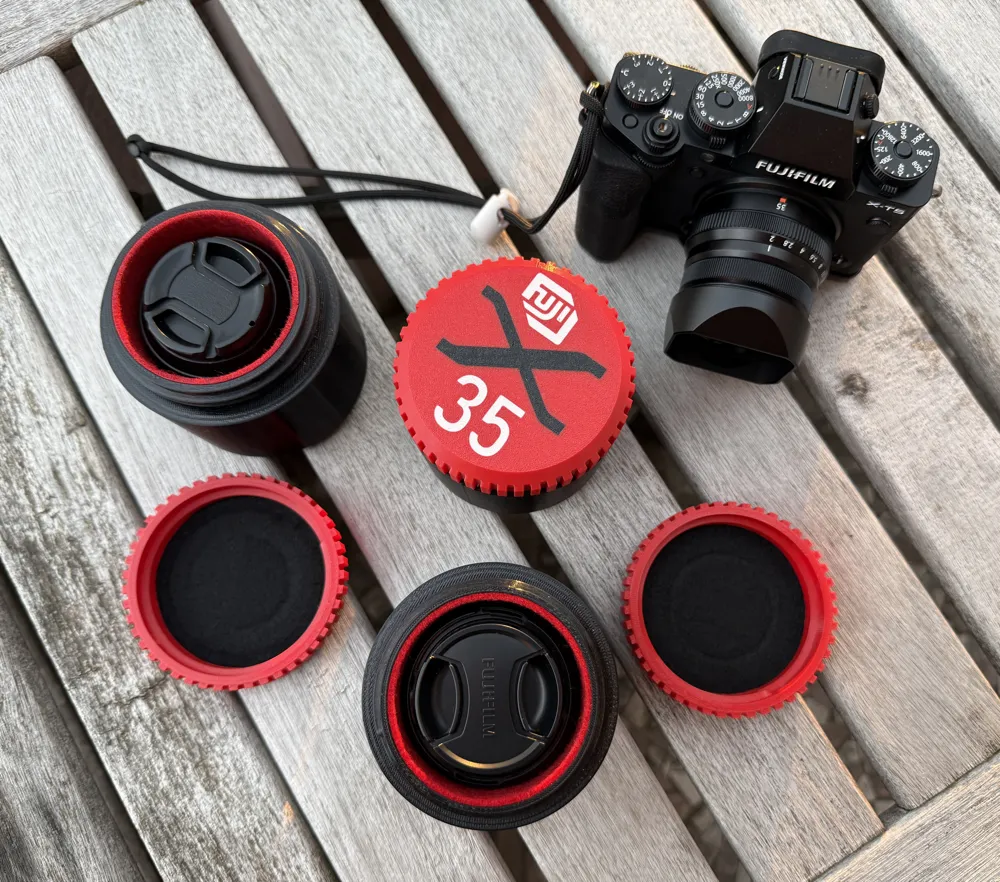

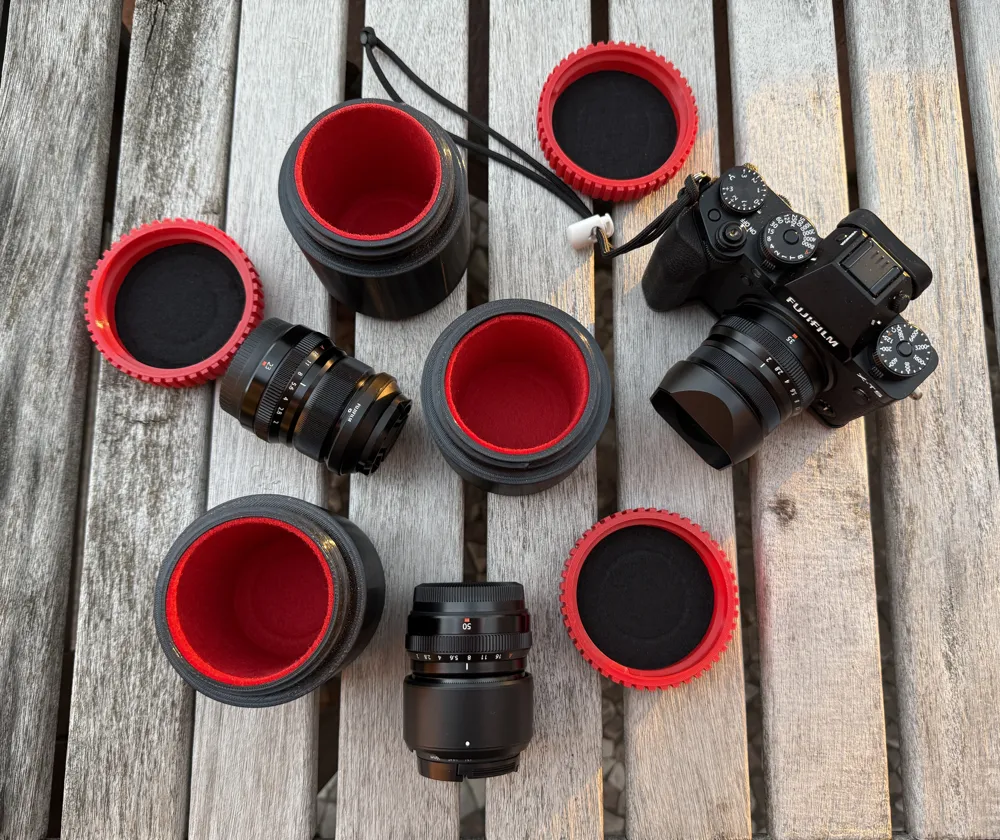

Three PETG lens cases for the Fujifilm Fujinon F2 lenses 23mm, 35mm, and 50mm.

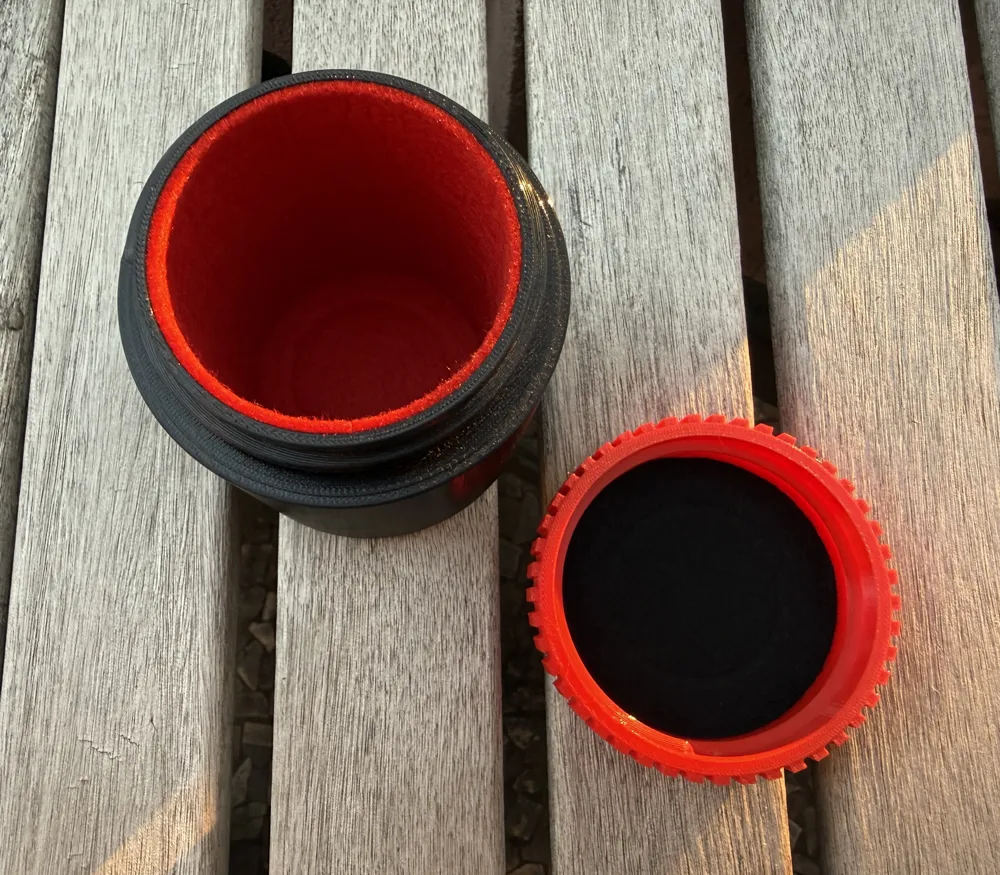

Reliable protection against dust, moisture, and fall damage thanks to a sturdy case with a screw cap and felt lining.

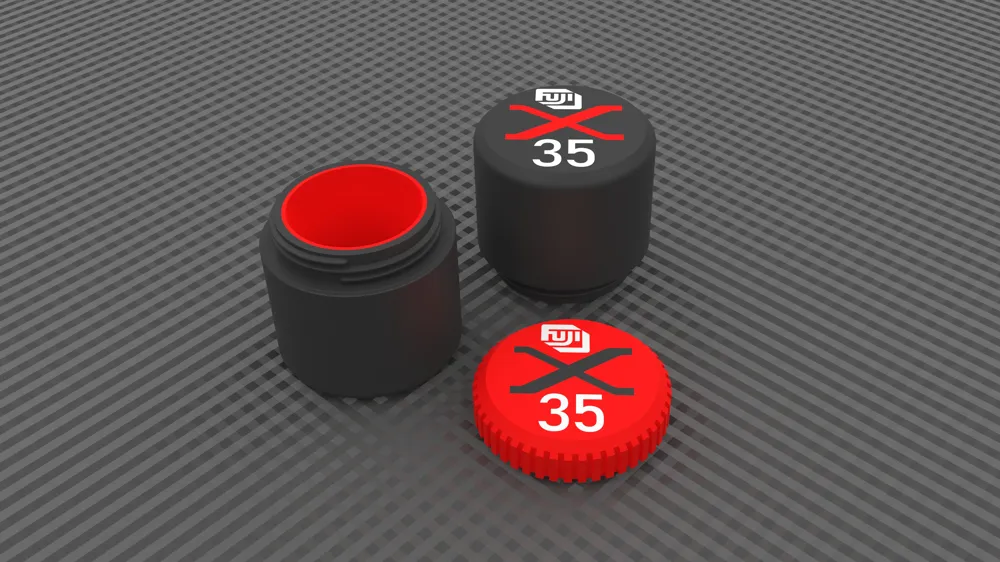

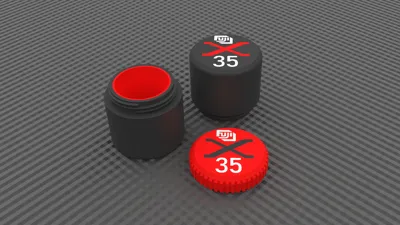

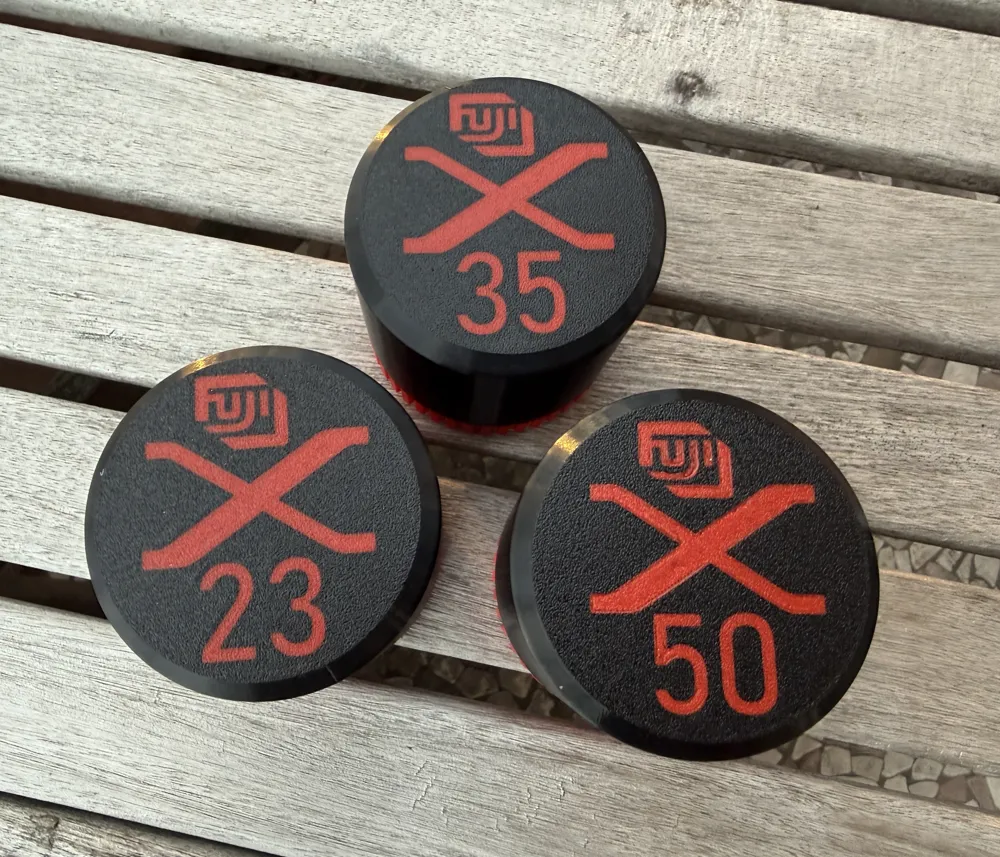

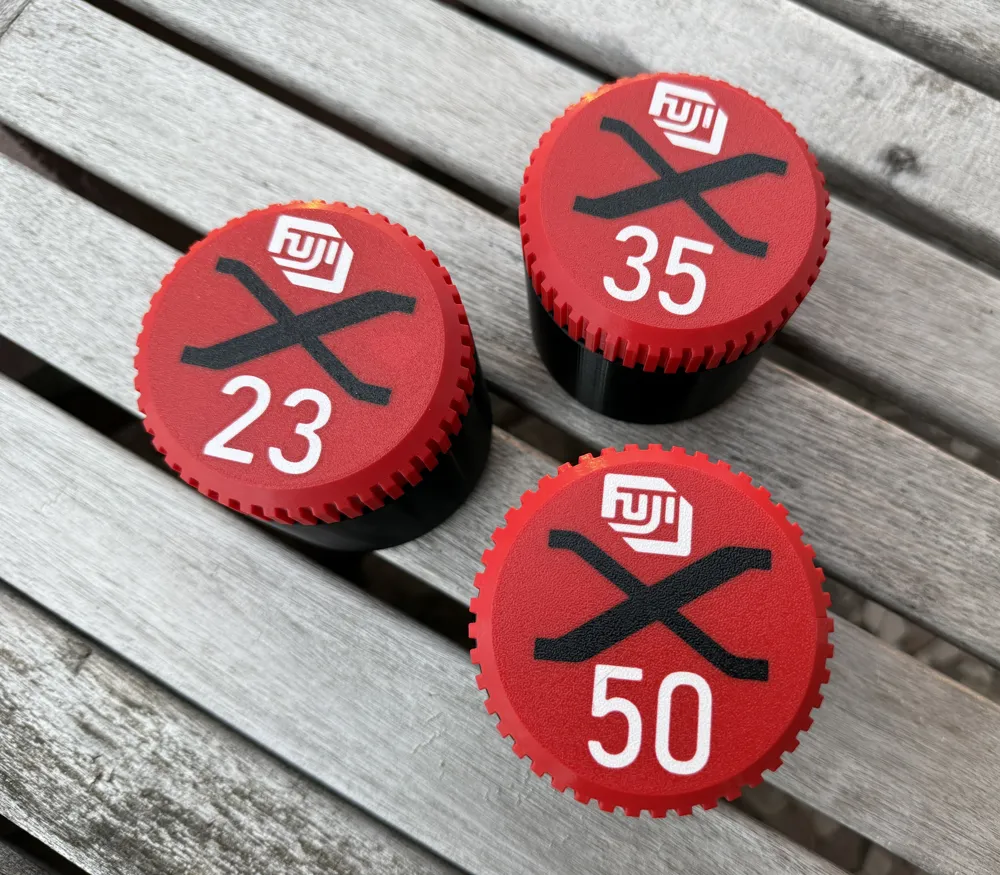

Lids and cases are provided with matching logos.
The outer diameter of the cases is the same, the height varies.

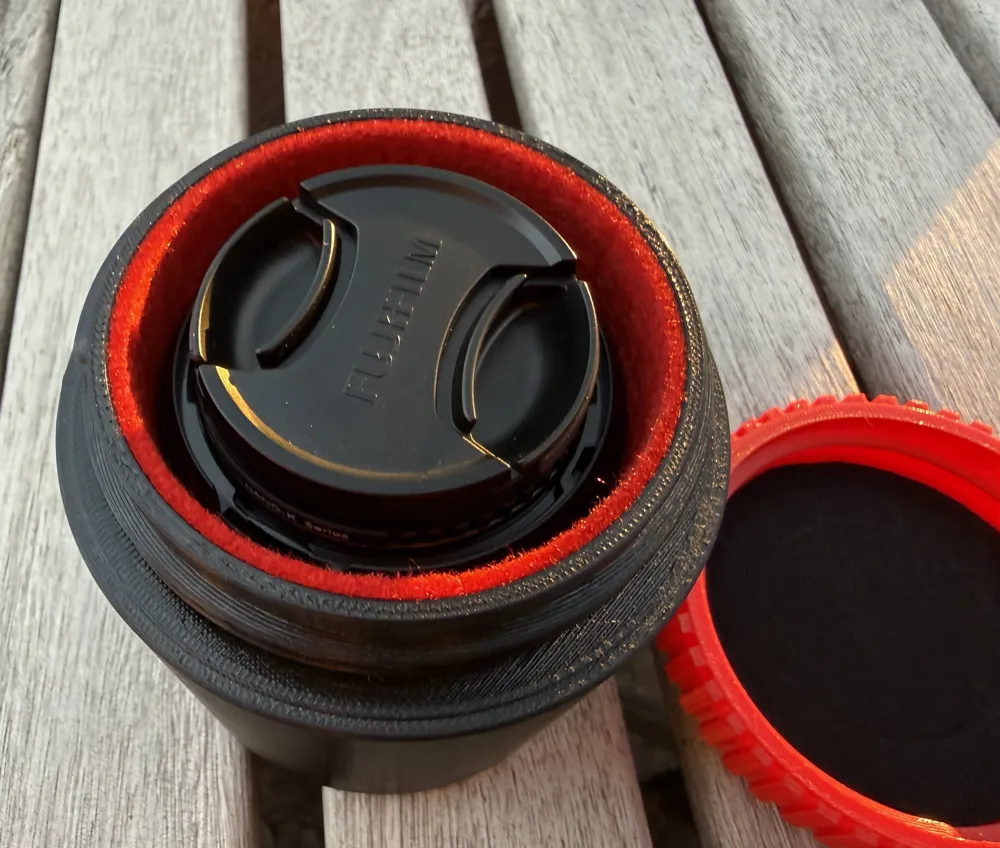

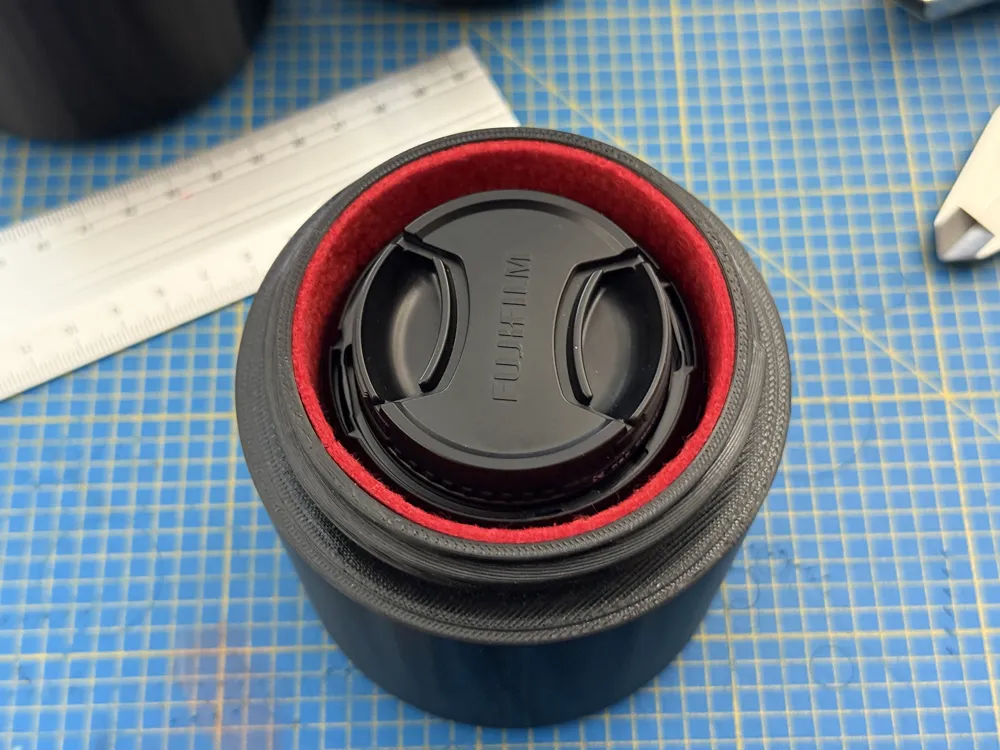

The lenses fit precisely with lens hoods and lens caps.

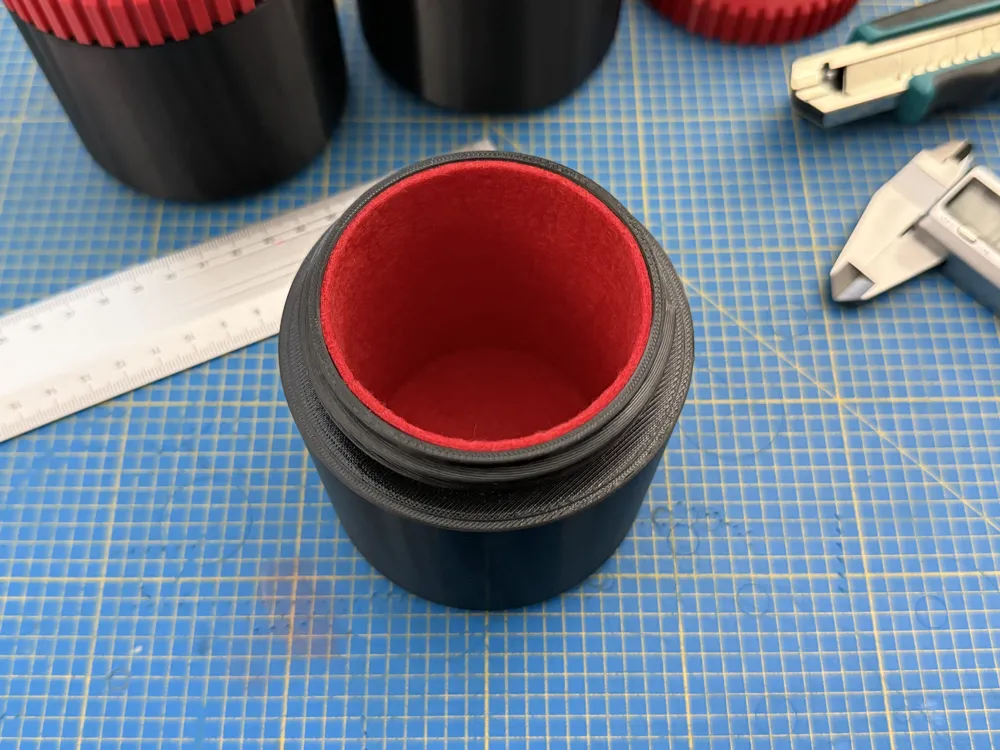

2mm thick red and black sturdy craft felt is required.
In my case, the felt sits securely in the case and lid without additional gluing.
It can also be glued in, but it is not strictly necessary.

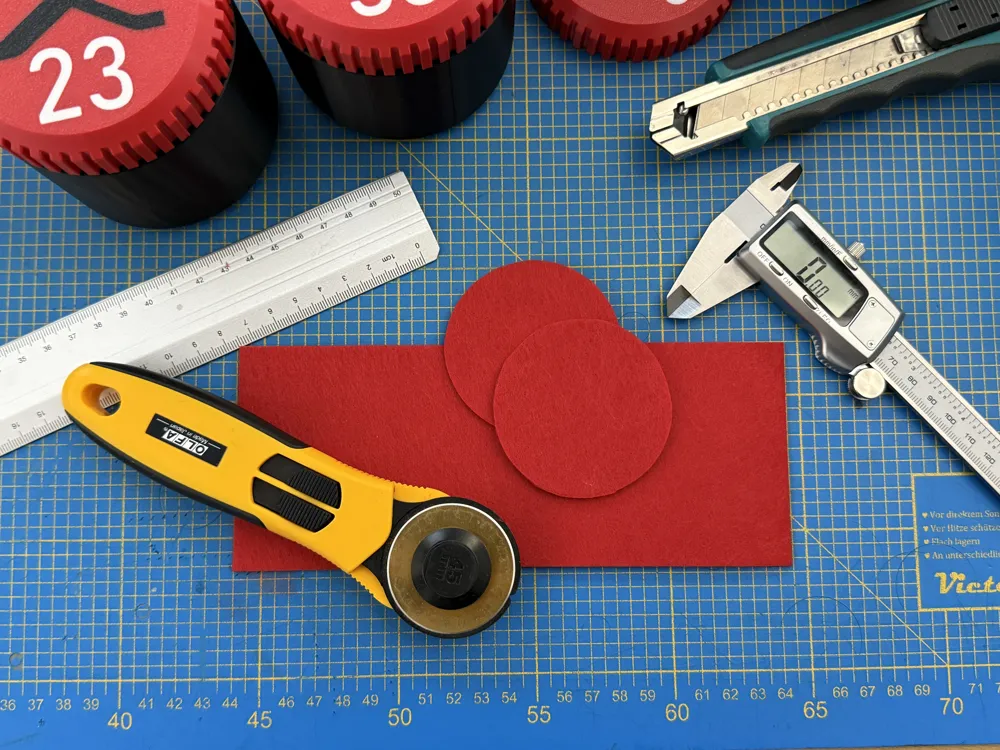

The cutouts must be made as follows:
| Lens Type: | 23mm | 35mm | 50mm |
Bottom lining Circle (2 pieces) Diameter in mm: | 64 | 63 | 66 |
Wall lining Rectangle HxW in mm: | 79x200 | 74x196 | 82x203 |
Lid lining Circle Diameter in mm: | 71 | 71 | 71 |
