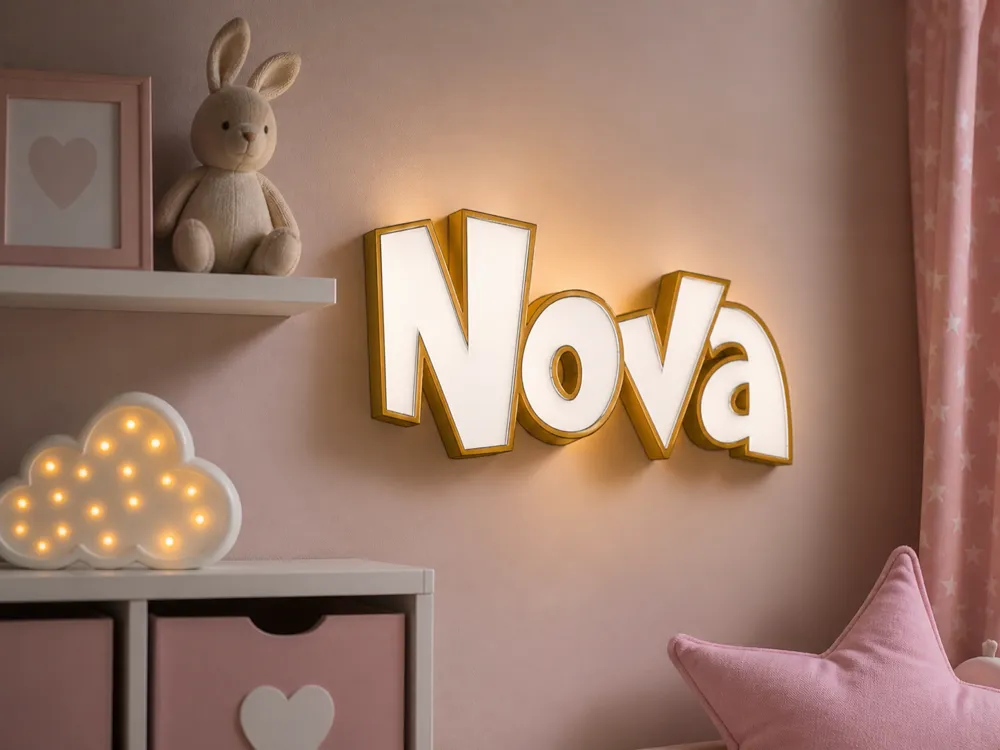

Custom 3D LED Lightbox Sign - "Nova"

Brighten NOVA's bedroom with this modern 3D printed light sign. Featuring a bold and captivating font, this project combines a classic white and yellow aesthetic with professional light diffusion.
You can change the body color as you like

Overview

This sign is designed for a bimaterial look. The main body acts as a robust light-blocking structure, while the white inserts serve as light diffusers. The letters protrude 3 mm from the sign's body, creating an impactful 3D effect that adds depth even when unlit.

Features

• 3D "Pop-out" Effect: Letters protrude 3 mm from the frame for a premium, high-contrast look.
• Optimized Diffusion: The white inserts are designed to be printed with specific settings to ensure a uniform glow without shadows.
• Versatility: Can be wall-mounted or used as a freestanding desk lamp.

Equipped with rear holes for hanging.

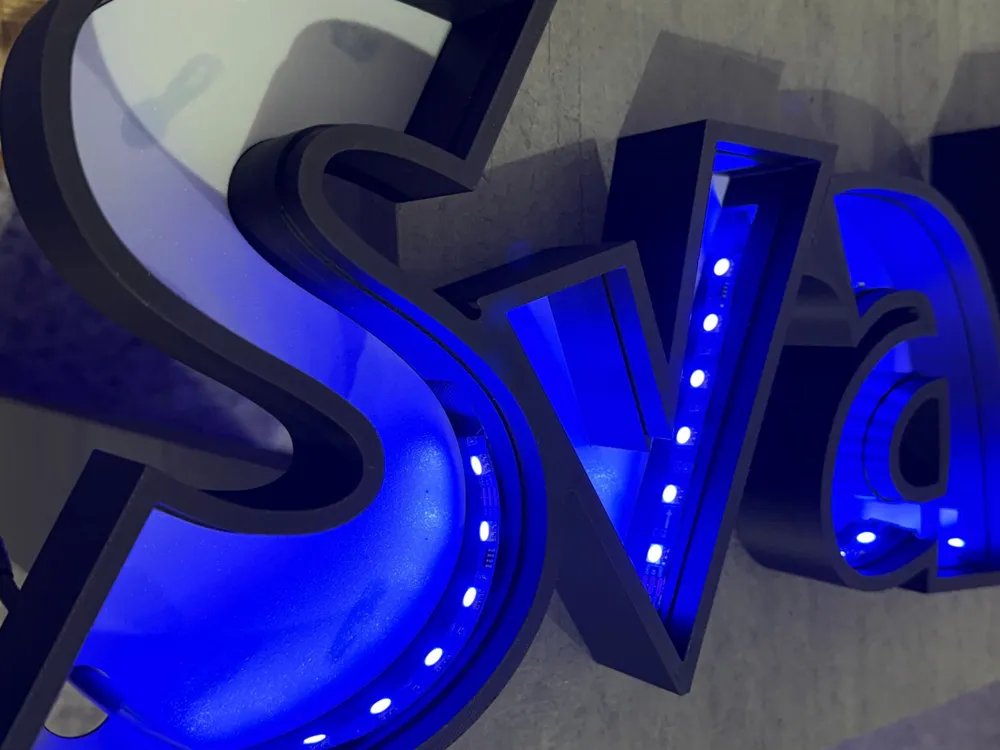

Clean Design: Internal channels provided for LED strips (5V or 12V COB strips recommended for best results).

Printing Tips

• Materials:
  • Body/Frame: PLA or PETG (Black or any opaque color).
  • Diffusers: White PLA ("Matte" or "White Translucent" are ideal for maximum light output).
• Supports: Already placed where needed

Assembly Instructions

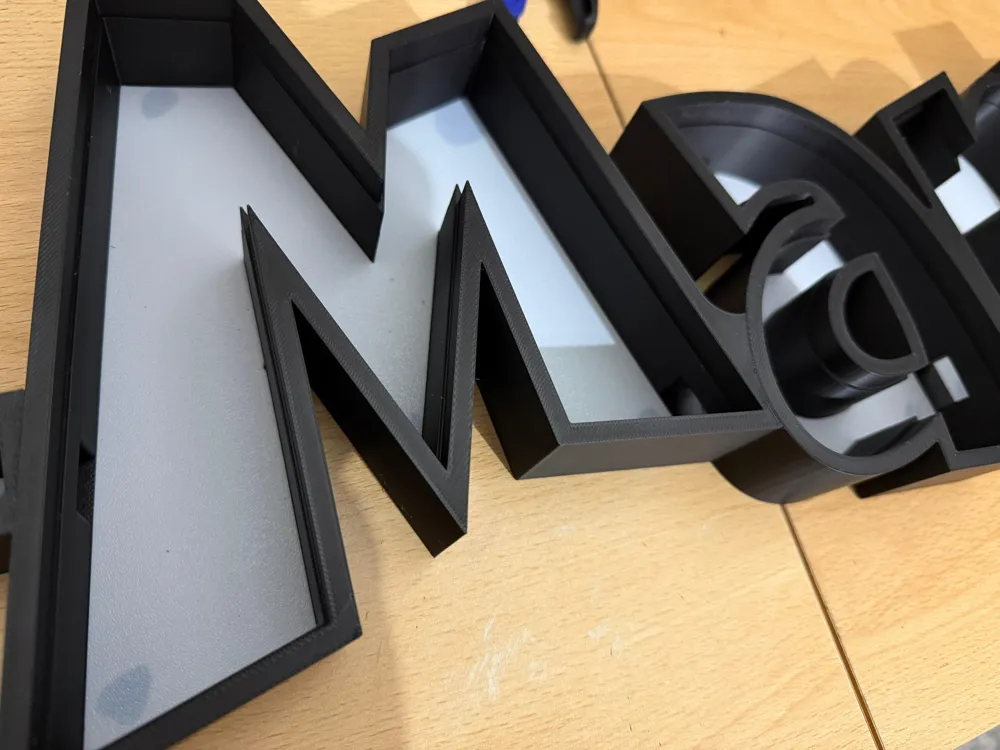

1. Print the main body in your preferred color and glue the parts together
2. Insert the internal diffusers; they are not mandatory but help with better light distribution
3. Glue the LED strip inside the main body's cavity.
4. Pass the power cable through the designated hole on the back/bottom.

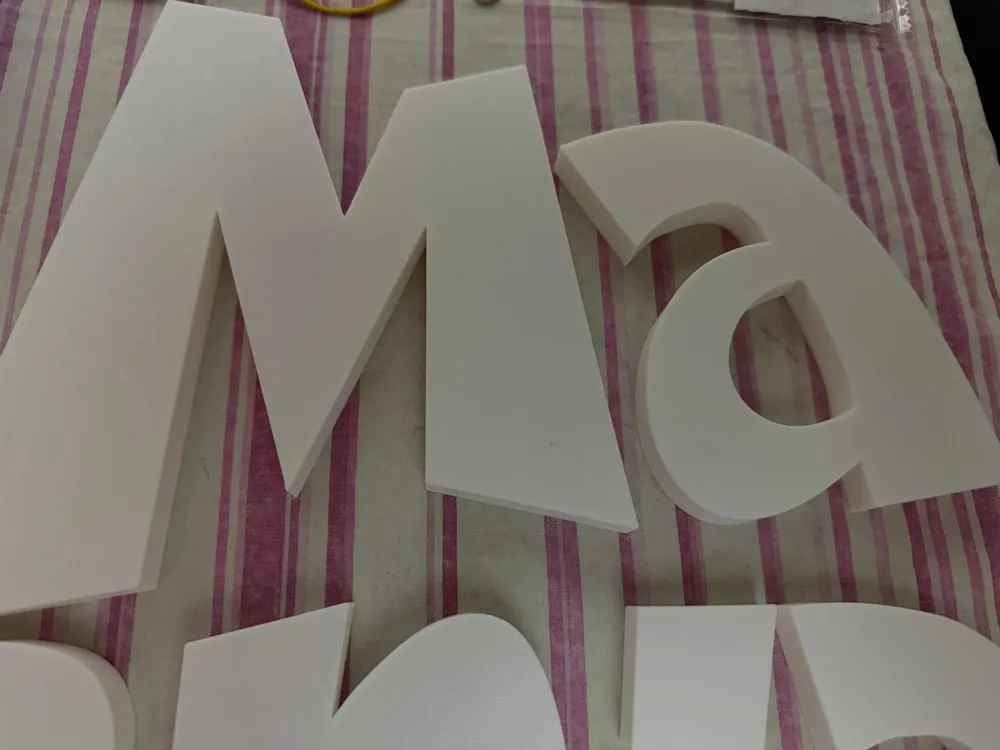

5. Snap the white diffusers into the front openings.
6. Turn it on and enjoy the result!

Do you like this design? If you print it, upload a photo of your creation ("Make")! I'd love to see how it looks in your space.

Note: This specific file is for the name "Nova", but the technique can be applied to any custom text.

Many more names coming soon,

“If you need a specific name, leave me a comment and I will make it for you.”
