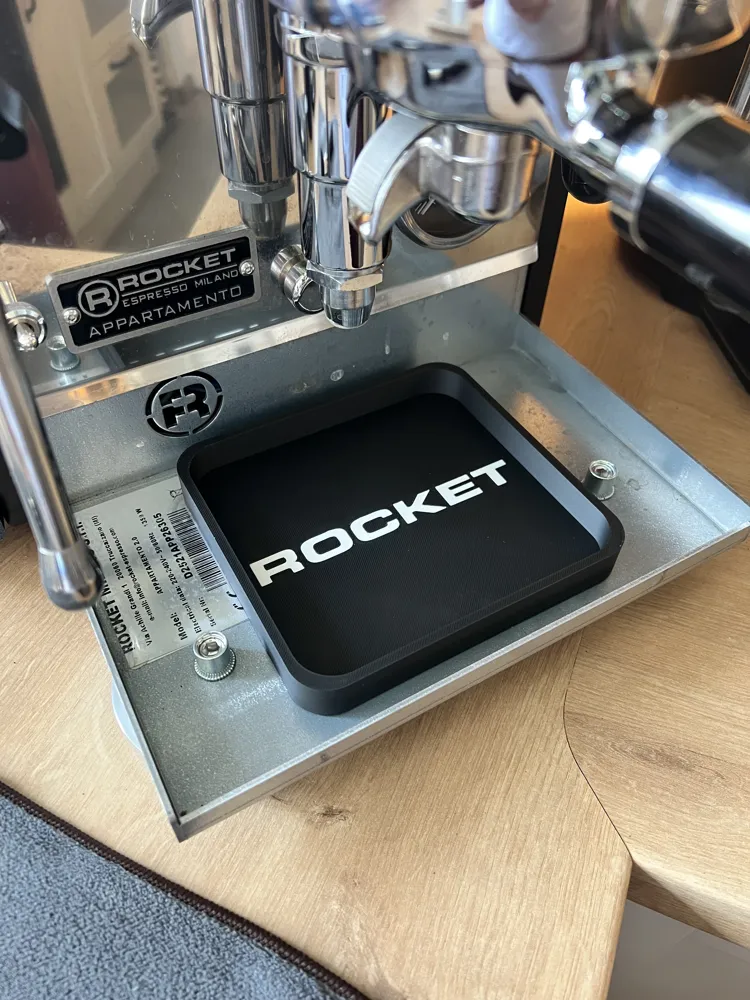

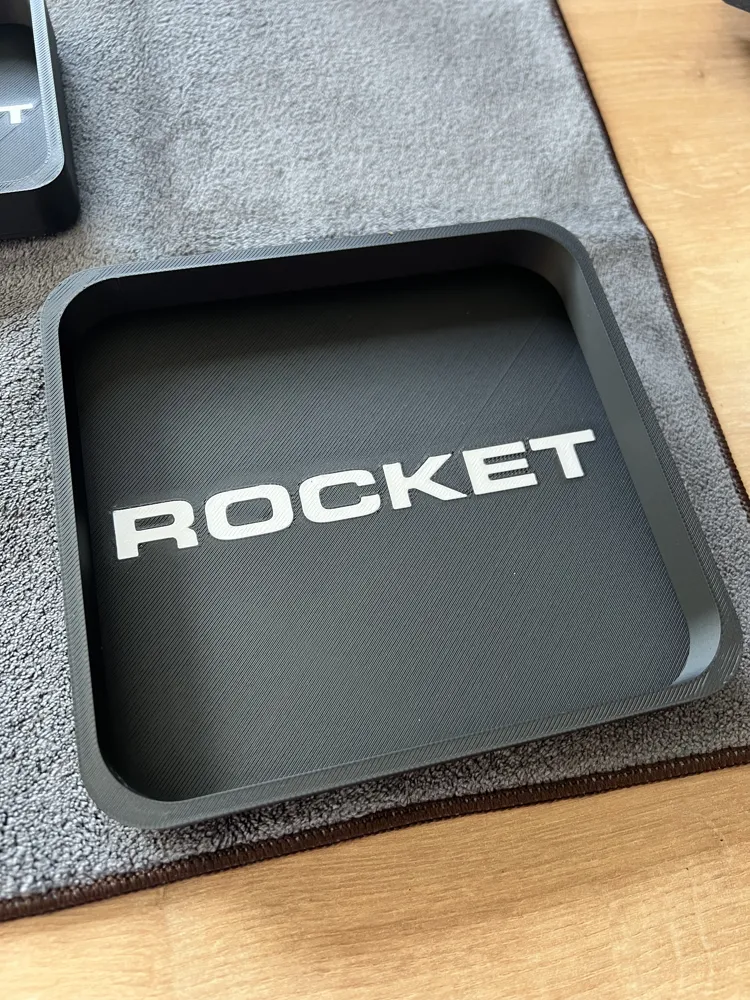

Abtropfschale Groß

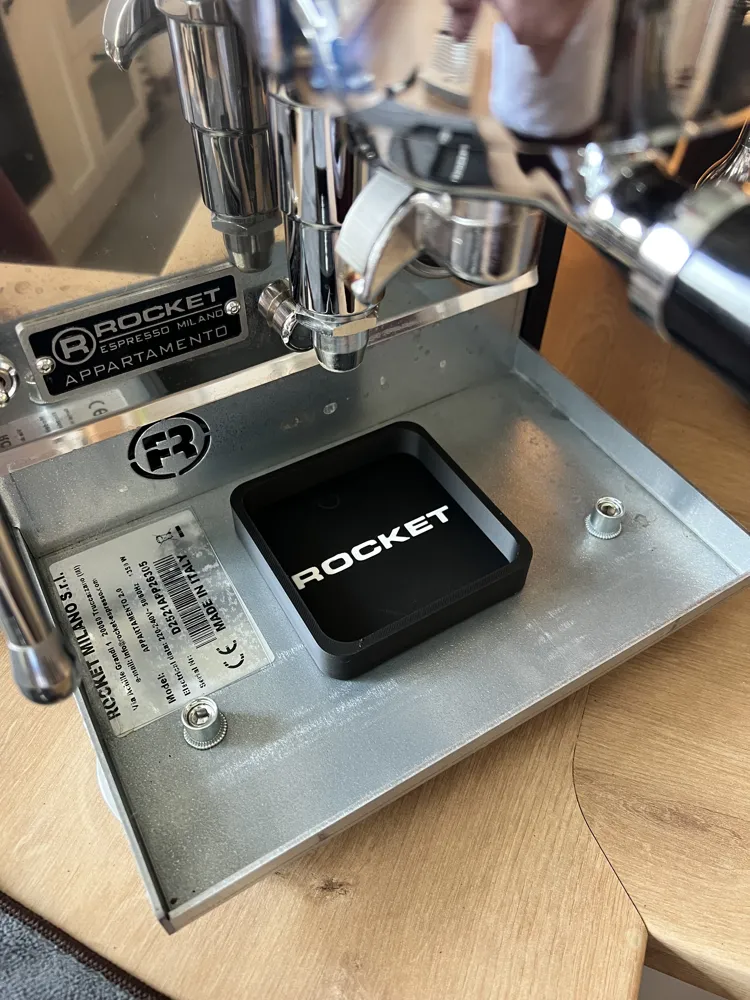

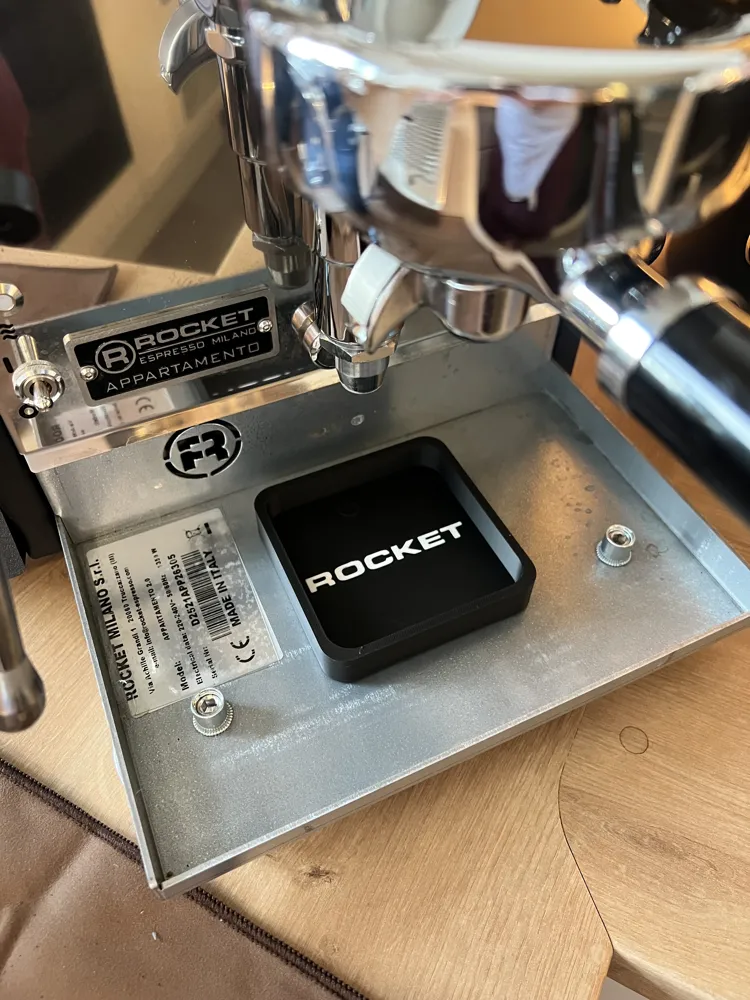

Abtropfschale klein



<h2>🖨️ Druckprofil (PLA – 2-farbig)</h2><ul><li>Material: PLA (Modell), PETG (Trennschicht für Supports)</li><li>Farben: 2-farbig möglich (optischer Akzent)</li><li>Schichthöhe: 0,2 mm (gerne variabel/adaptiv)</li><li>Wandlinien: 3–4 → mehr Stabilität &amp; bessere „Dichtigkeit“</li><li>Top-/Bottom-Layer: 4–5</li><li>Infill: 15–25 % (Gyroid oder Grid)</li><li>Supports: Ja (vom Druckbett ausgehend)</li><li>Support-Trennschicht: 1 Layer PETG für sauberes Entfernen</li><li>Temperatur: nach PLA/PETG-Einstellungen deines Druckers</li><li>Haftung: Skirt oder Brim bei Bedarf</li></ul>&nbsp;&nbsp;<h2>🖨️ Print Profile (PLA – Dual Color)</h2><ul><li>Material: PLA (model), PETG (interface layer for supports)</li><li>Colors: 2-color print (optional, for visual accent)</li><li>Layer height: 0.2 mm (adaptive/variable recommended)</li><li>Walls/Perimeters: 3–4 walls → better strength &amp; water resistance</li><li>Top/Bottom layers: 4–5</li><li>Infill: 15–25% (Gyroid or Grid)</li><li>Supports: Yes (touching build plate)</li><li>Support interface: 1 layer PETG for clean removal</li><li>Print temp: according to your PLA/PETG setup</li><li>Bed adhesion: Skirt or Brim if needed</li></ul>&nbsp;

<h2>🖨️ Print Profile (PLA – Dual Color)</h2><ul><li>Material: PLA (model), PETG (interface layer for supports)</li><li>Colors: 2-color print (optional, for visual accent)</li><li>Layer height: 0.2 mm (adaptive/variable recommended)</li><li>Walls/Perimeters: 3–4 walls → better strength &amp; water resistance</li><li>Top/Bottom layers: 4–5</li><li>Infill: 15–25% (Gyroid or Grid)</li><li>Supports: Yes (touching build plate)</li><li>Support interface: 1 layer PETG for clean removal</li><li>Print temp: according to your PLA/PETG setup</li><li>Bed adhesion: Skirt or Brim if needed</li></ul>

0.2mm layer, 4 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

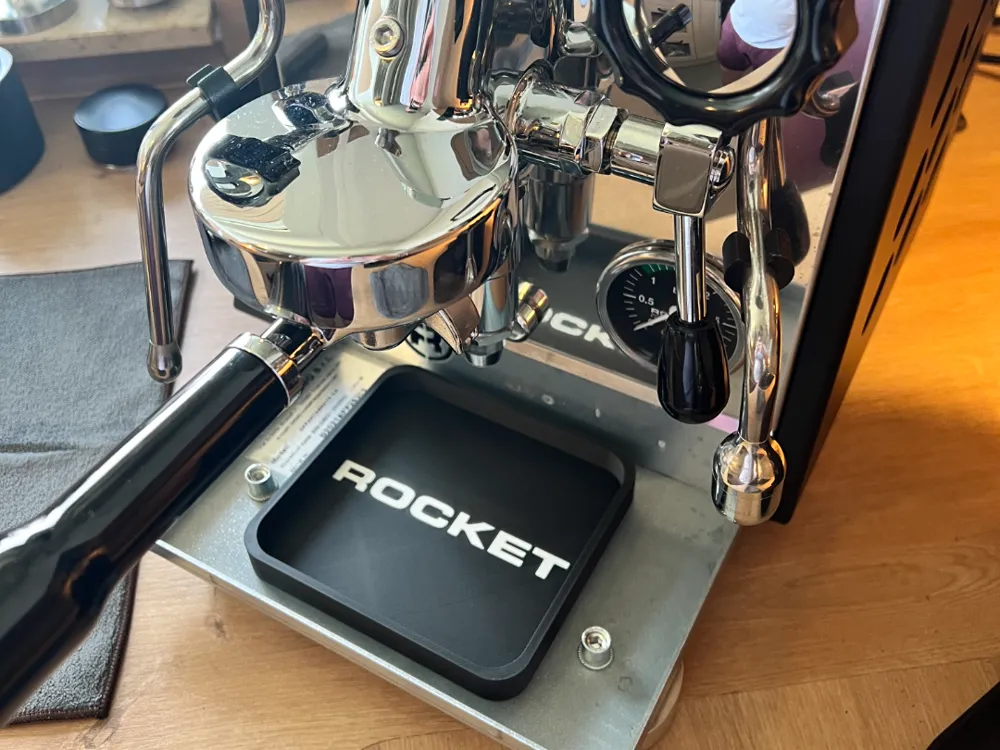

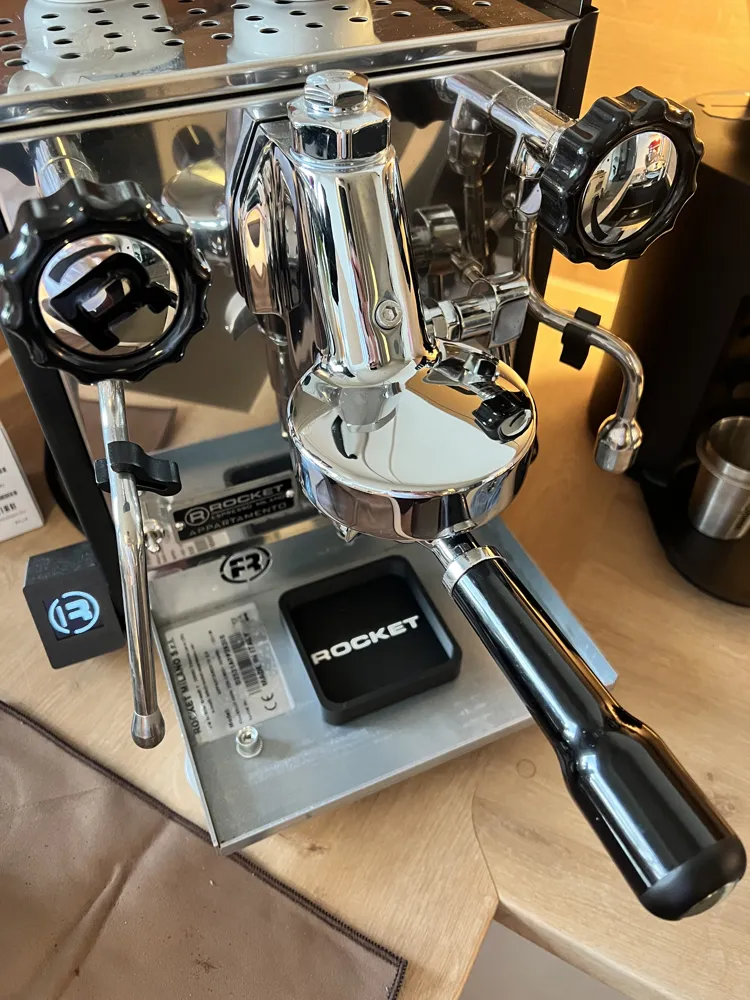

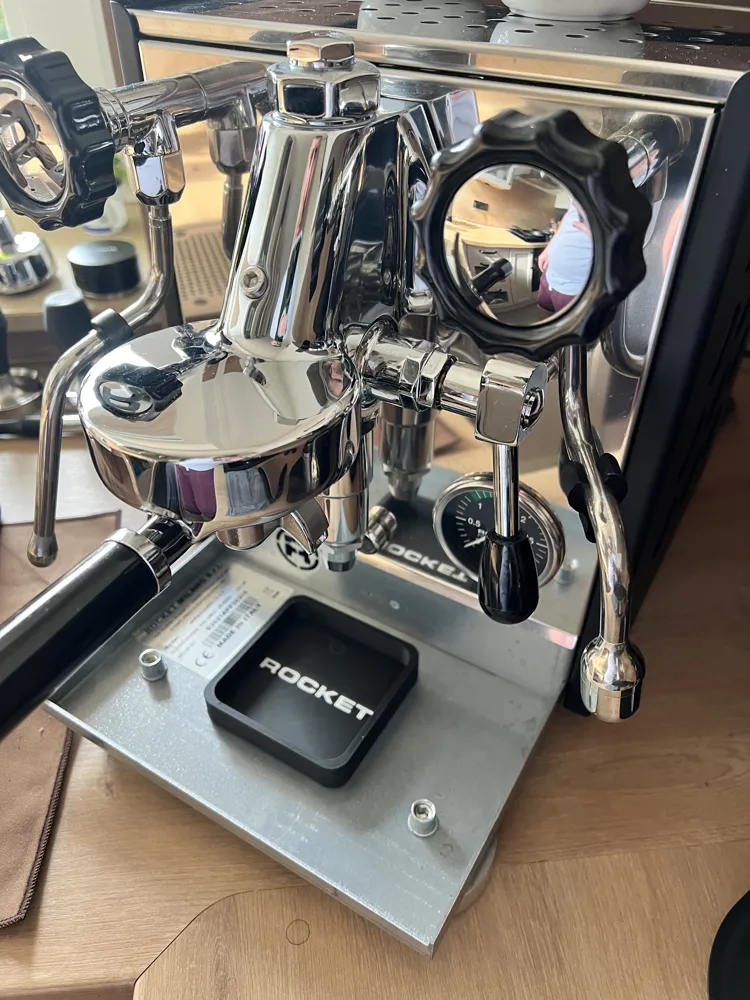

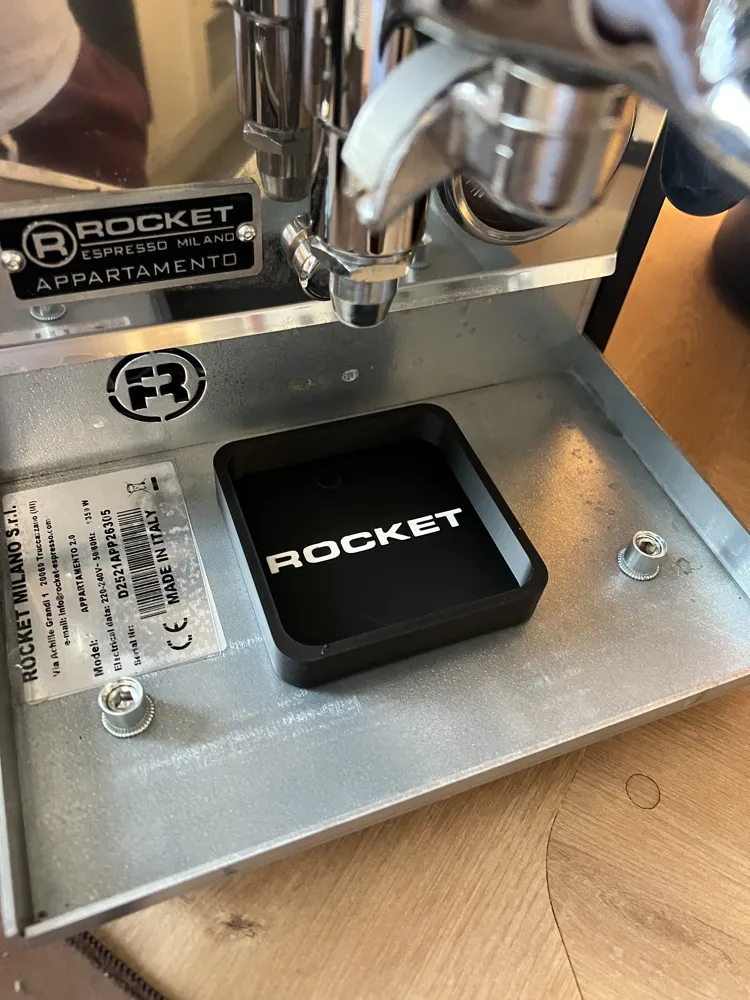

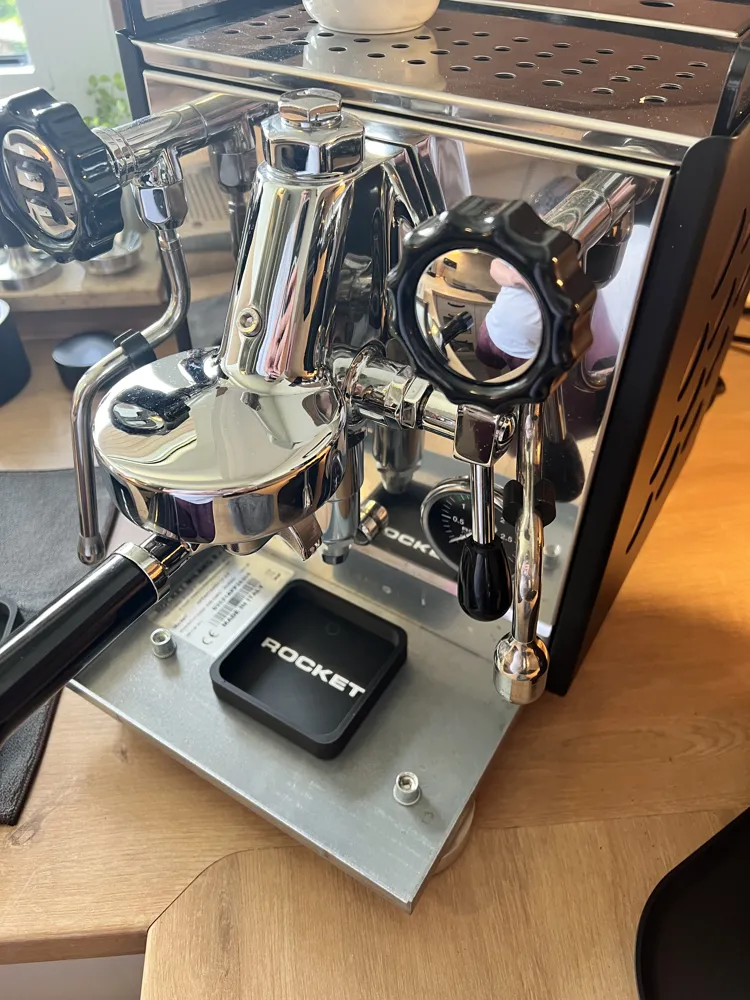

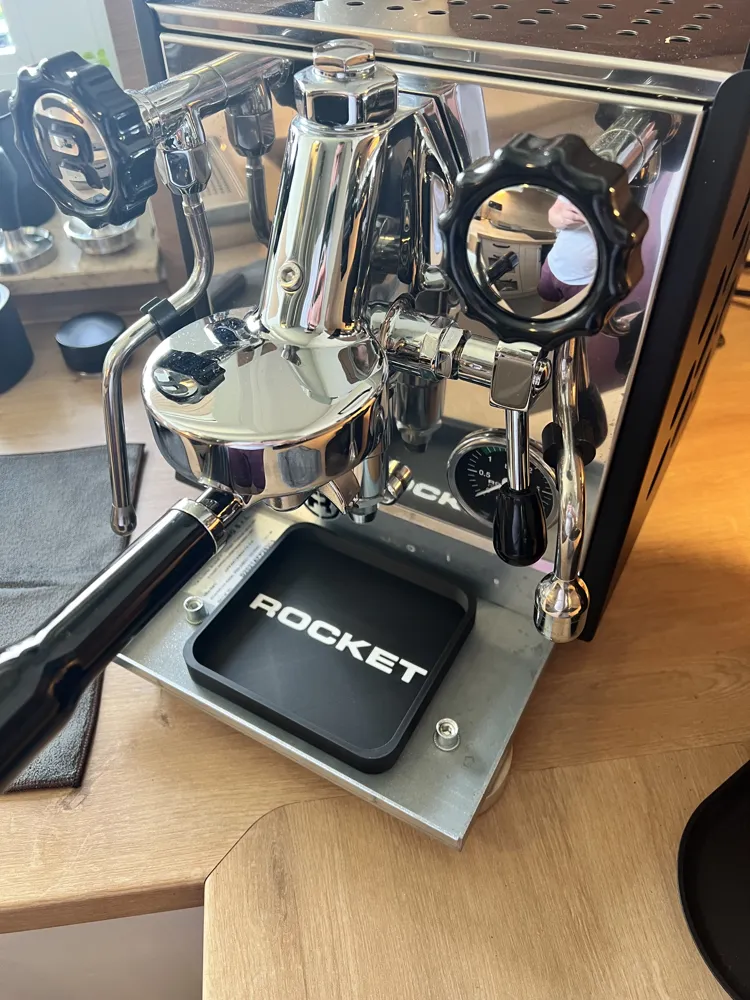

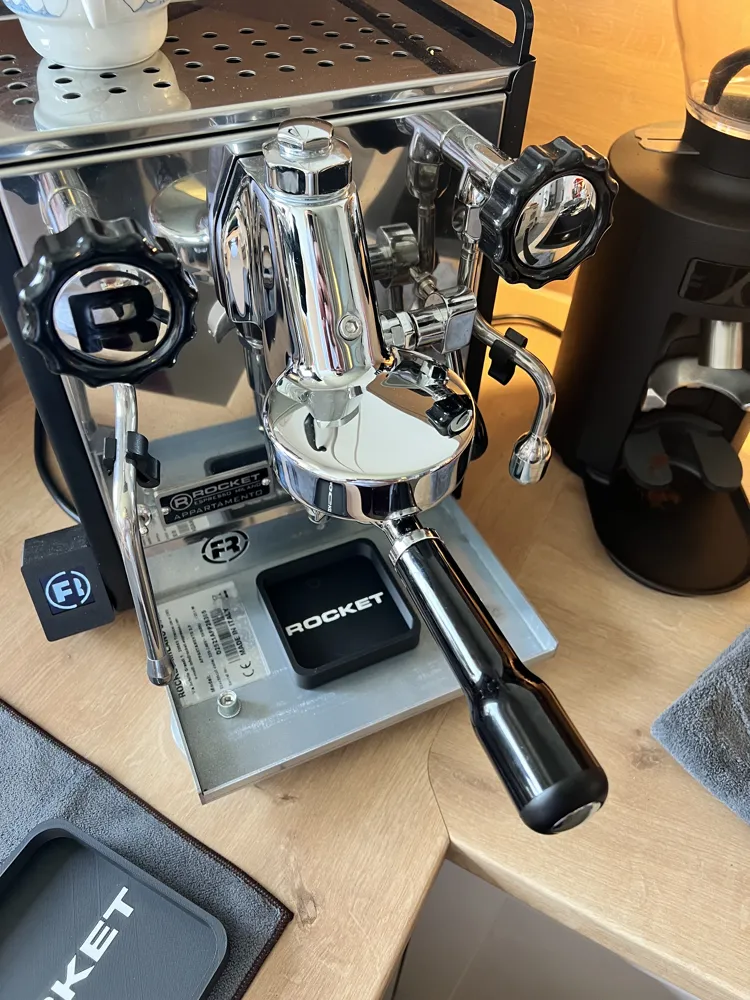

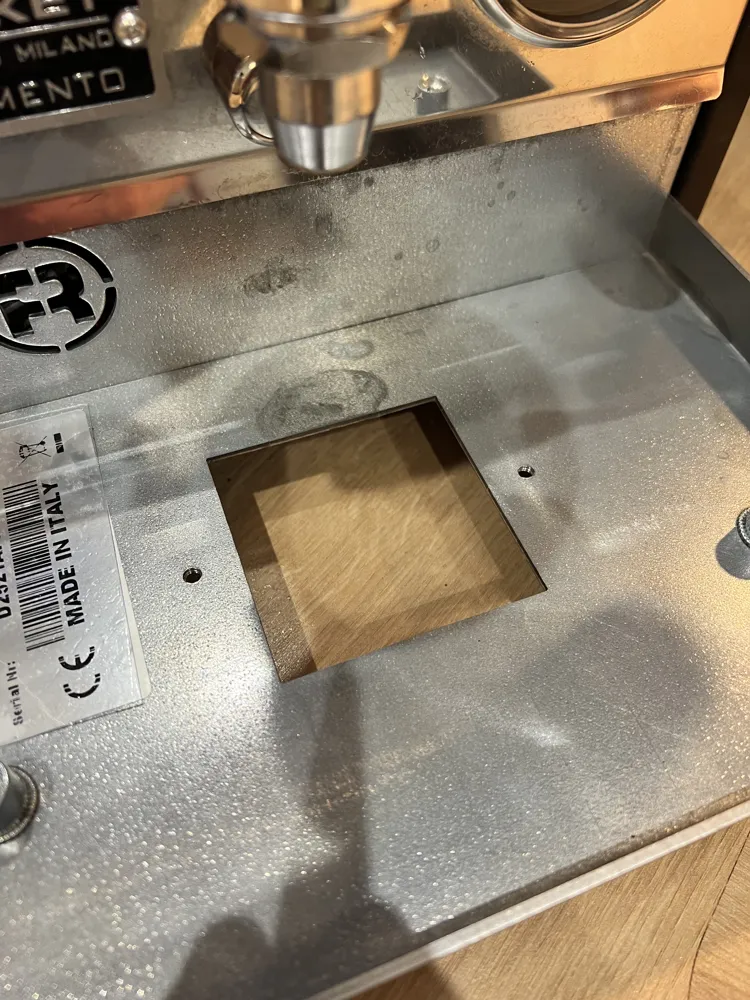

<h2 style="text-align: center">🛠️ Abtropfschale für Rocket Appartamento (2.0 &amp; kompatibel)</h2>Nie wieder Wasser unter der Maschine.Kennst du das? Abtropfschale voll → schnell rausziehen → und plötzlich tropft’s aus dem Siebträger oder Überlauf genau durch die Öffnung im Boden… direkt auf die Arbeitsplatte.Diese Abtropfschale löst genau dieses Problem.<h2 style="text-align: center">💡 Funktion</h2>Die Schale wird passgenau in die Bodenöffnung der Rocket Appartamento eingesetzt:<ul><li>sitzt zentriert ohne Spiel</li><li>schließt bündig mit der Bodenplatte ab</li><li>fängt zuverlässig alles auf, was sonst daneben läuft</li></ul>👉 Einfach Abtropfschale leeren, wieder einsetzen – fertig.<h2 style="text-align: center">📏 Passform</h2><ul><li>Entwickelt für Rocket Appartamento 2.0 (Edelstahlboden)</li><li>Öffnung: 62 × 62 mm</li><li>Sehr wahrscheinlich kompatibel mit älteren Modellen (Stahlboden)</li></ul>⚠️ Bitte vor dem Druck kurz nachmessen, da es je nach Version leichte Abweichungen geben kann.<h2 style="text-align: center">🔄 Varianten</h2>Du hast die Wahl zwischen zwei Versionen:<ul><li>Groß<ul><li>nutzt den verfügbaren Platz optimal</li><li>wirkt optisch „vollwertiger“</li></ul></li><li>Klein<ul><li>spart Material &amp; Druckzeit</li><li>dezenter Look</li></ul></li></ul>👉 Funktion ist bei beiden identisch.<h2 style="text-align: center">🖨️ Druckinfos</h2><ul><li>Material: PLA</li><li>Empfohlen: 2-farbig für besseren Look</li><li>Stützstruktur: erforderlich</li></ul>💡 Tipp für saubere Supports: Verwende eine PETG-Trennschicht (1 Layer) zwischen Modell und Stützen. → Supports lassen sich dadurch extrem sauber und ohne Rückstände entfernen.<h2 style="text-align: center">👍 Vorteile</h2><ul><li>Kein Tropfen mehr auf der Arbeitsplatte</li><li>Kein Wasser in der Maschine</li><li>Perfekter Sitz ohne Nacharbeit</li><li>Schnell entnehmbar &amp; leicht zu reinigen</li></ul>  English  <h2 style="text-align: center">🛠️ Drip Tray Insert for Rocket Appartamento (2.0 &amp; compatible)</h2>No more water under your machine.You know the situation: drip tray is full → you pull it out quickly → and suddenly water drips from the portafilter or overflow straight through the opening in the base… right onto your countertop.This insert fixes exactly that.<h2 style="text-align: center">💡 How it works</h2>The tray sits perfectly inside the base opening of the Rocket Appartamento:<ul><li>self-centering fit</li><li>sits flush with the bottom plate</li><li>reliably catches any dripping water</li></ul>👉 Just empty your drip tray, put it back in – done.<h2 style="text-align: center">📏 Fit &amp; Compatibility</h2><ul><li>Designed for Rocket Appartamento 2.0 (stainless steel base)</li><li>Opening size: 62 × 62 mm</li><li>Likely compatible with older versions (steel base)</li></ul>⚠️ Please measure before printing, as there may be small variations between models.<h2 style="text-align: center">🔄 Versions</h2>Two options available:<ul><li>Large<ul><li>maximizes available space</li><li>more prominent look</li></ul></li><li>Small<ul><li>saves material &amp; print time</li><li>more subtle appearance</li></ul></li></ul>👉 Both versions are functionally identical.<h2 style="text-align: center">🖨️ Print Settings</h2><ul><li>Material: PLA</li><li>Recommended: dual color print</li><li>Supports: required</li></ul>💡 Pro tip for clean supports: Use a single PETG interface layer between model and supports. → Makes removal much easier and leaves a clean surface.<h2 style="text-align: center">👍 Benefits</h2><ul><li>No more dripping onto your countertop</li><li>Prevents water from entering the machine</li><li>Perfect fit, no slipping</li><li>Easy to remove and clean</li></ul>

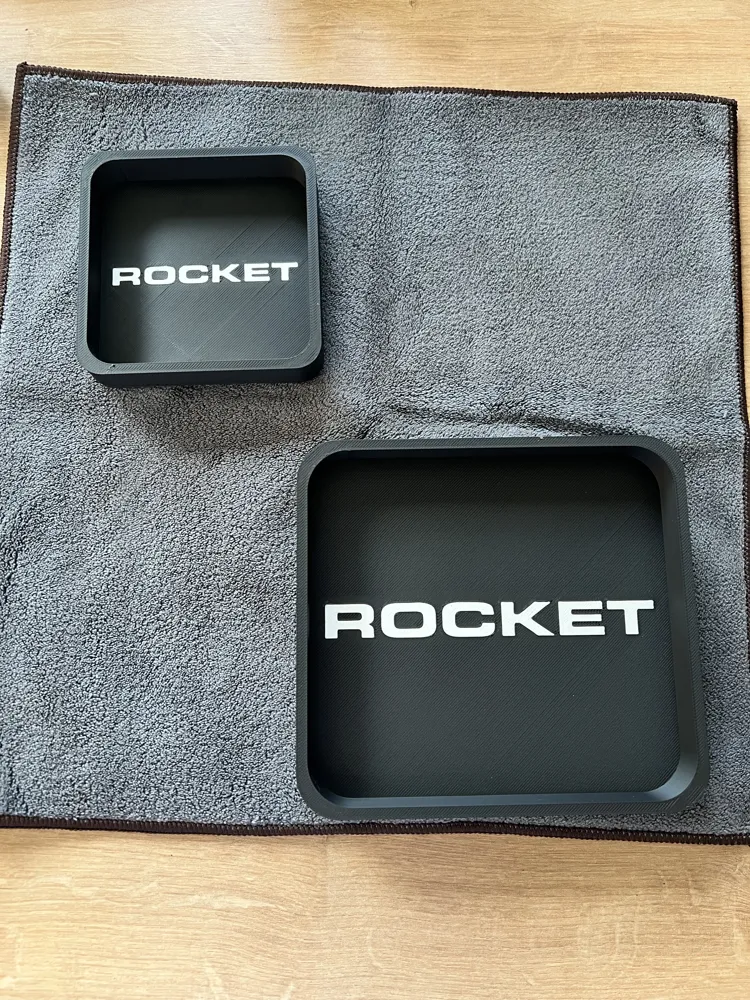

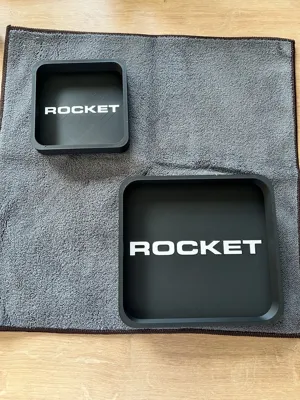

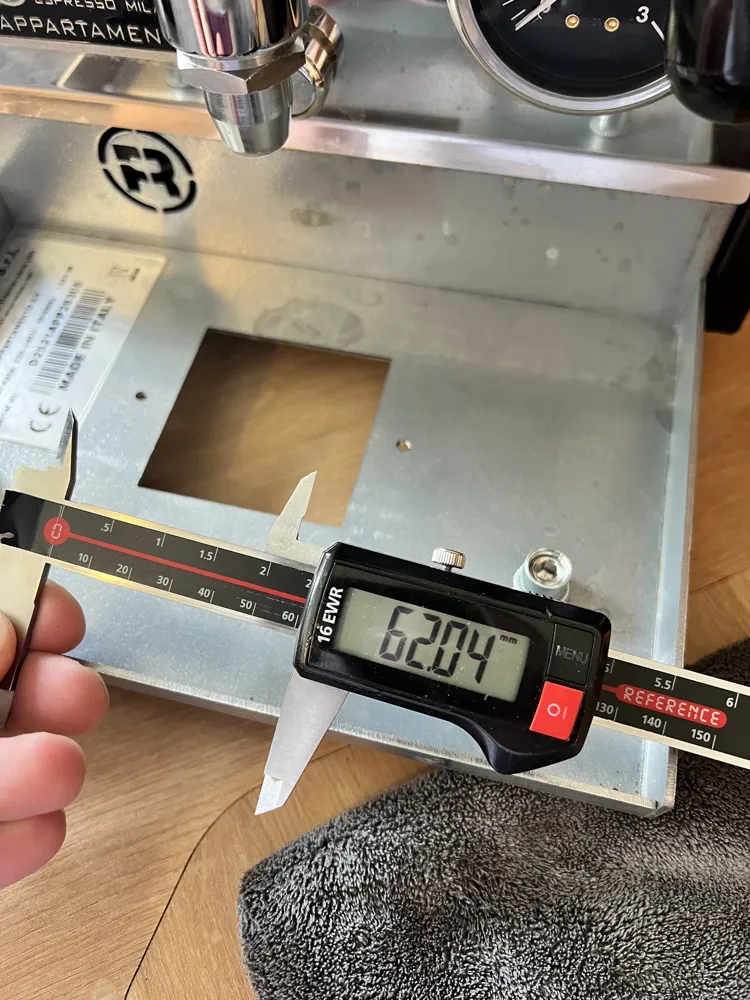

English  <h2 style="text-align: center">🛠️ Drip Tray Insert for Rocket Appartamento (2.0 &amp; compatible)</h2>No more water under your machine.You know the situation: drip tray is full → you pull it out quickly → and suddenly water drips from the portafilter or overflow straight through the opening in the base… right onto your countertop.This insert fixes exactly that.<h2 style="text-align: center">💡 How it works</h2>The tray sits perfectly inside the base opening of the Rocket Appartamento:<ul><li>self-centering fit</li><li>sits flush with the bottom plate</li><li>reliably catches any dripping water</li></ul>👉 Just empty your drip tray, put it back in – done.<h2 style="text-align: center">📏 Fit &amp; Compatibility</h2><ul><li>Designed for Rocket Appartamento 2.0 (stainless steel base)</li><li>Opening size: 62 × 62 mm</li><li>Likely compatible with older versions (steel base)</li></ul>⚠️ Please measure before printing, as there may be small variations between models.<h2 style="text-align: center">🔄 Versions</h2>Two options available:<ul><li>Large<ul><li>maximizes available space</li><li>more prominent look</li></ul></li><li>Small<ul><li>saves material &amp; print time</li><li>more subtle appearance</li></ul></li></ul>👉 Both versions are functionally identical.<h2 style="text-align: center">🖨️ Print Settings</h2><ul><li>Material: PLA</li><li>Recommended: dual color print</li><li>Supports: required</li></ul>💡 Pro tip for clean supports: Use a single PETG interface layer between model and supports. → Makes removal much easier and leaves a clean surface.<h2 style="text-align: center">👍 Benefits</h2><ul><li>No more dripping onto your countertop</li><li>Prevents water from entering the machine</li><li>Perfect fit, no slipping</li><li>Easy to remove and clean</li></ul>

Rocket Appartamento Drip Tray

ASIA

Print Profile(1)

Description

🛠️ Drip Tray Insert for Rocket Appartamento (2.0 & compatible)

💡 How it works

📏 Fit & Compatibility

🔄 Versions

🖨️ Print Settings

👍 Benefits
