Hue Lightstrip 45° Mount with Alignment Tool

Elevate your lighting setup with this precision-engineered 45° angled holder for Philips Hue Lightstrips. Designed with the user experience in mind, this mount ensures your LED strips are positioned at the perfect angle for optimal light diffusion, whether under cabinets, behind furniture, or along ceilings.

Key Features

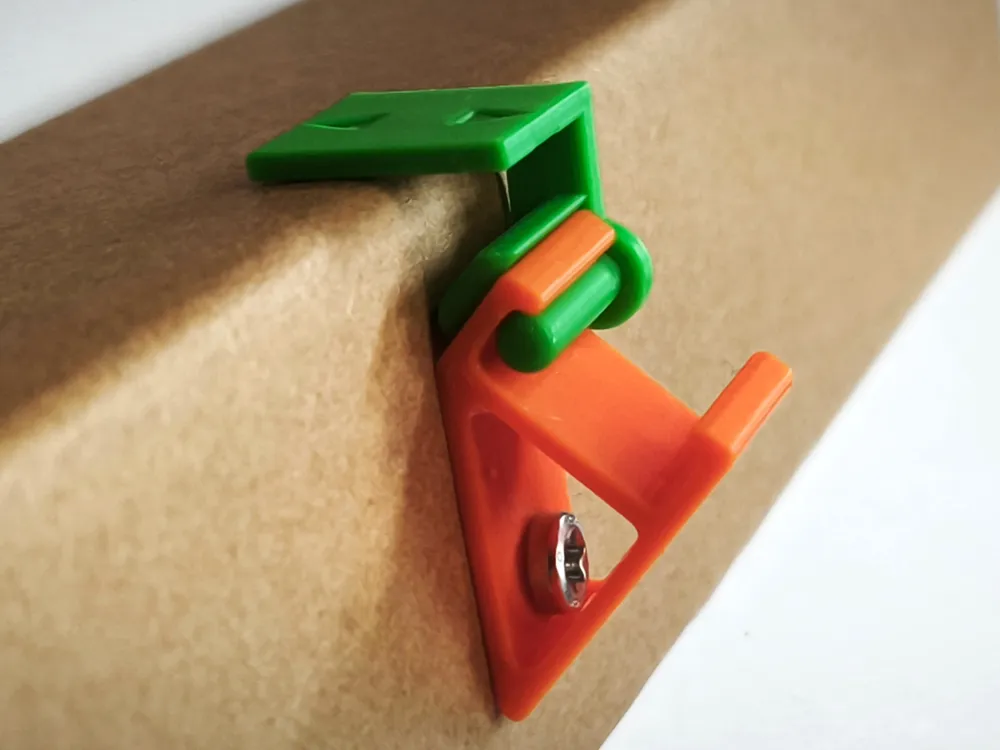

• Stress-Free Installation: No more guesswork. The included Alignment Tool guarantees that every single bracket is mounted at a perfect right angle and at a consistent distance from the edge.

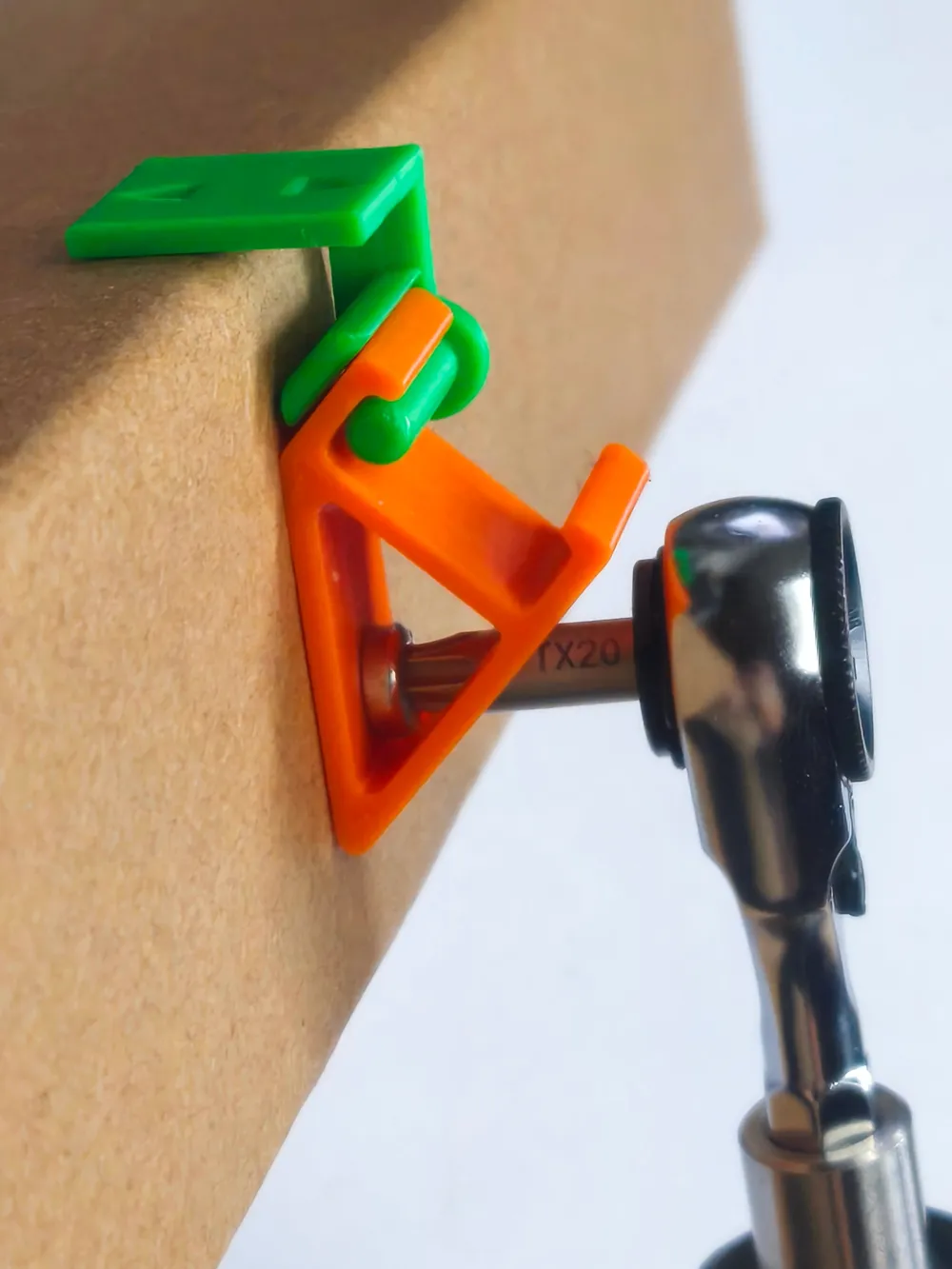

• Compact Clearance: Designed for tight spaces. If you use a bit ratchet or similar low-profile tool, you can install these holders even with a wall clearance of just 5cm (2").
• Precision Fit: Specifically tailored for Hue Lightstrips to ensure a snug fit without damaging the strip.
• Optimized for Wood Screws: The mounting holes are designed for 3.5mm Pan Head wood screws (Spanplattenschrauben).

Technical Specifications

• Angle: 45 Degrees
• Screw Compatibility: 3.5mm Pan Head
• Min. Wall Clearance: 50mm / 2" (using low-profile tools)
• Included: Mounting Bracket & Alignment/Jig Tool

Printing Instructions

• Material: PLA is fine, but PETG is recommended if the lightstrips are running at high brightness for long periods (for better heat resistance).
• Orientation: Print as oriented. No supports required!
• Infill: 15%

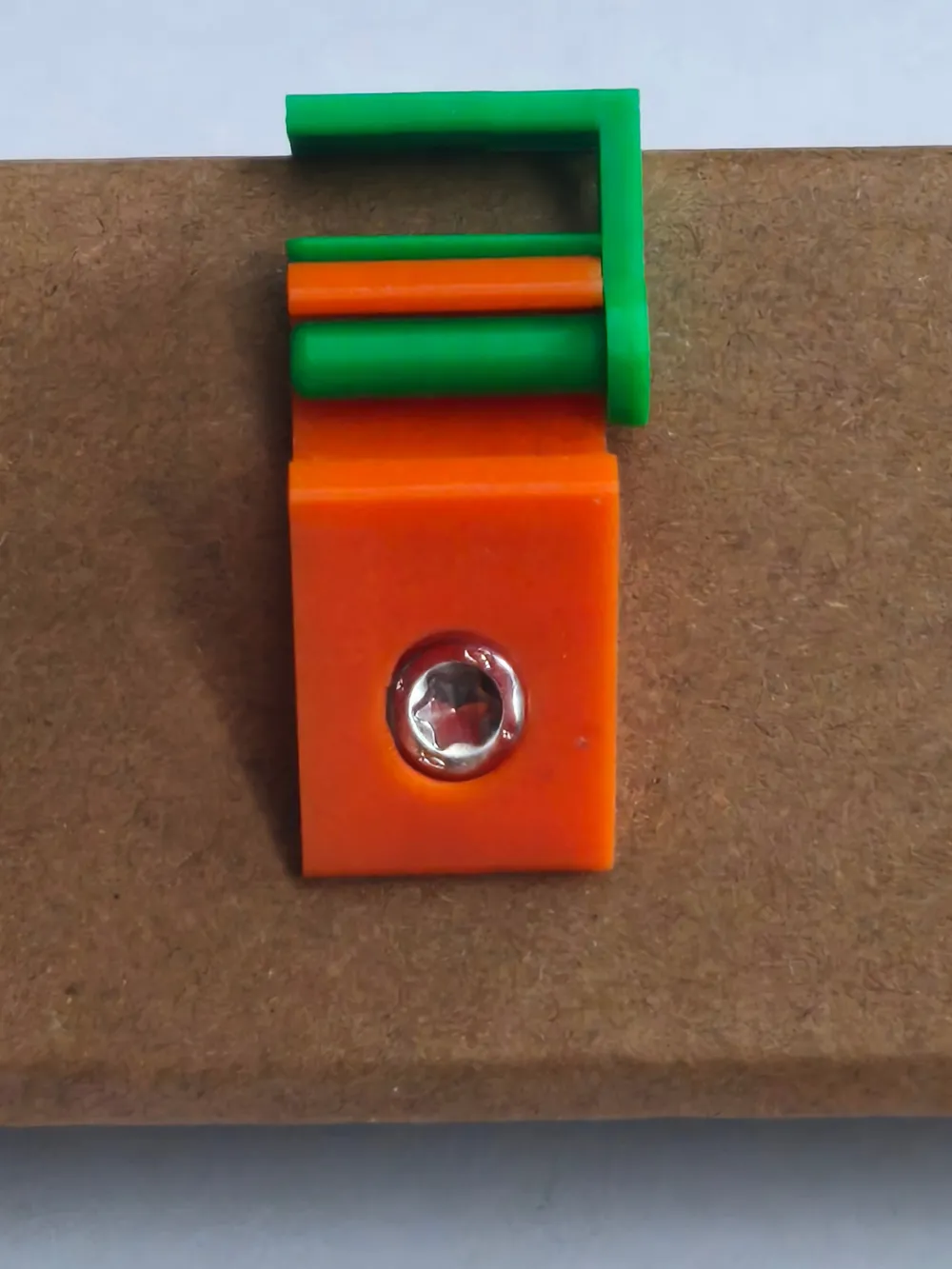

Why use the Alignment Tool?

I created this tool because nothing is more frustrating than a crooked lightstrip. Simply hook the tool onto the edge of your surface, slide the bracket into the slot, and screw it down. You’ll get professional, perfectly aligned results every time without needing a ruler or square.
