Gridfinity Stackable Drawer System (3x4x6 Unit)

📦 Gridfinity Stackable Drawer System (3x4x6 Unit)

Description This is a stackable drawer system compliant with the Gridfinity standard. The latest update features an integrated one-piece drawer design and a Click-Lock mechanism that ensures the drawer stays securely closed with a tactile click

✨ Key Features

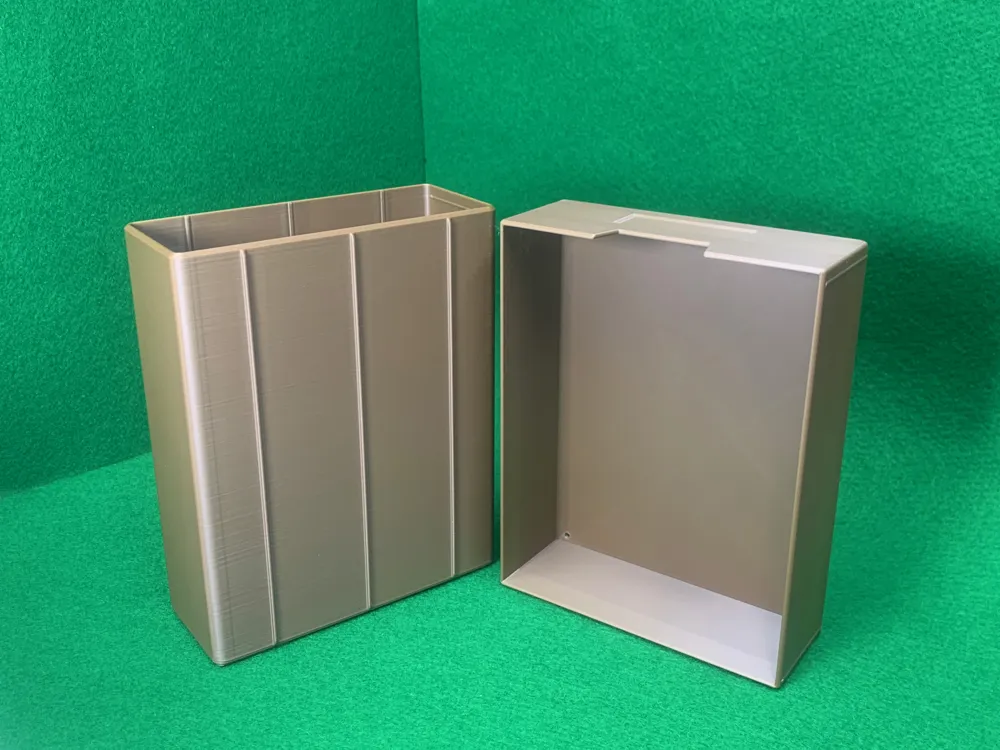

• Integrated Design: The drawer and faceplate are unified into a single piece, eliminating assembly and simplifying the print
• Click-Lock Mechanism: A specialized structure provides a 'click' when fully closed, keeping the drawer secure without the need for supports during printing
• Gridfinity Ready: Organize the interior with Gridfinity bins by adding a base plate (4.4mm height)
• Anti-Fall Stopper: Designed to prevent the drawer from sliding out completely

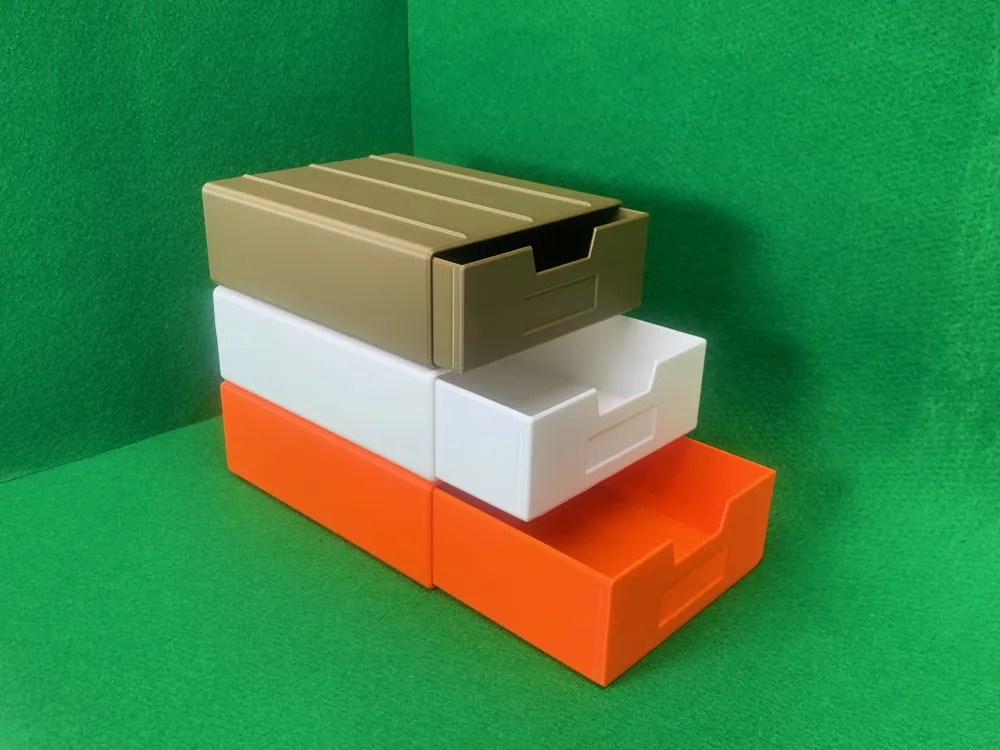

• Stackable Design: Matching grooves and protrusions ensure stable vertical stacking

📏 Specifications

All dimensions are in mm

• Width: 140.40
• Height: 56.60
• Length: 174.70
• Case Wall Thickness: 2.5
• Drawer Wall Thickness: 2.0

🛠 Print & Usage Guide

1. Print Settings:
   • No supports required due to the optimized integrated design
   • This model is fixed at a 3x4x6 unit size (A customizable version is currently under development)
2. Usage:

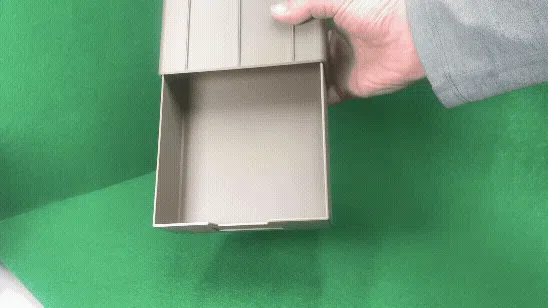

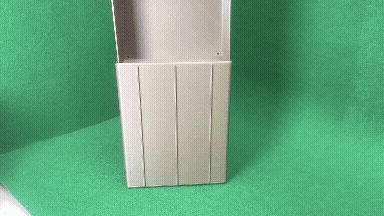

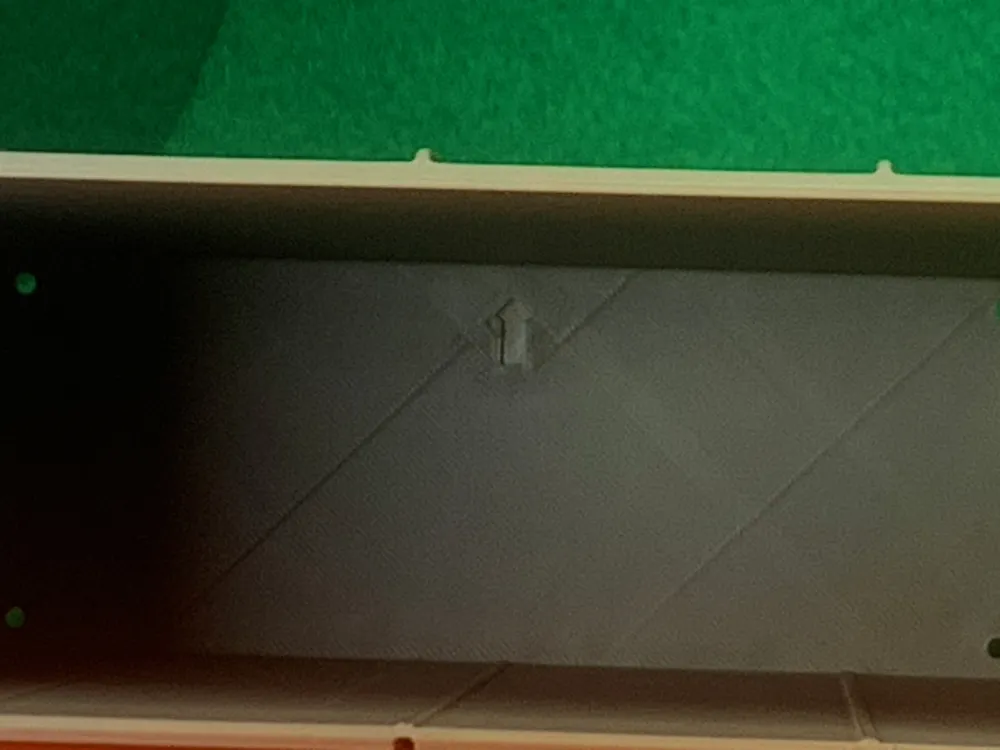

   • Insert the drawer while the case is positioned so that the arrow (↑) inside the back of the case points upward
   • It is normal to feel resistance at the stopper and locking points when first inserting the drawer. Align it horizontally and apply firm pressure; once you pass the resistance point, it will operate smoothly

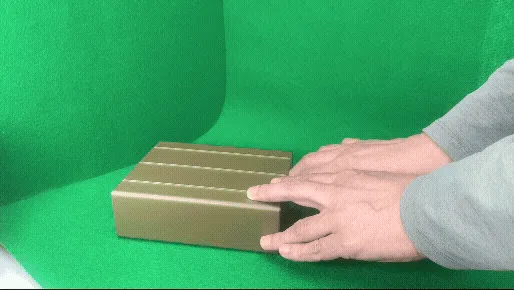

   • You will feel a second point of resistance just before the drawer is fully closed. This is intentional to ensure the drawer is securely locked. Apply a bit more pressure at this point, and you will feel/hear a 'click' as the drawer closes completely. In this state, the drawer will not slide open even if the case is tilted forward

⚠️ Notice:

• Excessive repeated removal and re-insertion of the drawer from the case may wear down the stopper mechanism over time, potentially reducing its effectiveness

Happy Printing! If you like the model, please support it with a rating and review! 😊
