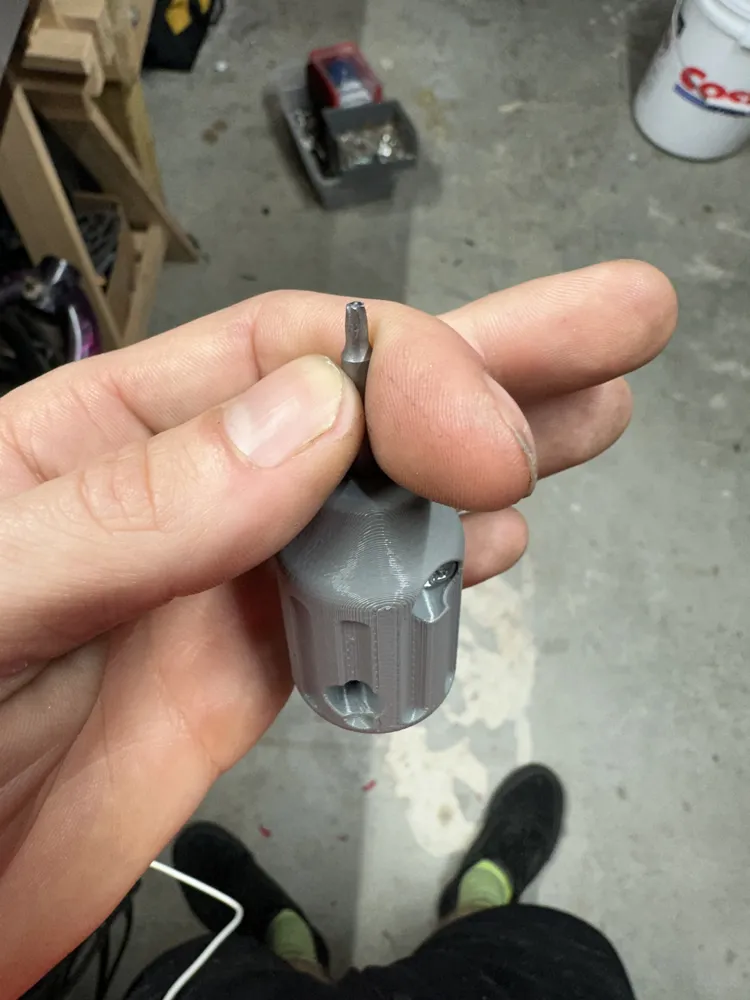

Tired of using a small, pointy and easy to loose Sram t-8 L key when installing brakes?  I find the tool to be usable but i wanted something more comfortable and i didnt see what i liked online to print.

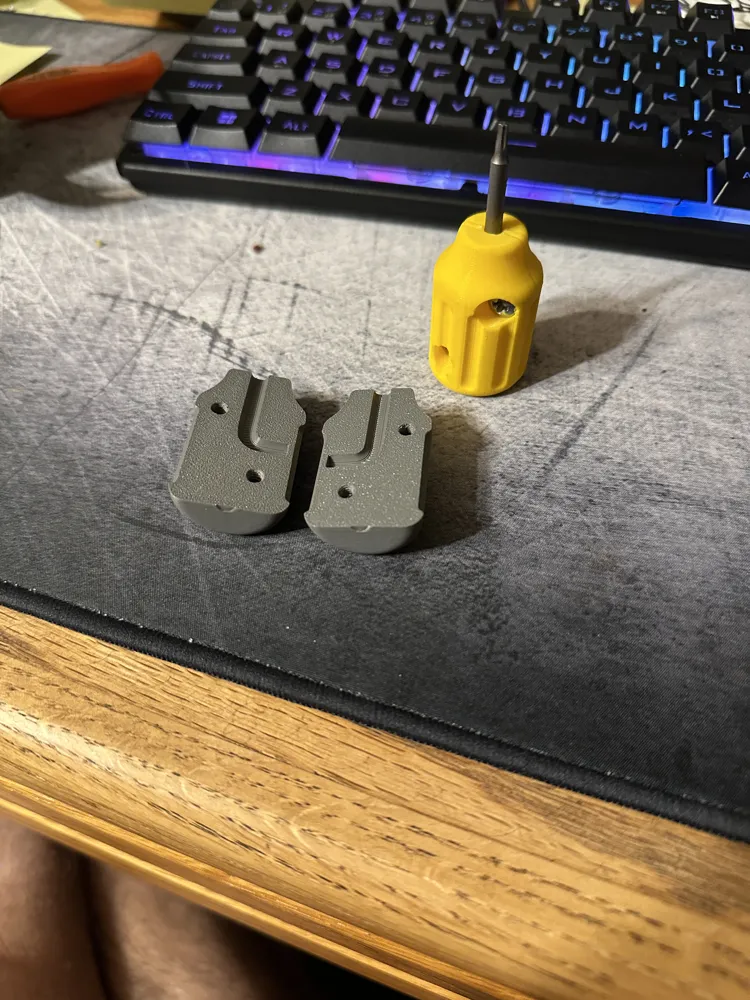

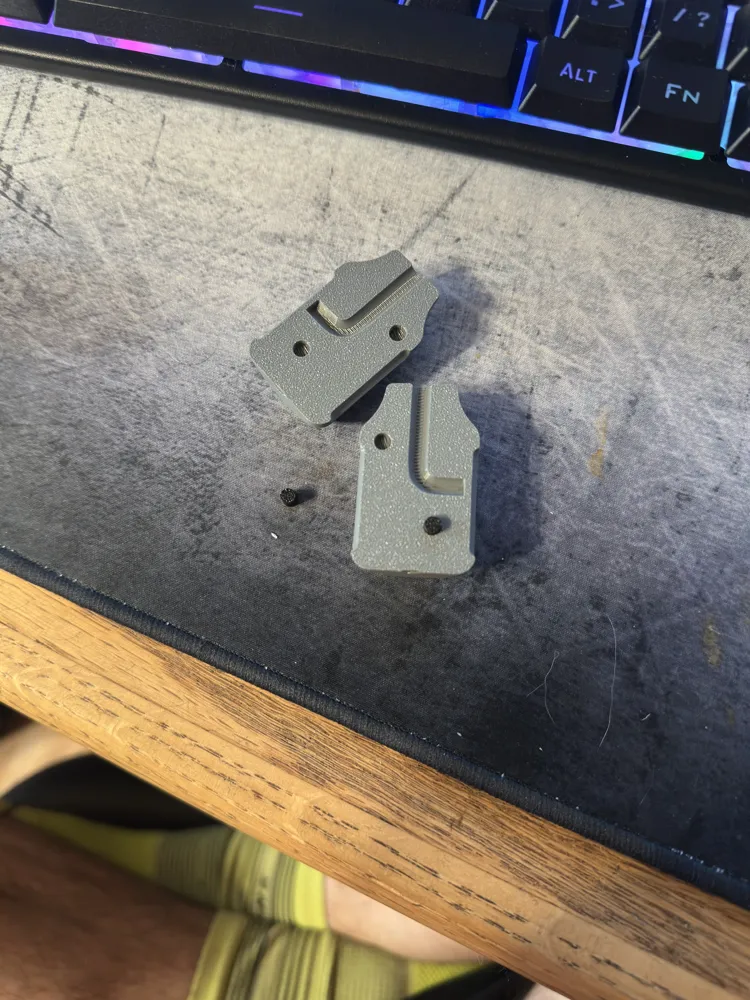

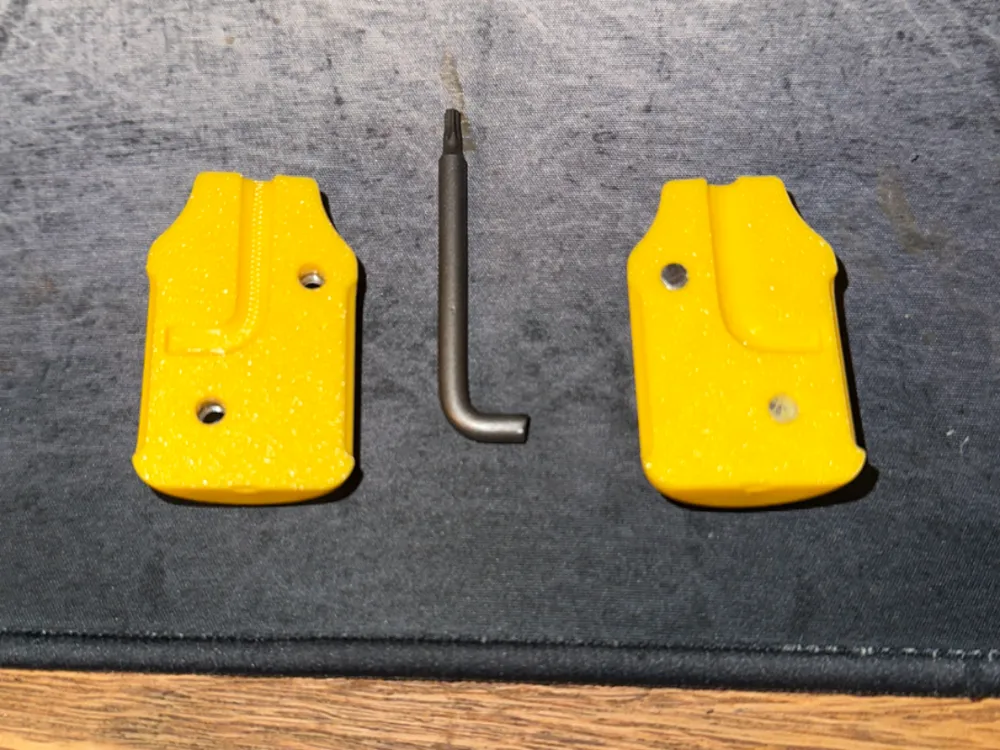

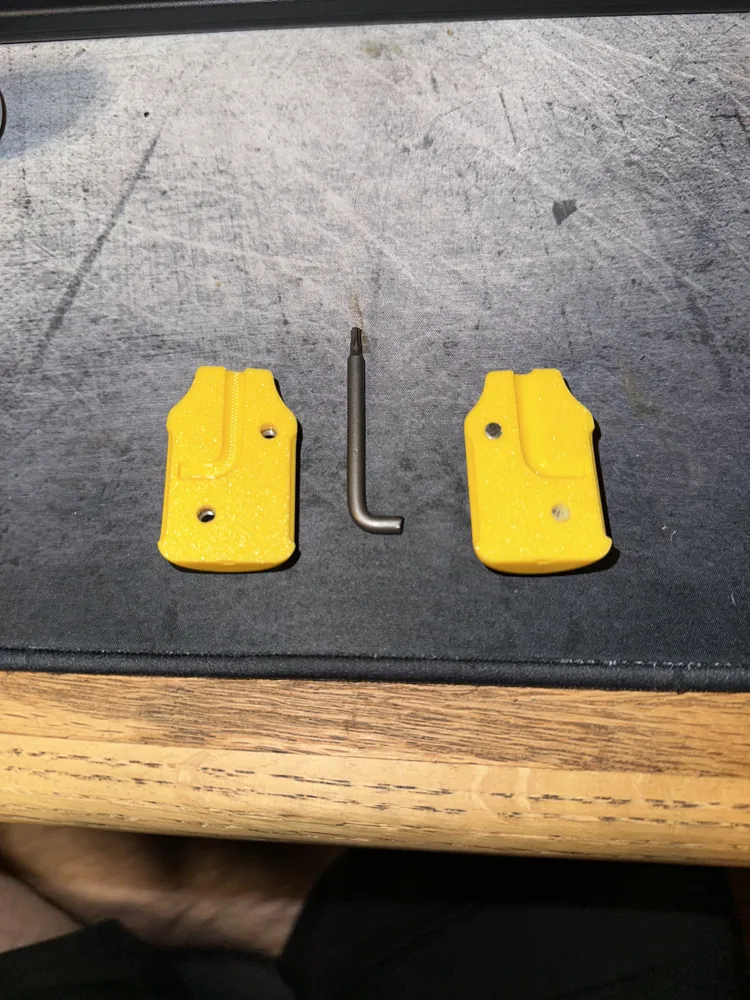

The tool does need modification to fit with an angle grinder and bench grinder. The tool is cut to 12mm as seen in photos. Hardware is M4x0.7 x 12mm bolt/screw and M4x0.7 nut with 7mm flats. I have also made a glued version if you do not want the hardware showing.

Print is pretty flexible, during prototyping, i printed with 0.08, 0.12, 0.16 and 0.20 with fine results all around, really depends on the quality you want. Infill at 15%, it does not need much strength, i was able to break the tip off the tool before there was any damage to the handle as seen in photo.
