Vented Brake-Guard for Rockshox ZEB
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
11.6 h
1 plate
Open in Bambu Studio
Boost
56
141
4
2
40
15
Released
Description

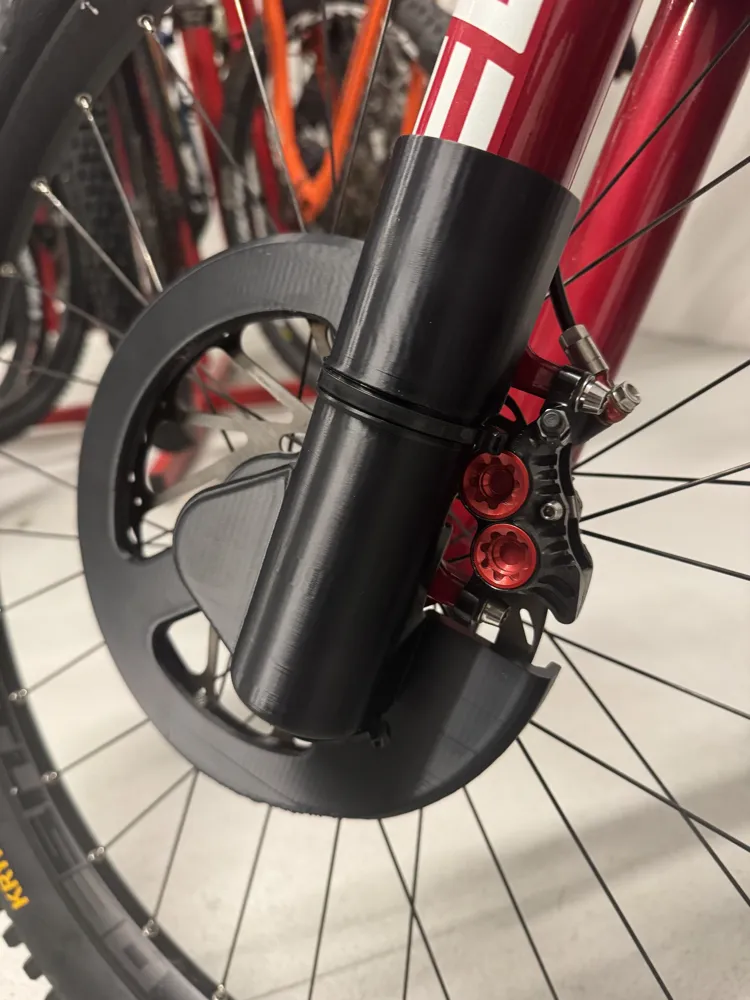

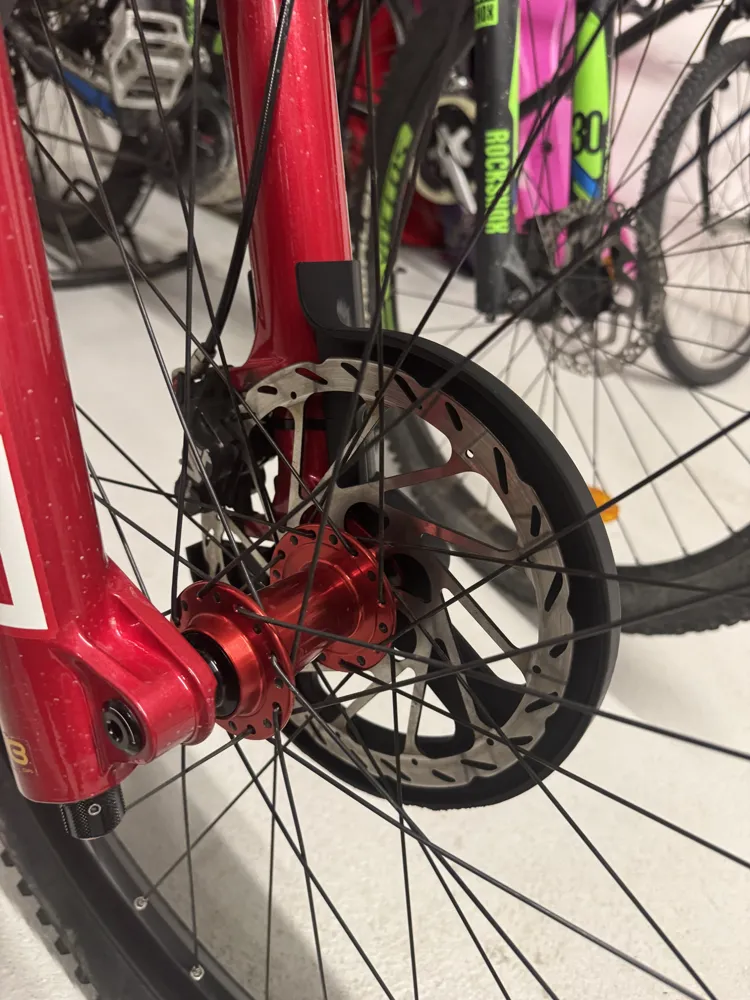

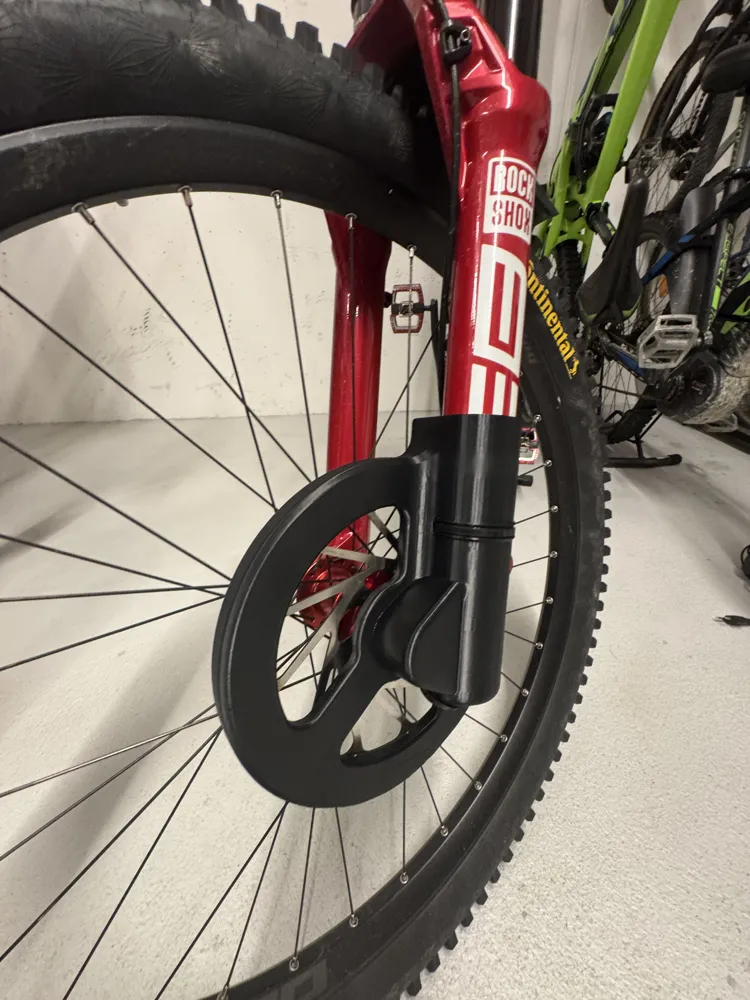

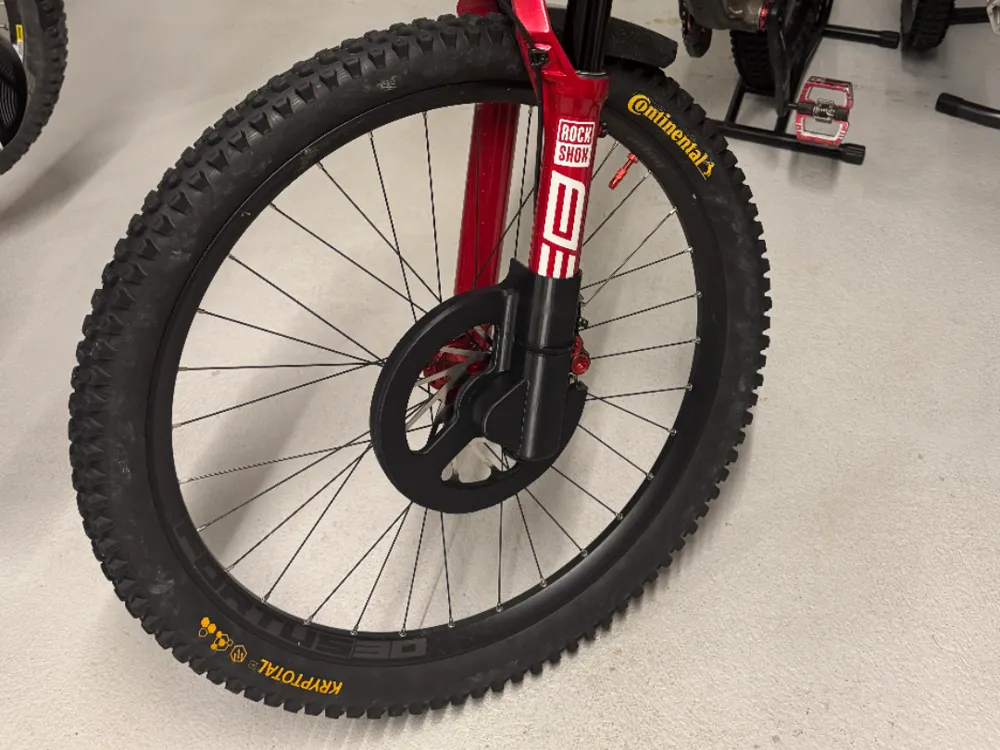

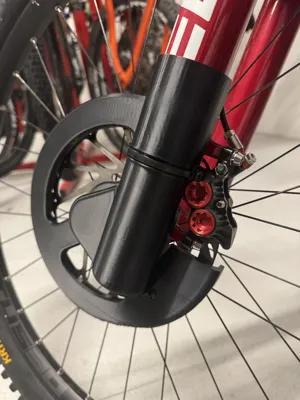

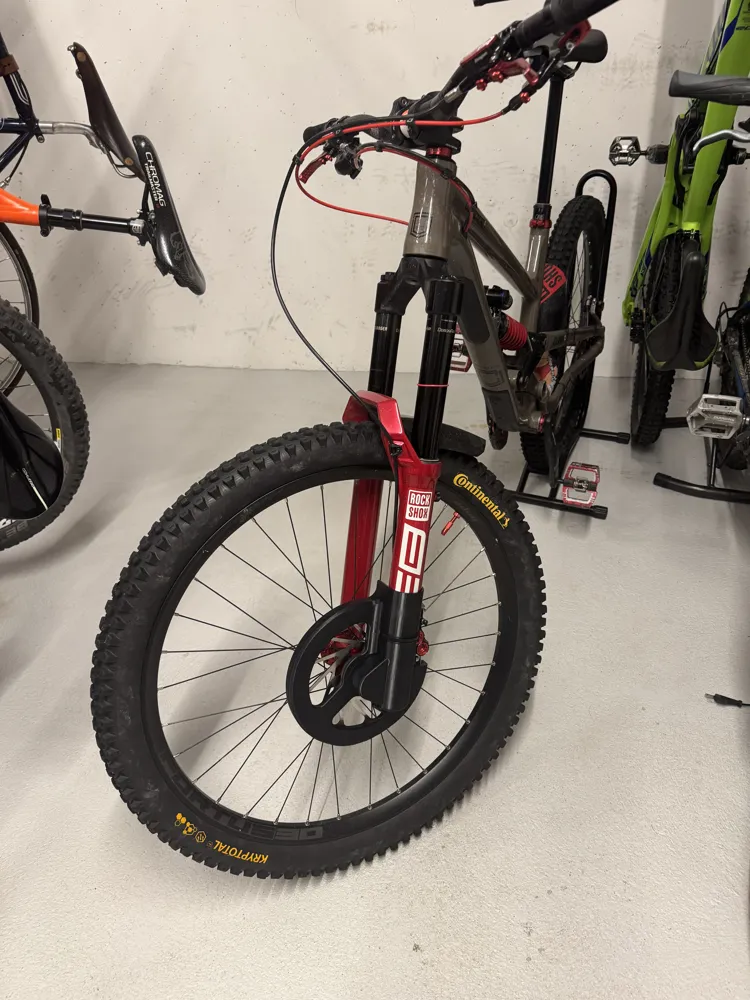

This is a custom made bike brakerotor gurad for my RockShox ZEB Ultimate with 44mm Offset and a 200mm disc.
It was inspired by DEVOTION INDUSTRIES desing but built up from complete scratch. It should work with all the brakes, as it was planed with the Hope V4 in mind, which is a pretty bulky brake.
I printed it vertically with 15%% infill and wallthicknes of 3 lines and supports. I used ELEGOO ASA for the print and it turned out pretty good, appart from some overhang-issues at the beginning.
You only need 2x zipties to secure the guard to the fork
