Audi A4 B7 Cupholder – Glovebox Clamp Mount

This compact and robust cupholder was specially developed for the Audi A4 B7. It is simply clamped between the glove compartment trim – no drilling, no gluing, and no permanent modifications to the vehicle necessary!

Ideal for anyone looking for an additional or more stable storage option for cans (0.33l / 0.5l) and bottles.

Features:

  • Plug & Play: Easy installation by clamping into the glove compartment gap.

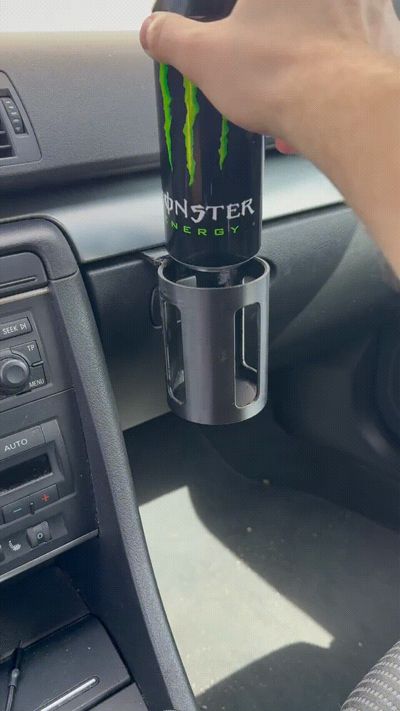

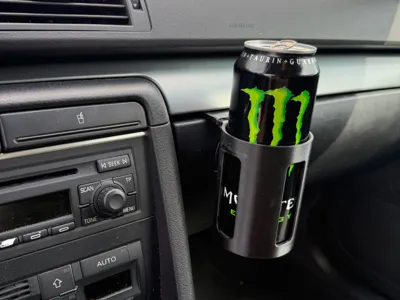

  • Stable & Secure: Holds standard cans (as shown in the picture) absolutely securely.

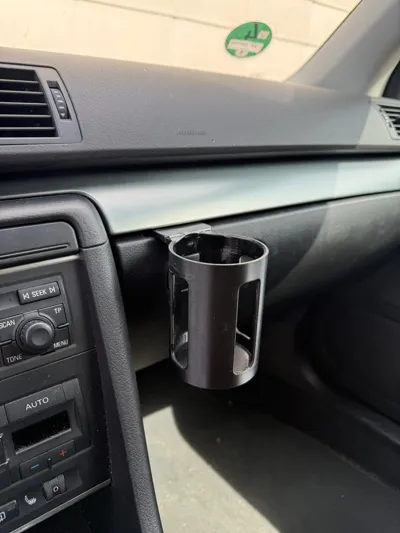

  • Subtle Design: Blends seamlessly into the interior of the Audi B7.
  • Material Optimized: Designed for printing with heat-resistant materials.

Print Settings & Material Recommendation:

Since vehicle interiors can get very hot in summer (over 70°C), I strongly recommend using ABS, ABS+ or ASA. Standard PLA would deform when exposed to sunlight.

  • Material: ABS+ (tested) or ASA
  • Infill: min. 10% (for sufficient clamping stability)
  • Walls: 2-4 wall lines
  • Support: Yes, as seen in the slicer screenshot (Hybrid Tree Support is strongly recommended).
  • Print Bed: Textured PEI plate recommended for best adhesion with ABS.

Installation Note:

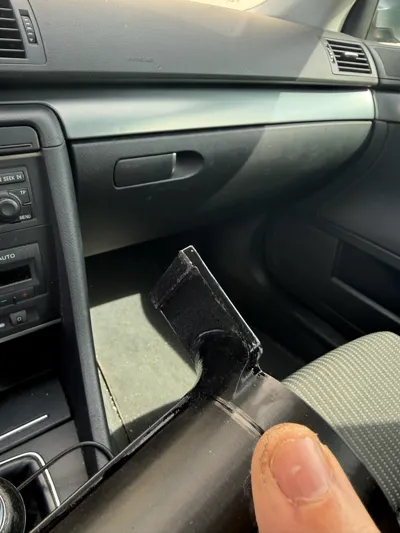

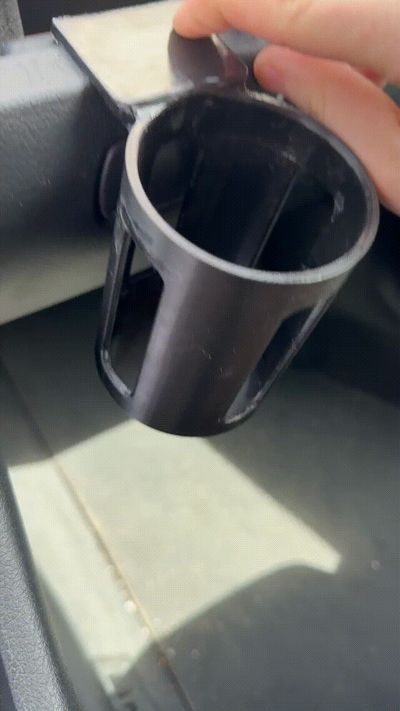

Simply slide/clamp the holder into the gap towards the center console with the glove compartment slightly open or closed. The fit is tight to ensure nothing wobbles even when cornering. It is recommended to tape the contact surfaces on the glove compartment to prevent scratches.



Have fun printing! I would be very happy about a Like or a Make photo.
