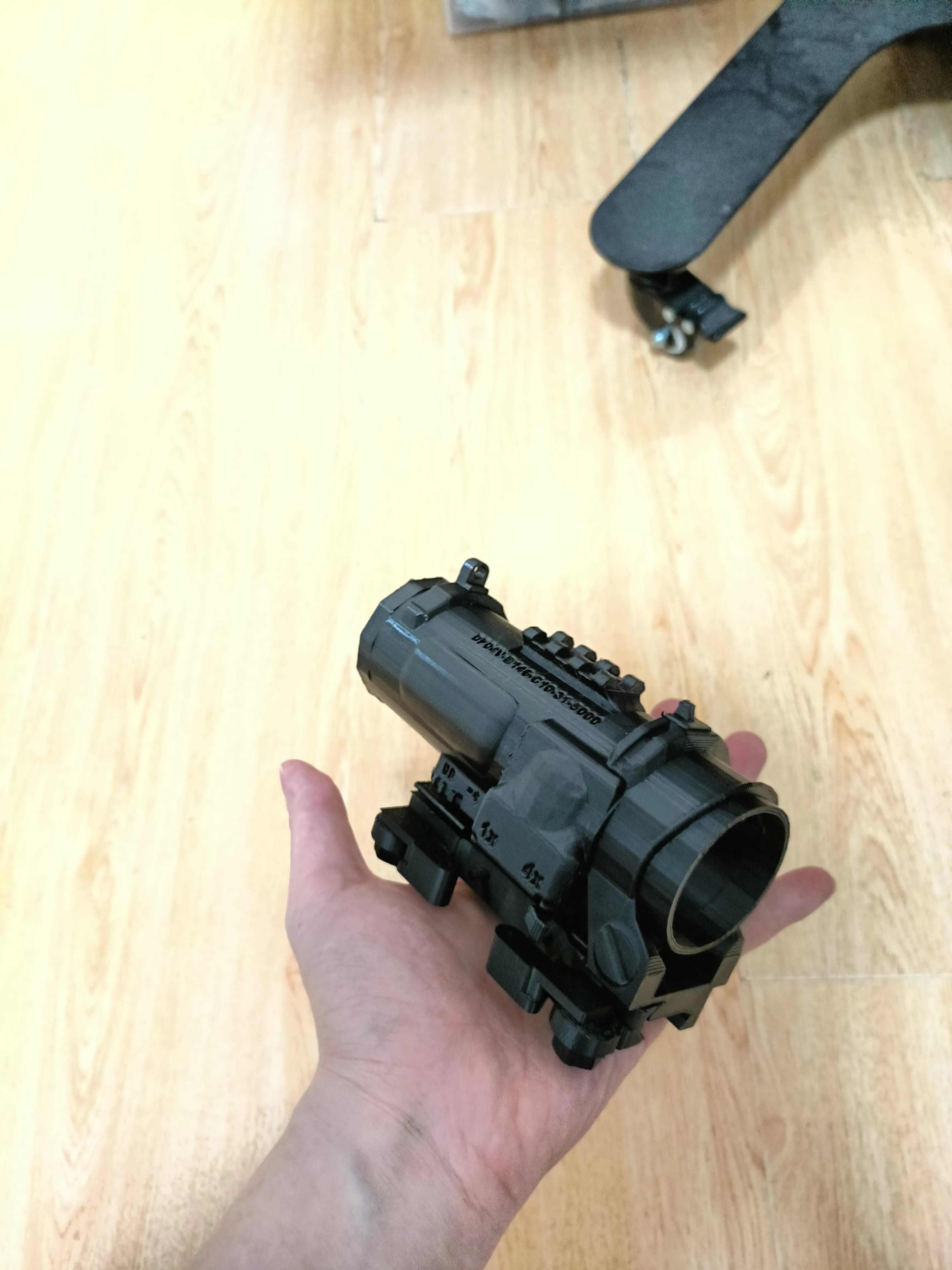

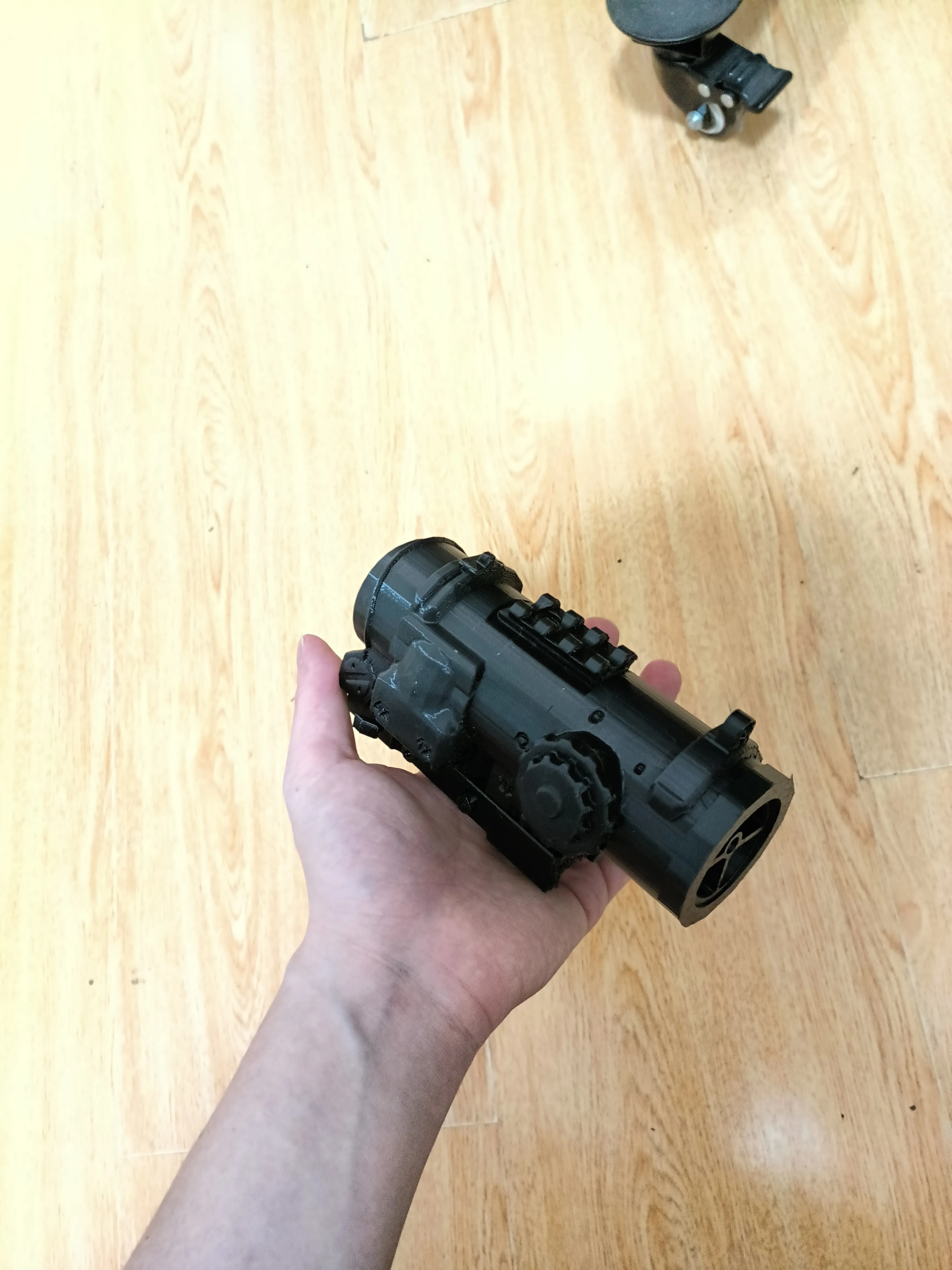

prop scope with picatinny mount + built in iron

This model exists due to the insistent request of a user from MW.

The shape is based on a real-life E*l*can S*p*ectre prism sights (sorry, I have to use the * for filler, else WM will say “fail to publish due to copyright” )

The scope has all the markings besides the company name or LOGO (again, due to copyright reasons)

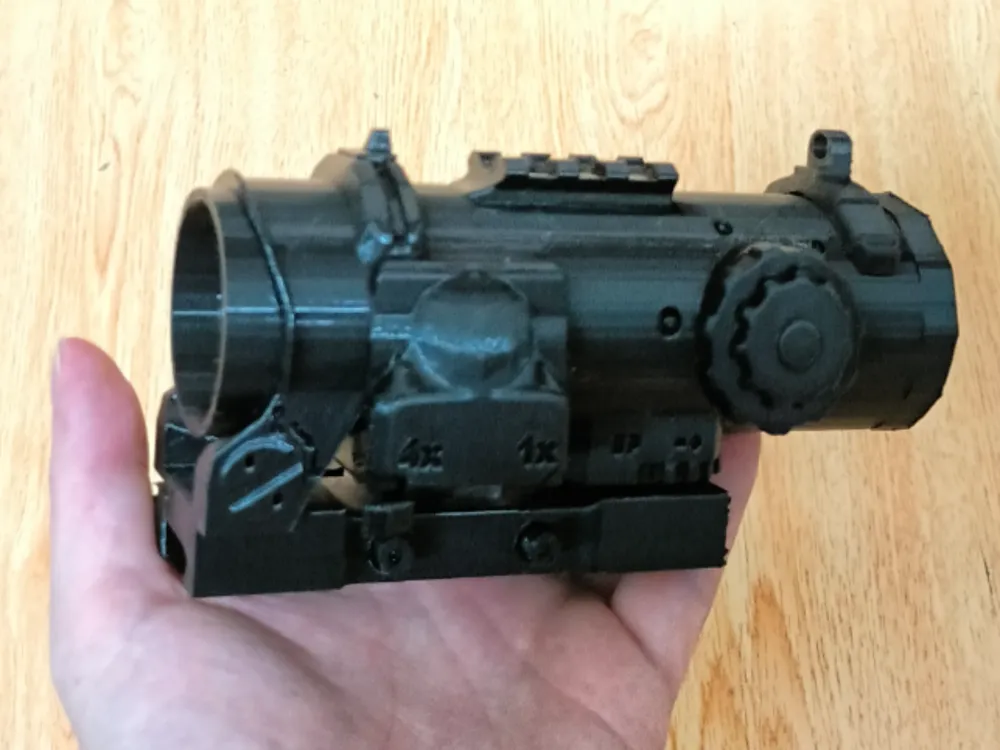

It has a built-in backup iron sight on top with a correctly sized Picatinny rail on top. So you could attach it with a reflex sight of some sort

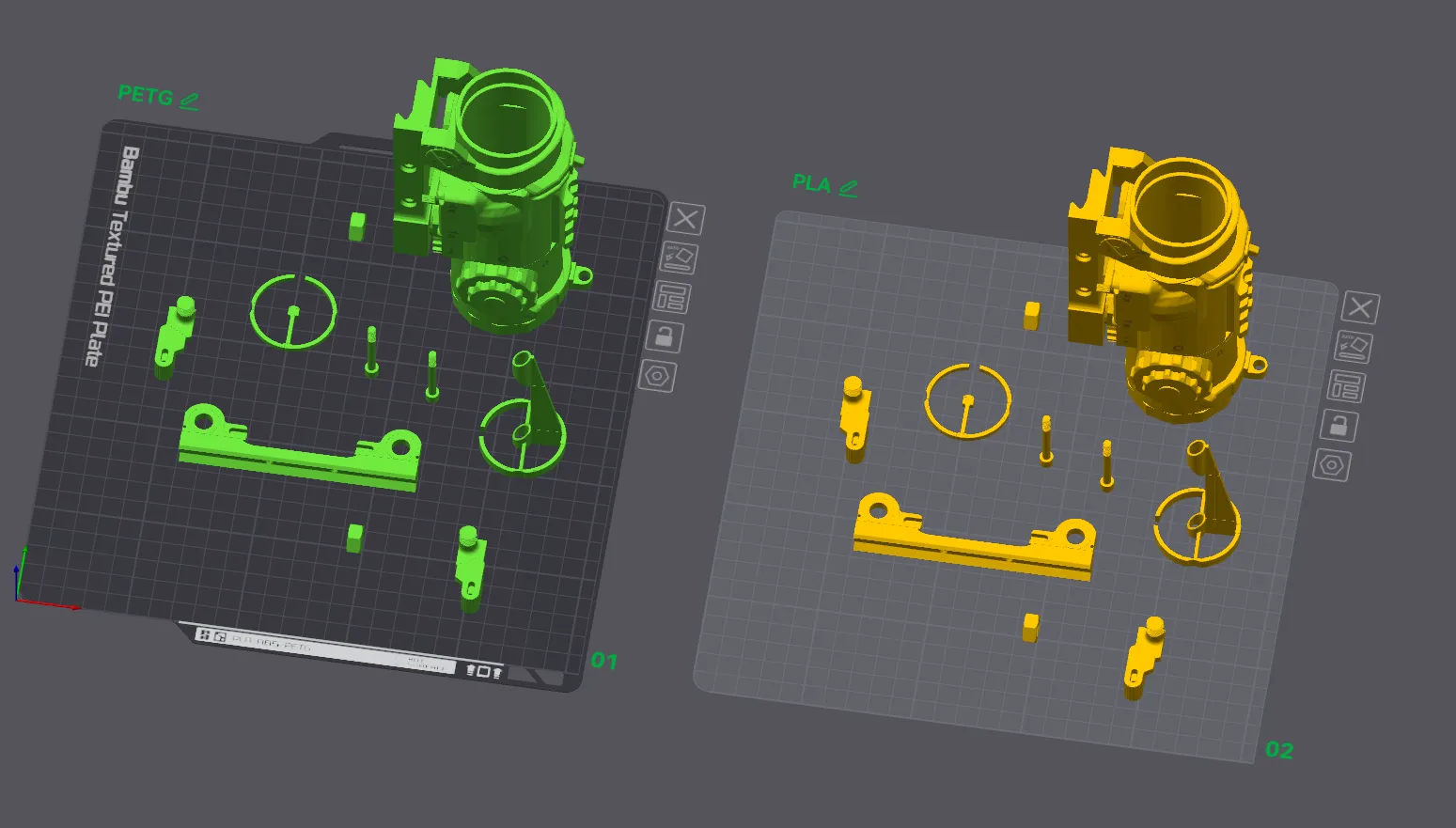

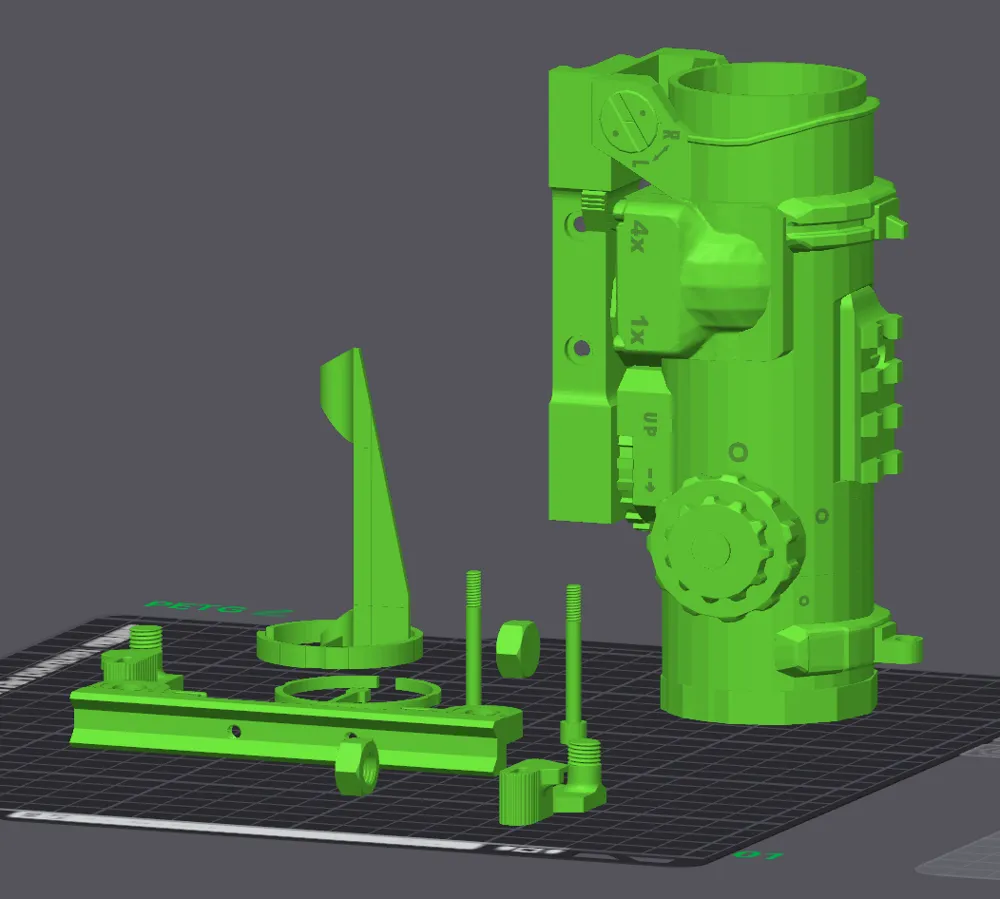

The print file includes 2 plates, plate1 is for PETG (recommended), and plate2 is for PLA (not as recommended as PLA is more fragile). Choose the material for the plate you want to print

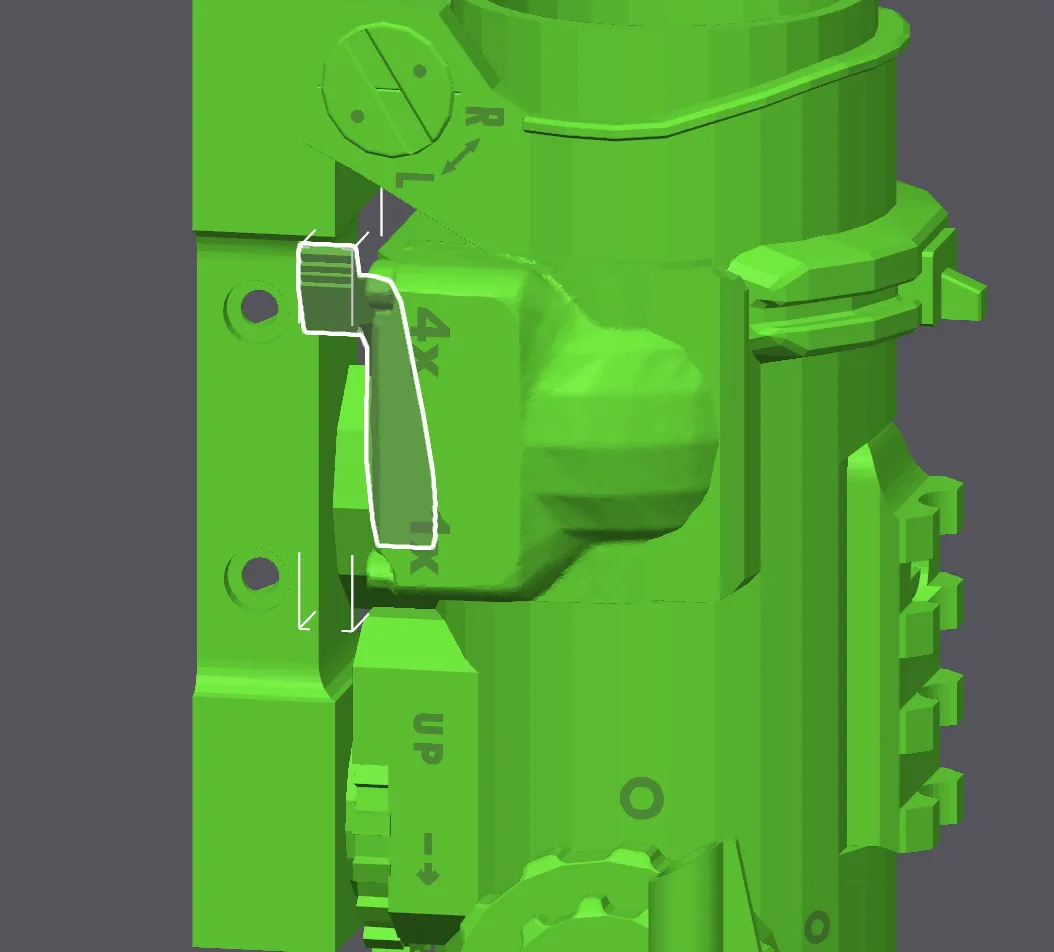

Be aware that this lever part is quite fragile. When you break away the tree support after printing, please pay attention not to break it. (There is one lever on each side. The lever cannot move and only serves for aesthetic purposes)

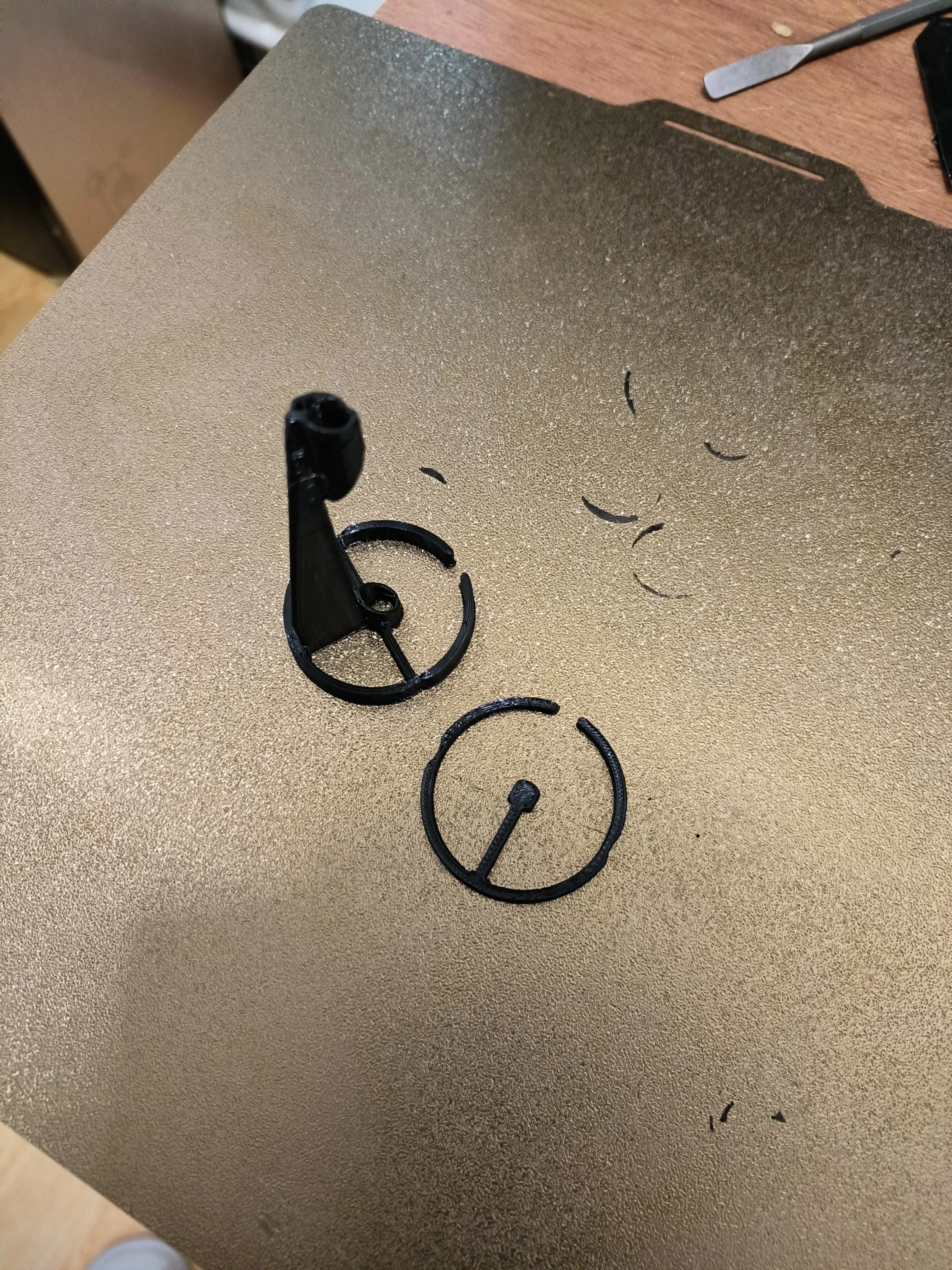

It includes 2 types of prop reticle

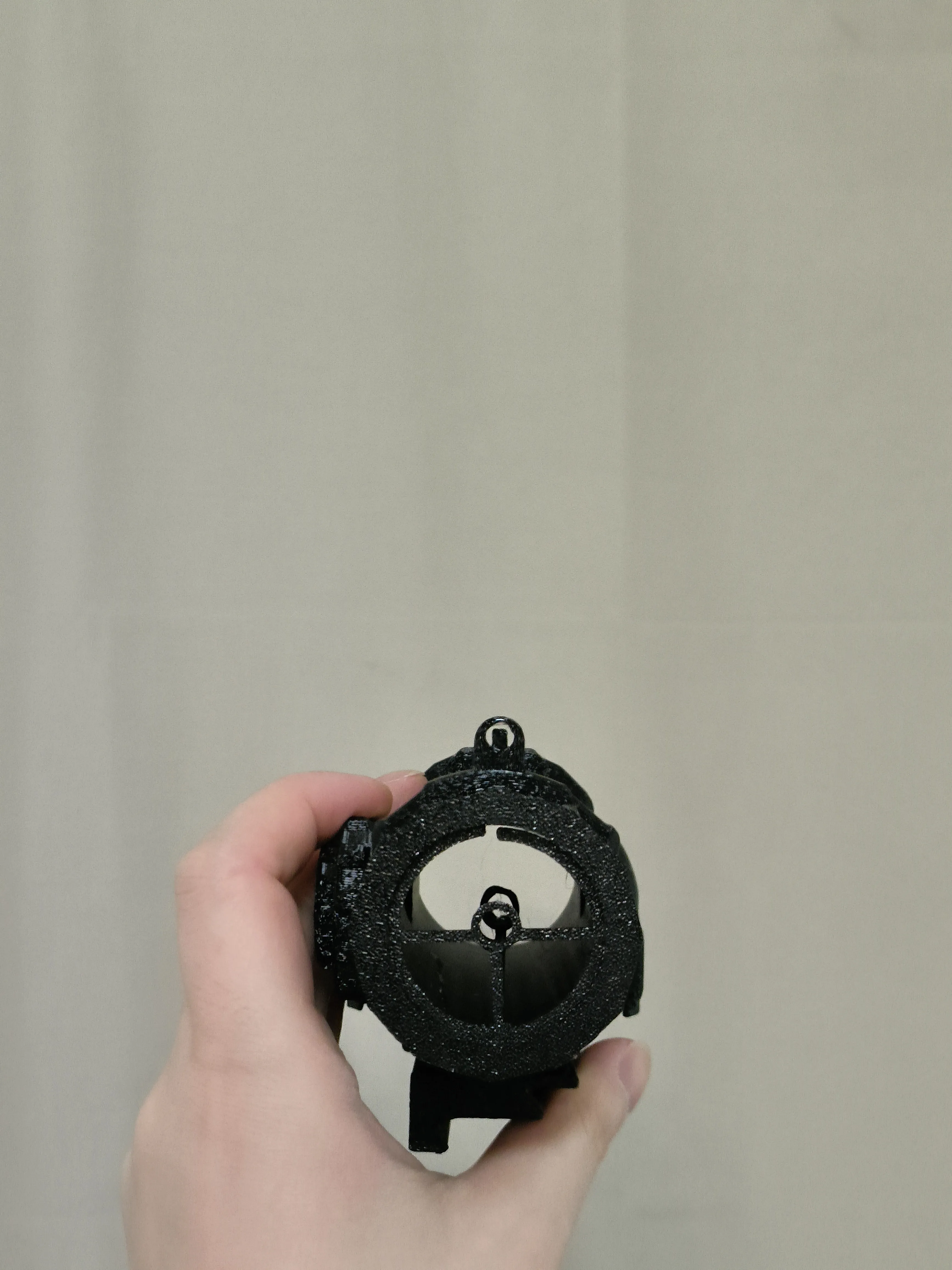

One is simple, just stick it in from the eyebox side (the side closest to your eye) and pretend you have a reticle

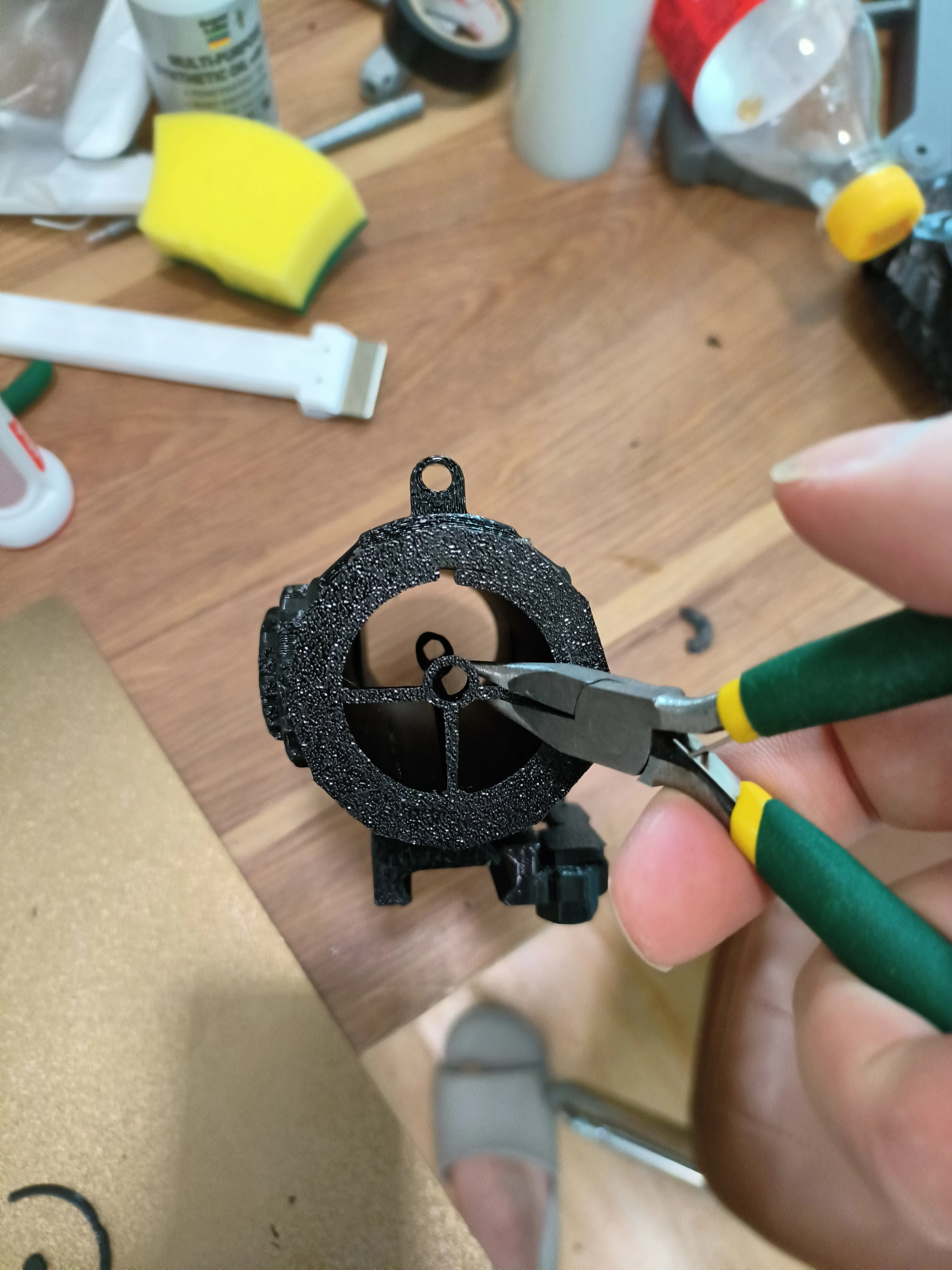

One that you can use for some level of accuracy when aiming (and it would still be very inaccurate.  If you insist on using this version, you need to zero it when mounting it in the Picatinny rail, then tweak the alignment with a pair of pliers, and then glue the reticle in place. If you do not zero it, then just use the simple version!)

(The original idea came from @LOAM's Nerf Rival Sight NO SUPPORTS!!!)

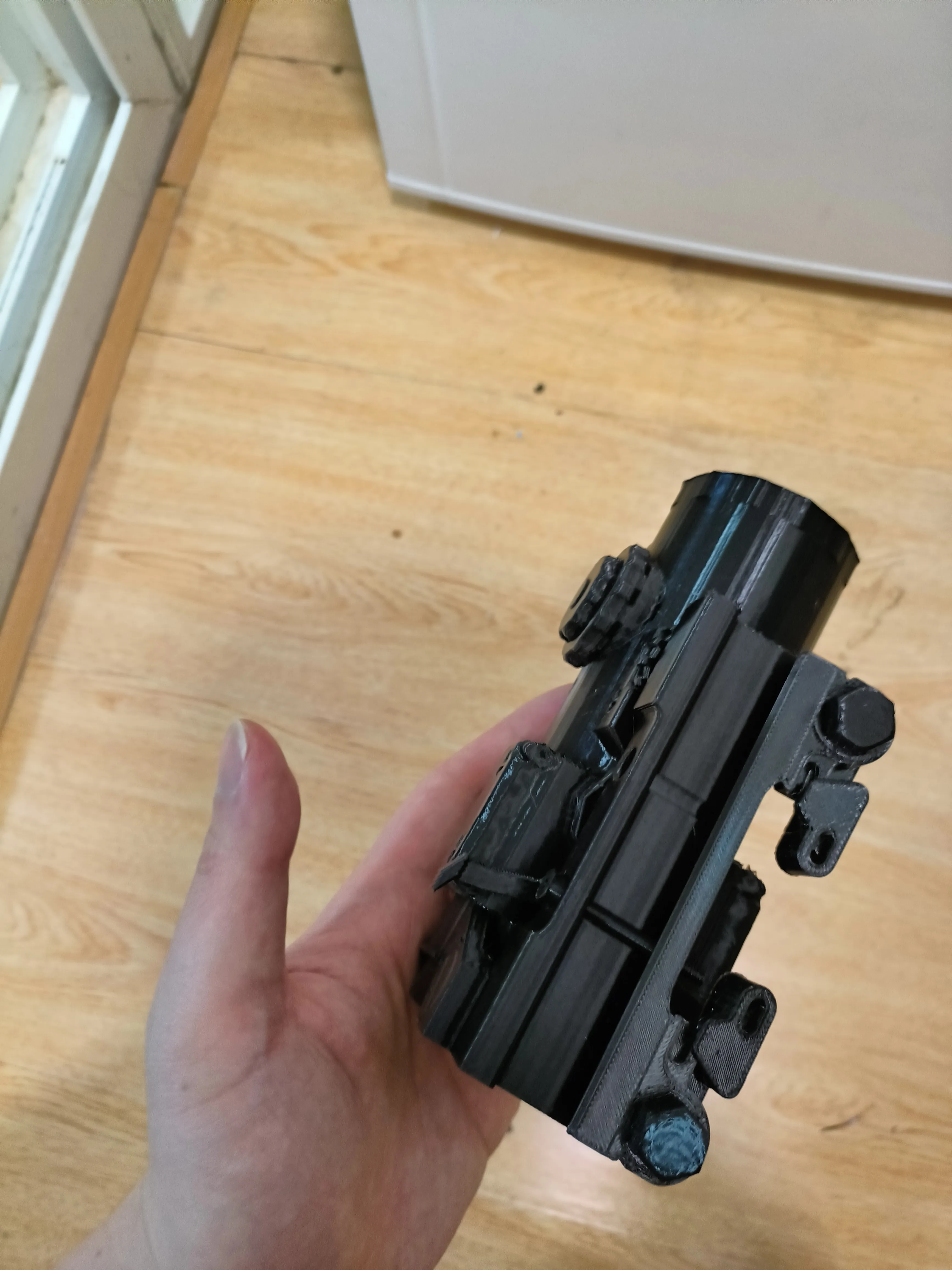

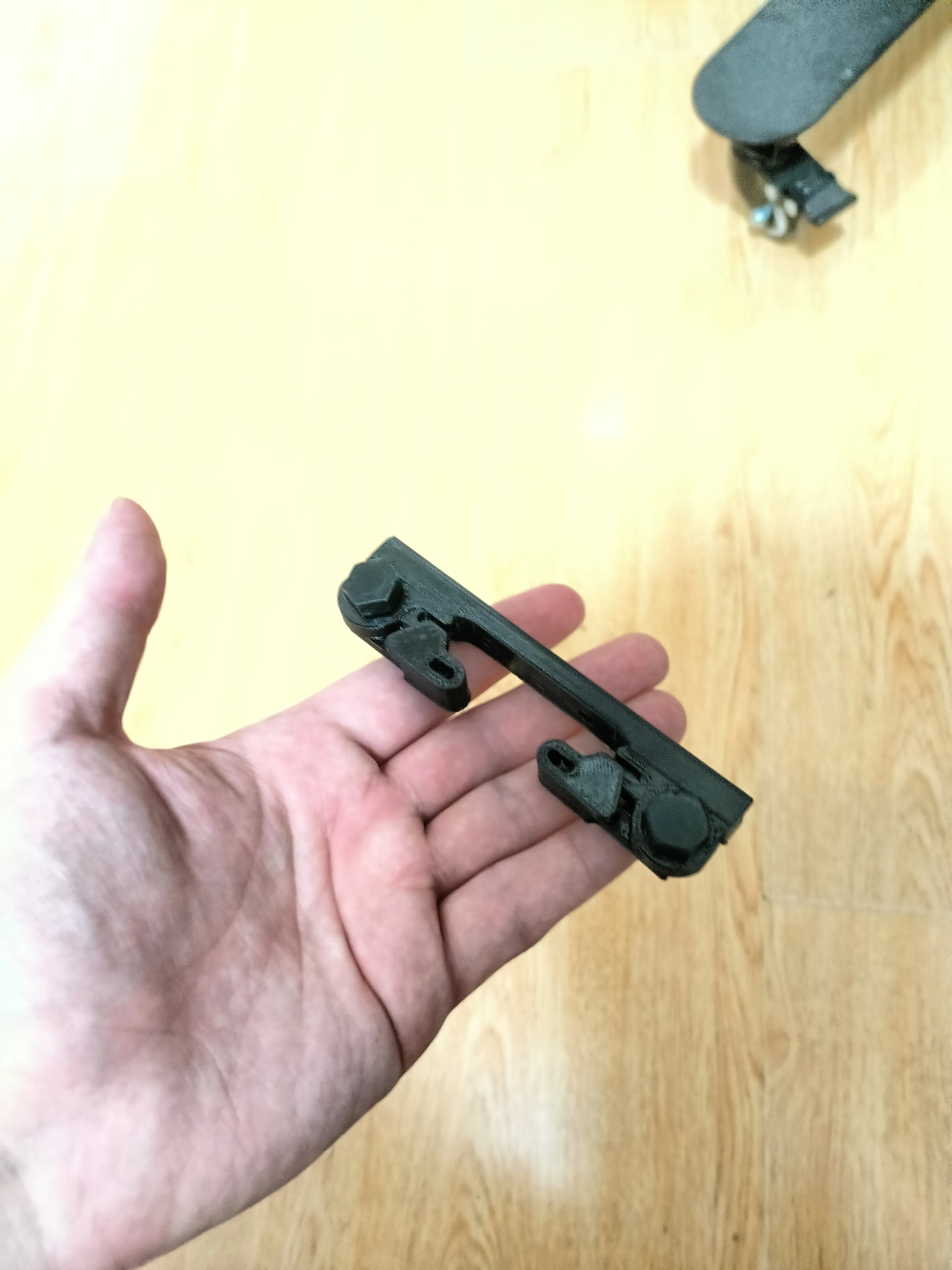

Designing a mounting system for the Picatinny rail is too hard, so I give up on the quick disconnect (QD) attachment system. So it only looks like a QD for aesthetic purposes, but in reality, you need real screws. The print file includes 2 printable screw, but it is not a good solution. A better way is to buy 2 of M3.5 by 30mm screw, with its hex nut (can work). Or with 2 of #6 screw by 1.25 inch, and hex nut

The QD-looking thing was because I intended to copy @补补觉去's Trijicon ACOG 4X Rifle Scope & TA-31 DOC Red Dot solution, but gave it up halfway due to the scope being too thick, and the hinge would certainly interfere with the scope body. Because I doubt many people would download this scope in the first place, so just let it be. If there are many downloads, then I will make a proper QD mount solution.
