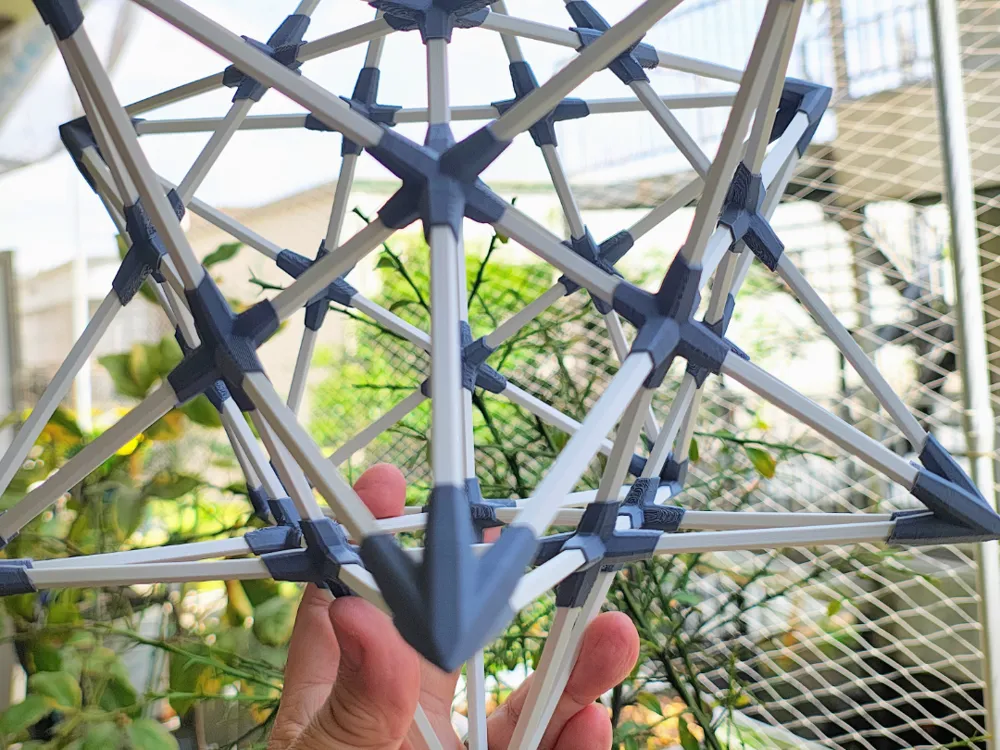

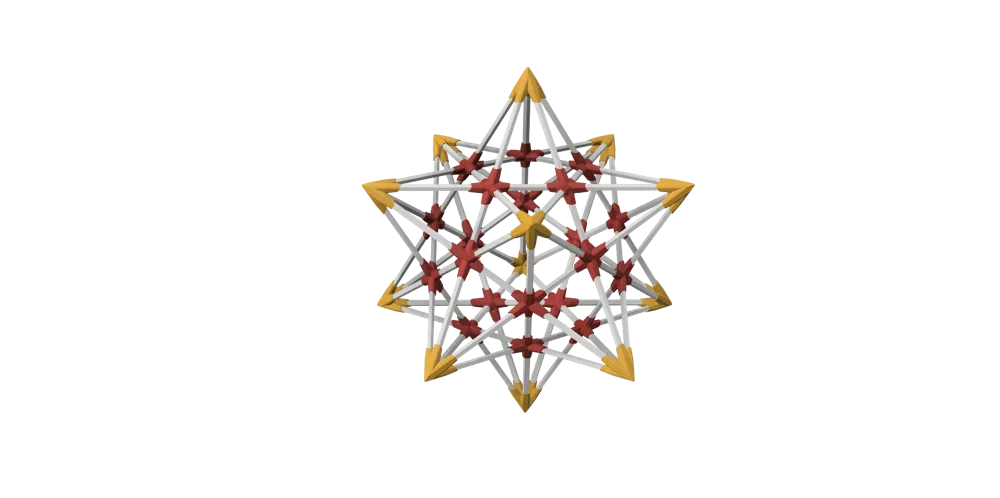

Modular Stellated Dodecahedron
A fully modular, assembly-based stellated dodecahedron composed of 4 unique parts.
Parts List:
- Apex Tip × 12
- Outer Strut × 60
- Inner Node × 20
- Inner Strut × 30
Print Settings:
- Material: PLA
- Layer Height: 0.2mm
- Supports: Required for Apex Tip and Inner Node only
Assembly Instructions:
- Build the inner dodecahedron core using 20× Inner Node and 30× Inner Strut
- Assemble 12 outer apex units using Apex Tip and Outer Strut
- Attach the 12 outer units to the core to complete the model
⚠️ Assembly Note: Each Outer Strut has orientation markers.
- ○ (circle end) → connects to Apex Tip
- | (line end) → connects to Inner Node
Inner Strut has a specific orientation — it will only fit when inserted correctly.
Modular Stellated Dodecahedron
An assembly-based stellated dodecahedron composed of 4 unique parts.
Parts List:
- Apex Tip × 12
- Outer Strut × 60
- Inner Node × 20
- Inner Strut × 30
Print Settings:
- Material: PLA
- Layer Height: 0.2mm
- Supports: Required for Apex Tip and Inner Node only
Assembly Instructions:
- Build the inner dodecahedron core using 20× Inner Node and 30× Inner Strut
- Assemble 12 outer apex units using Apex Tip and Outer Strut
- Attach the 12 outer units to the core to complete the model
⚠️ Assembly Note: Each Outer Strut has orientation markers.
- ○ (circle end) → connects to Apex Tip
- | (line end) → connects to Inner Node
Inner Strut has a specific orientation — it will only fit when inserted correctly.
