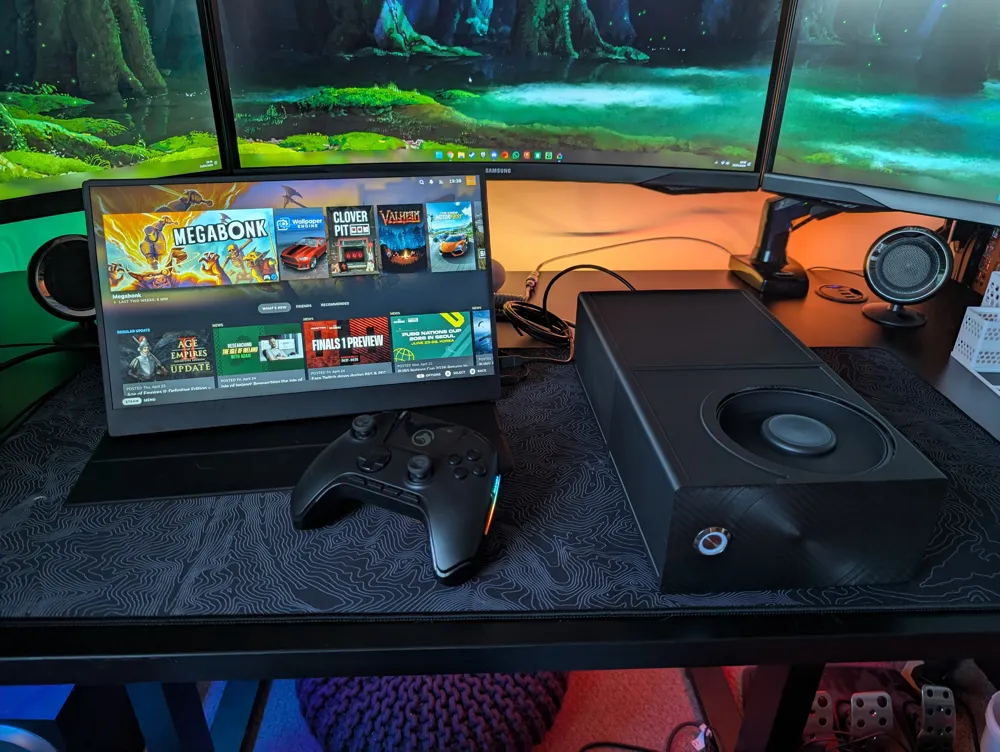

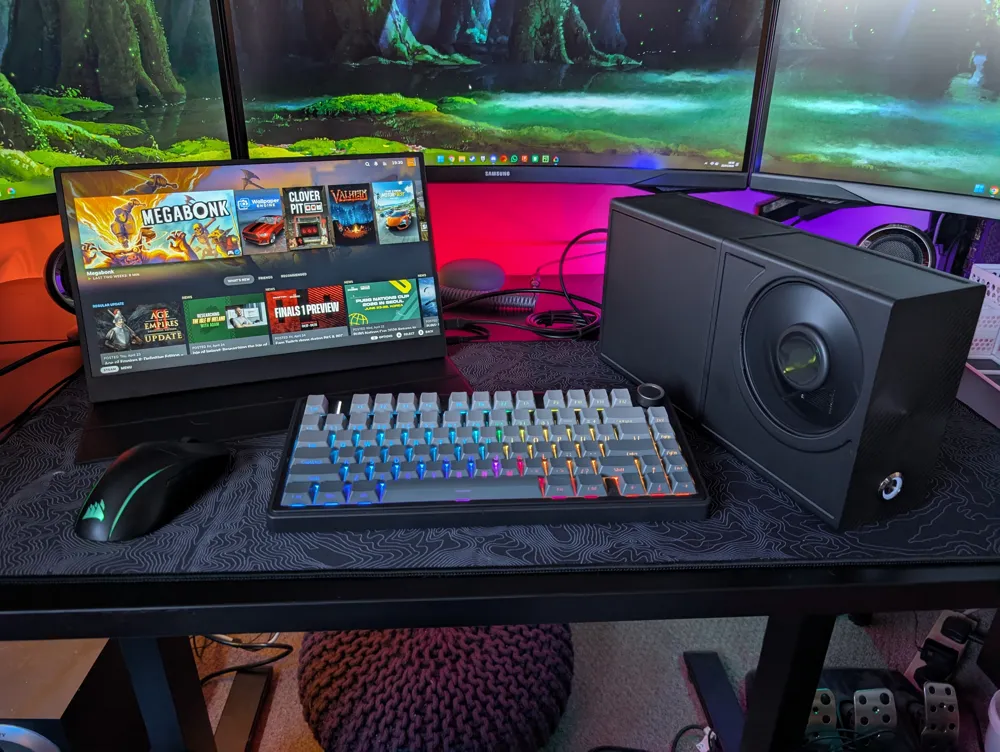

This is my own design for a small form factor case built around the ASRock BC-250, a cut-down Playstation 5 chip originally intended for crypto mining.

I call it the MK-ULTRA Uno

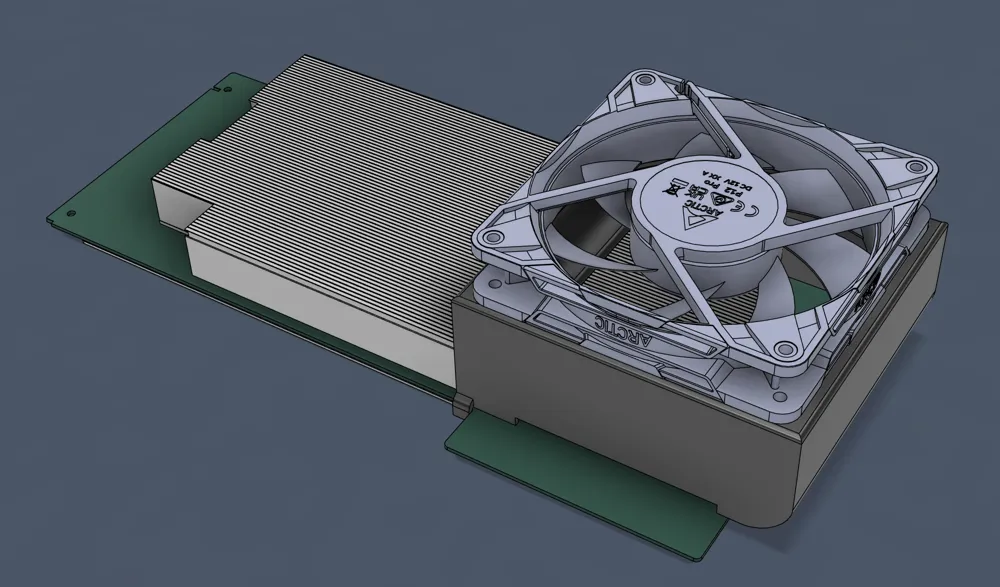

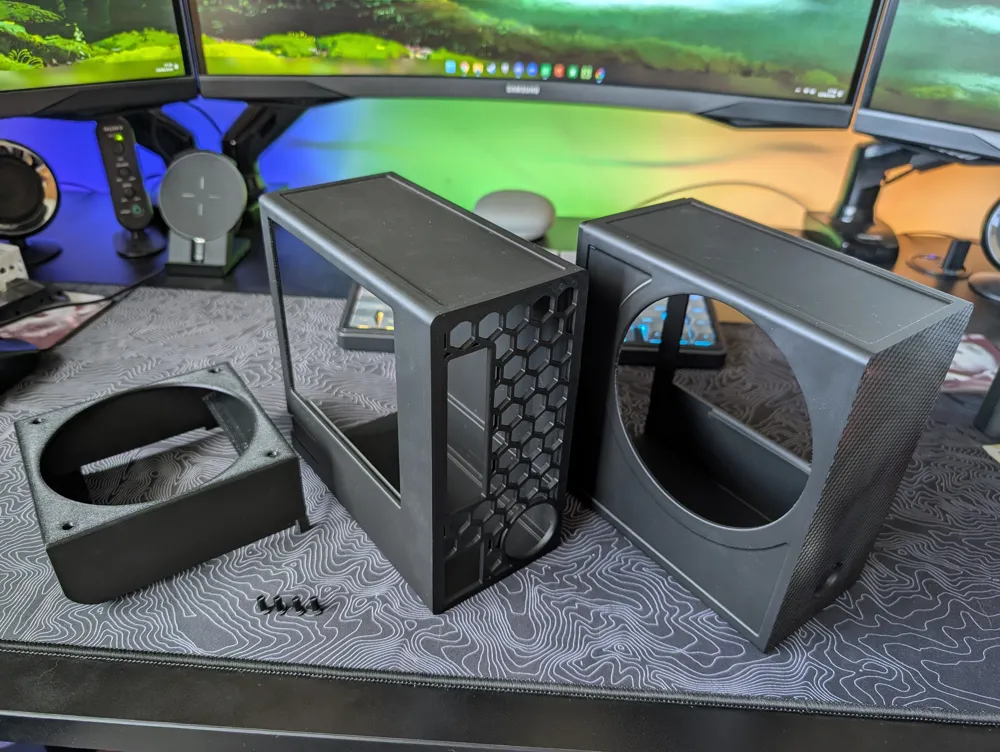

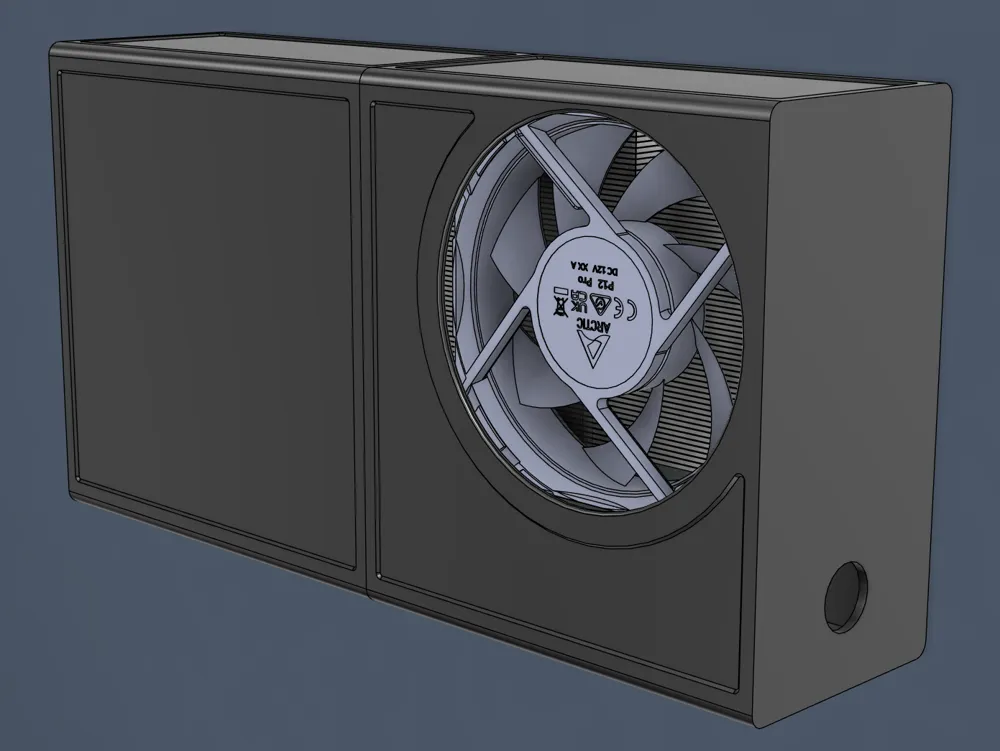

It Prints in only 3 main parts and features a completely tool-less design with pins printed with the fan shroud to attach the 120mm fans. I used the Arctic P12 Pro but any 120mm fan should fit.

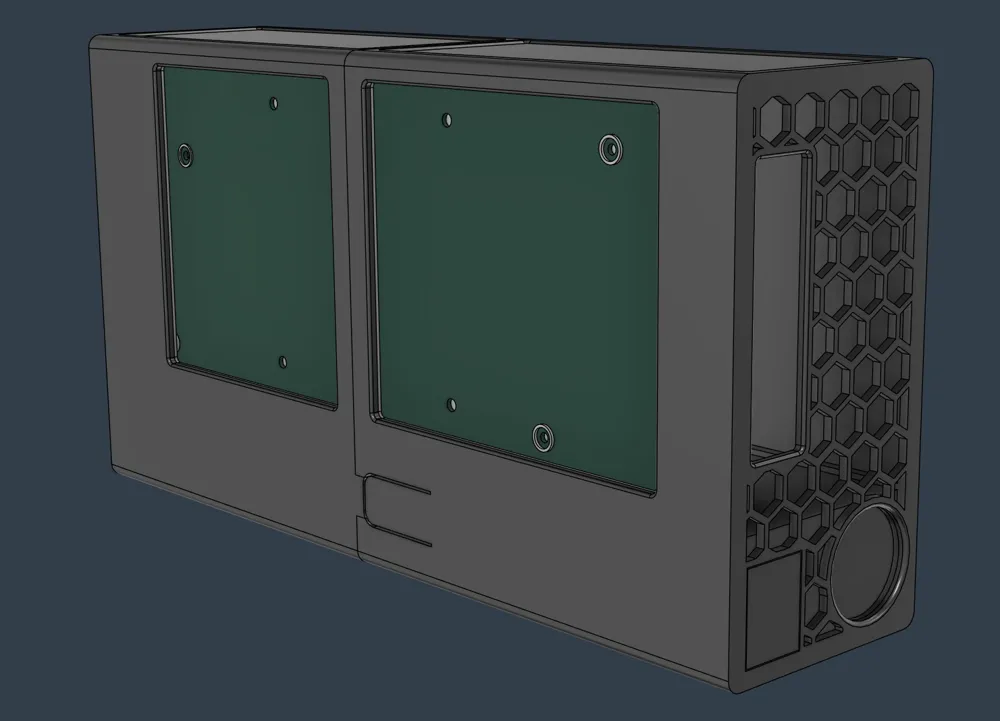

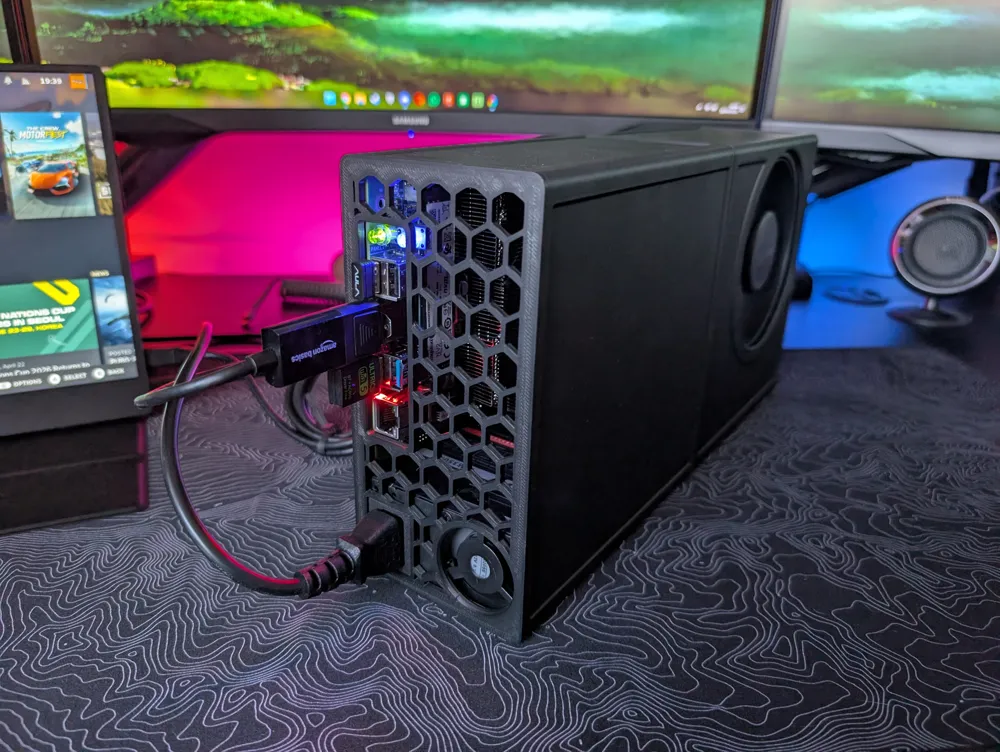

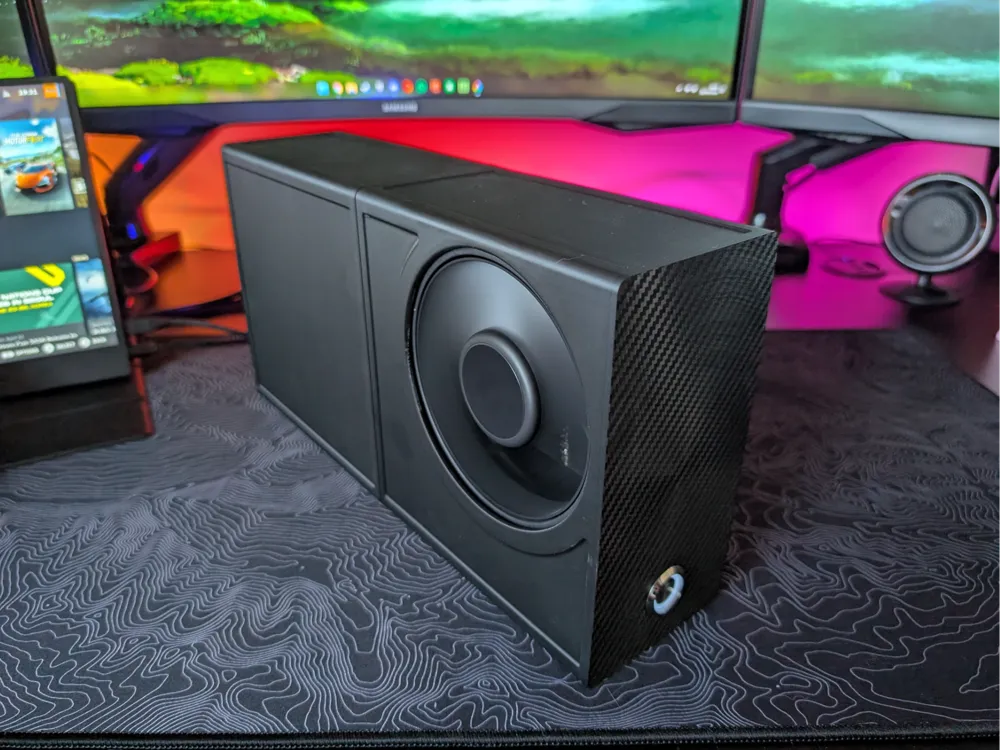

For the power supply I used a 300w Flex-ATX unit from MetalFish (easily found on aliexpress). Other Flex-ATX PSUs may fit but I have only tested my own setup. The power button hole size is 22mm, I used a latching push button switch to activate the power on wire of the PSU.

For a little more cooling performance you can find a fin scooper on printables to help you straighten some of the heatsink fins and allow more airflow.

PETG recommended for a bit more heat resistance.

MK-ULTRA Duo Dual fan version now available!! https://makerworld.com/en/models/2916696-bc-250-gaming-pc-case-mk-ultra-duo#profileId-3262748
