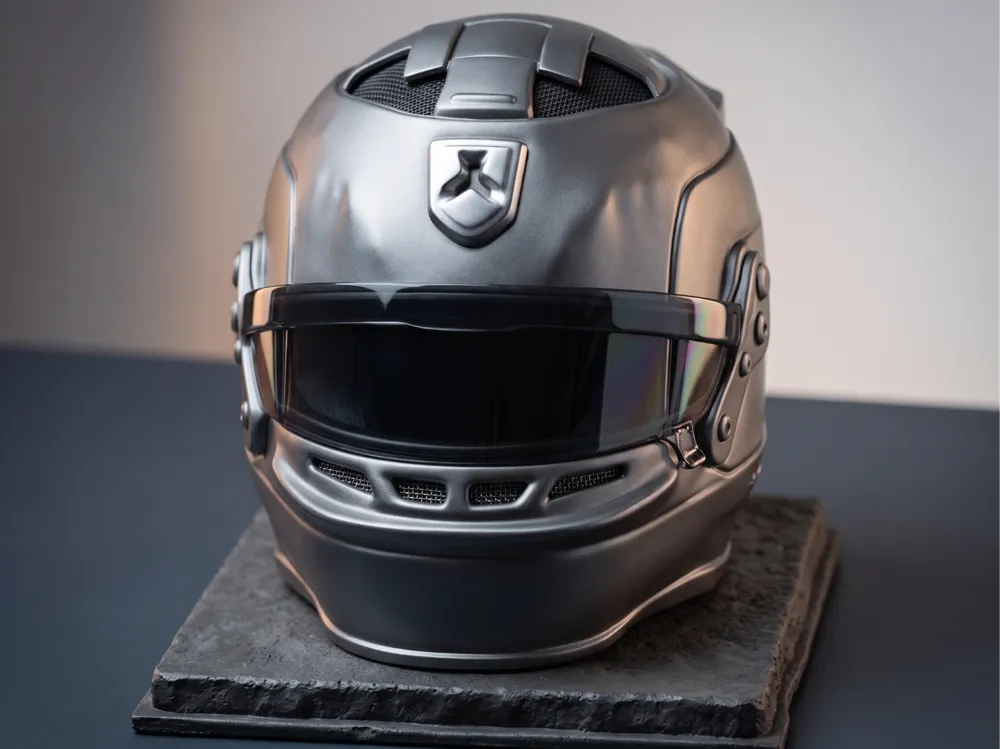

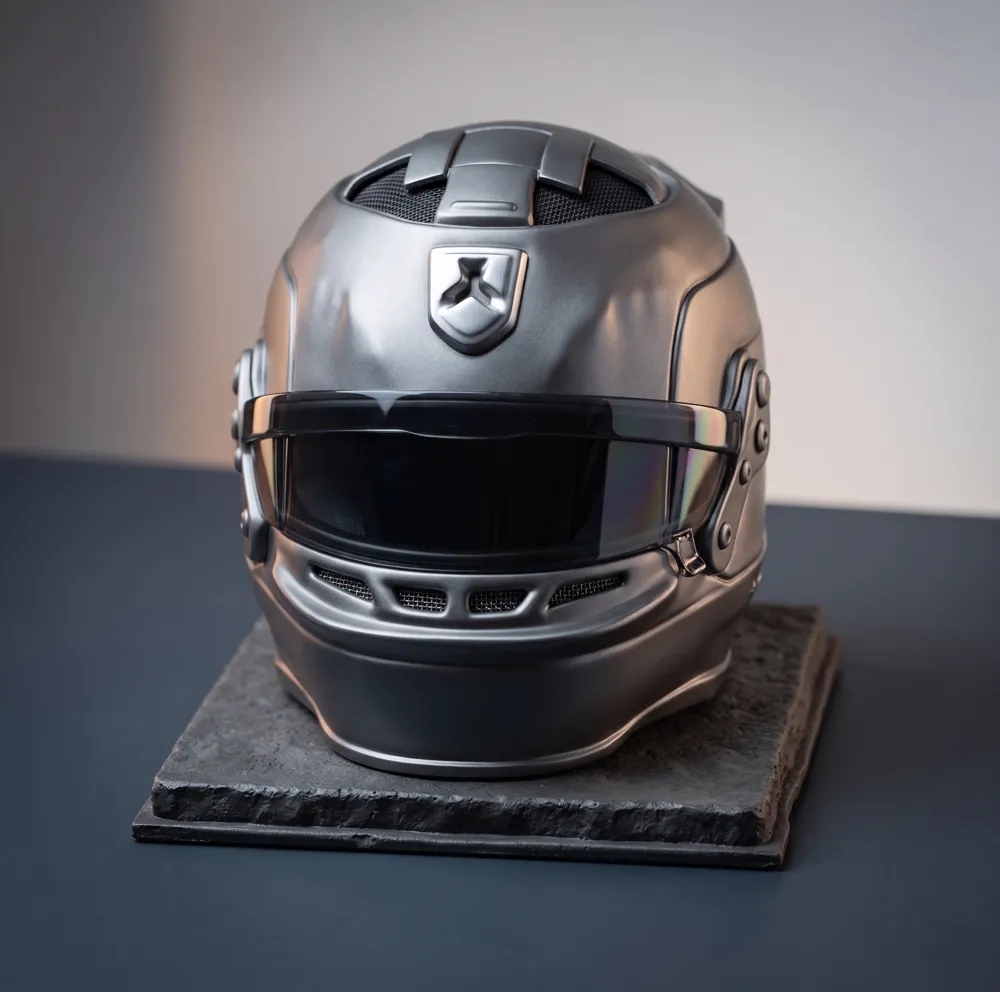

Scaled Motorsport Helmet with Display Base

Bring your passion for racing directly to your desk! This is a highly detailed scale model of a motorsport-style racing helmet. The design features realistic aerodynamic lines, chin vents, a well-defined visor mechanism, and a front shield logo. The helmet rests on a display base included in the design, characterized by a textured surface (asphalt/rock style) and a small space for a plaque, making it a perfect display piece

Model Features:

• Style: Motorsport / Racing / Formula 1.
• Details: Integrated air vents, shaped visor, aerodynamic appendages, and textured base.
• Display: Includes an integrated or connectable base with space for a customizable plaque.

Recommended Print Settings:

• Material: PLA, PETG, or ABS/ASA (if heavy sanding is planned).
• Layer Height: 0.12mm or at most 0.16mm is recommended. Spherical and curved helmet surfaces benefit greatly from thin layers to reduce the "staircasing" effect.
• Infill: 10-15% (Gyroid or Cubic are excellent).
• Walls: 3 walls for solidity if you intend to sand the surface.
• Supports:
  • REQUIRED: The model has significant overhangs (chin bar, back of the helmet, visor protrusions).

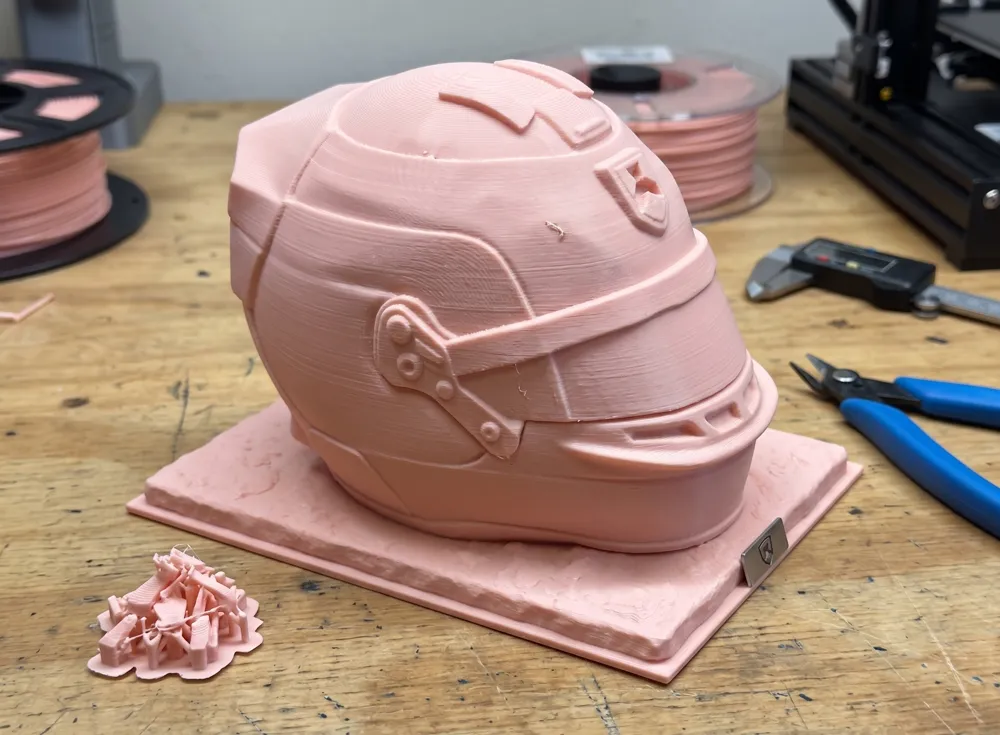

  • Support Tip: The use of Tree Supports / Organic Supports is highly recommended to save material (as can be seen from the scraps in the photo) and facilitate removal without damaging lower details.

Post-Processing Ideas:

1. Remove supports with the help of flush cutters for the most delicate points.
2. Sand with progressively finer grit sandpaper (e.g., from 200 to 800) to smooth the layers.
3. Apply a filler primer spray.
4. Paint with acrylic paints or spray cans to create a custom racing livery, using a glossy clear coat at the end to simulate the effect of real polycarbonate!

Generated and designed using Meshy AI.
