Anderson Roof Top Tent Power Box (4x USB-C)
IP Report
Print Profile(1)
0.16mm layer, 5 walls, 15% infill
Designer
4.5 h
1 plate
Open in Bambu Studio
Boost
2
7
0
0
3
1
Released
Description

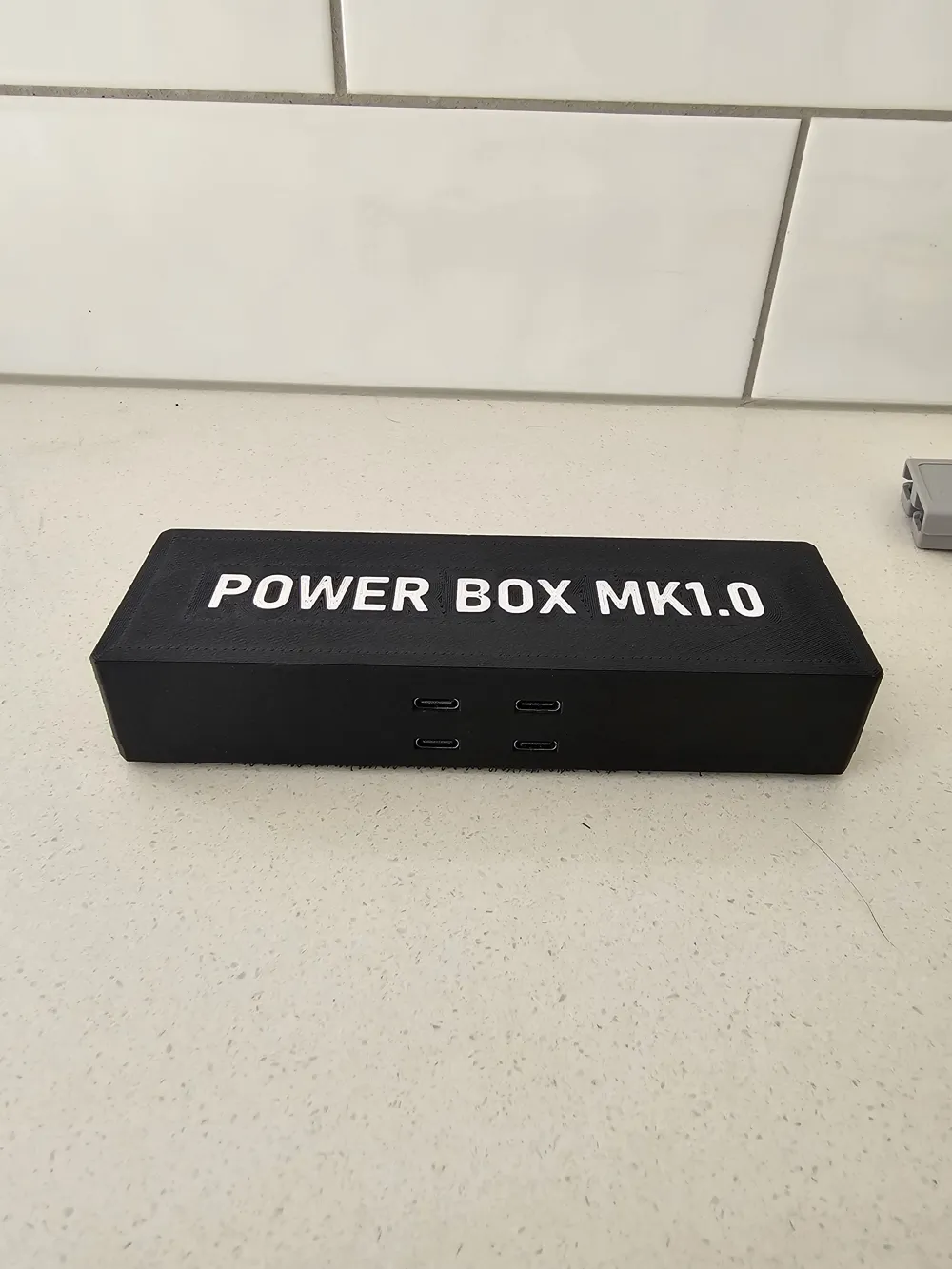

Custom power box I use in my roof top tent. Printed in ASA-CF with the lettering in normal ASA.
Features:
- 4x USB C - PD65W

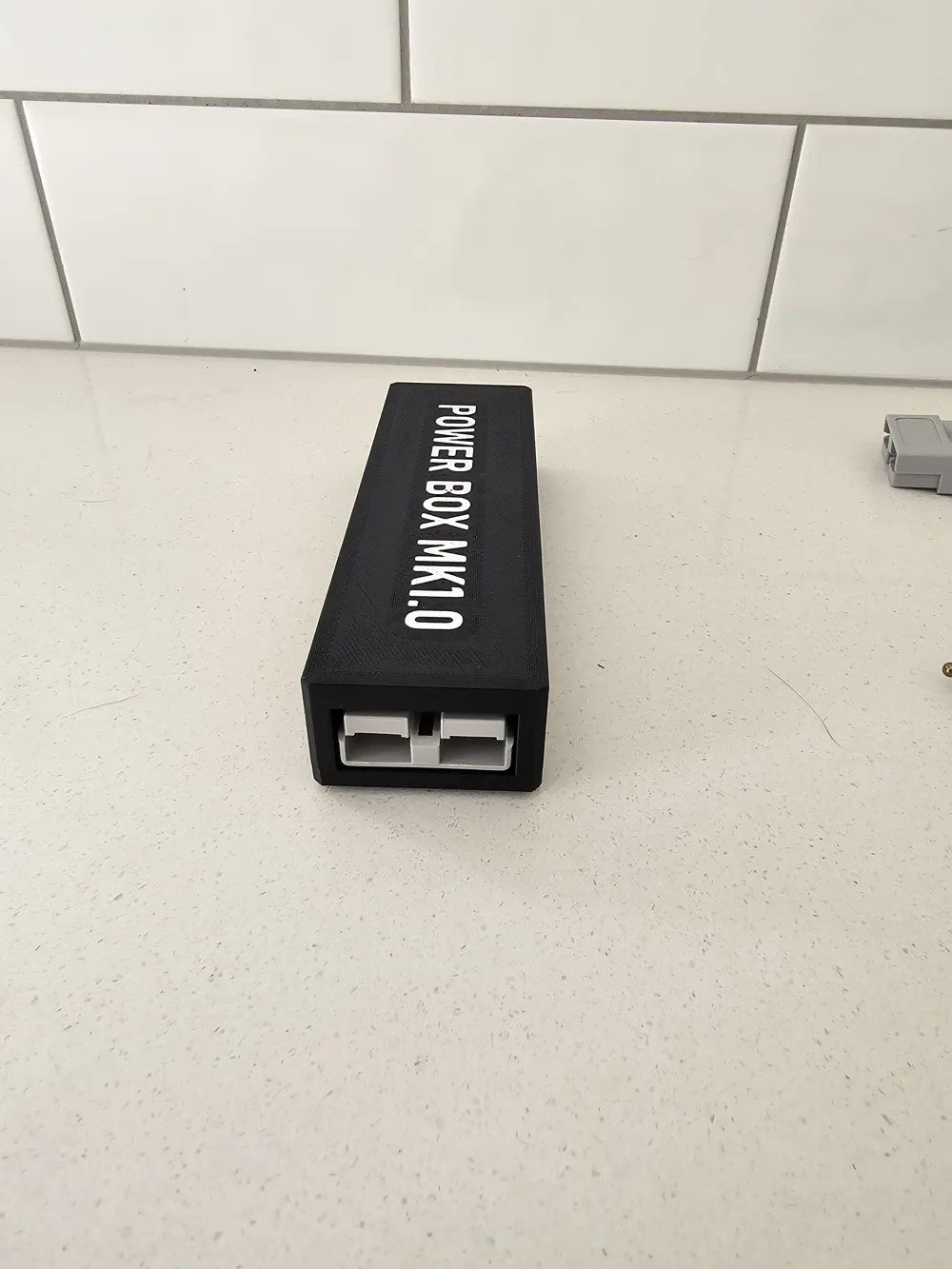

- Anderson Input + Output

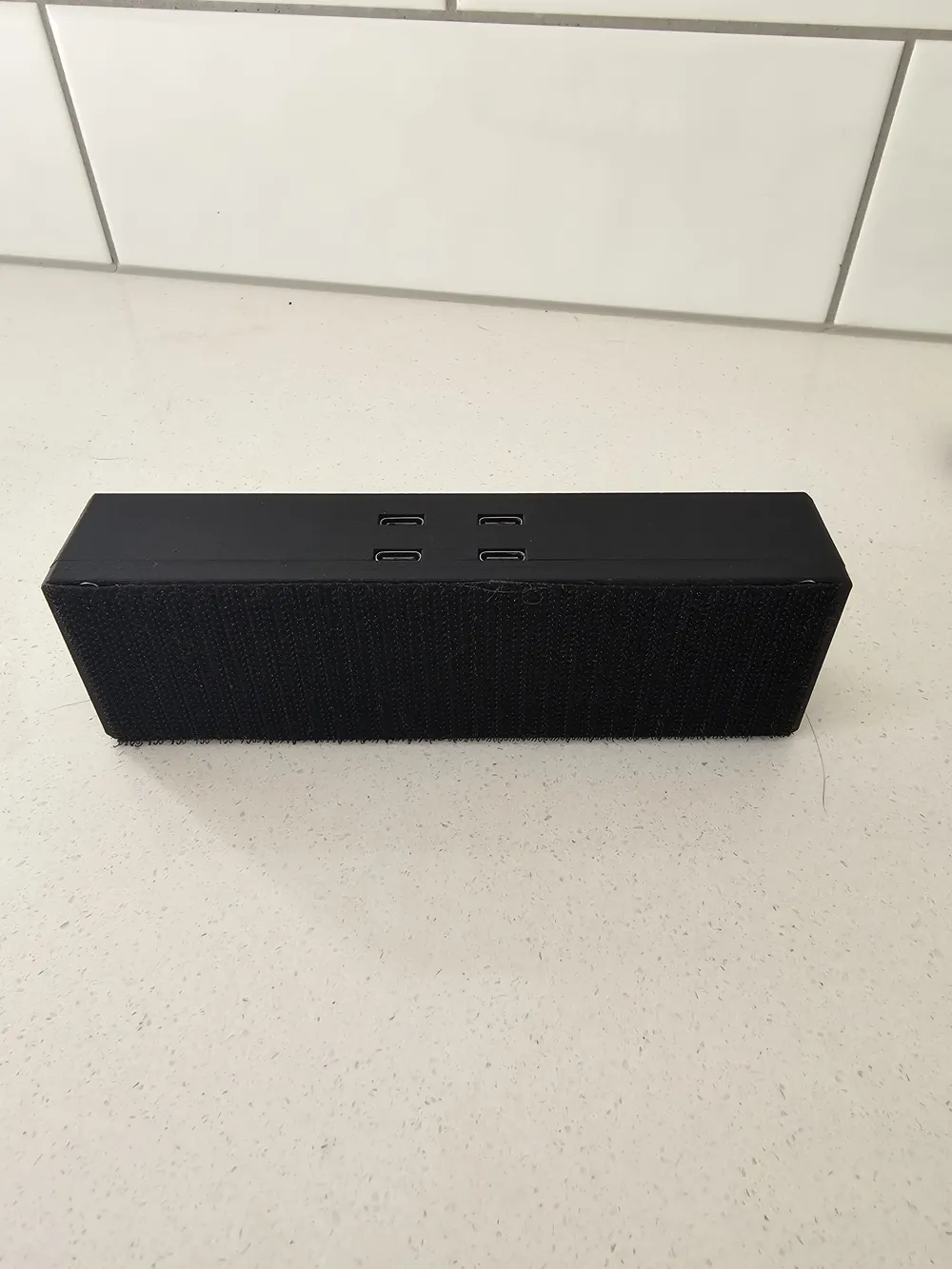

- Velcro on the backside to attach to most roof top tents.

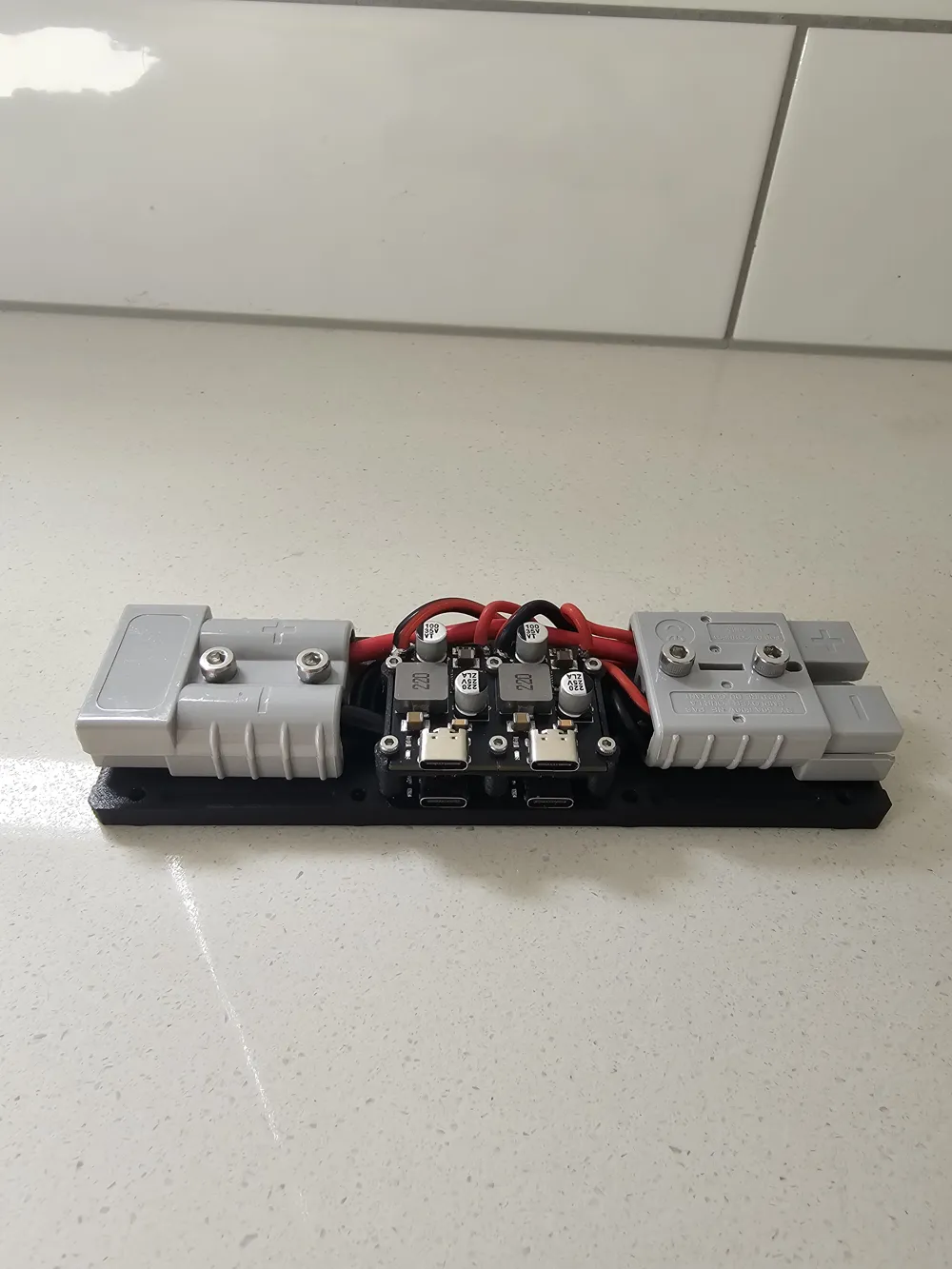

BOM:
- 4xUSB-C PD65 Modules (https://www.aliexpress.com/item/1005007016771773.html)
- 2x Anderson SB50 Plugs
- 12G Wire for Pass through (Can use smaller if you aren't planning on running high current loads)
- 18G Wire for PD65 Modules
- M4x18mm Screws - 4 Pcs
- M3x10mm Screws - 7 Pcs
- M2x16mm Screws - 6 Pcs
- M2xL3xOD3.2 Heat Insert - 6 Pcs
- M4xL4xOD5 Heat Insert - 4 Pcs
Notes:
- Ensure the device is adequately fused downstream, the USB-C modules do have a fuse.
- I recommend ASA as these USB-C models run HOT (>90°C) and will likely soften PETG/PLA.
