Vehicle Intake smoke test adapter & cap 100-110mm
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
5.1 h
2 plates
Open in Bambu Studio
Boost
0
1
0
0
2
1
Released
Description

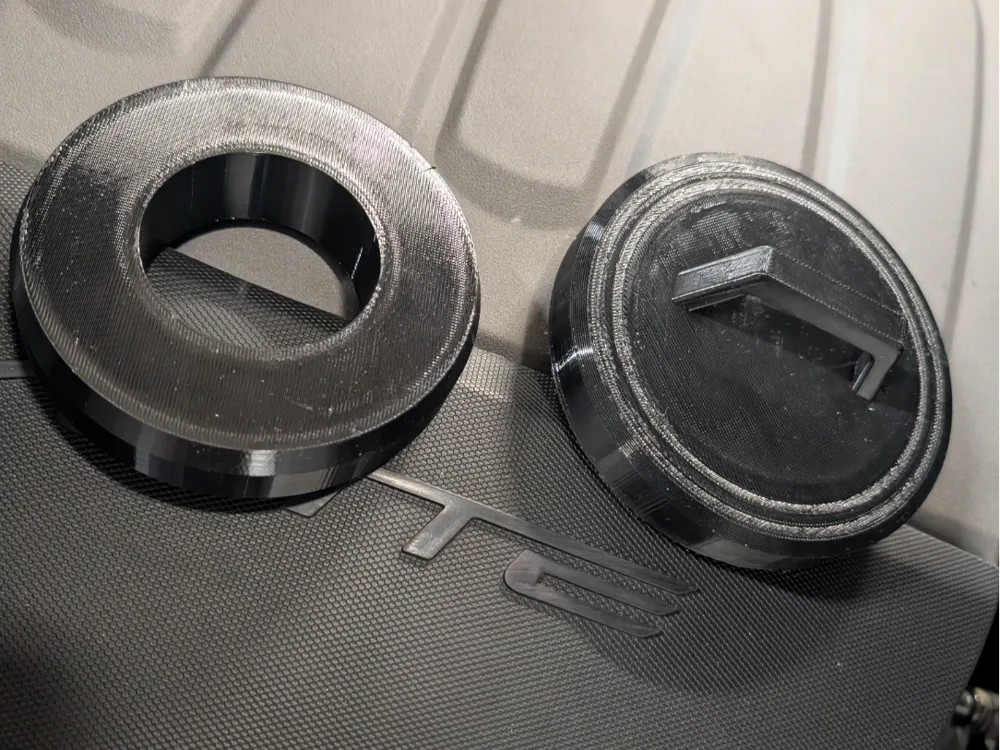

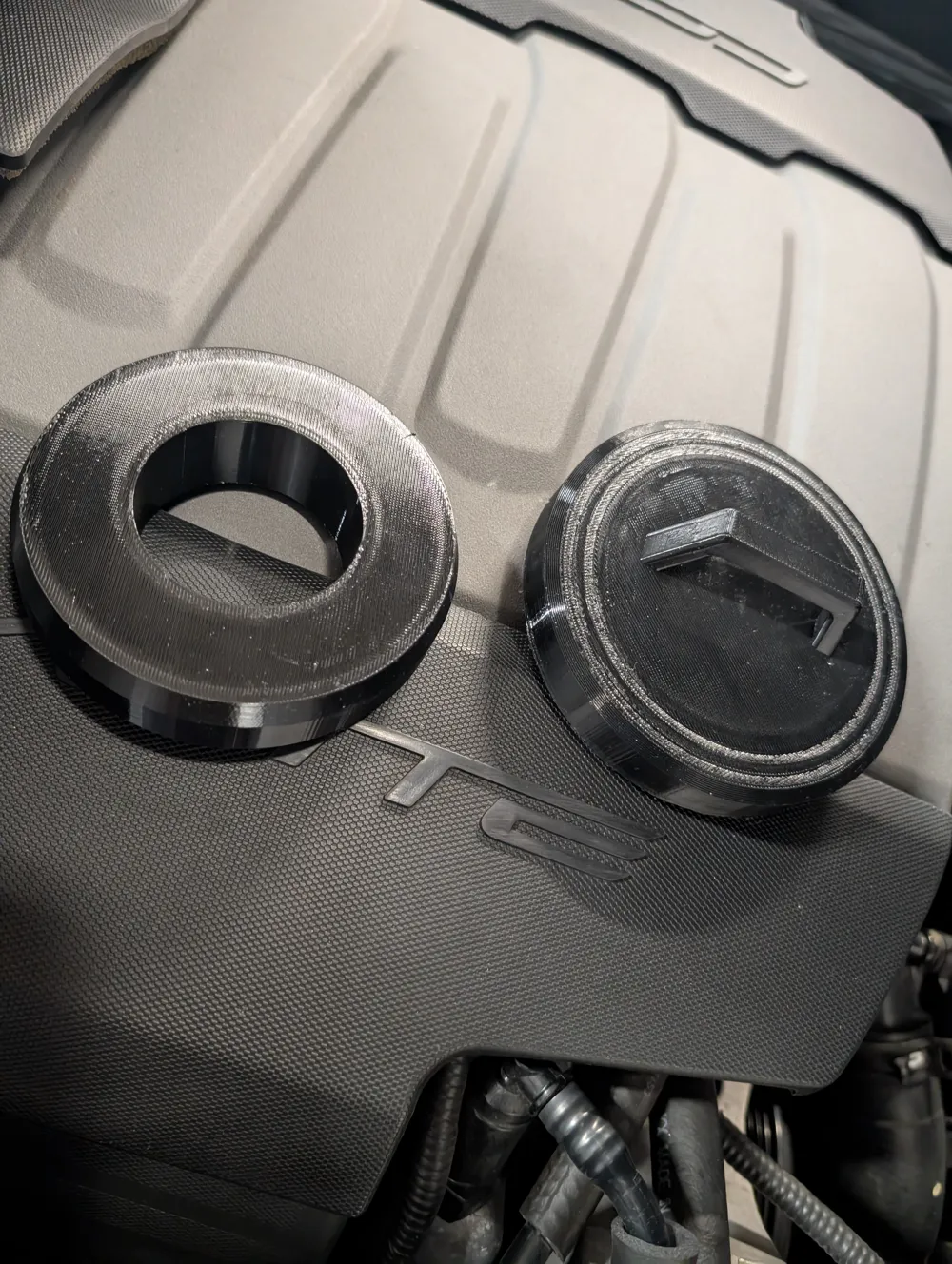

In order to smoke test the intake pipes and intercooler on my C7 corvette, I had to make a donut adapter for the smoke tester and a cap for the other end of the intake pipes.

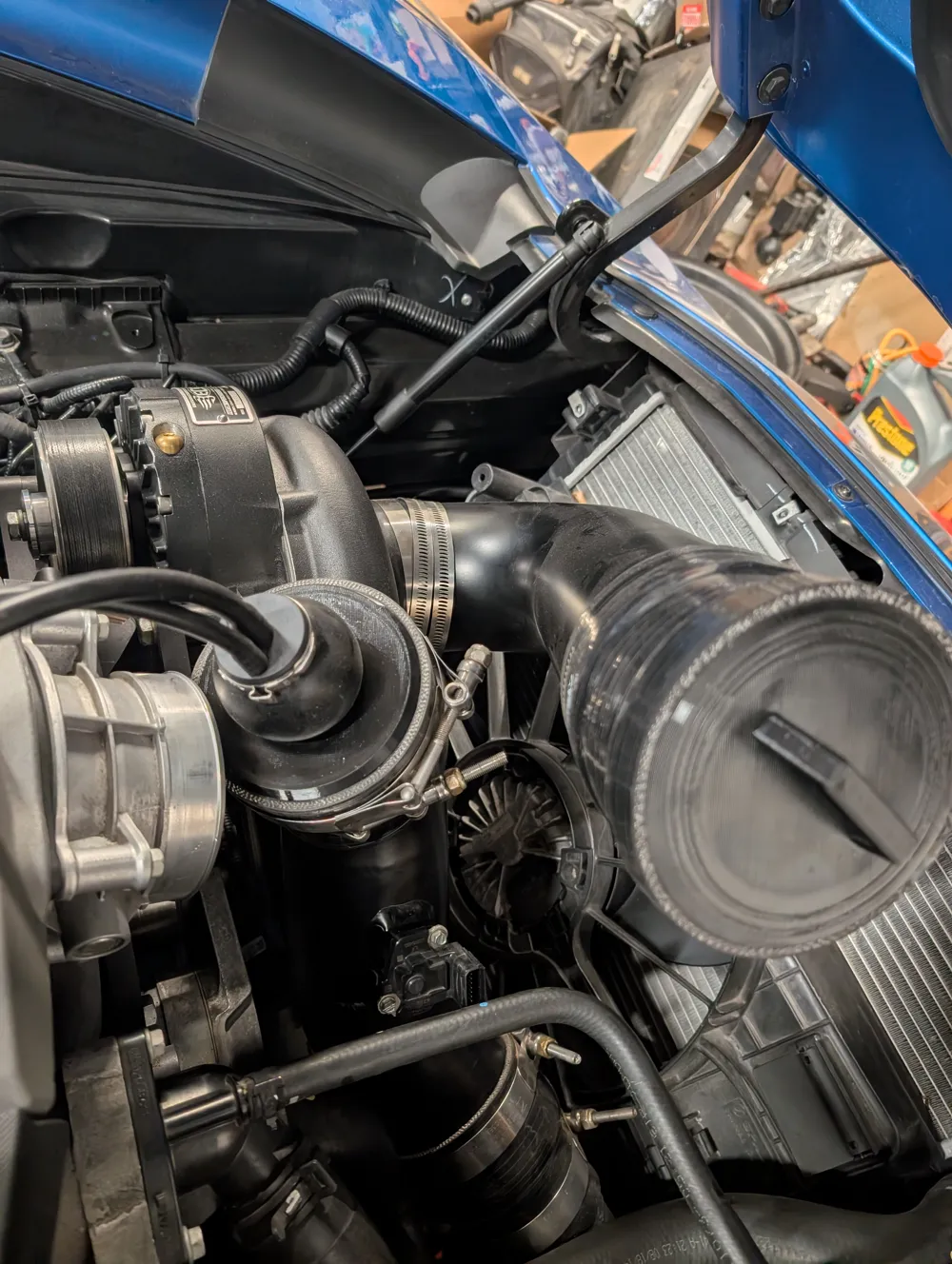

One side is a 100mm donut to fit into the intake side pipe. The other is a 110mm cap to seal off the airbox side.
This car has an ECS supercharger kit, however I think most kits will have similar or the same size pipes. You can also scale these up or down as needed.
