V6 Motor with Wind Turbine

🏎️ Educational V6 Engine Model with Wind Turbine

This is a functional and educational model of a V6 engine, specifically designed to be 3D printed without the need for complex supports and with a visual finish that stands out on any shelf or in any workshop

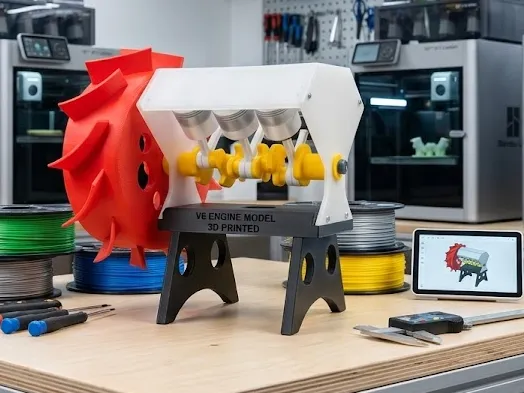

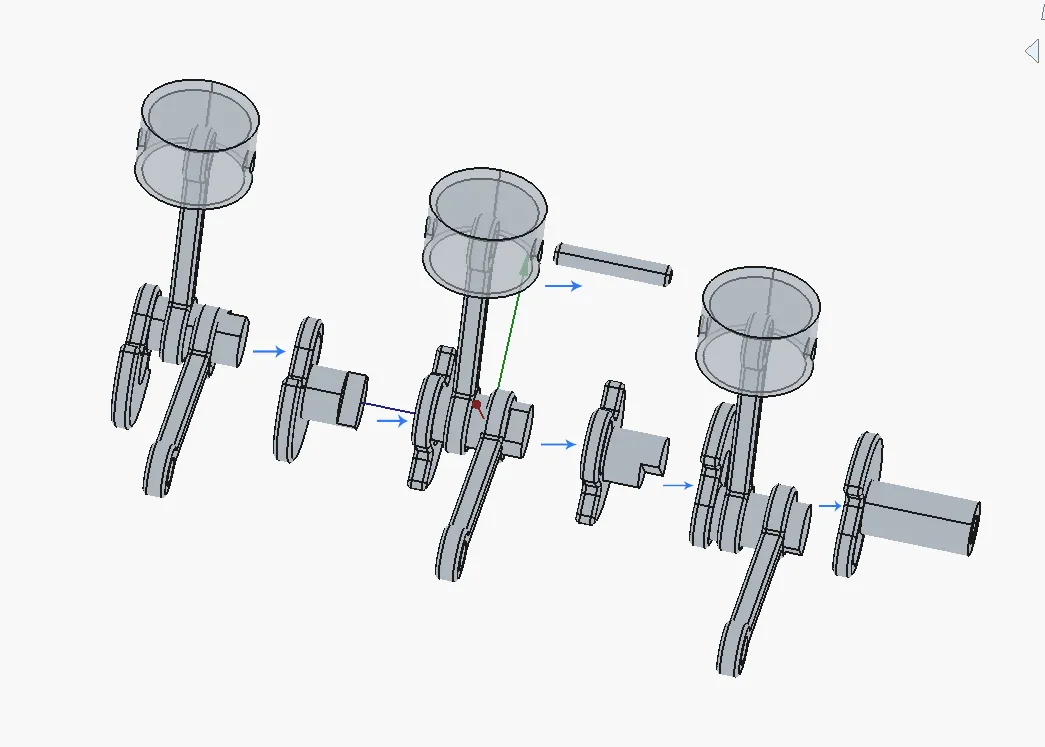

The design allows observing the synchronized movement of the pistons and crankshaft (in yellow) thanks to its open or translucent structure It is an excellent piece for understanding the basic mechanics of a combustion engine

🛠️ Assembly Specifications

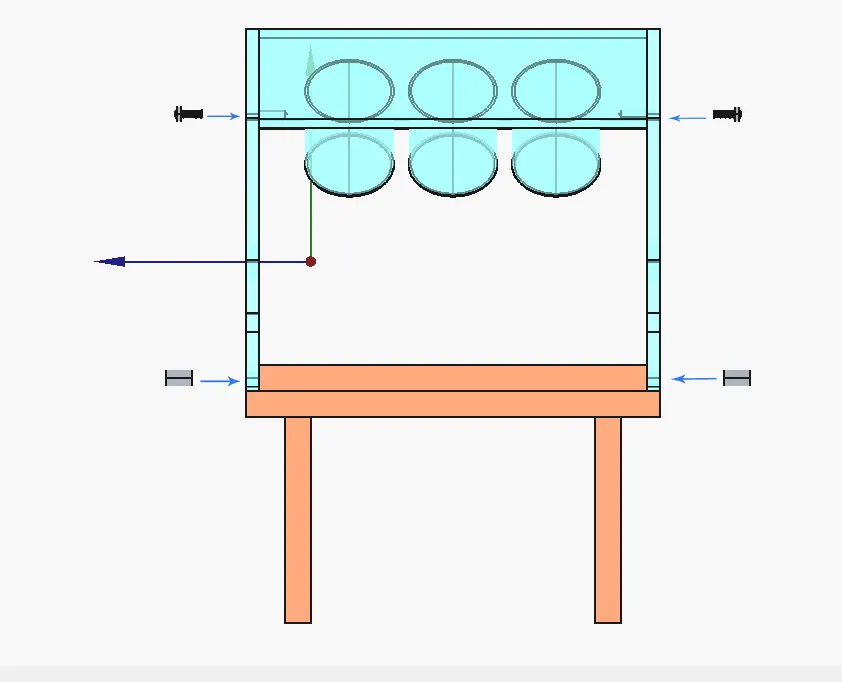

The engine block is composed of three main pieces that ensure a solid structure You have two options for assembly:

• Screws (Recommended): You will need 4 M3x15 screws to securely and professionally fasten the three sections of the block
• Adhesive: If you prefer not to use screws, the parts are designed to be easily glued

🚀 Design Features

• Total Visualization: Structure designed to view the movement cycle of the pistons

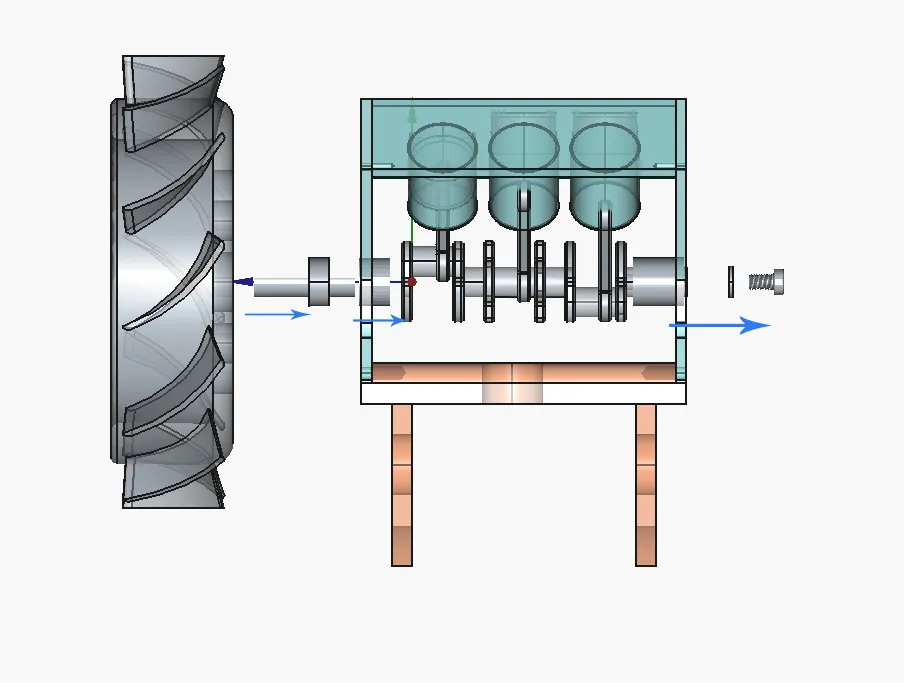

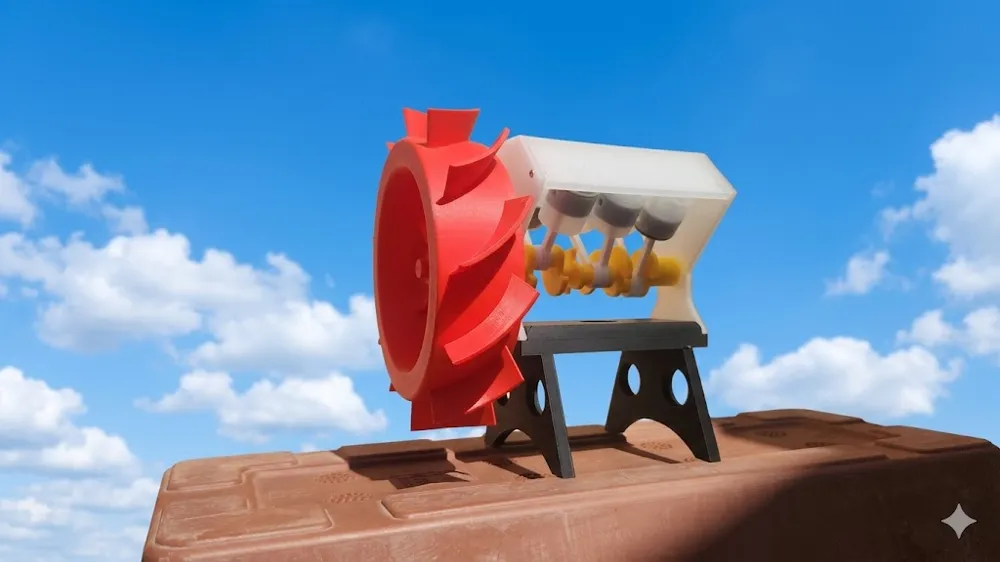

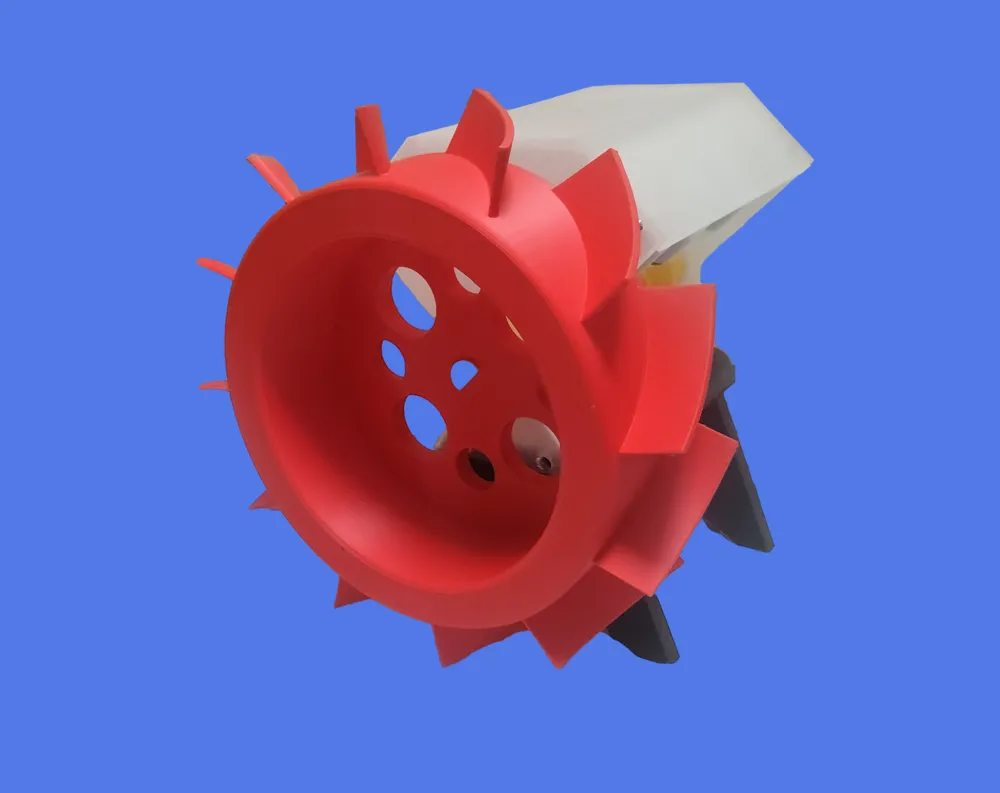

• Large Front Turbine: Includes a radial flow fan (red) that rotates integrally with the main axle
• Display Base: Includes the stand (black) to keep the engine elevated and stable while rotating
• Optimized for Bambu Lab: The design of the parts is intended to take full advantage of the AMS system and obtain a spectacular multicolor model

📐 Print Settings

• Materials: PLA for mechanical parts and the support; PETG Translucent (or PLA) if you want the block to be translucent
• Difficulty: Medium. Make sure the piston tolerances are well adjusted for fluid movement
• Tip: A little dry lubricant or silicone grease on the crankshaft will make the engine spin much more smoothly

Assembly Instructions: Be careful during assembly, do not force the parts, they are delicate and can break

If you like the model, don't forget to "Like" it and upload a photo of your print!

A video of its operation:

If you prefer an L4 cylinder, here it is: https://makerworld.com/es/models/2688839-motor-de-viento-l4-engine-wind-turbine#profileId-2978968
