Suspended knife-sharpner (with clampy clips)

Print Profile(1)

All
A1

0.2mm layer, 3 walls, 20% infill
0.2mm layer, 3 walls, 20% infill
Designer
3.5 h
1 plate

Open in Bambu Studio
Boost
0
0
0
0
0
0
Released

Bill of Materials

Bambu Filaments
Select all
Matte Dark Green (11501) / Refill / 1kg
Matte Mandarin Orange (11300) / Refill / 1kg
List other parts
  • Nut and bolt M3x13 x 2: Optional: to firmly secure the frame to base
  • Nut and bolt M3x23 x 2: To firmly secure the clampy clip to frame
  • Clampy clip 30 mm x 2:

Description

Content has been automatically translated.
Show original

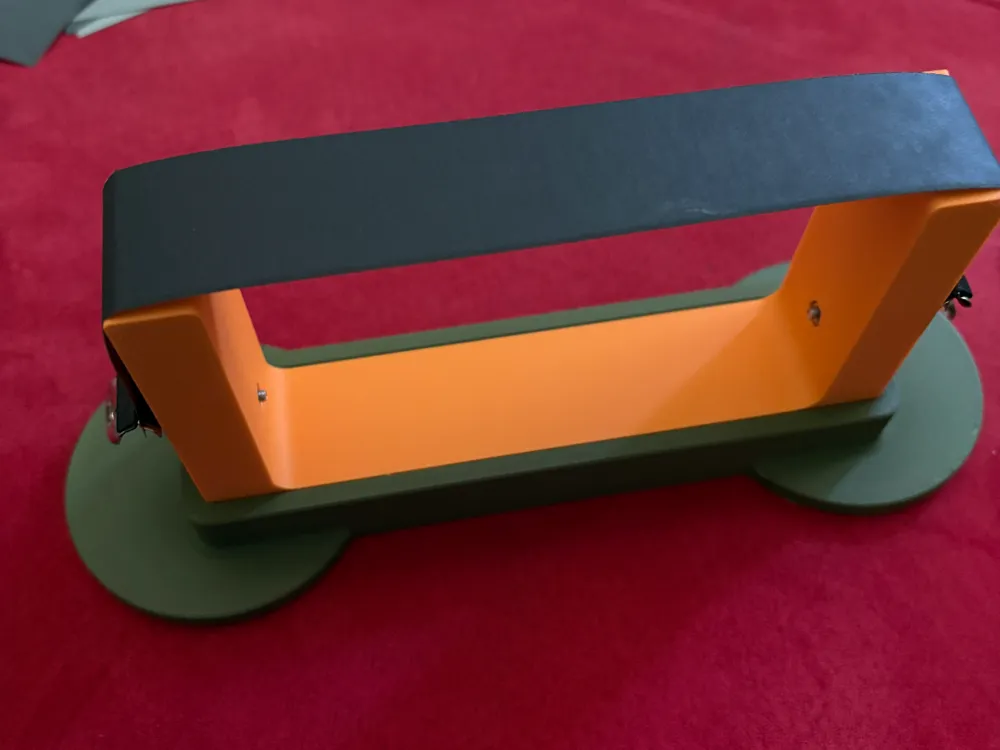

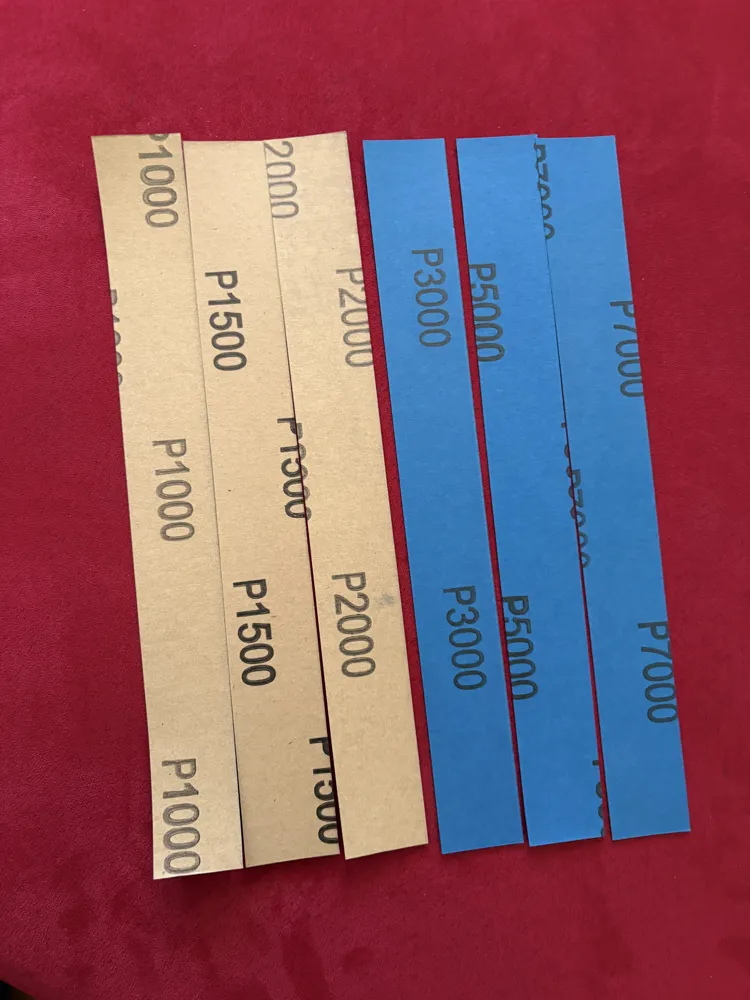

Hanging sharpener for knives and scissors to be used with abrasive papers (wet with water). The dimensions of the abrasive paper strip are approximately 27-28 x 230 mm; I used abrasive paper bought online, cutting it to the desired size and using very fine grit paper (from 1000 to 7000)

The hanging abrasive paper (NOT stiff and taut) should easily conform to the knife's bevel without needing special adjustments for the sharpening angle.

I tried it with some knives and a pair of scissors, and the results are satisfactory.

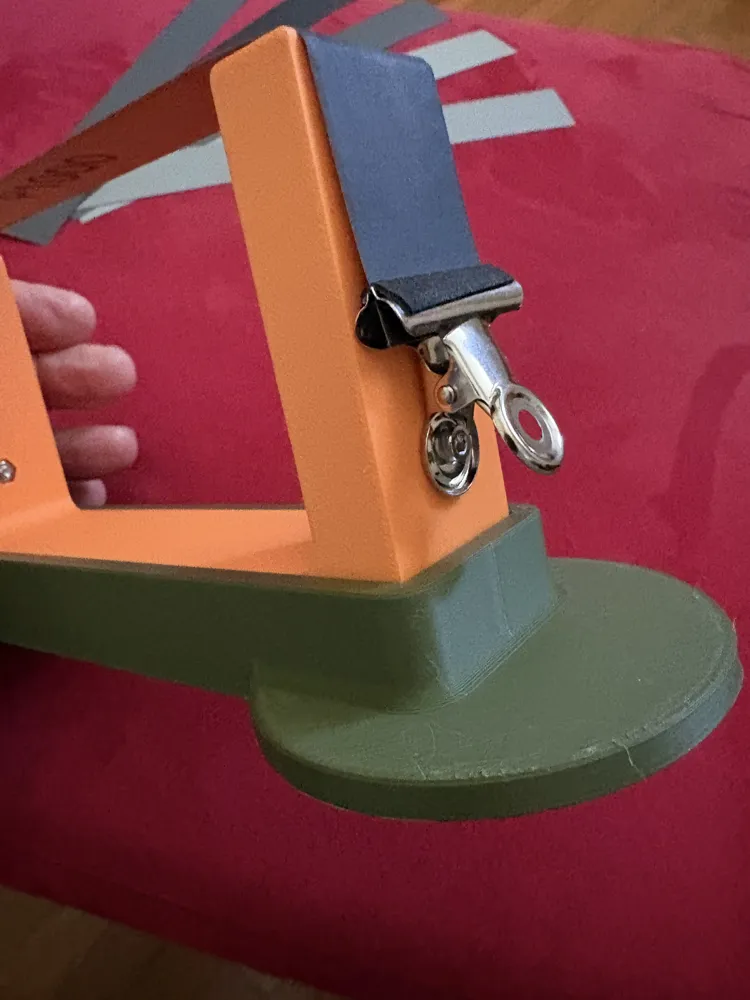

To easily and quickly secure the abrasive paper strip, I used two “clampy clips” fastened with a screw to the structure (to improve the clip's grip on the abrasive paper, I covered the clips with small pieces of 1 mm thick adhesive EVA foam)
