Lume Series – Icosalume & Dodecalume

ICOSALUME & DODECALUME

Modular Parametric Lithophane Lamp System

✨ Concept

Icosalume and Dodecalume are modular, parametric lamp systems designed to transform images into illuminated 3D experiences.

Each face of the geometry can be customized with lithophane panels, turning the lamp into a deeply personal object — capable of displaying memories, artwork, or themed compositions.

The core idea is simple:
transform light into storytelling.

🧩 Modular Design

The system is built around interchangeable frame segments and panels:

• Easily swap panels
• Combine different colors and materials
• Mix solid, open-frame, or lithophane faces
• Create unique configurations every time

Two geometric variants are included:

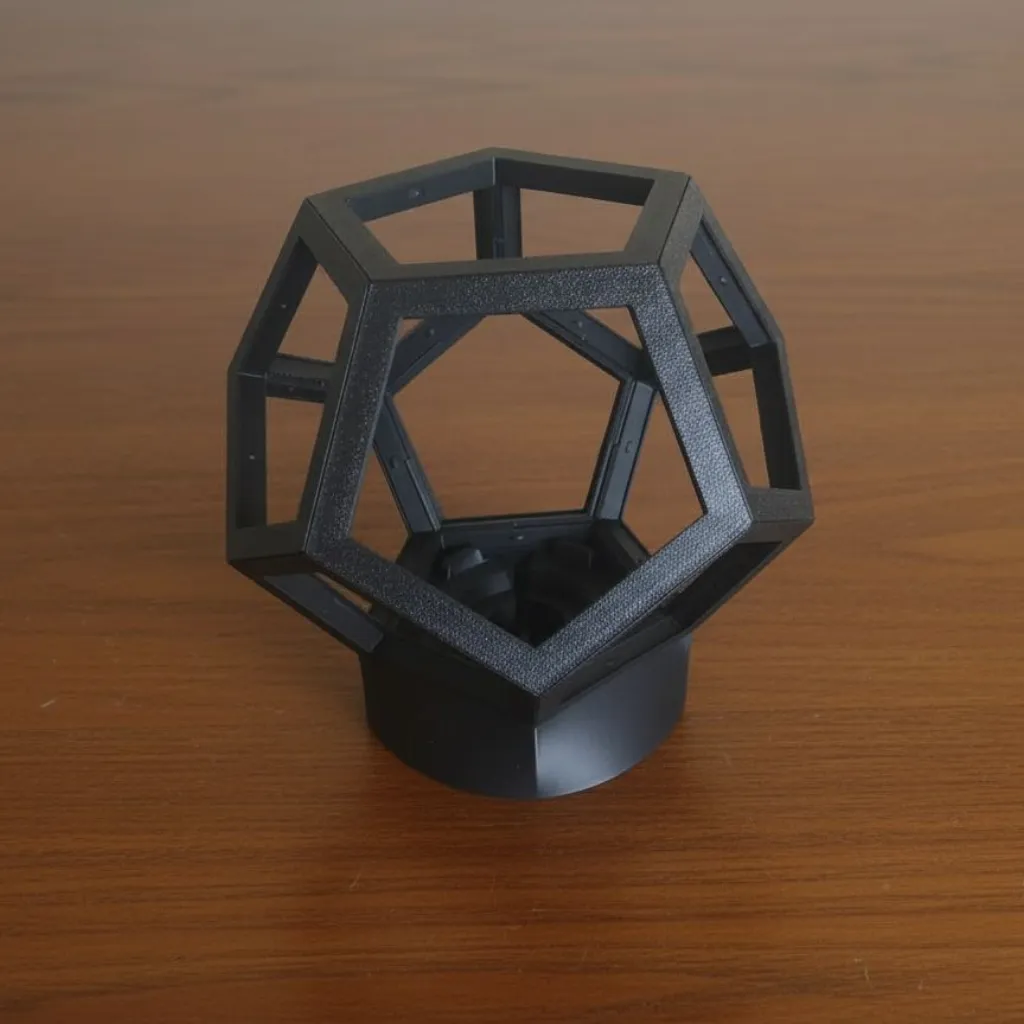

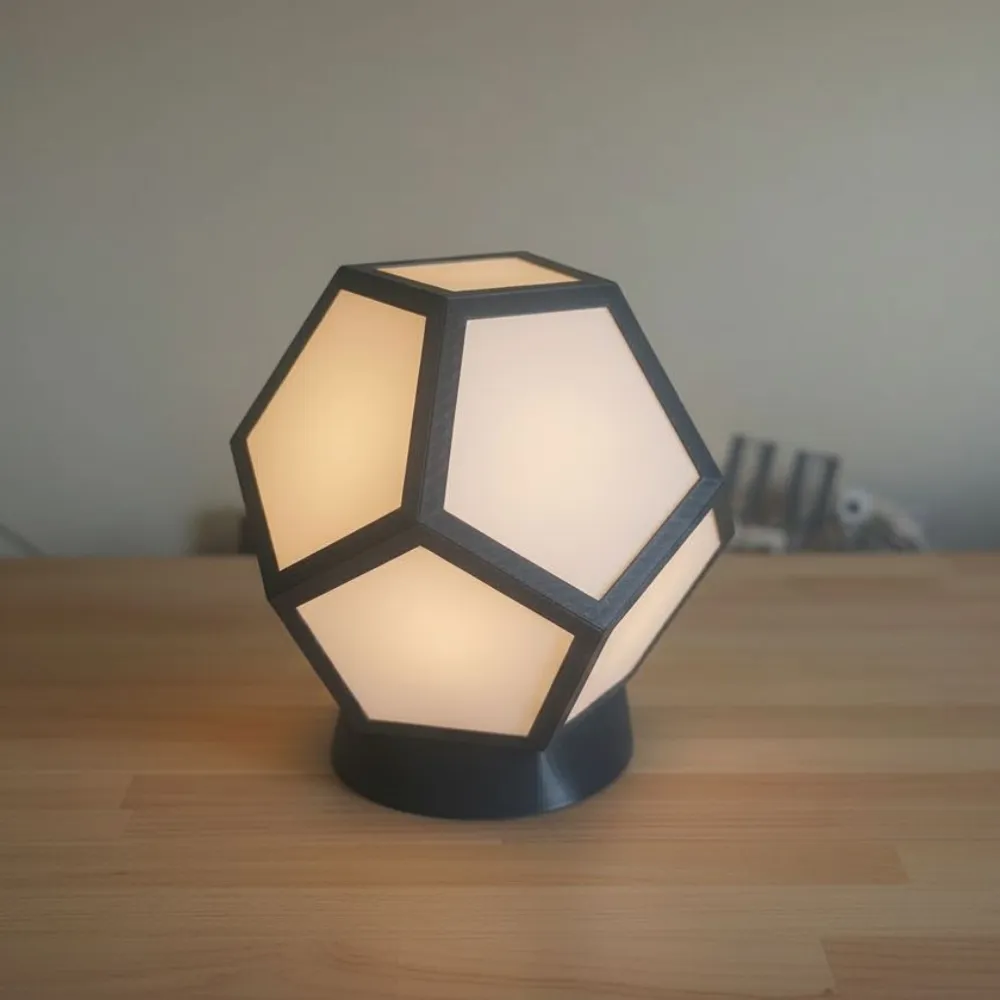

• Dodecalume → Pentagonal faces, softer and more organic

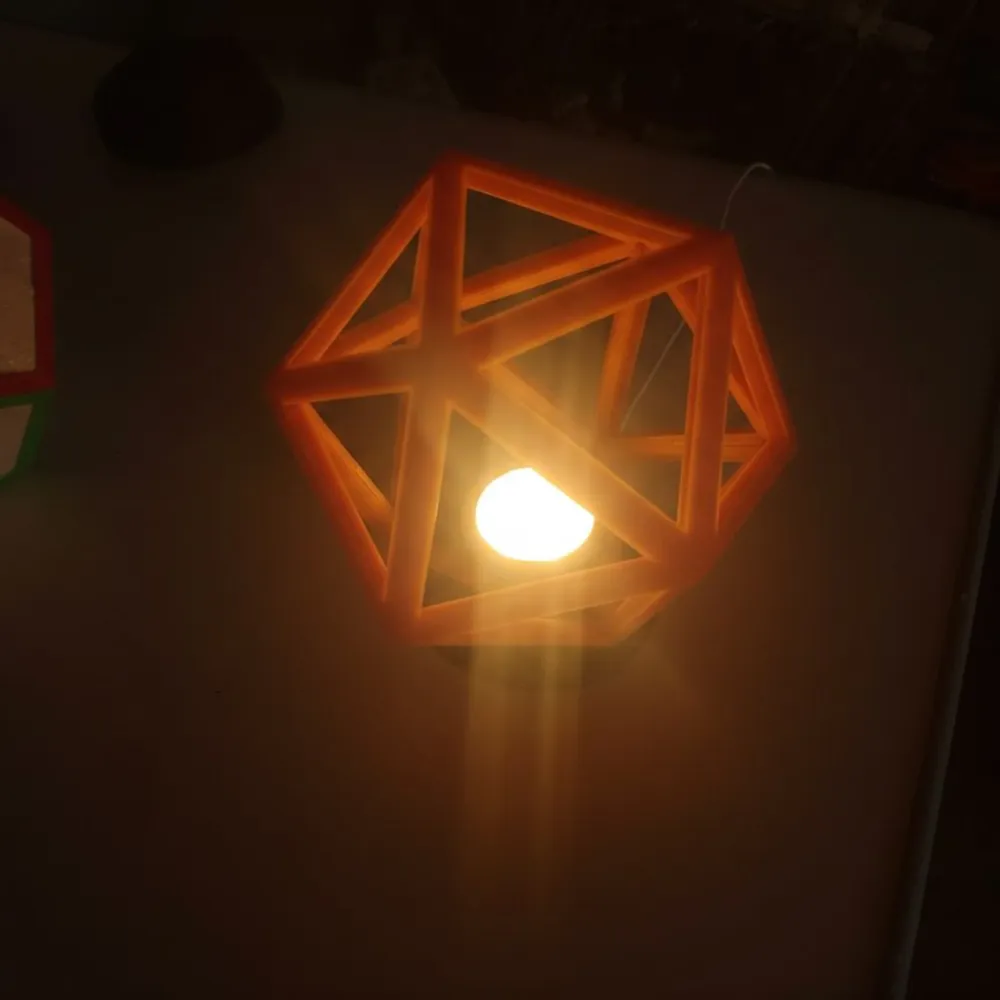

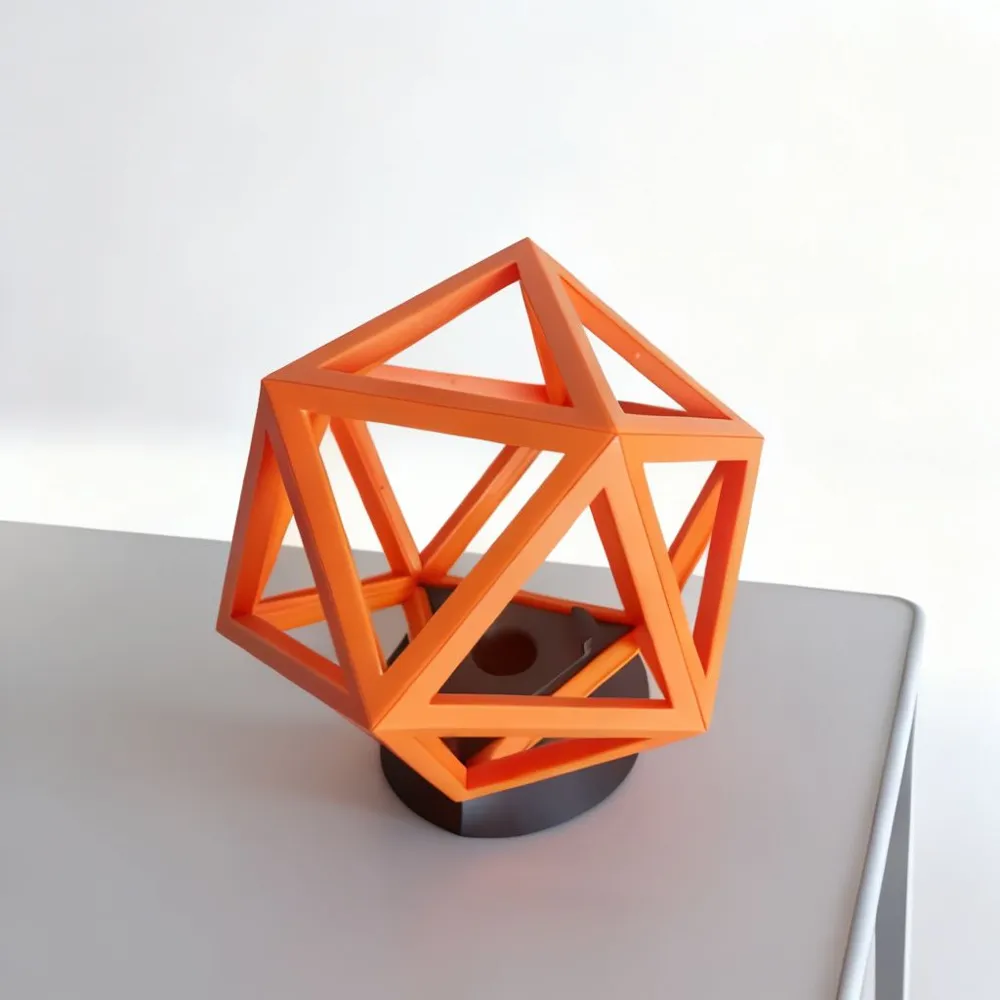

• Icosalume → Triangular faces, sharper and more modern

Both share the same modular ecosystem.

🖼️ Lithophane Workflow (Litogen Lite)

This project integrates with my own tool:

👉 https://erolcanulutas.github.io/Litogen-Lite/


Using Litogen Lite, users can quickly convert any image into lithophane panels specifically sized for Icosalume and Dodecalume.

This simplifies what is usually the most complex part of the process and makes personalization accessible to everyone.

🔒 Privacy-first design: No images are uploaded — everything is processed locally on your device.

Github: https://github.com/erolcanulutas/Litogen-Lite/tree/main

🛠️ Parametric & Customizable

The entire system is fully parametric:

• Adjustable scale
• Custom frame thickness
• Tunable panel depth and fit
• Compatible with different light sources

This allows both beginners and advanced users to adapt the design to their needs.

💡 Lighting Experience

The lamp is designed to balance:

• Soft ambient lighting
• High-detail lithophane visibility
• Controlled light diffusion through the structure

The result is a warm, atmospheric object that changes character depending on viewing angle and distance.

📦 Assembly & Usability

• Snap-fit / easy assembly
• No special tools required
• Panels can be swapped without disassembling the entire lamp
• Compatible with standard LED modules

🔌 Lighting Compatibility

The design supports commonly available LED modules:

Large Models (Icosalume & Dodecalume)

• Requires: LED Lamp Kit (1pcs) – MH001

Small Dodecalume

• Compatible with:
  • LED Lamp Kit (1pcs) – MH001
  • D37.2 × 36.6 mm LED Flame Tea Light Candle Set

💡 Notes

• Designed for safe, low-heat LED light sources
• Ensures even illumination across lithophane panels
• Different light sources can be used to achieve varied visual effects
• ⚠️ Do not use with real candles or open flame

🖨️ Printing Recommendations

• Material: PLA recommended
• Layer Height: 0.20 mm (standard settings work well)

Lithophane Panels

• Infill: 100%
• Infill Pattern: Concentric
• Orientation: Print vertically for best detail (especially for photos)

Frames & Pattern Panels

• Can be printed flat on the build plate
• Default settings are sufficient

Notes

• Vertical printing significantly improves lithophane clarity
• Concentric infill preserves fine image details
• Flat printing is ideal for geometric and non-photographic designs

🎨 Customization Potential

This is more than a lamp — it is a customizable platform:

• Personal photo lamps
• Themed designs (movies, games, nature, abstract)
• Decorative or emotional pieces
• Unique, gift-ready objects

✨ Concept Visualization
This image is AI-generated and is intended to showcase possible design variations and customization potential. It does not represent a real photograph of the product.

🔍 Image Authenticity & AI Notice

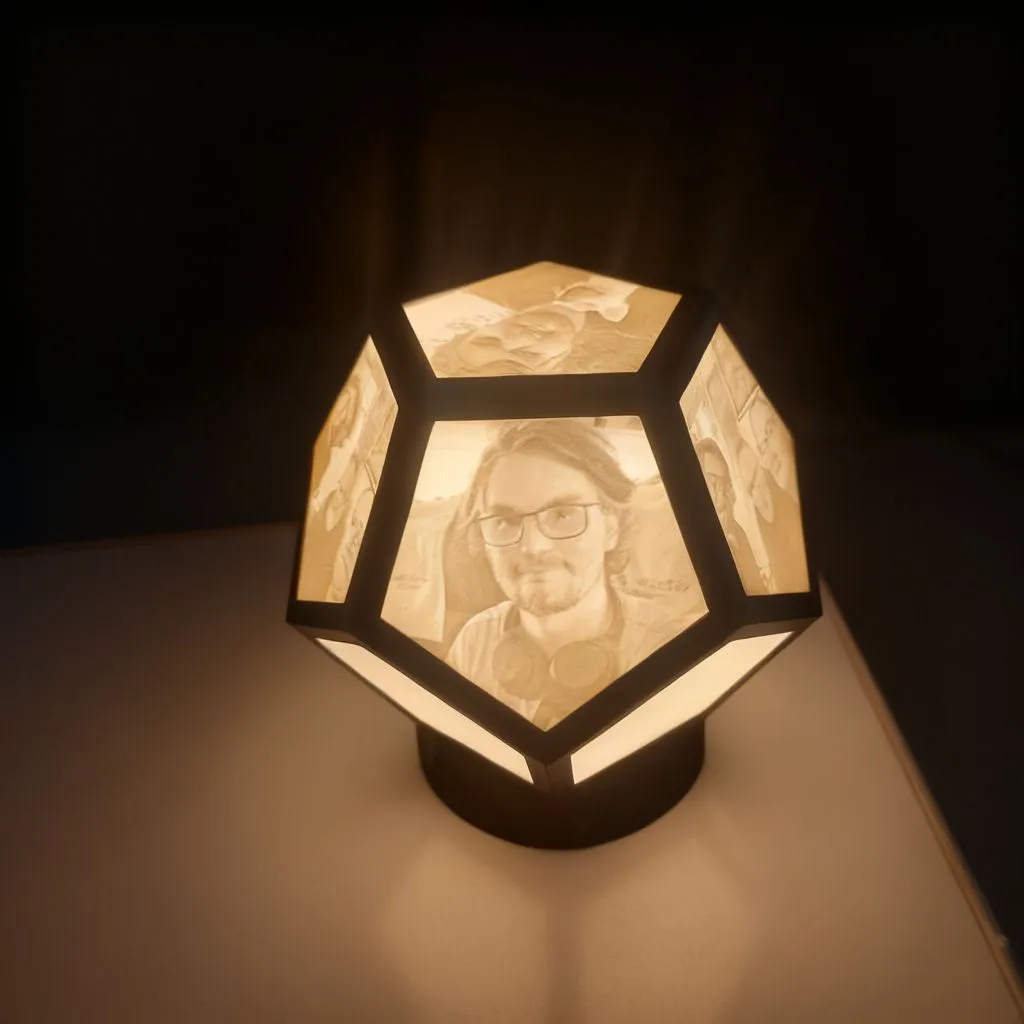

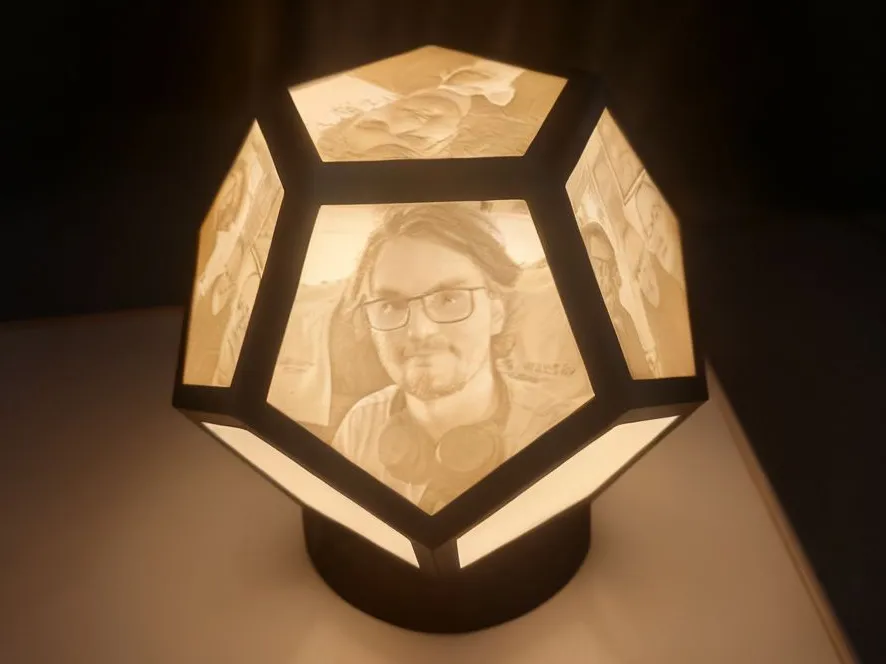

Real Product Images

Product images are based on real photographs of the actual printed product.
AI tools were used only for background cleanup and lighting enhancement to improve presentation quality.
No changes were made to the design, geometry, or functionality.
The product shown accurately represents the final physical result.

Concept / AI-Generated Images

Some images are AI-generated and are included only to demonstrate possible customization ideas and visual variations.
These images are not real photographs and are intended purely for inspiration.
