Description

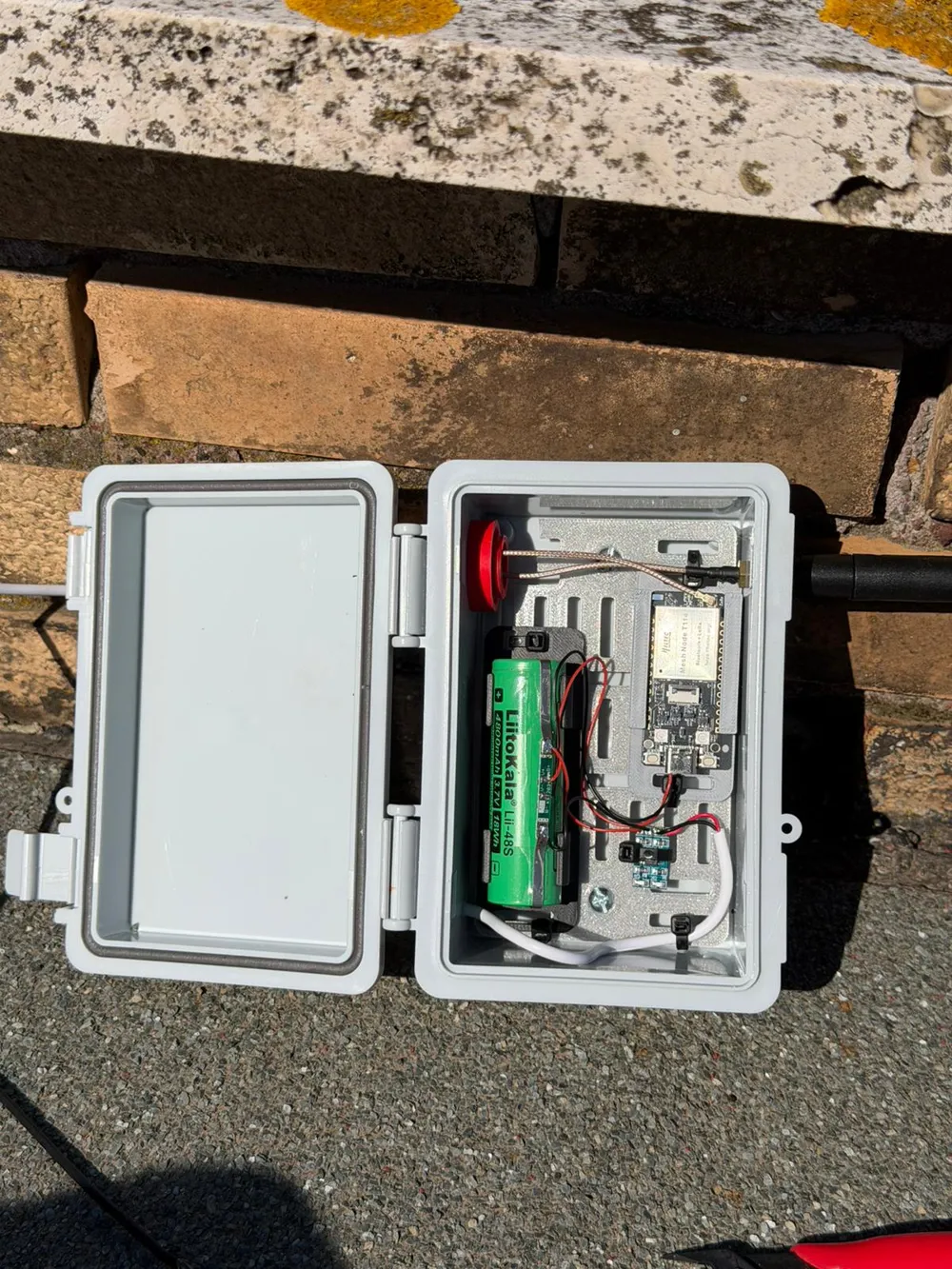

I created the main components for a meshtastic node.
The project currently includes the following components:

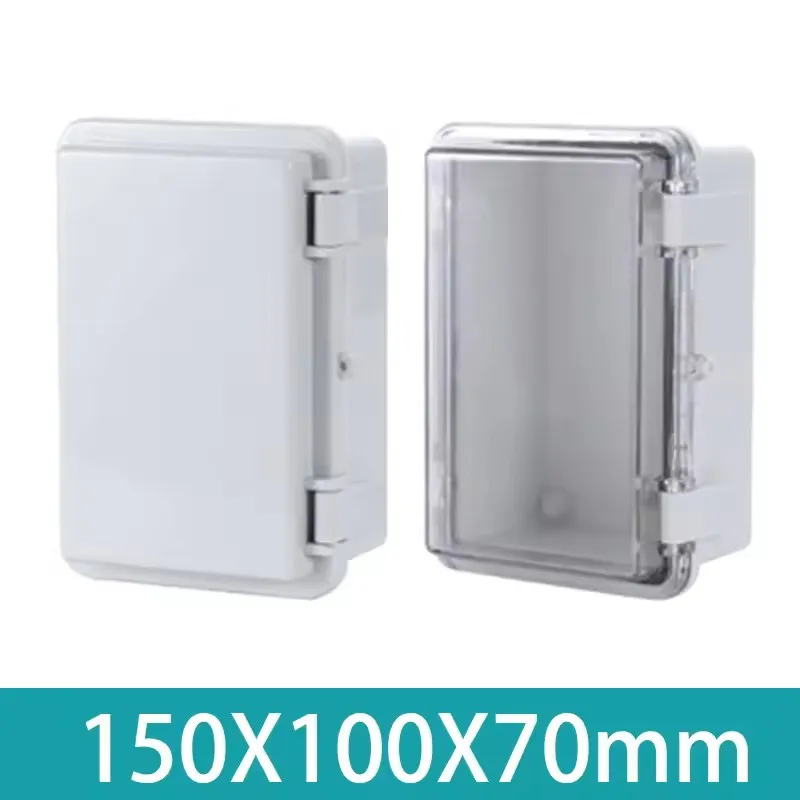

- a plate compatible with the 150x100x70mm box
https://s.click.aliexpress.com/e/_c4Nh5Rtp - a 21700 battery holder (models for other sizes (18650, etc.) will be added upon request), including a double or triple version

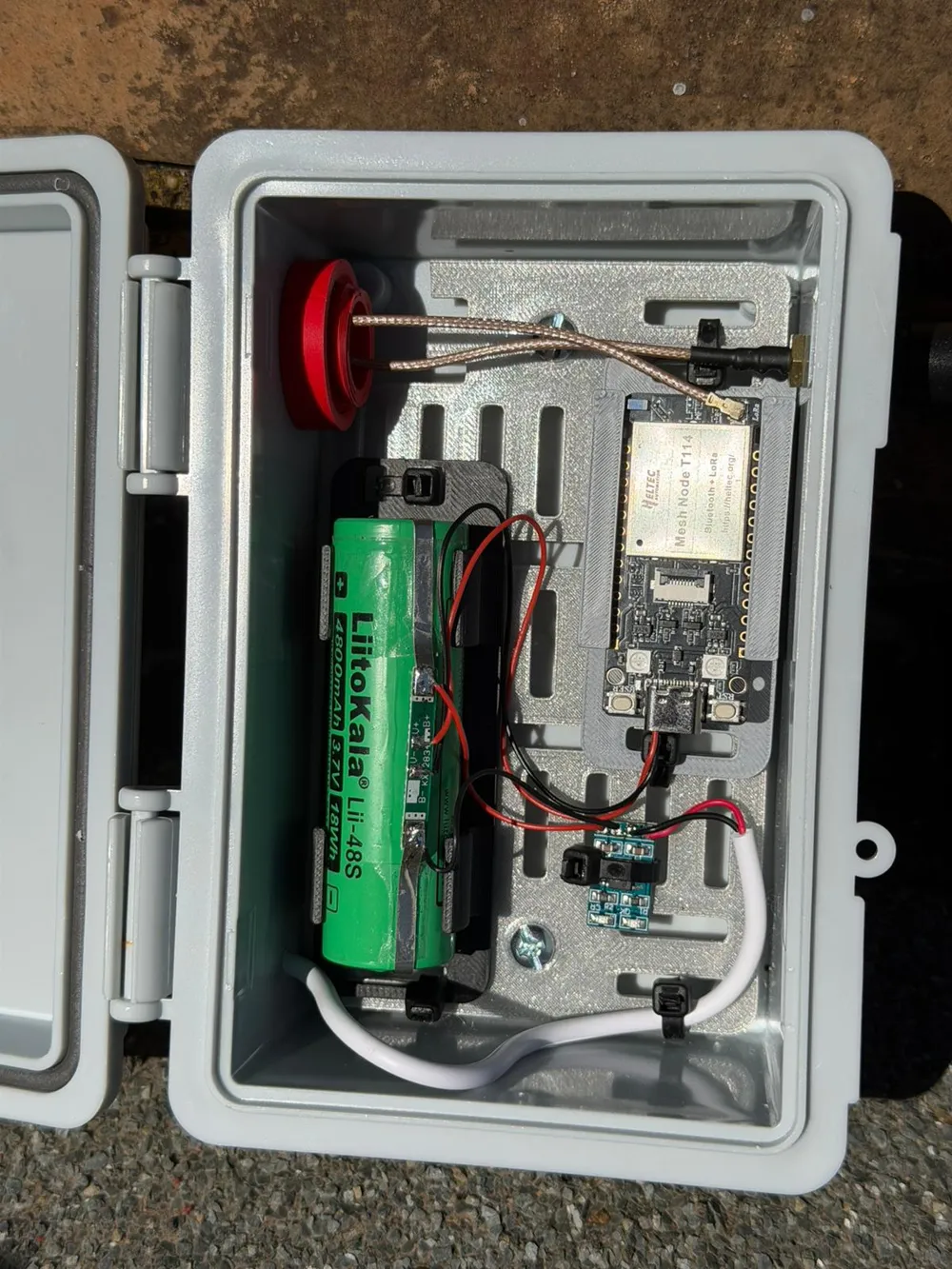

- a Heltec T114 - V3 - V4 board holder

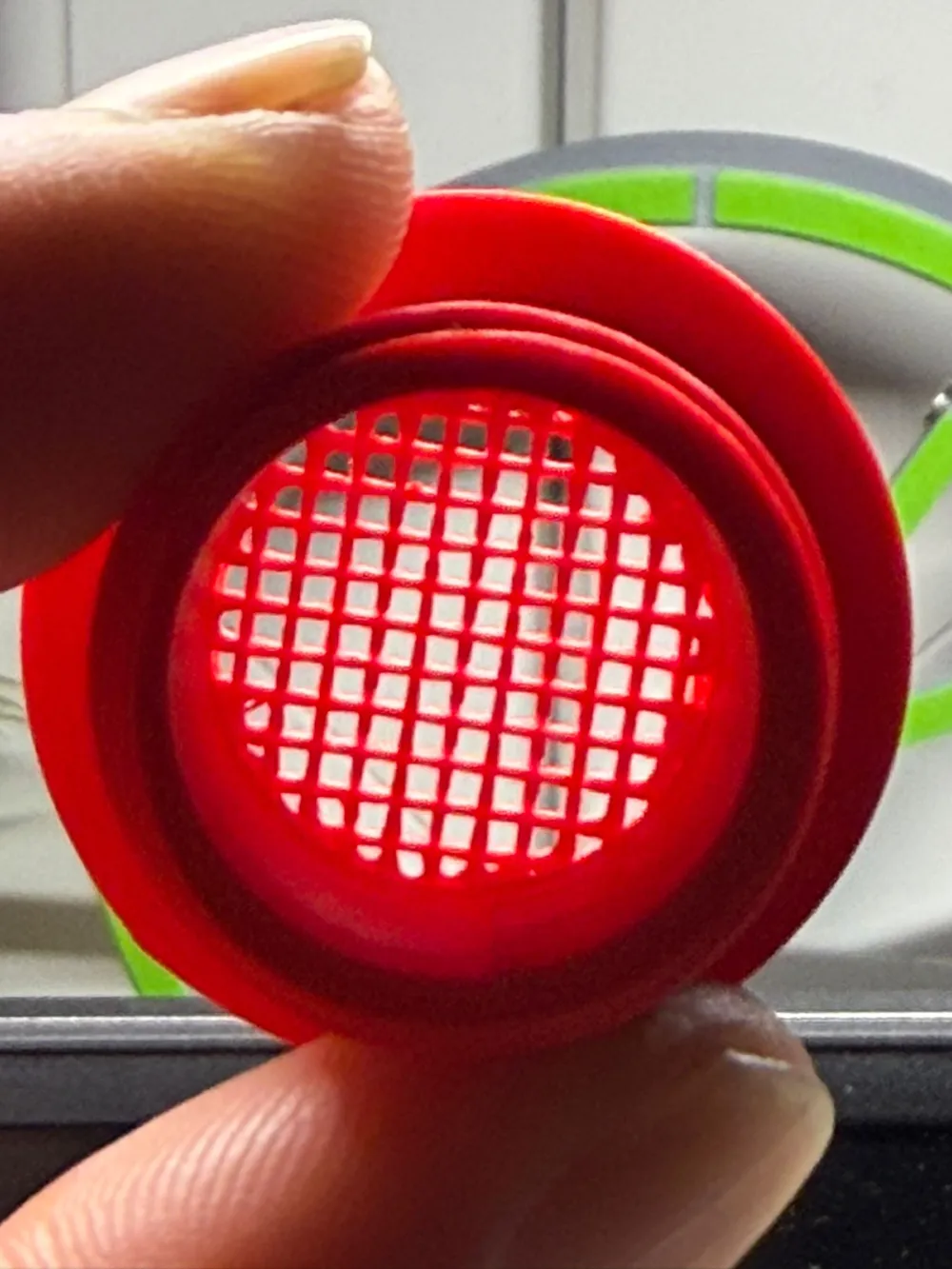

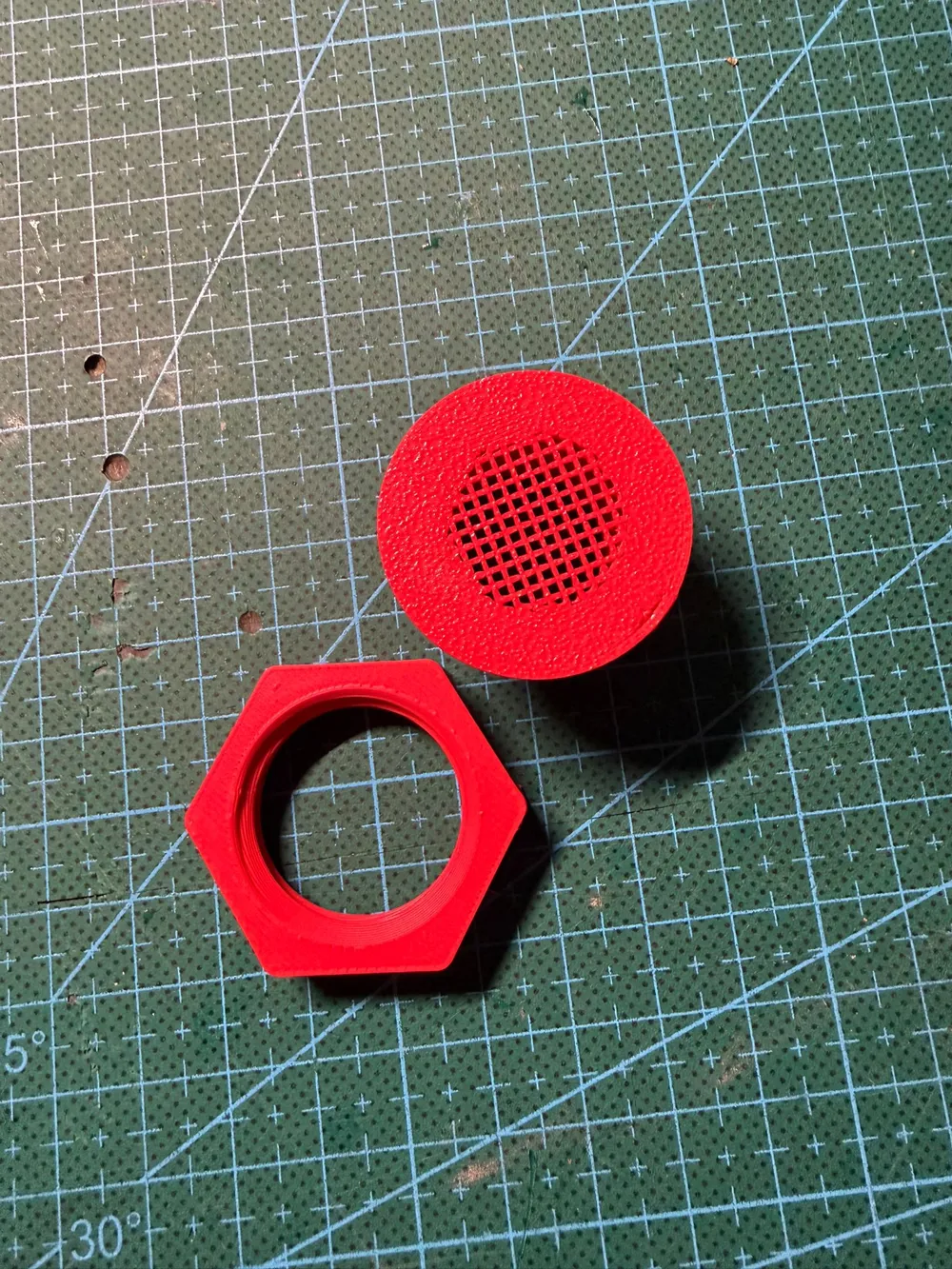

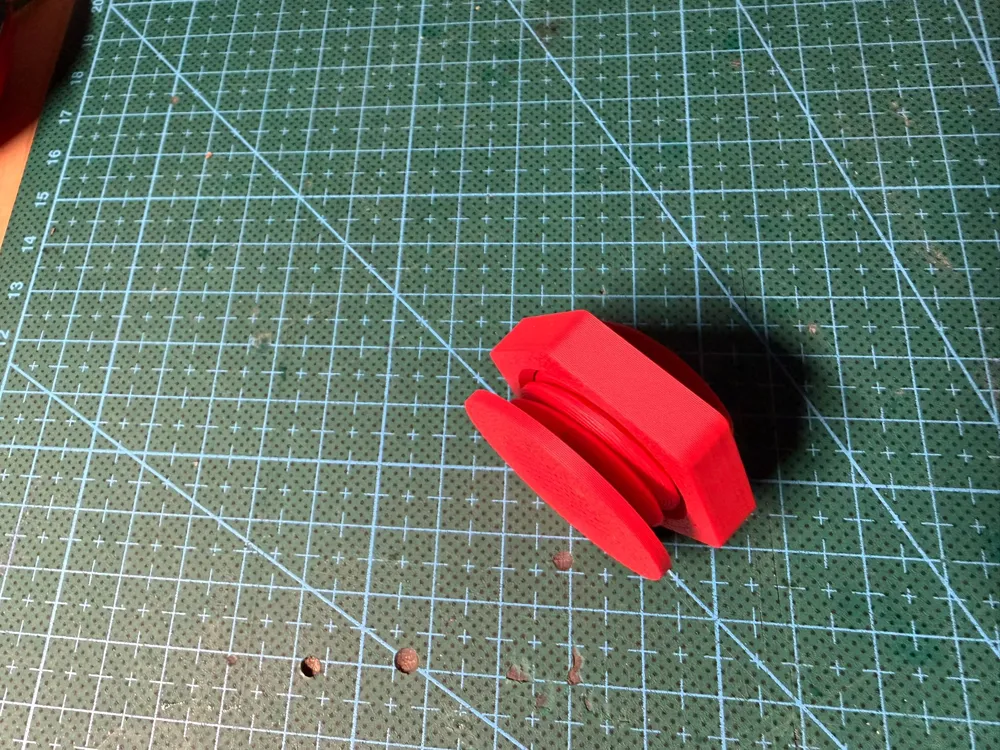

- a 20mm diameter air vent with a grille to allow air to pass through the waterproof box, to be installed at the bottom of the box.

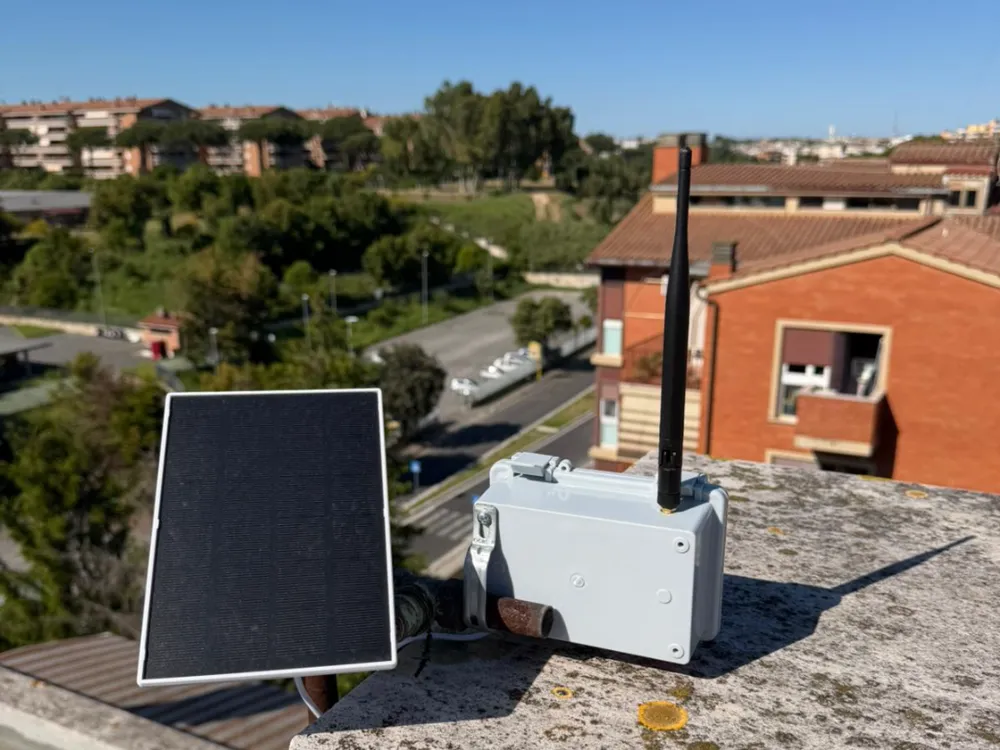

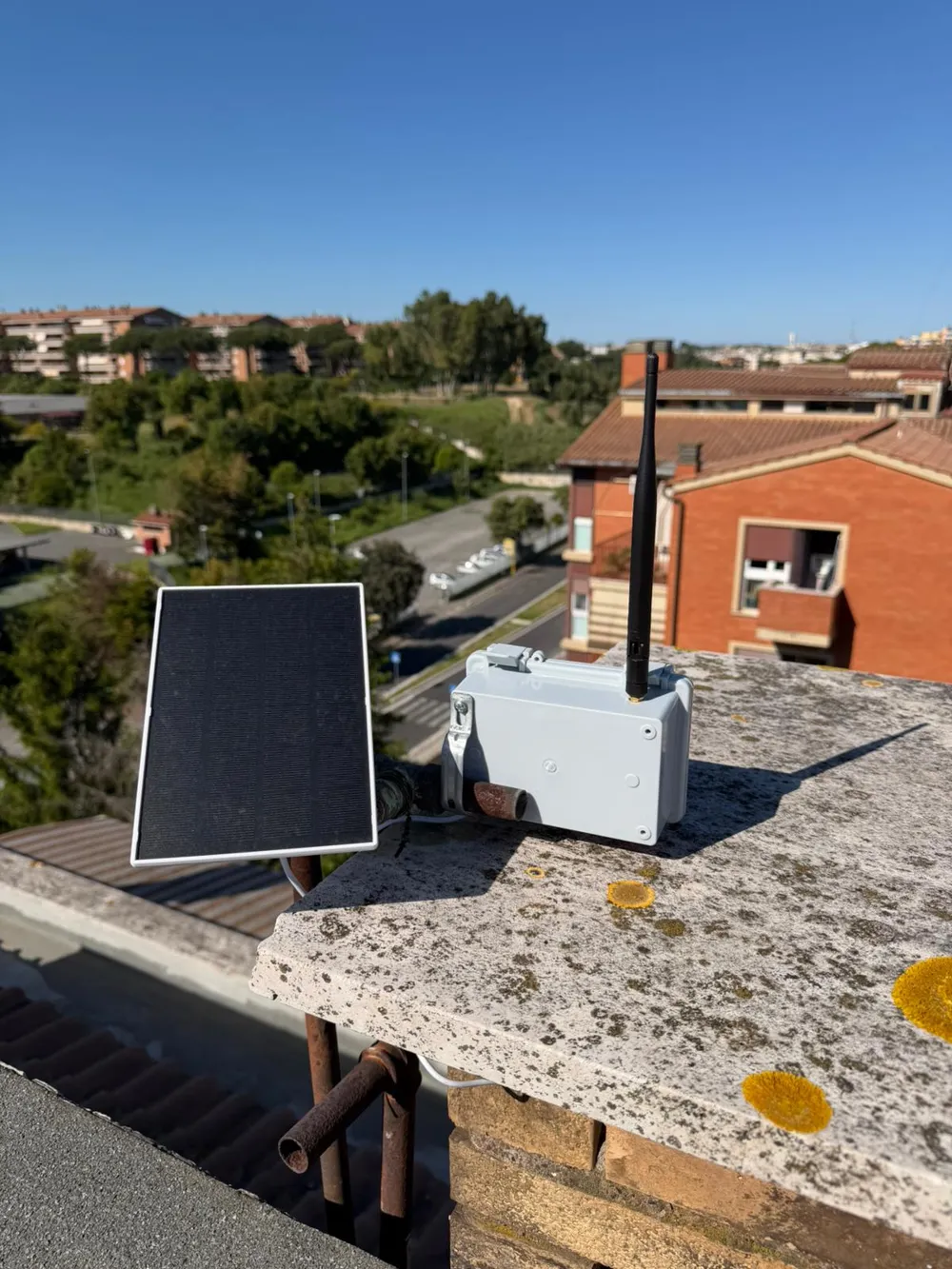

I added a battery protection circuit to my standalone solar node project
https://it.aliexpress.com/item/1005008449687805.html
An MPPT charger for proper battery charging.
https://s.click.aliexpress.com/e/_c4MSwGvH
A 10W 5V solar panel
https://s.click.aliexpress.com/e/_c4Sd0usb

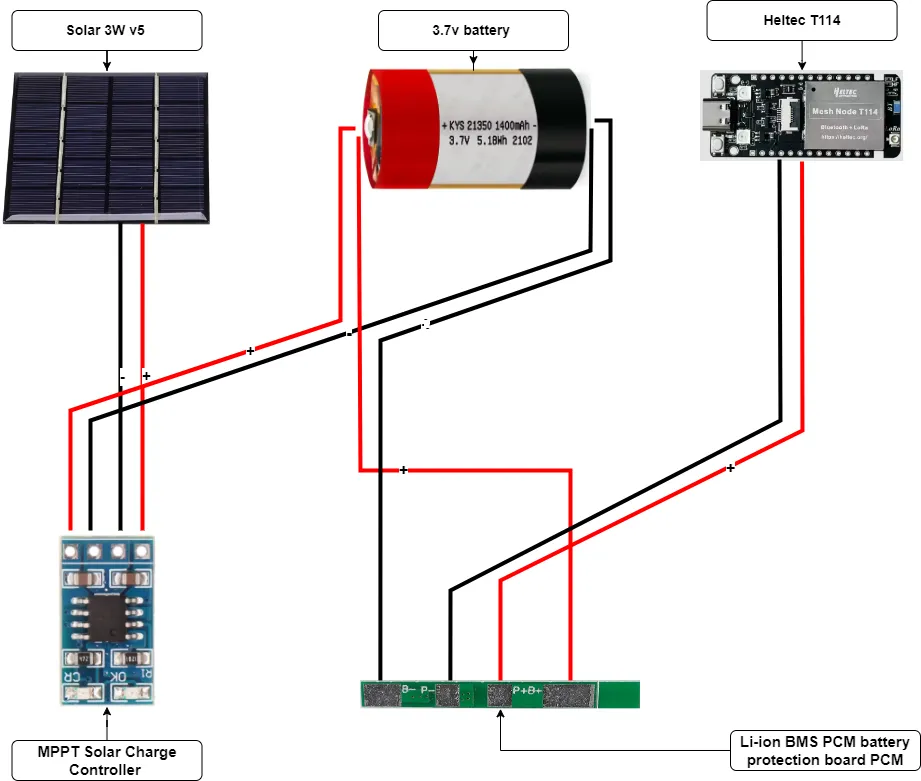

This is the wiring diagram.
Please write here and give your feedback!!
