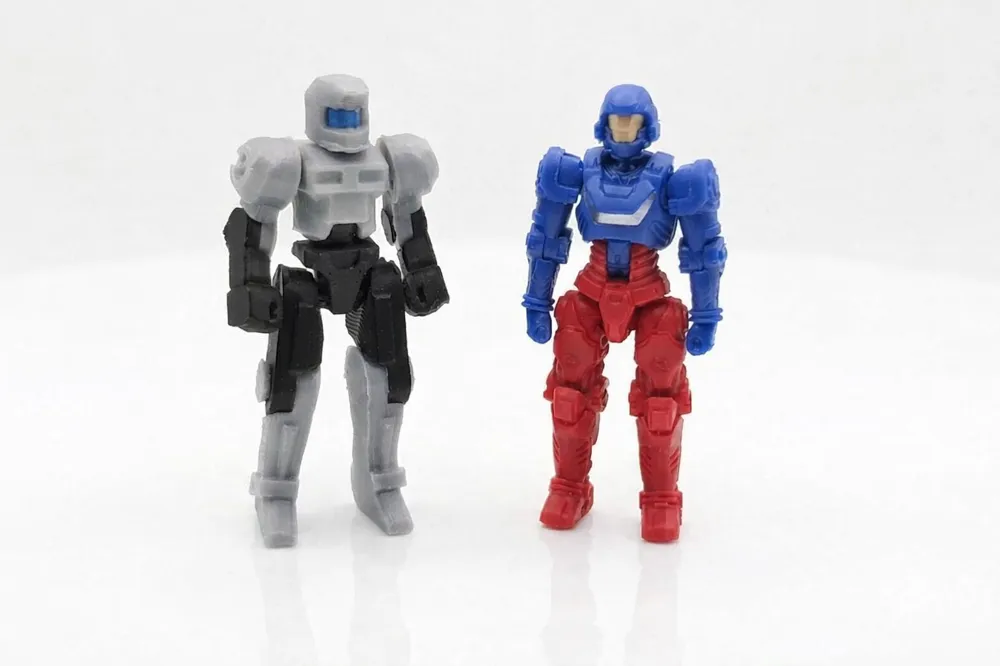

BLOKEES WHEELS & DIACLONE Universal Articulated Minifigure (1/72 & 1/60)

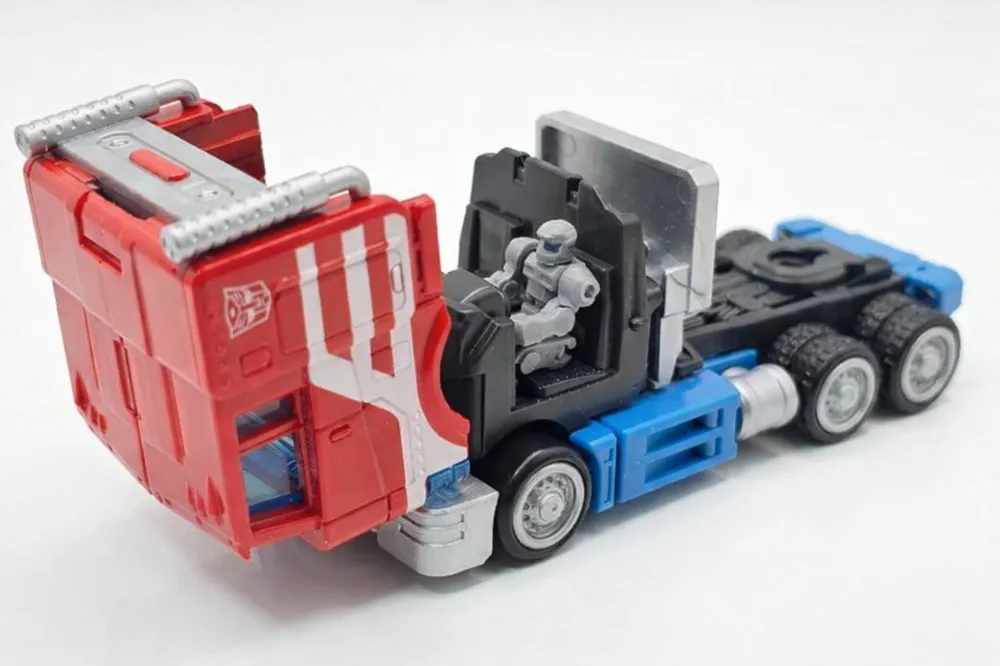

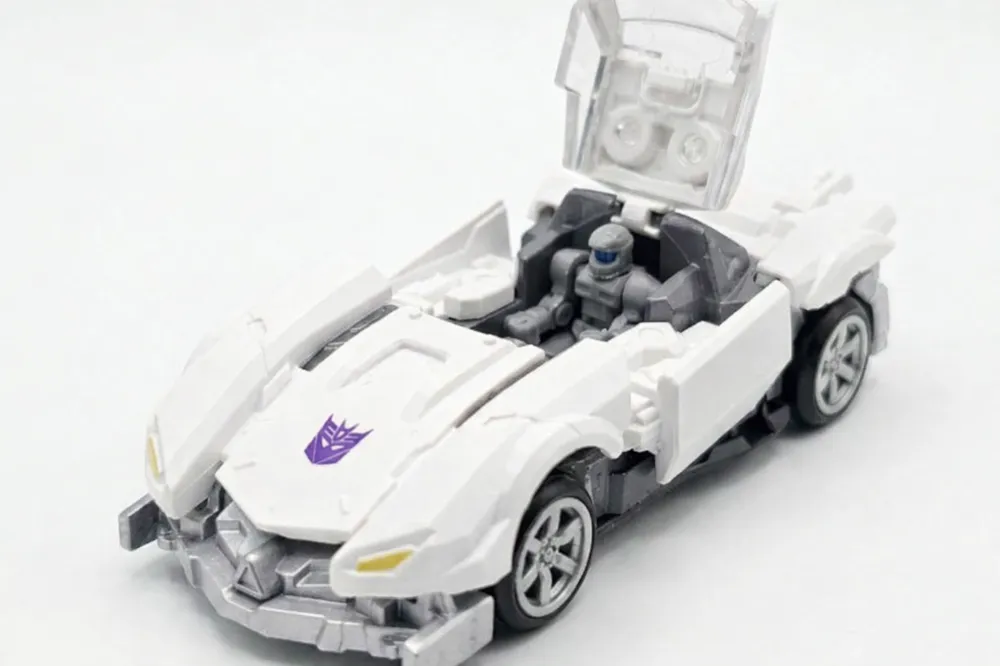

This is a mini articulated figure designed for the BLOKEES WHEELS and DIACLONE series

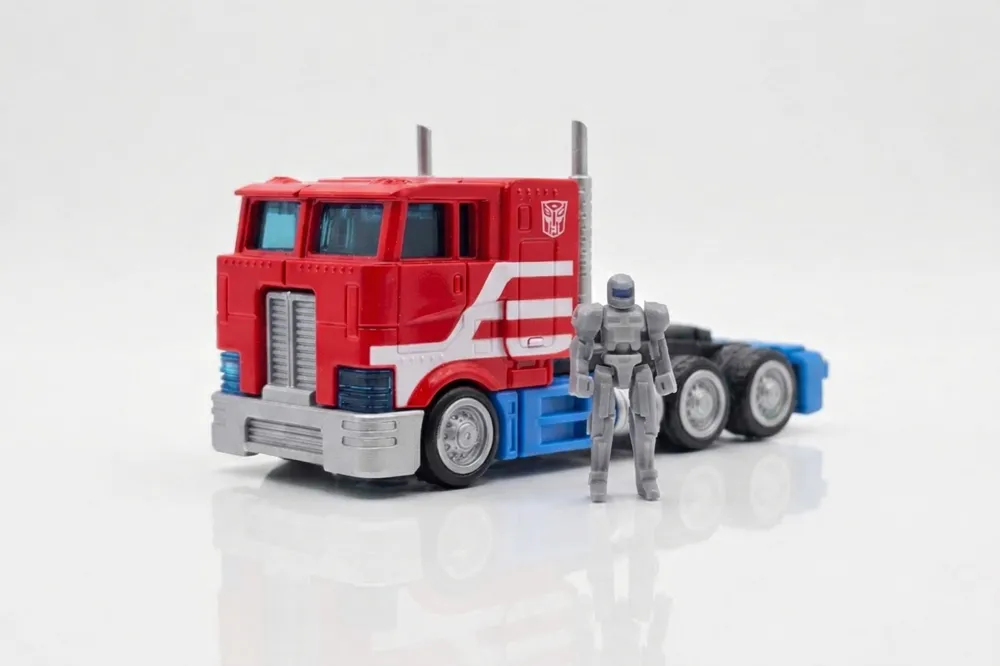

The scale is approximately 1/72 and 1/60

It has 9 points of articulation throughout the body

Different styles of hand, foot, and chest parts are also included, which can be chosen according to preference during assembly

If you want to increase stability when standing, the included base can also be used

New calf parts with holes on the soles of the feet are added, which can be used to install magnets with a diameter of 1mm and a height of 3mm

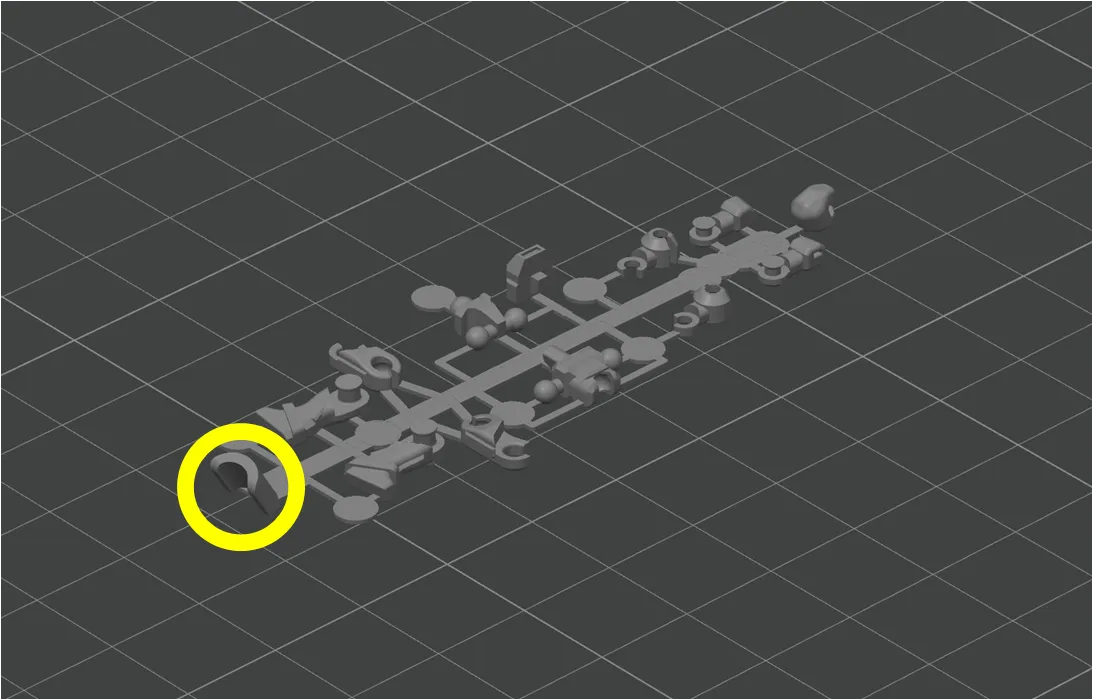

Because the parts are very small, they are designed in a frame mode for easy printing

The handle within the circle in the image below can be directly pulled up to separate after printing has cooled

During assembly, use modeling nippers to cut off the parts

Pay special attention to burrs at the elbow and knee joints

If they are too severe, they may affect assembly and can be trimmed beforehand with nippers

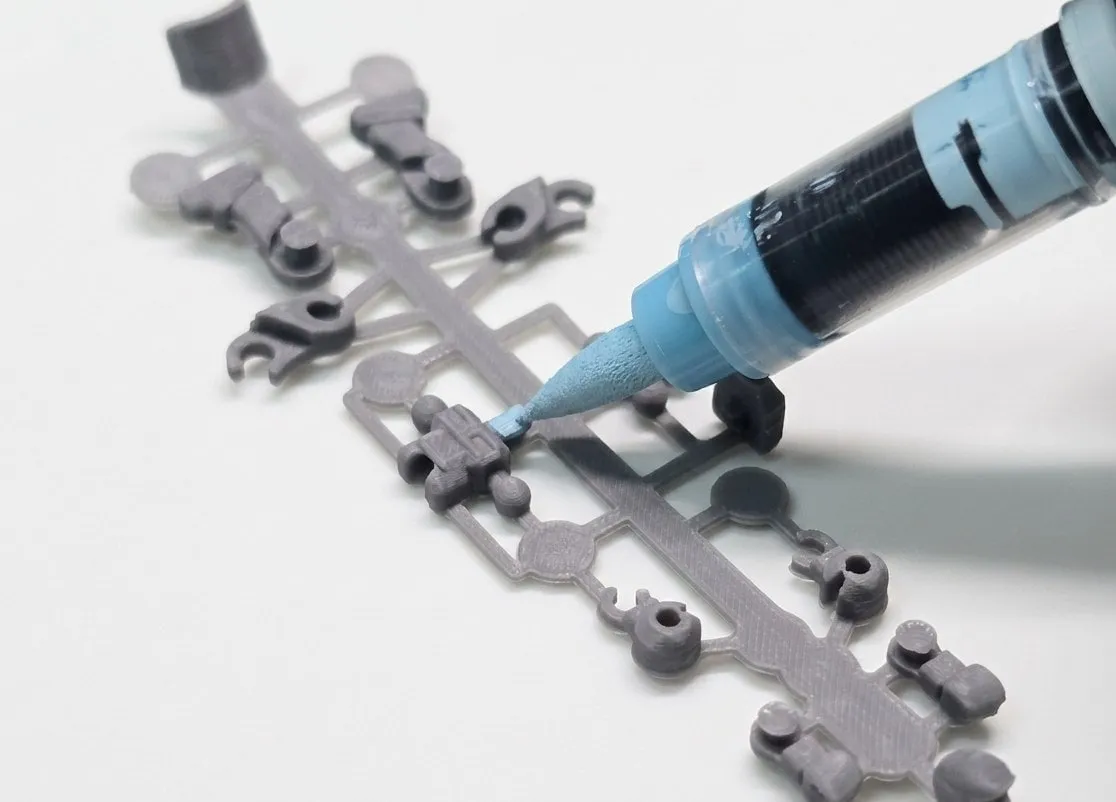

The head can be painted in this area before assembly, and after assembly, it will show the effect of different colored masks

If you encounter a tight ball joint during assembly, you can place it on a table and press it in

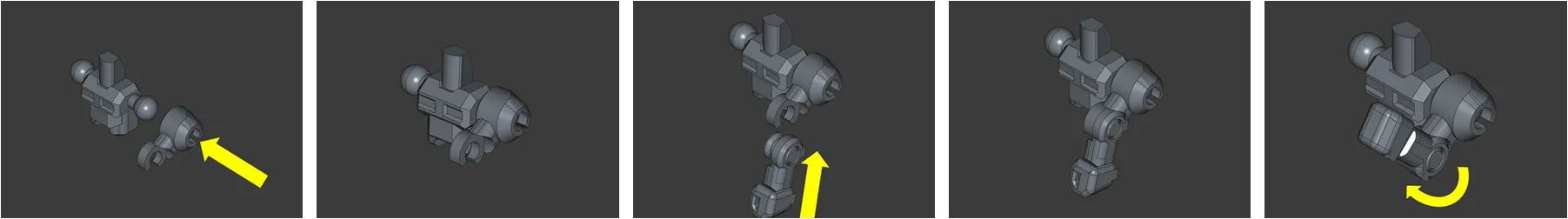

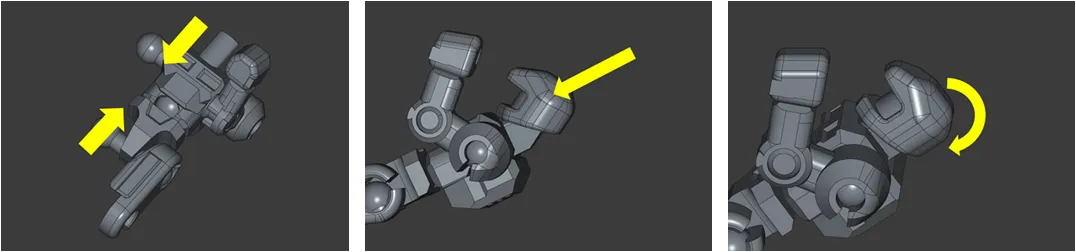

Below are the recommended assembly steps

When installing the head, pay attention to the rotation angle to avoid scratching the paint surface

Because the parts are small, please pay special attention to safety during use

Currently, testing has been conducted using Bambu Lab's official PLA and ESUN PLA+ with a 0.2 nozzle, and all can be printed successfully

If the hand parts feel insufficient in strength, the included one-piece hand parts can also be used

This model still has plenty of room for improvement, and any needs or suggestions are welcome for discussion
